ADG408BN - Analog Devices
LC2MOS 4-/8-Channel High Performance Analog Multiplexers | IC MULTIPLEXER 8X1 16DIP
Technical Details
| Case/Package | N |
| Contact Plating | Lead, Tin |
| Dual Supply Voltage | 15V |
| Height | 3.3mm |
| High Level Output Current | 20mA |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 20.07mm |
| Max Dual Supply Voltage | 22V |
| Max Power Dissipation | 470mW |
| Max Supply Current | 200µA |
| Max Supply Voltage | 32V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 5V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Operating Supply Current | 100µA |
| Operating Supply Voltage | 12V |
| Packaging | Bulk |
| Power Dissipation | 3.1mW |
| Propagation Delay | 130ns |
| Radiation Hardening | No |
| Resistance | 100Ω |
| RoHS | Compliant |
| Throw Configuration | DPST |
| Turn-Off Delay Time | 60ns |
| Turn-On Delay Time | 140ns |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

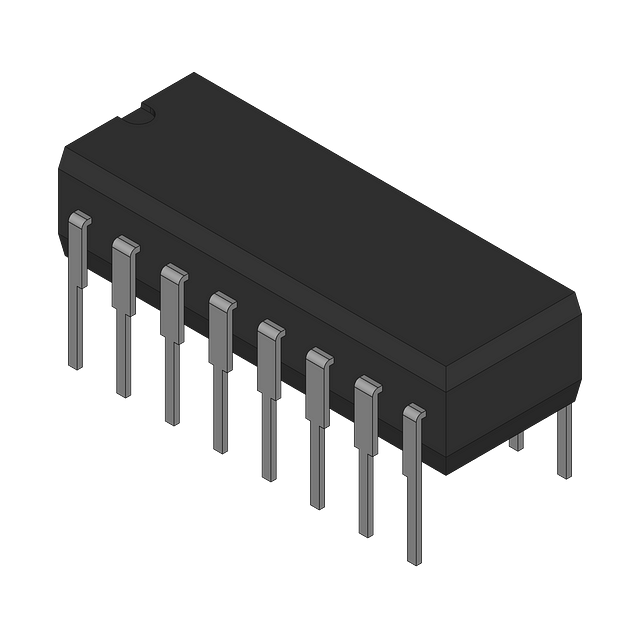

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Vishay | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Vishay | Obsolete | ||
| Intersil | Obsolete | ||
| Renesas | Production | ||
| Renesas | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 16730
|
$ | 4.46 | 4.24 | 3.79 | 3.57 | ||||
