Analog Devices - ADG408BNZ

ADG408BNZ - Analog Devices

MULTIPLEXER, ANALOGUE, NDIP; Available until stocks are exhausted Alternative available

 Datasheets

Technical Details

Case/Package N
Contact Plating Tin
Drain to Source Resistance 40Ω
Dual Supply Voltage 15V
Height 3.3mm
High Level Output Current 20mA
Interface Parallel
Length 20.07mm
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Dual Supply Voltage 22V
Max Operating Temperature 125°C
Max Power Dissipation 470mW
Max Supply Current 200µA
Max Supply Voltage 32V
Min Operating Temperature -55°C
Min Supply Voltage 5V
Nominal Supply Current 100µA
Number of Channels 8
Number of Circuits 1
Number of Inputs 8
Number of Outputs 1
Number of Pins 16
Operating Supply Current 100µA
Operating Supply Voltage 12V
Packaging Bulk
Power Dissipation 3.1mW
Propagation Delay 130ns
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000
Throw Configuration DPST
Turn-Off Delay Time 150ns
Turn-On Delay Time 225ns
Width 6.35mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Analog Devices ADG408BNZ | Analog Devices

Analog Devices

Datasheets

 Farnell
 Analog Devices
 Rochester Electronics

Lifecycle Status Indicator

   Production

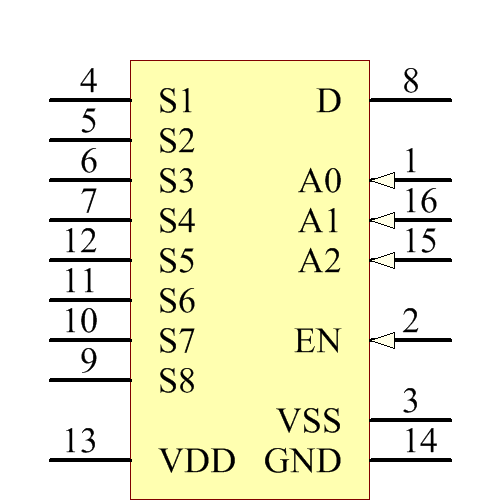

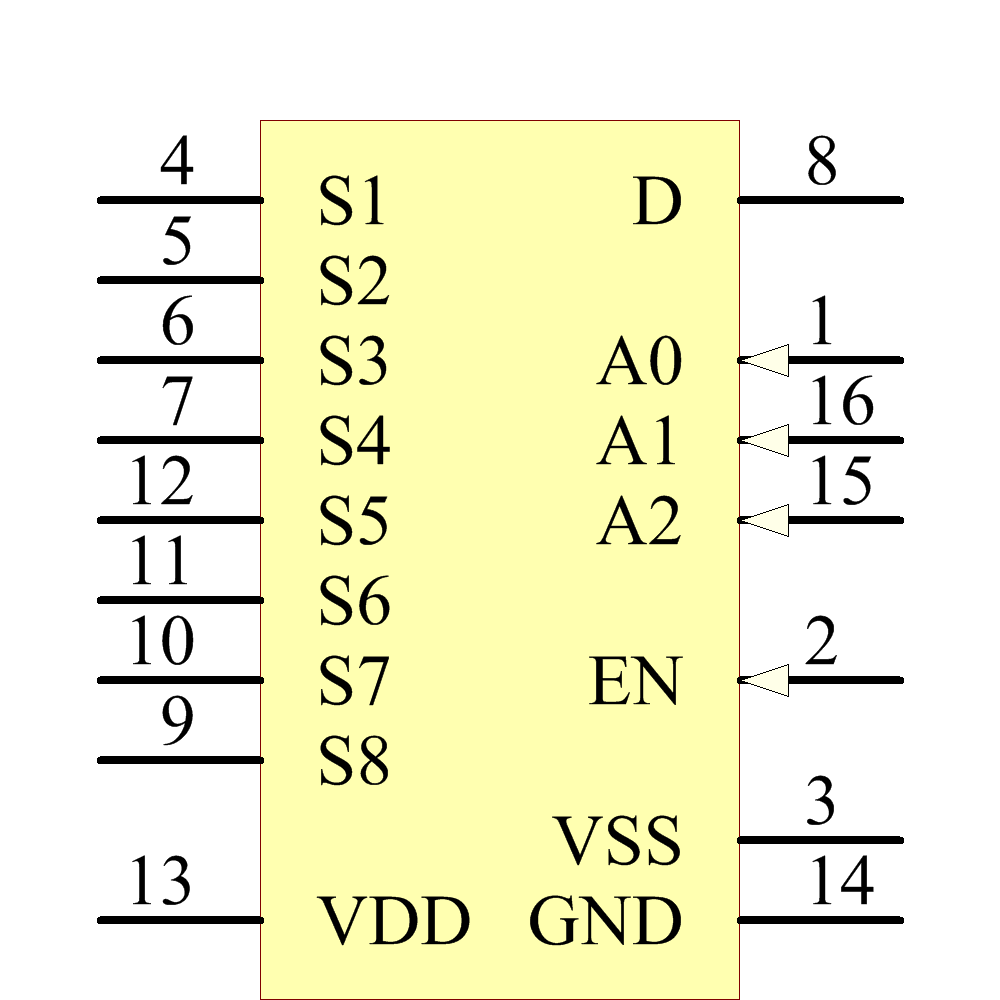

Symbol

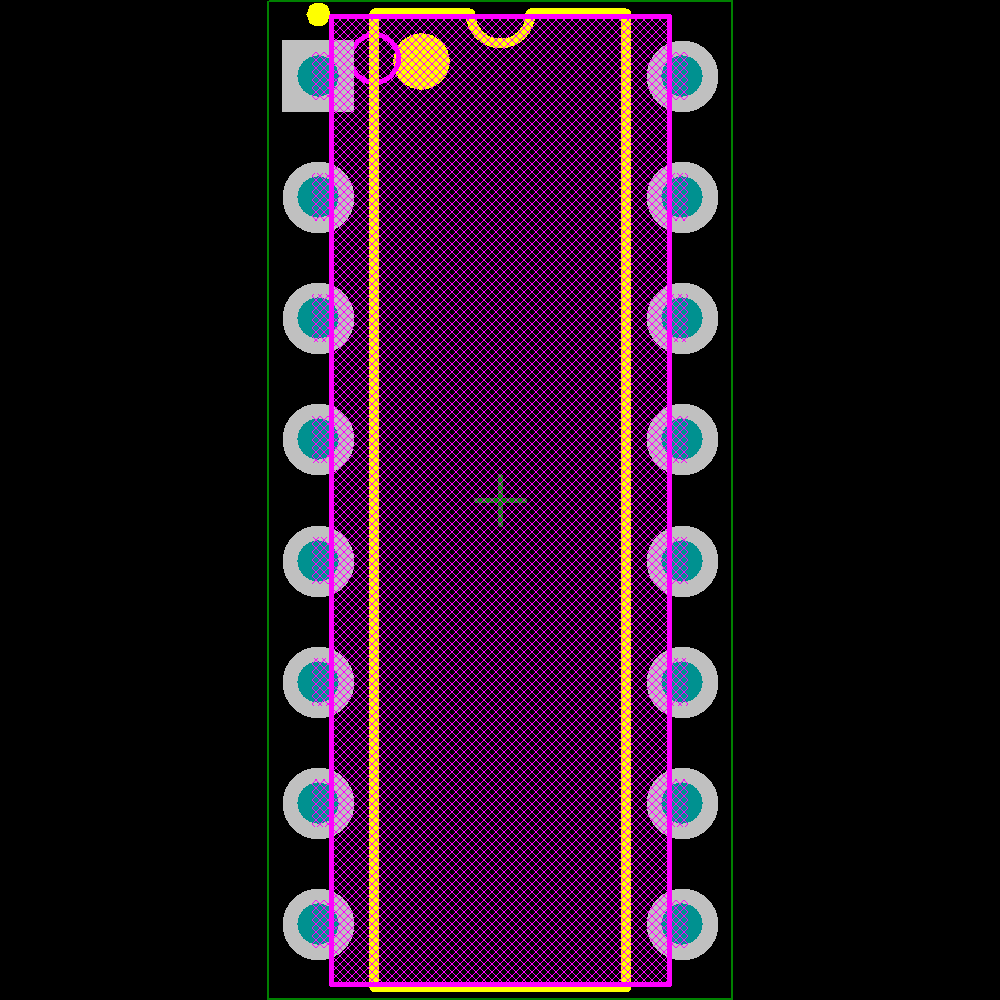

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Vishay
5962-9204201MEA
Obsolete
Analog Devices
ADG408TQ
Unknown
Analog Devices
5962-9204203MEA
Unknown
Vishay
DG408DJ-E3
Obsolete
Analog Devices
ADG408BN
Unknown
Intersil
DG408AK/883
Obsolete
Renesas
5962-9204201MEA
Production
Renesas
DG408DJZ
Obsolete
Analog Devices
MAX4552CPE
Unknown
Analog Devices
MAX320EPA
Obsolete

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Farnell
4032422
DE: 198
 $ 15.9763 12.6109 12.0192 10.4413 9.7756 9.7756
 Historical Pricing  Historical Stock Levels
Quantity
Location
Analog Devices
ADG408BNZ
US: 150
 $ 11.07 7.564 6.6504 5.6172 4.83 4.83
 Historical Pricing  Historical Stock Levels
Quantity
Location
Rochester Electronics
ADG408BNZ
US: 98
 $ 6.35 6.03 5.40 5.08
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
ADG408BNZ
US: 25
 $ 5.1948 5.1948 5.1948 5.1948
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
ADG408BNZ
US: 12
 $ 6.861 6.861 6.332 6.332
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
ADG408BNZ
US: 12
 $ 6.861 6.332 6.332
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
505-ADG408BNZ-ND
DE: 212
 $ 11.4645 8.9682 11.4645 7.6591 6.9733 6.9733
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
584-ADG408BNZ
US: 548
 $ 10.86 8.50 7.90 7.25 6.60 6.60
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
ADG408BNZ
US: 0
 $ 9.86 7.67 6.83 6.53 6.08 6.08
 Historical Pricing  Historical Stock Levels
Quantity
Location
