Technical Details
| Case/Package | SSOP |
| Contact Plating | Tin |
| Drain to Source Resistance | 80Ω |
| Dual Supply Voltage | 15V |
| Height | 1.75mm |
| High Level Output Current | 20mA |
| Interface | Parallel |
| Length | 10.2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 22V |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 3.1mW |
| Max Supply Current | 200µA |
| Max Supply Voltage | 25V |
| Min Operating Temperature | -40°C |
| Nominal Supply Current | 100µA |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Inputs | 16 |
| Number of Outputs | 1 |
| Number of Pins | 28 |
| Operating Supply Current | 200µA |
| Operating Supply Voltage | 12V |
| Packaging | Bulk |
| Power Dissipation | 3.1mW |
| Propagation Delay | 150ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Turn-Off Delay Time | 110ns |
| Turn-On Delay Time | 240ns |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

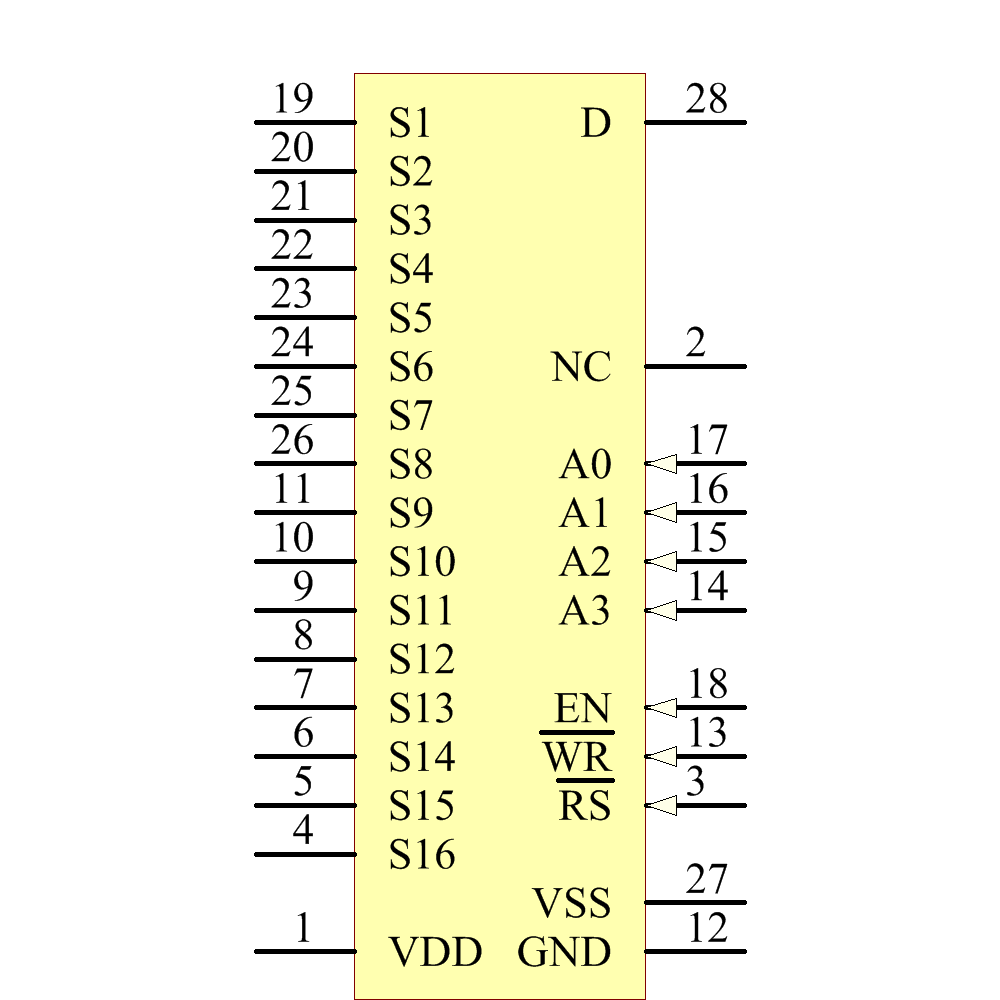

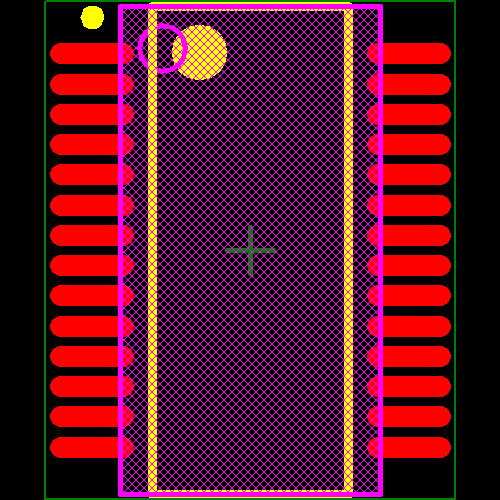

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production |
