ADG442BRZ - Analog Devices

70Ω 4 SPST(SPST)-Normal Open SOIC-16 Analog Switches / Multiplexers ROHS

Technical Details

Case/Package	R
Contact Plating	Tin
Dual Supply Voltage	15V
Height	1.5mm
High Level Output Current	30mA
Interface	Parallel
Length	10mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Dual Supply Voltage	22V
Max Operating Temperature	85°C
Max Power Dissipation	600mW
Max Supply Current	80µA
Max Supply Voltage	25V
Min Dual Supply Voltage	13.5V
Min Operating Temperature	-40°C
Min Supply Voltage	10.8V
Nominal Supply Current	80µA
Number of Bits	4
Number of Channels	4
Number of Circuits	4
Number of Inputs	4
Number of Outputs	4
Number of Pins	16
Operating Supply Voltage	12V
Packaging	Bulk
Polarity	Non-Inverting
Power Dissipation	1.2mW
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Supply Type	Dual, Single
Termination	SMD/SMT
Throw Configuration	SPST
Turn-Off Delay Time	60ns
Turn-On Delay Time	110ns
Width	4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Analog Devices ADG442BRZ | Farnell

Farnell

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

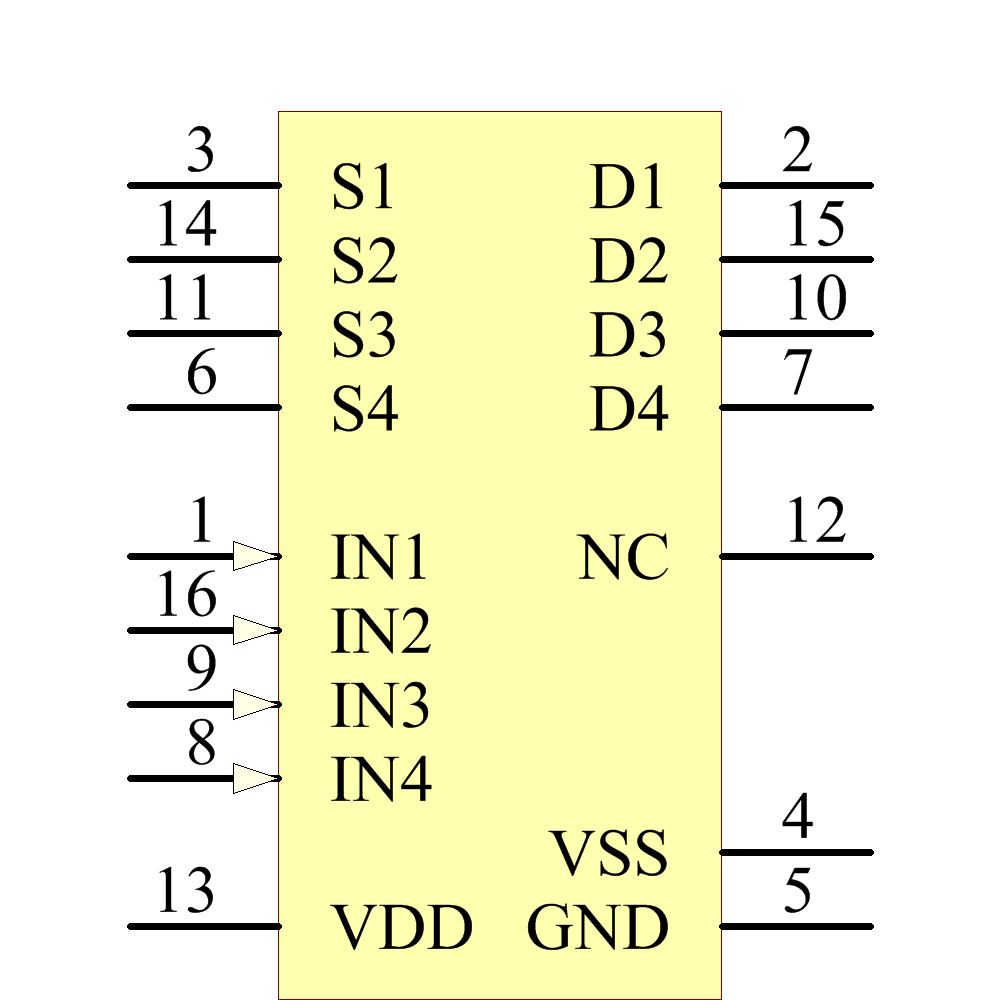

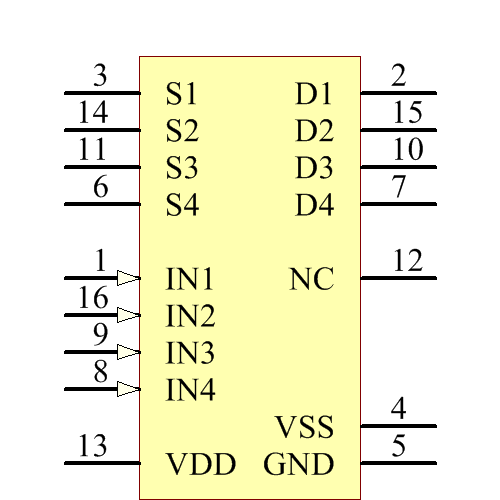

ADG442BRZ Symbol - Analog Devices

ADG442BRZ Symbol - Analog Devices

ADG442BRZ Symbol - Analog Devices

ADG442BRZ Symbol - Analog Devices

‹ ›

Footprint

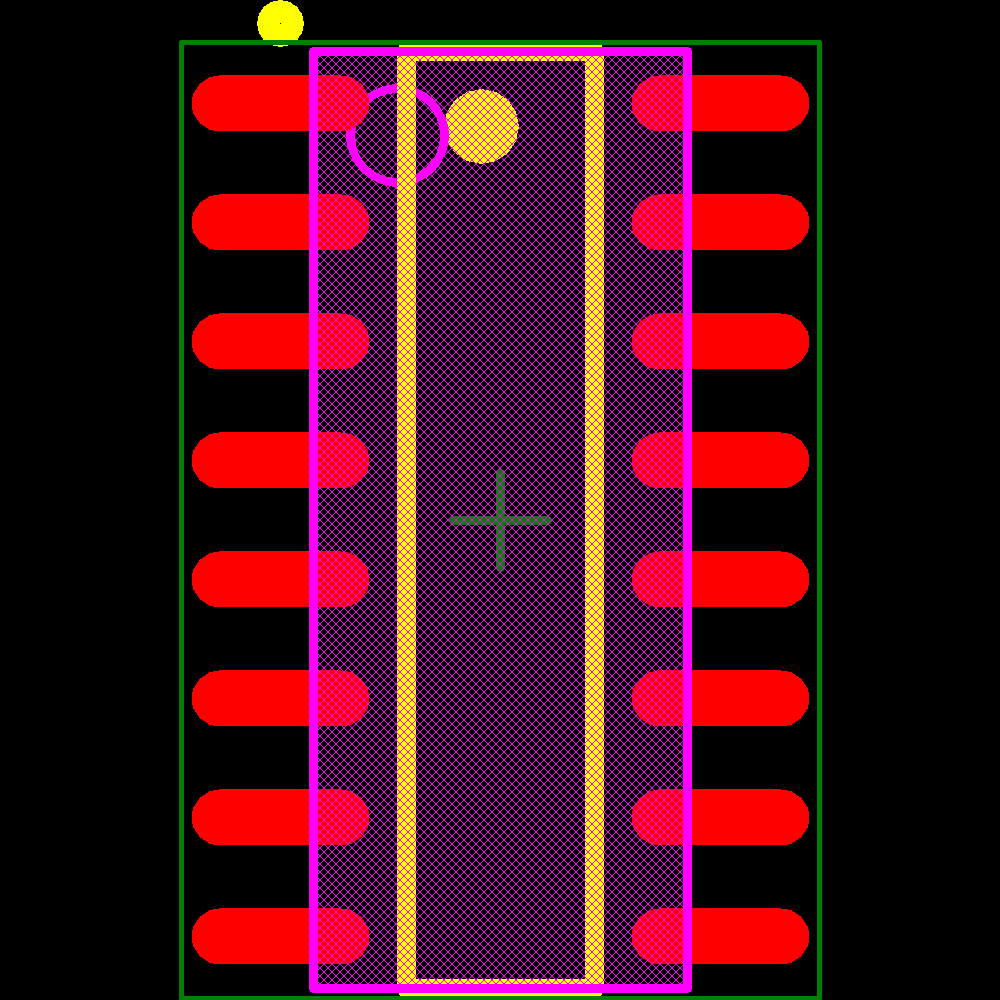

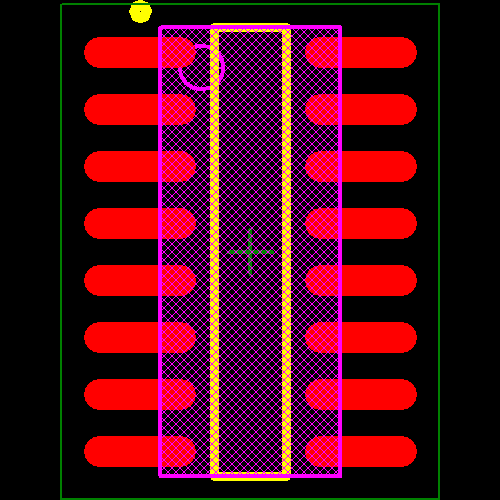

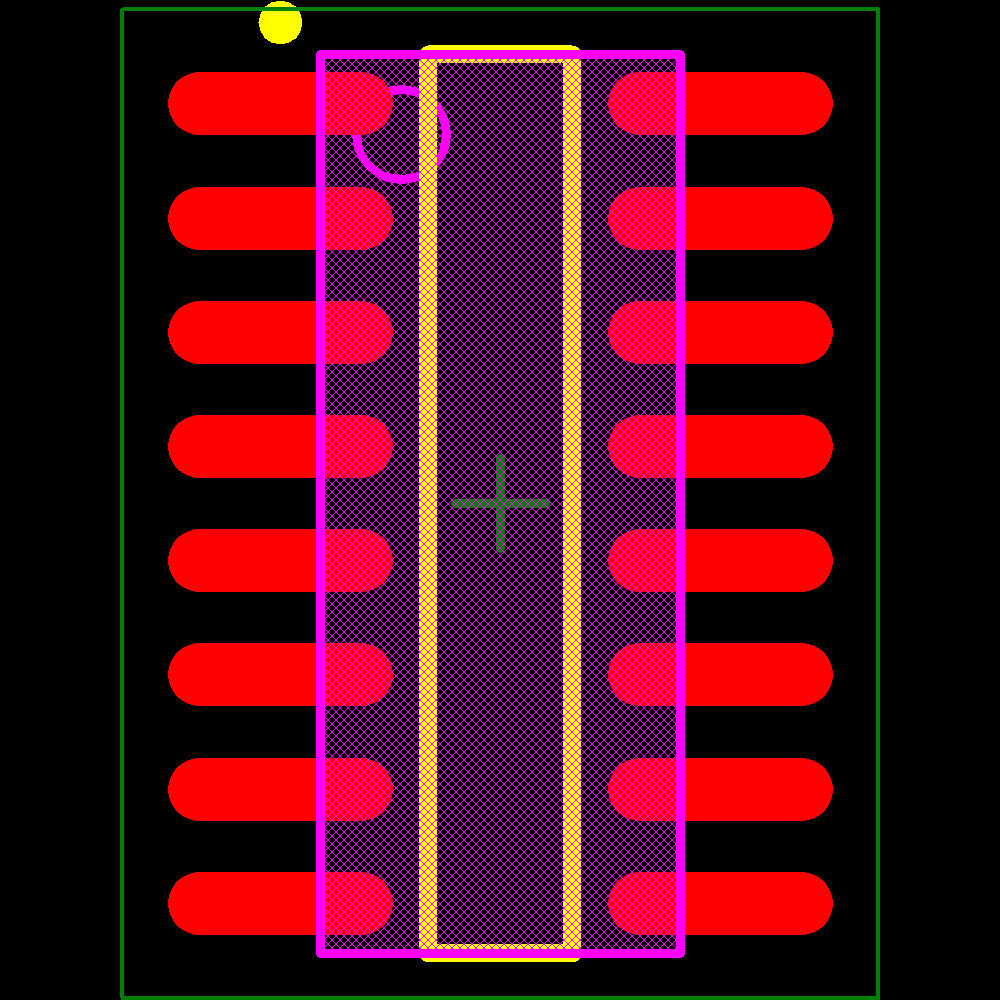

ADG442BRZ Footprint - Analog Devices
