ADG442BRZ-REEL - Analog Devices

70Ω 4 SPST(SPST)-Normal Open SOIC-16 Analog Switches / Multiplexers ROHS

Technical Details

Case/Package	R
Contact Plating	Tin
Dual Supply Voltage	15V
High Level Output Current	30mA
Interface	Parallel
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Dual Supply Voltage	22V
Max Operating Temperature	85°C
Max Power Dissipation	1.2mW
Max Supply Current	80µA
Max Supply Voltage	25V
Min Dual Supply Voltage	13.5V
Min Operating Temperature	-40°C
Min Supply Voltage	10.8V
Nominal Supply Current	80µA
Number of Bits	4
Number of Channels	4
Number of Circuits	4
Number of Inputs	4
Number of Outputs	4
Number of Pins	16
Operating Supply Current	1nA
Operating Supply Voltage	12V
Packaging	Tape & Reel (TR)
Polarity	Non-Inverting
Power Dissipation	1.2mW
Radiation Hardening	No
Resistance	70Ω
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Supply Type	Dual, Single
Throw Configuration	SPST
Turn-Off Delay Time	60ns
Turn-On Delay Time	110ns

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Analog Devices ADG442BRZ-REEL | Analog Devices

Analog Devices

Datasheets

Lifecycle Status Indicator

Production

Symbol

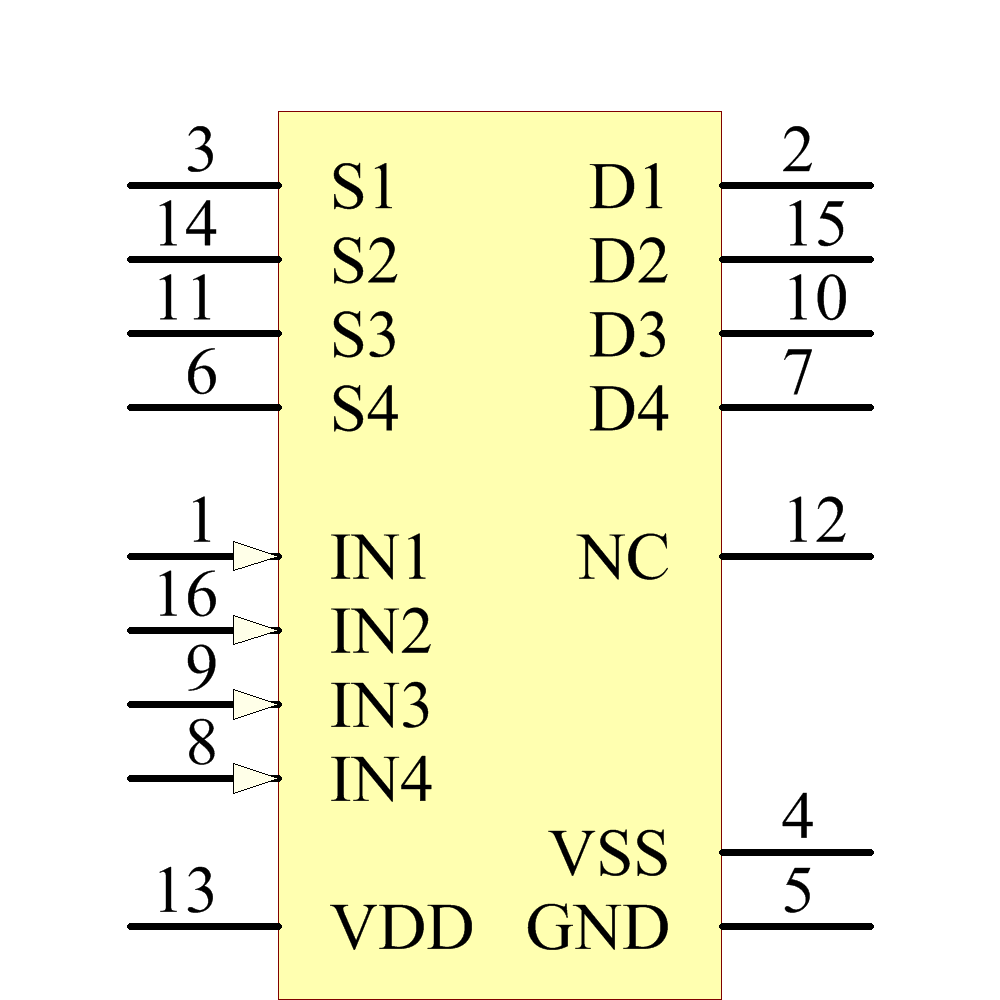

ADG442BRZ-REEL Symbol - Analog Devices

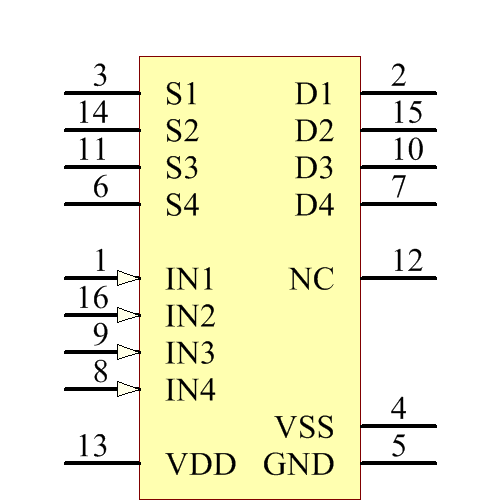

ADG442BRZ-REEL Symbol - Analog Devices

ADG442BRZ-REEL Symbol - Analog Devices

ADG442BRZ-REEL Symbol - Analog Devices

‹ ›

Footprint

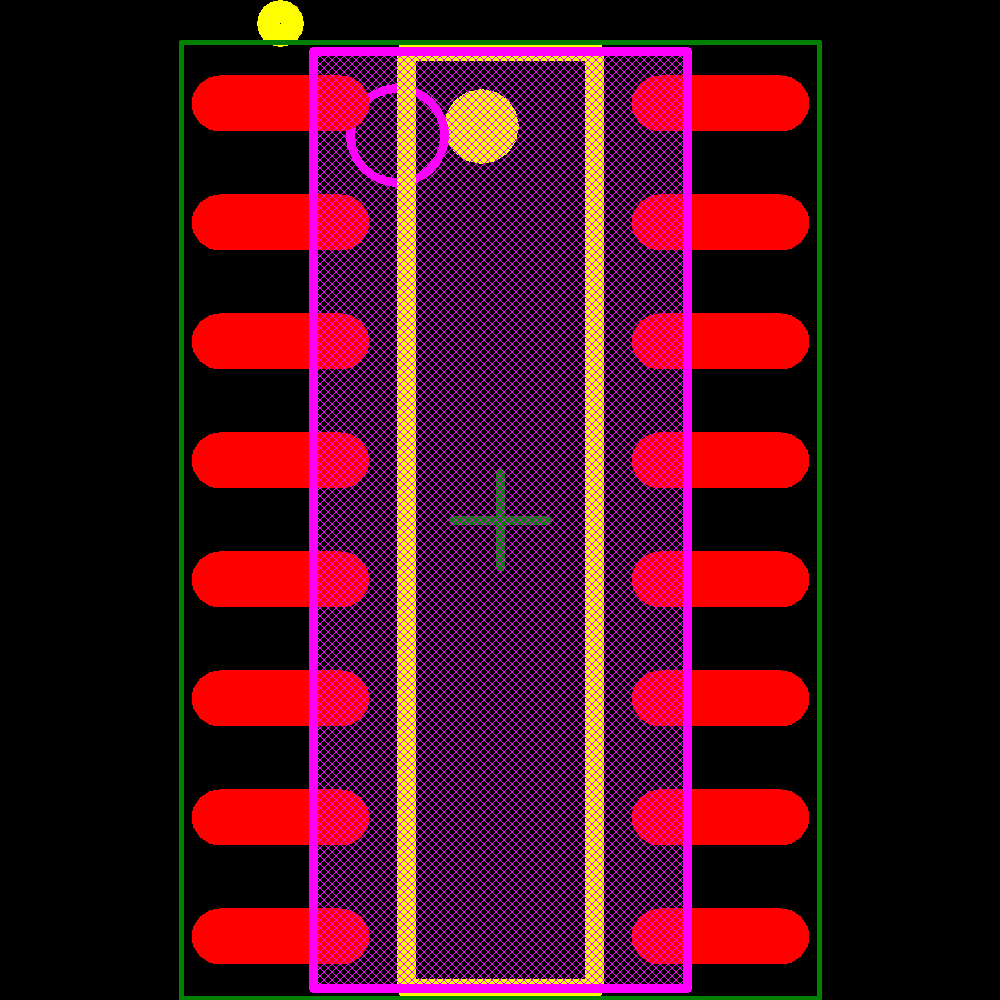

ADG442BRZ-REEL Footprint - Analog Devices

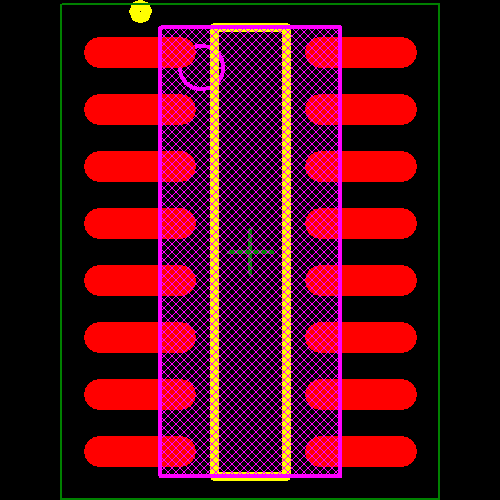

ADG442BRZ-REEL Footprint - Analog Devices
