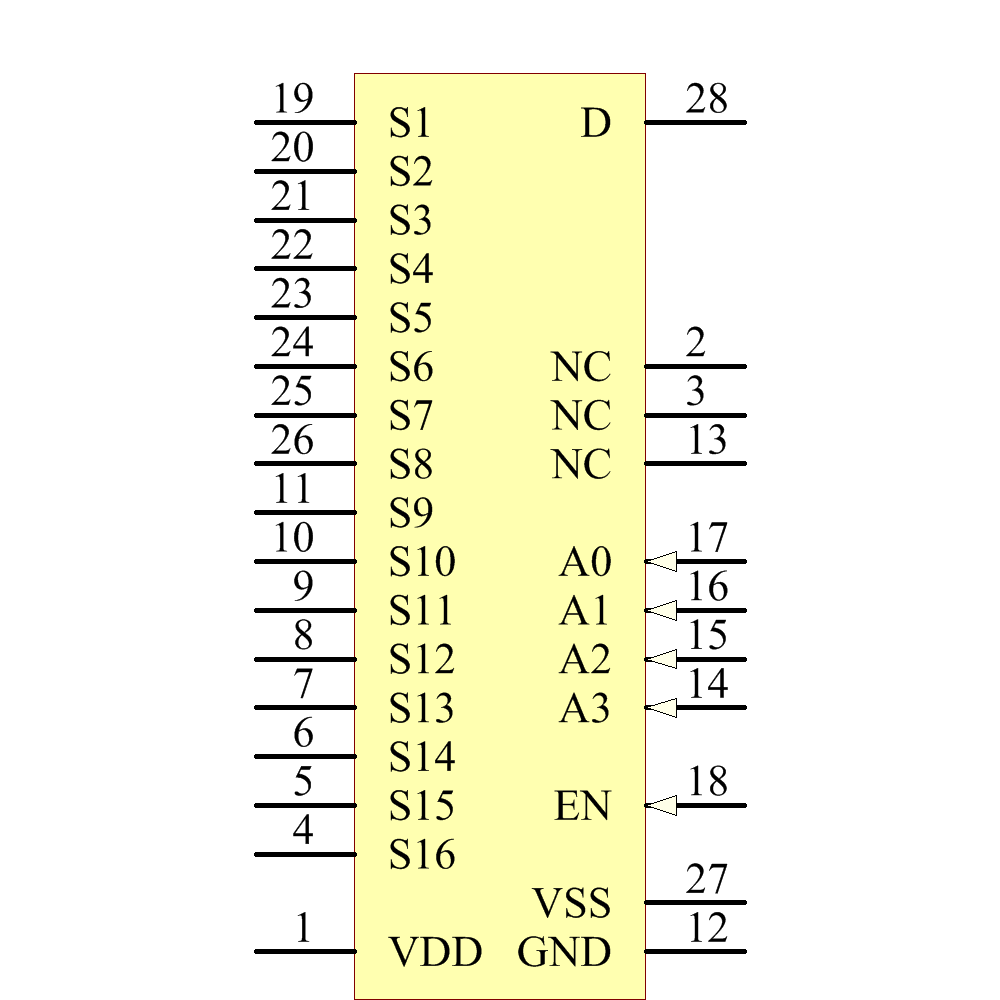

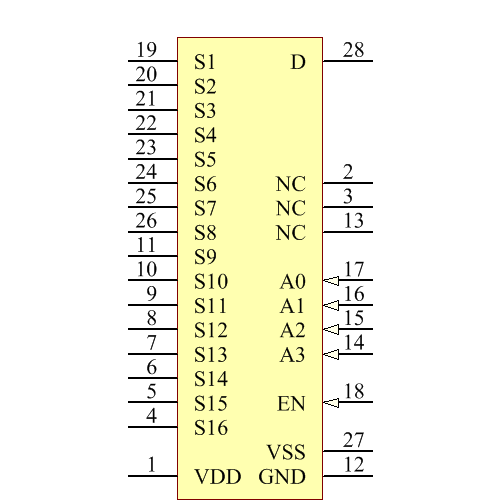

ADG506AKNZ - Analog Devices
IC MUX 16: 1 300OHM 28DIP 1 Circuit IC Switch 16: 1 300Ohm 28-PDIP
Technical Details
| Case/Package | PDIP |
| Contact Plating | Tin |
| Dual Supply Voltage | 15V |
| Height | 4.95mm |
| High Level Output Current | 20mA |
| Interface | Parallel |
| Length | 39.75mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 16.5V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 470mW |
| Max Supply Voltage | 16.5V |
| Min Dual Supply Voltage | 10.8V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 10.8V |
| Nominal Supply Current | 1.5mA |
| Number of Channels | 16 |
| Number of Inputs | 16 |
| Number of Outputs | 1 |
| Number of Pins | 28 |
| Packaging | Bulk |
| Power Dissipation | 10mW |
| Propagation Delay | 300ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Turn-Off Delay Time | 600ns |
| Turn-On Delay Time | 600ns |
| Width | 14.73mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

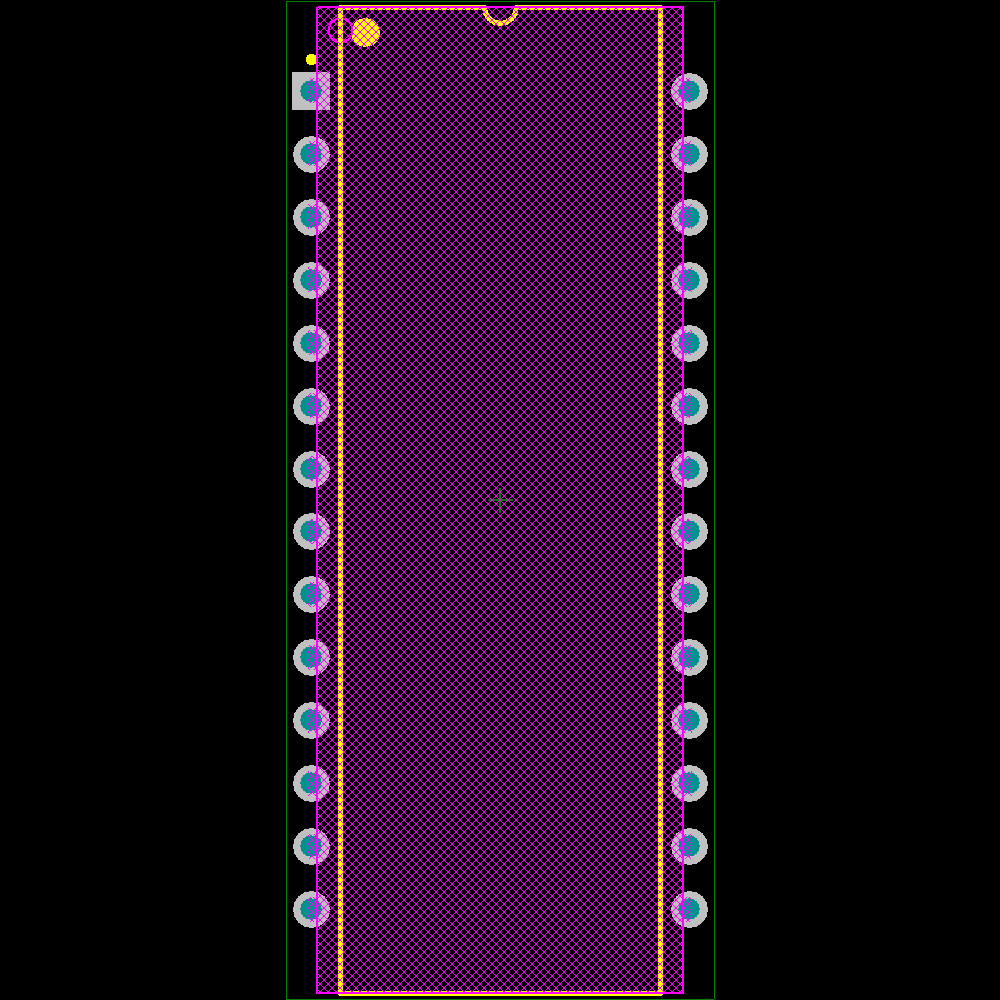

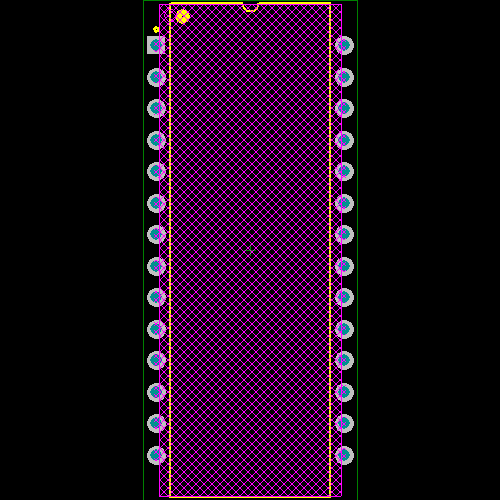

Images
