ADG506AKRZ-REEL - Analog Devices
IC MUX 16: 1 300OHM 28SOIC 1 Circuit IC Switch 16: 1 300Ohm 28-SOIC
Technical Details
| Case/Package | SOIC |
| Interface | Parallel |
| Lifecycle Status | Production |
| Logic Function | Multiplexer |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 16.5V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 470mW |
| Max Supply Voltage | 16.5V |
| Min Dual Supply Voltage | 10.8V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 10.8V |
| Number of Channels | 16 |
| Number of Circuits | 1 |
| Number of Inputs | 16 |
| Number of Outputs | 1 |
| Number of Pins | 28 |
| Operating Supply Current | 600nA |
| Operating Supply Voltage | 15V |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 10mW |
| Propagation Delay | 300ns |
| Resistance | 300Ω |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Supply Type | Dual, Single |
| Turn-Off Delay Time | 450ns |
| Turn-On Delay Time | 450ns |
Compliance
RoHS : Unconfirmed

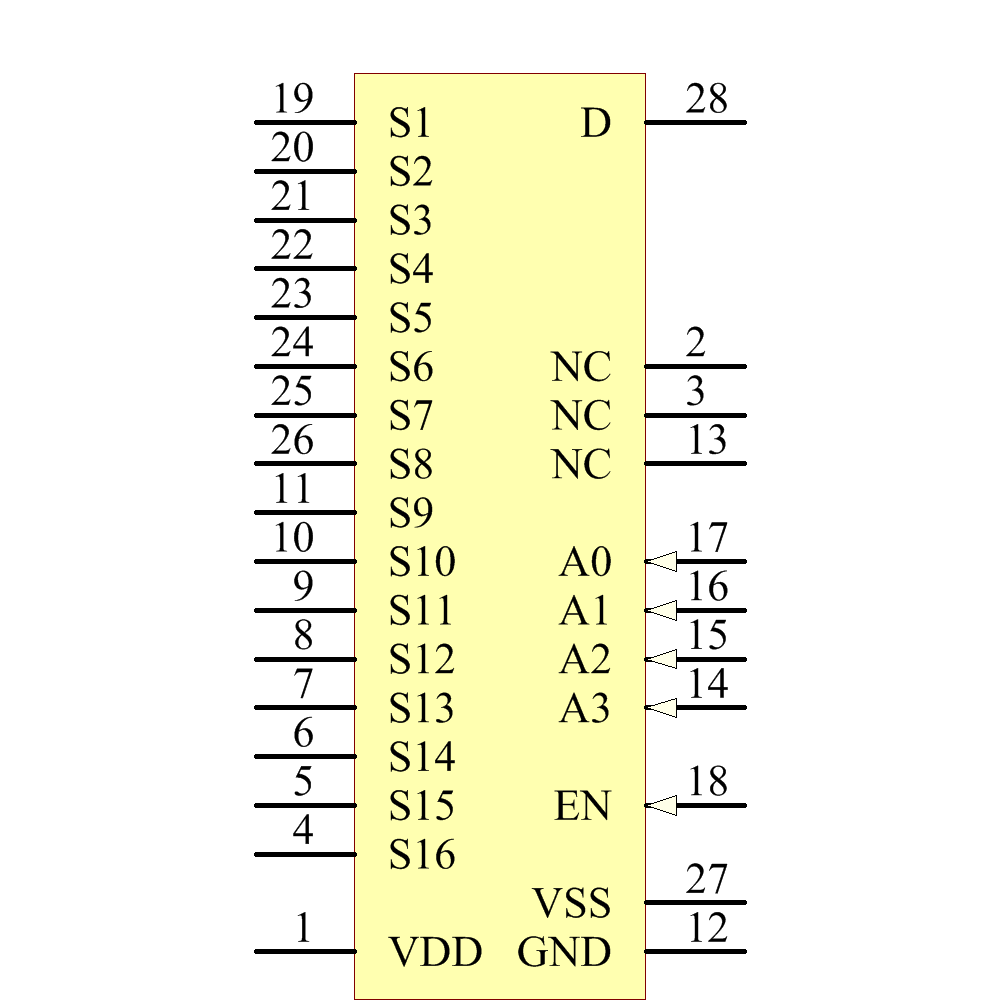

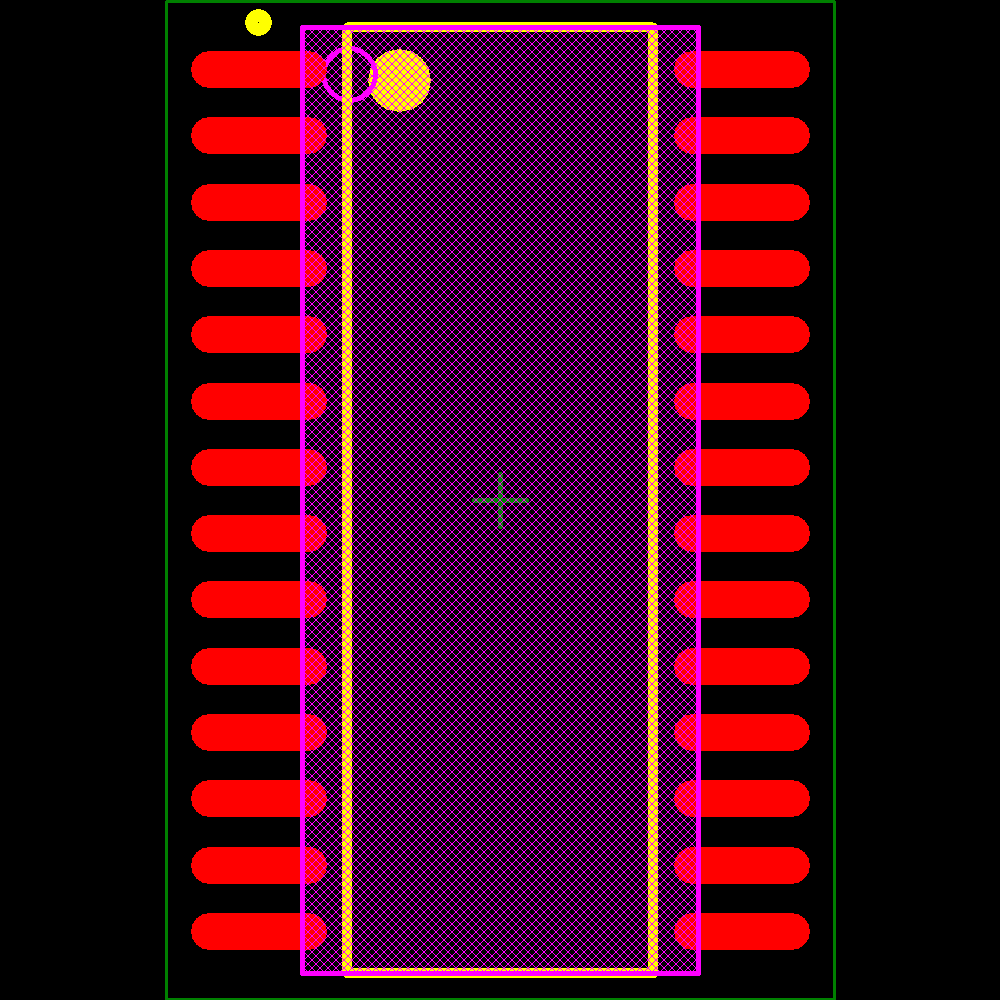

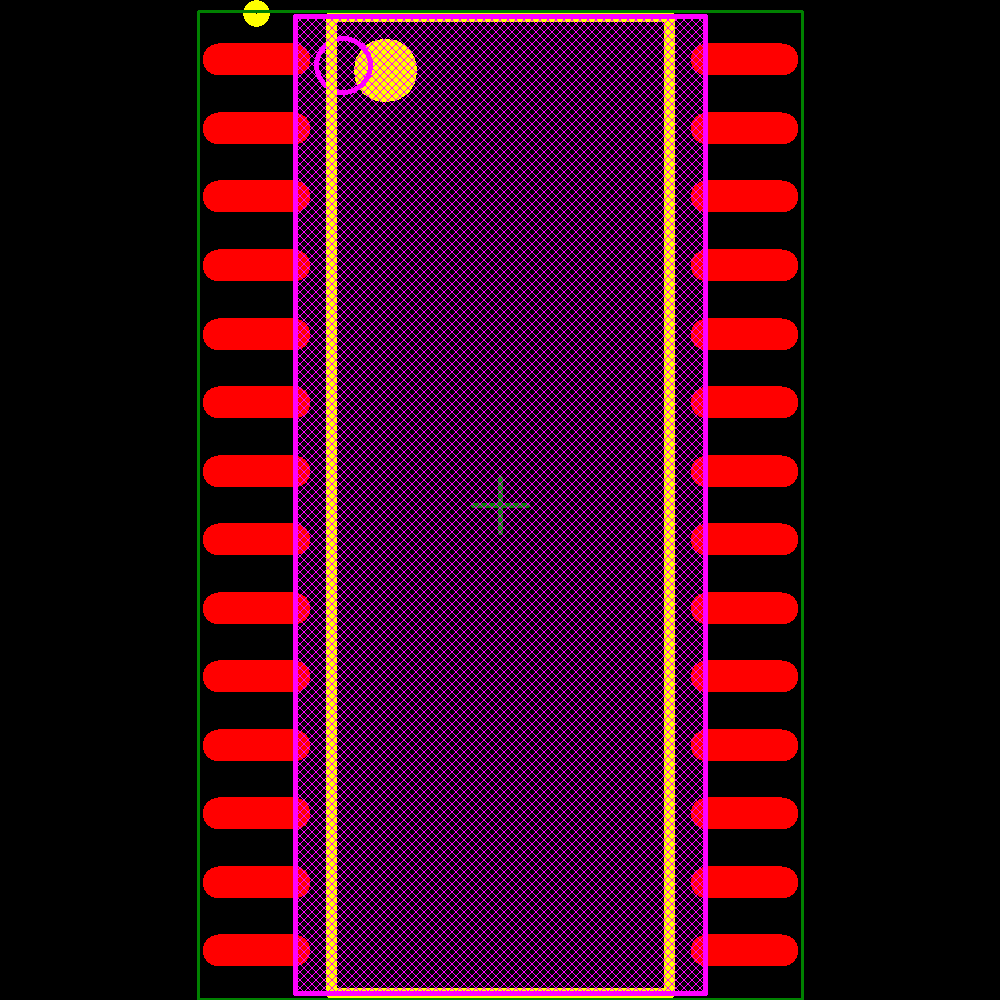

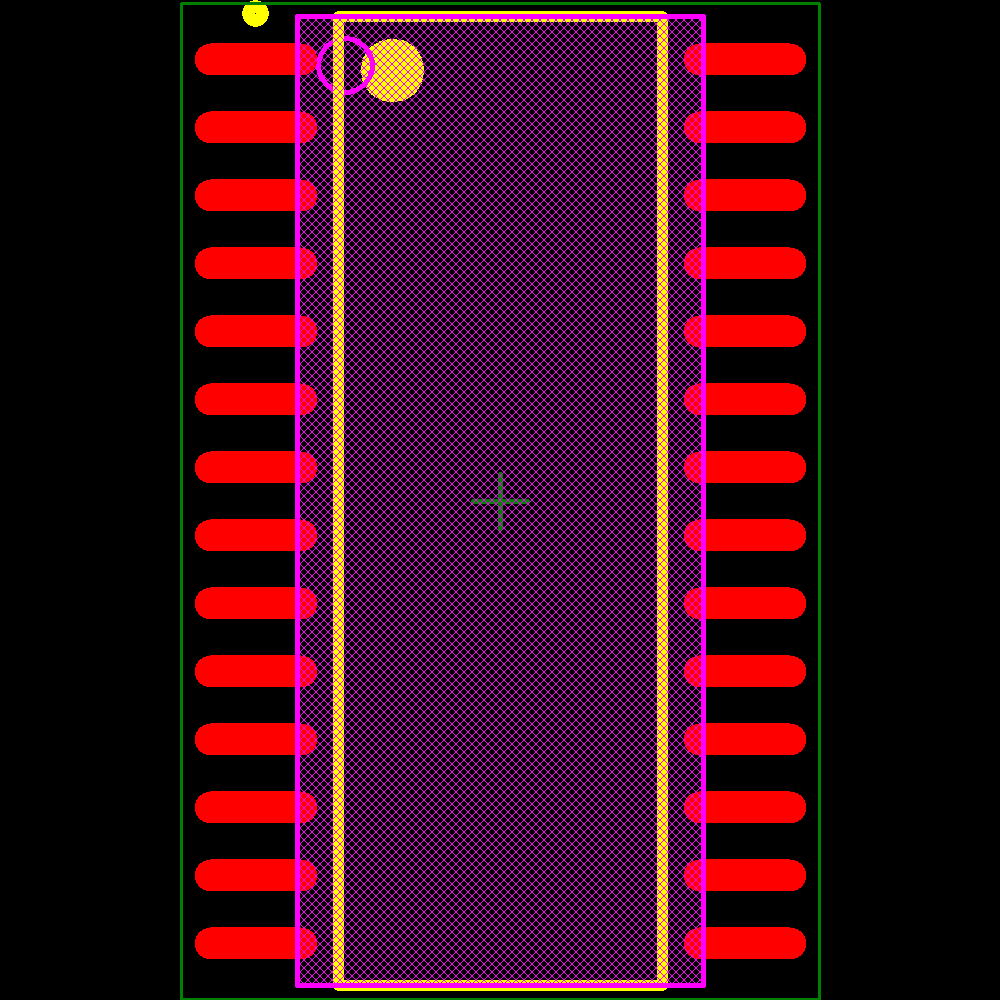

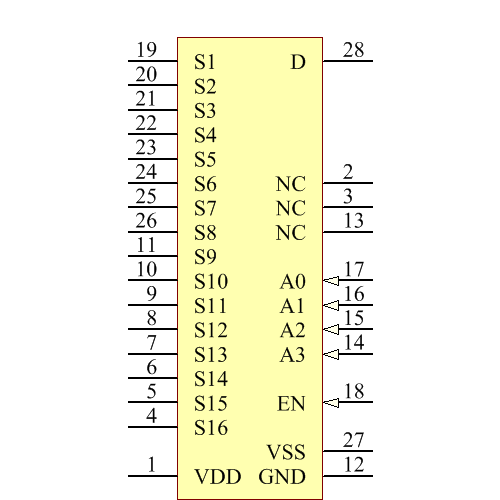

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Intersil | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production |
