ADG507AKPZ - Analog Devices
CMOS 8-CHANNEL ANALOG MULTIPLEXER Differential Multiplexer, 1 Func, 8 Channel, CMOS, PQCC28
Technical Details
| Case/Package | P |
| Height | 3.94mm |
| Interface | Parallel |
| Length | 11.58mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 16.5V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 470mW |
| Max Supply Voltage | 16.5V |
| Min Dual Supply Voltage | 10.8V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 10.8V |
| Nominal Supply Current | 1.5mA |
| Number of Channels | 1 |
| Number of Circuits | 2 |
| Number of Inputs | 16 |
| Number of Outputs | 2 |
| Number of Pins | 28 |
| Packaging | Bulk |
| Power Dissipation | 28mW |
| Propagation Delay | 300ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| Resistance | 300Ω |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000 |
| Turn-Off Delay Time | 600ns |
| Turn-On Delay Time | 600ns |
| Width | 11.58mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

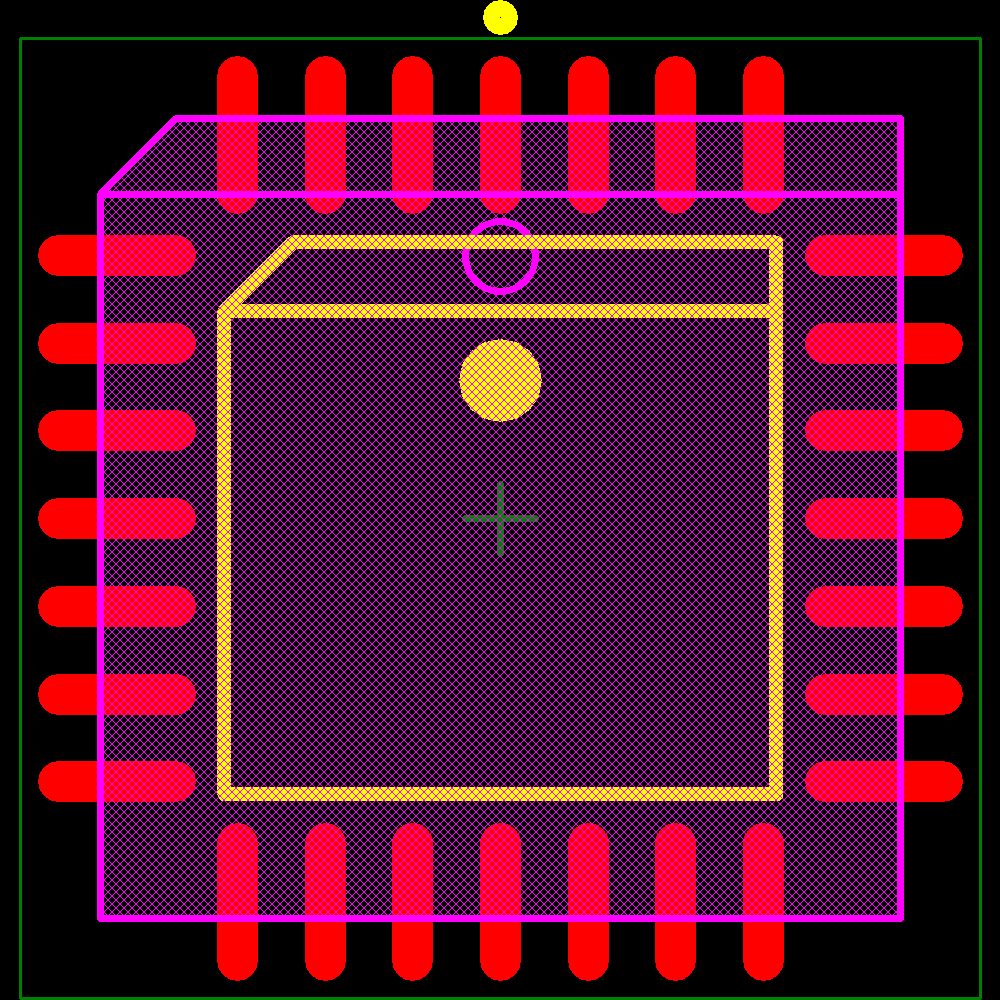

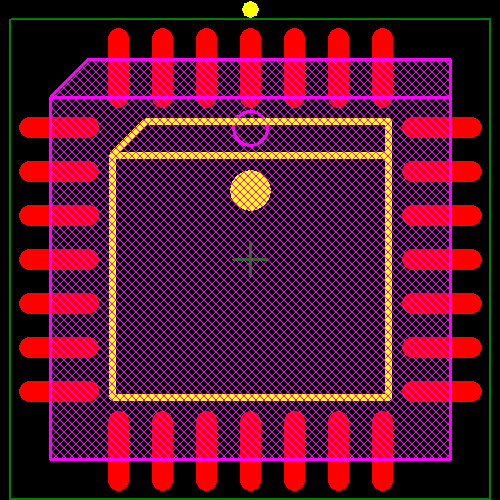

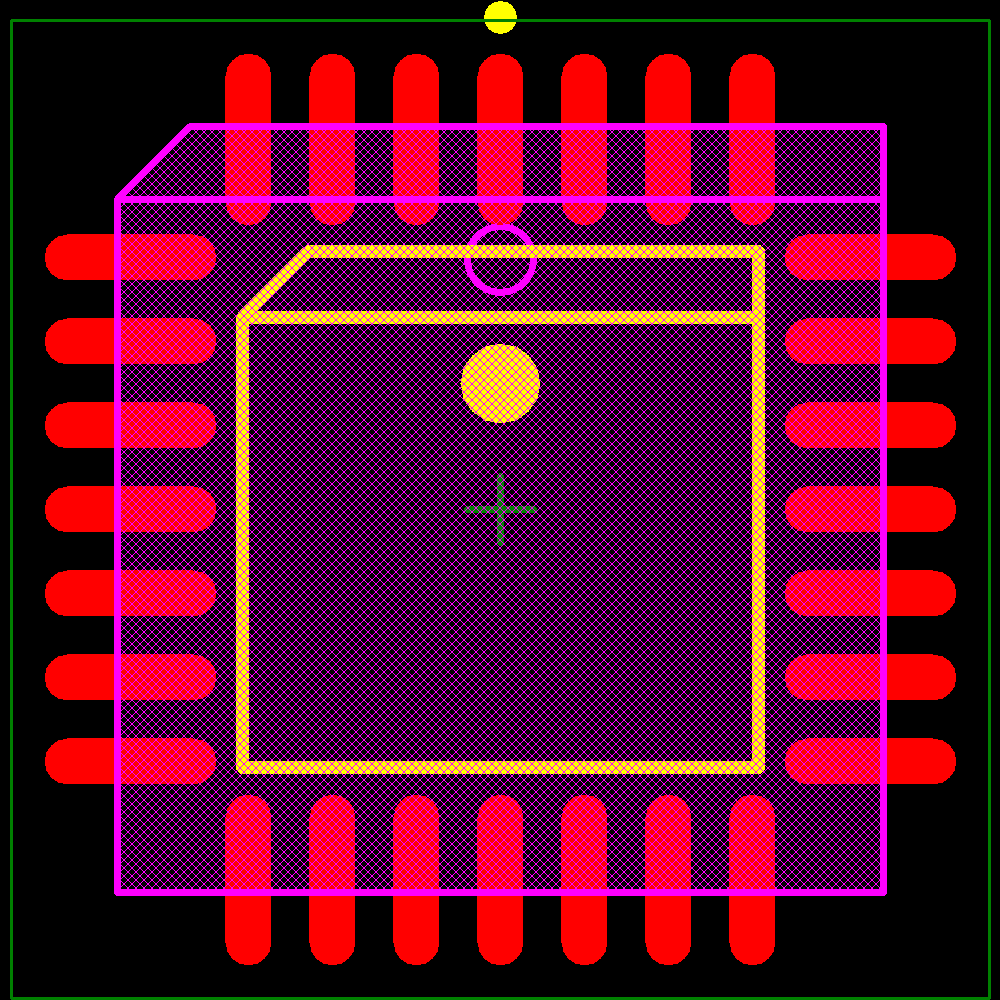

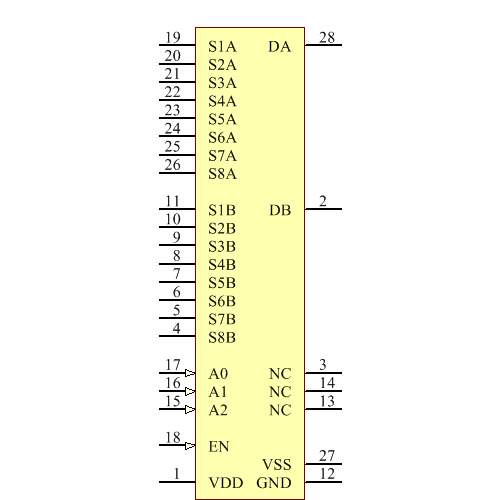

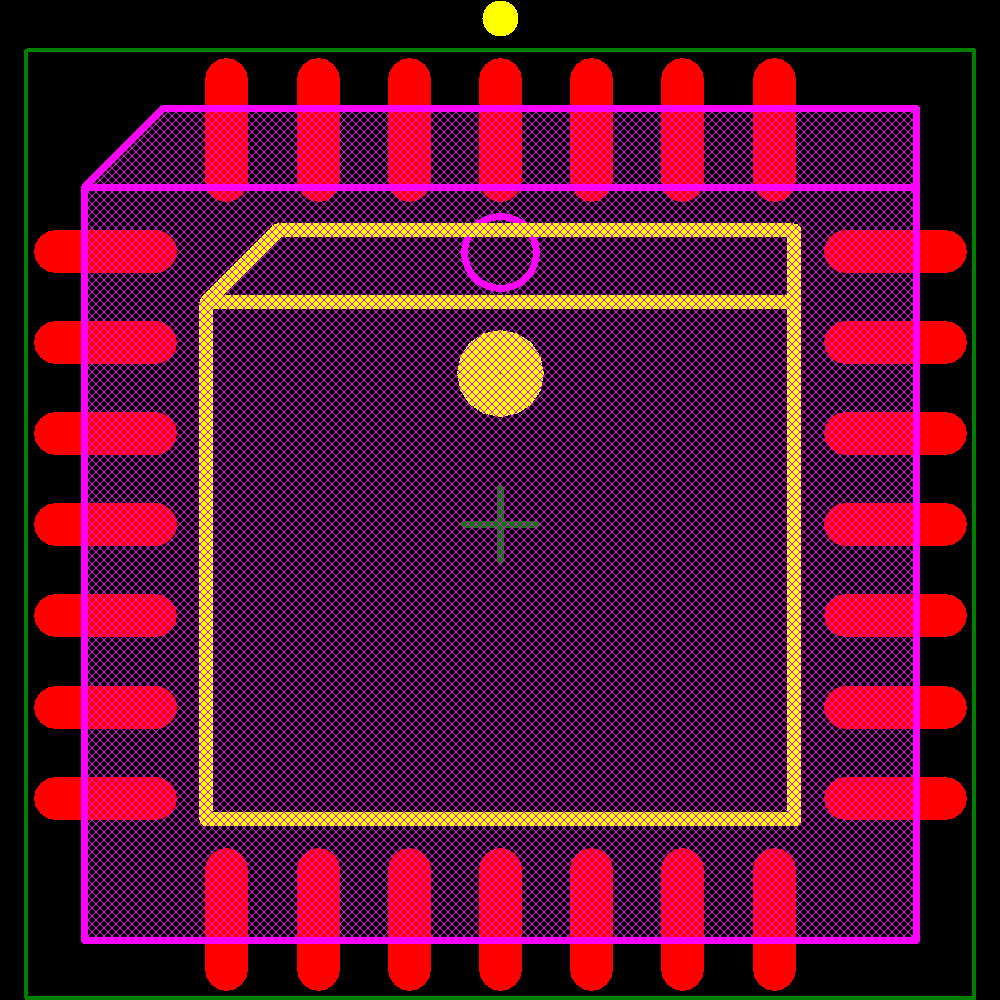

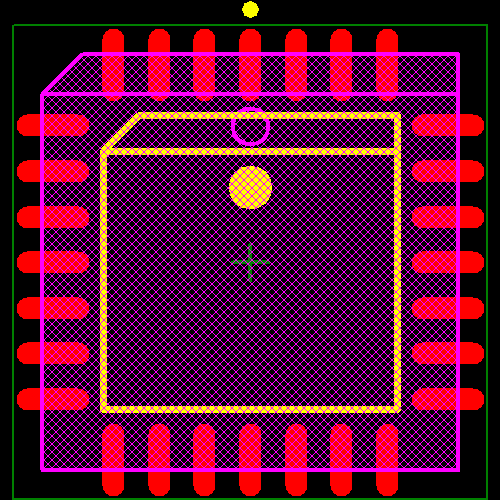

Images
