ADG508AKNZ - Analog Devices

Analog Multiplexer Single 8: 1 ±16.5 Volt 16.5 Volt 16-Pin PDIP

Technical Details

Case/Package	N
Contact Plating	Tin
Drain to Source Resistance	280Ω
Dual Supply Voltage	15V
Height	3.3mm
High Level Output Current	20mA
Interface	Parallel
Length	20.07mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Dual Supply Voltage	16.5V
Max Operating Temperature	125°C
Max Power Dissipation	470mW
Max Supply Current	1.5mA
Max Supply Voltage	16.5V
Min Dual Supply Voltage	10.8V
Min Operating Temperature	-55°C
Min Supply Voltage	10.8V
Nominal Supply Current	1.5mA
Number of Channels	8
Number of Inputs	8
Number of Outputs	1
Number of Pins	16
Operating Supply Current	600µA
Packaging	Bulk
Power Dissipation	27mW
Propagation Delay	300ns
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|85
Throw Configuration	DPST
Turn-Off Delay Time	600ns
Turn-On Delay Time	600ns
Width	6.35mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Analog Devices ADG508AKNZ | Analog Devices

Analog Devices

Datasheets

Lifecycle Status Indicator

Production

Symbol

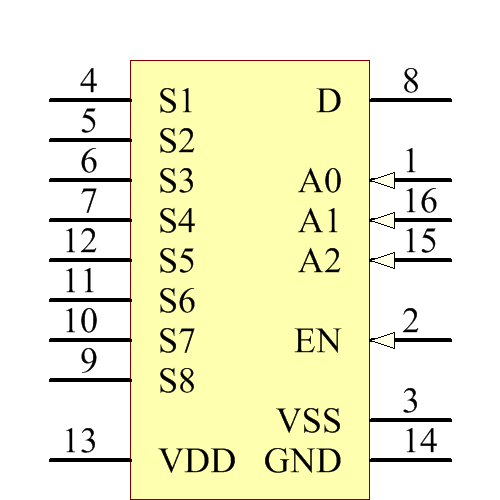

ADG508AKNZ Symbol - Analog Devices

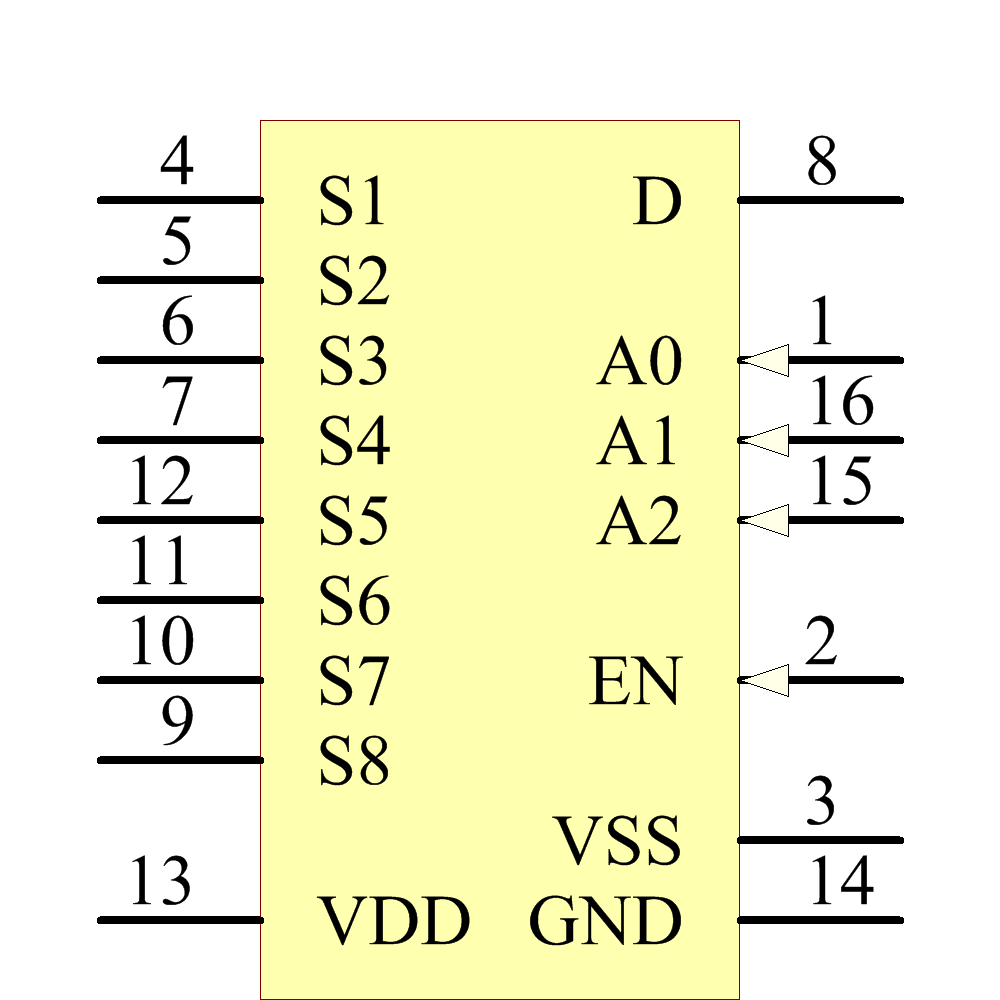

ADG508AKNZ Symbol - Analog Devices

ADG508AKNZ Symbol - Analog Devices

ADG508AKNZ Symbol - Analog Devices

‹ ›

Footprint

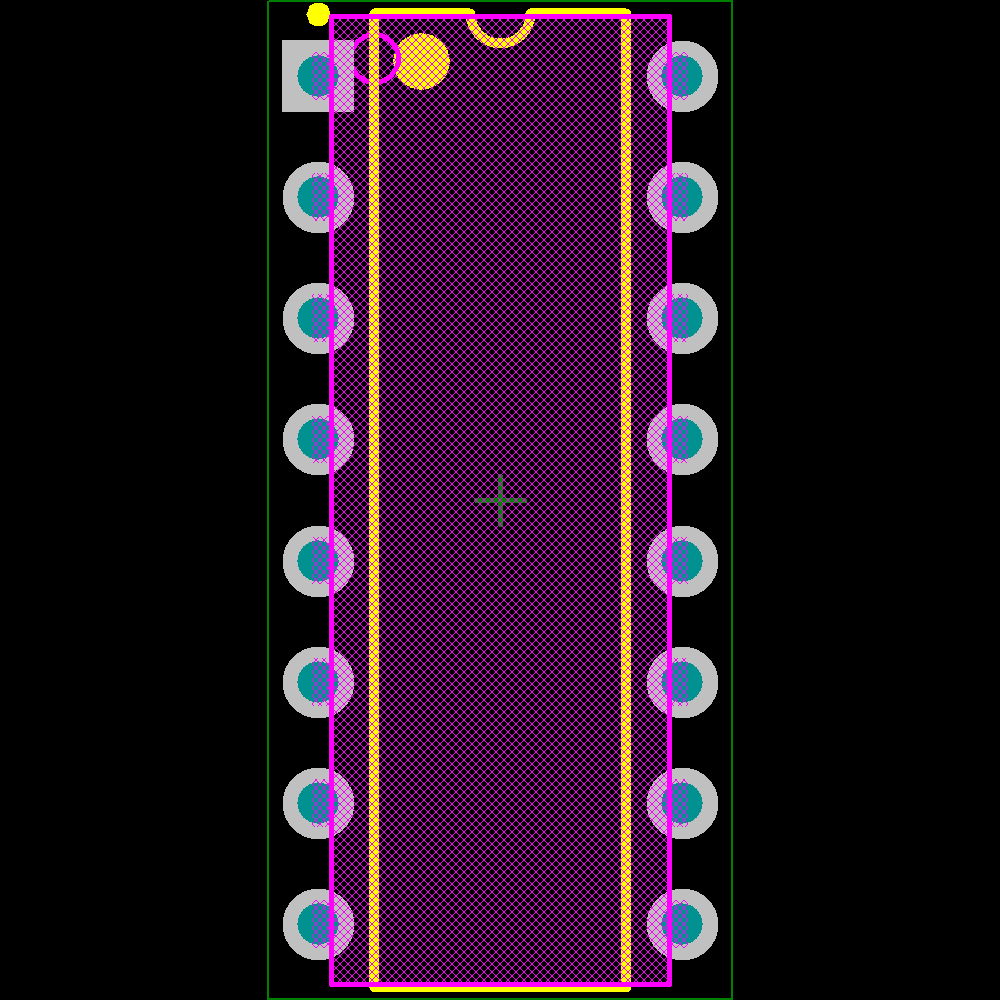

ADG508AKNZ Footprint - Analog Devices
