ADG5236BRUZ-RL7 - Analog Devices
IC SWITCH SPDTX2 160OHM 16TSSOP 2 Circuit IC Switch 2: 1 160Ohm 16-TSSOP
Technical Details
| -3db Bandwidth | 266MHz |
| Bandwidth | 266MHz |
| Case/Package | TSSOP |
| Dual Supply Voltage | 15V |
| Insertion Loss (dB) | -0.7dB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 22V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1.1mW |
| Max Supply Current | 55µA |
| Max Supply Voltage | 40V |
| Min Dual Supply Voltage | 9V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 9V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 4 |
| Number of Pins | 16 |
| Operating Supply Current | 85µA |
| Power Dissipation | 1.1mW |
| Resistance | 160Ω |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Supply Type | Dual, Single |
| Test Frequency | 1MHz |
| Throw Configuration | SPDT |
| Turn-Off Delay Time | 185ns |
| Turn-On Delay Time | 215ns |
Compliance
RoHS : Unconfirmed

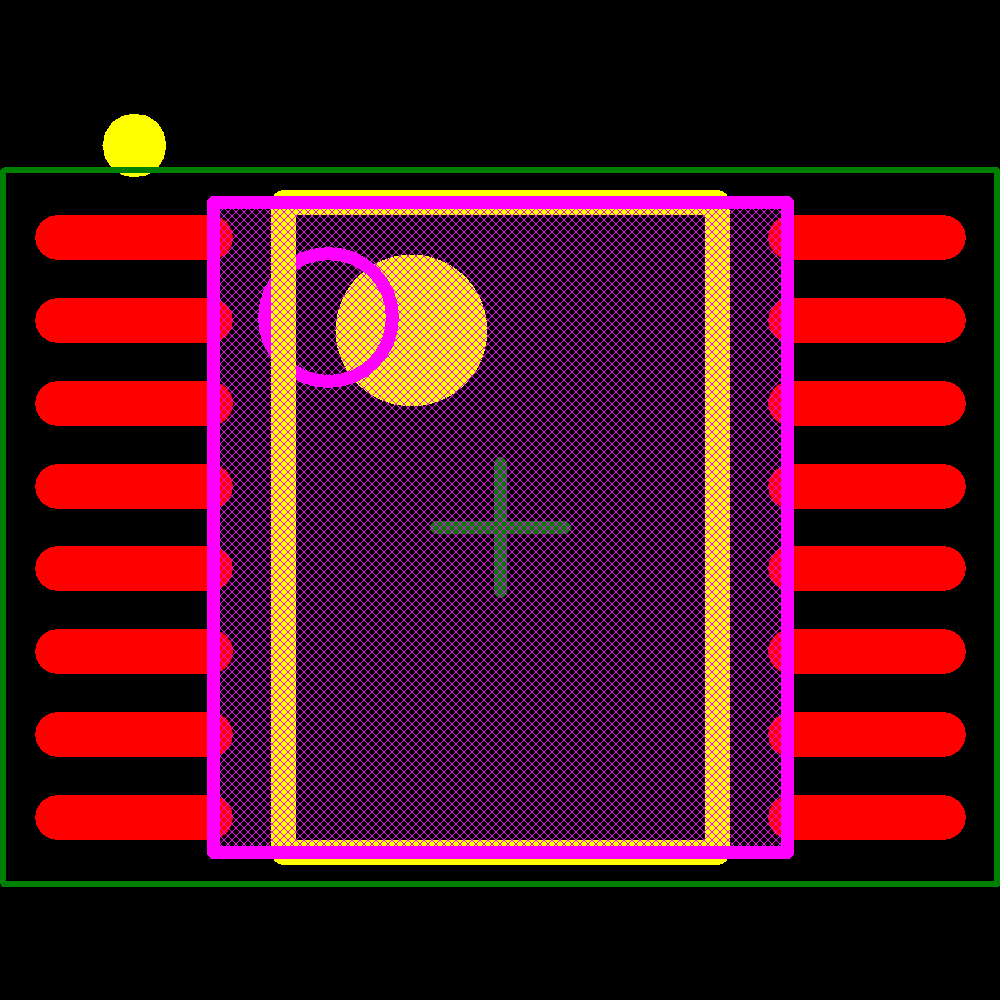

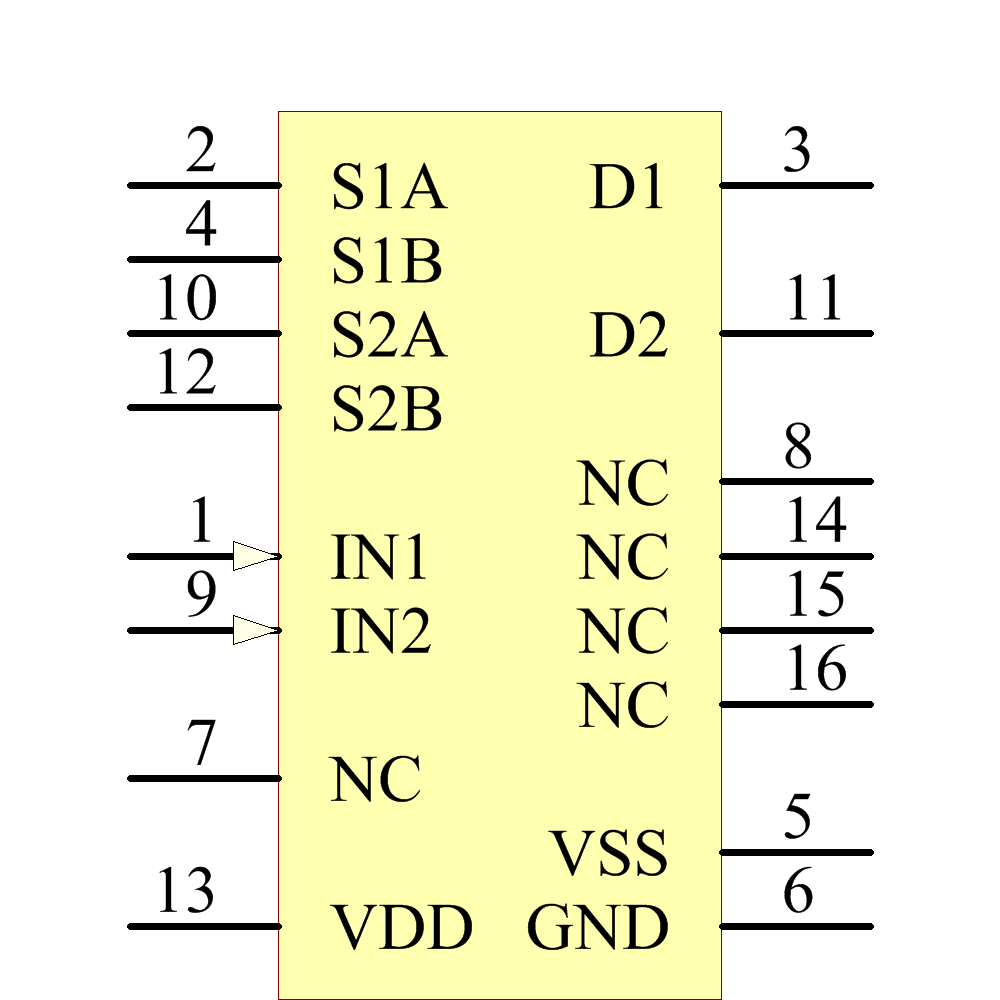

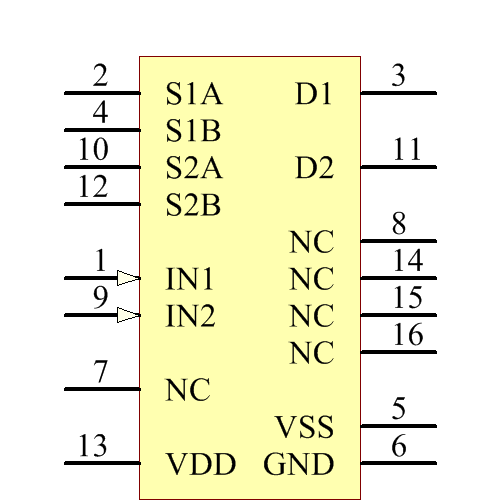

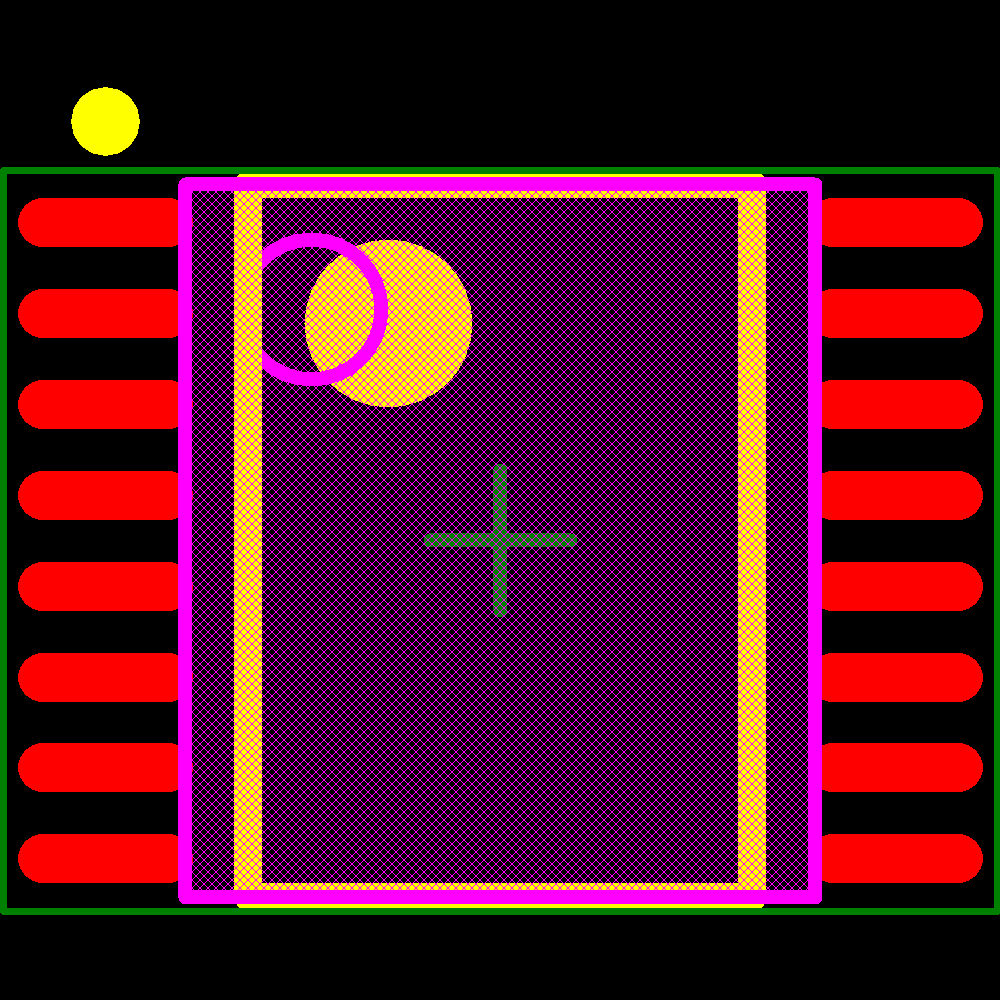

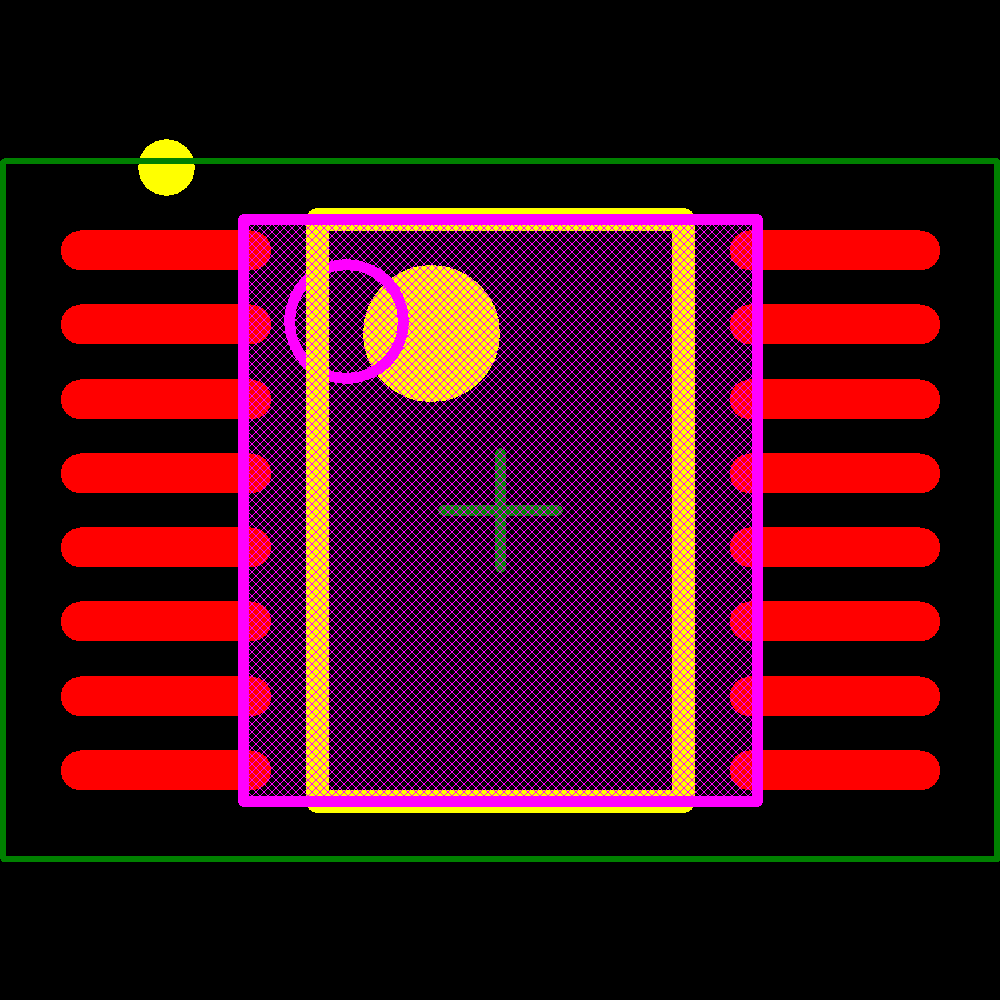

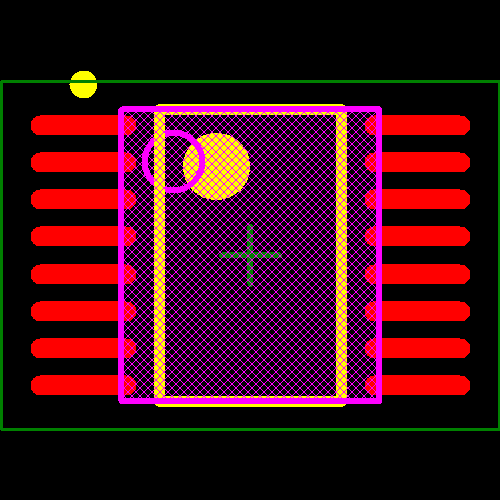

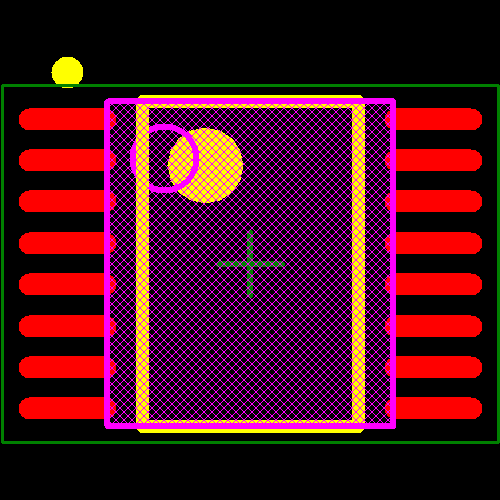

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Vishay | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Analog Devices |
US: 0
|
$ | 3.7125 | 3.7125 | ||||||
| DigiKey |
DE: 0
|
$ | 4.4639 | 4.3713 | ||||||
| Richardson RFPD |
US: -3
|
$ | 4.06 | 4.06 | ||||||
| Arrow Electronics |
US: 0
|
$ | 5.625 | 5.296 | ||||||
