ADG5409BRUZ-REEL7 - Analog Devices
Analog Multiplexer Single 4: 1 16-Pin TSSOP T/R / IC MULTIPLEXER 2 X 4: 1 16TSSOP
Technical Details
| -3db Bandwidth | 50MHz |
| Bandwidth | 88MHz |
| Case/Package | TSSOP |
| Contact Plating | Tin |
| High Level Output Current | 75mA |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Lifecycle Status | Production |
| Logic Function | Multiplexer |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 22V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 2.9mW |
| Max Supply Current | 80pA |
| Max Supply Voltage | 40V |
| Min Dual Supply Voltage | 9V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 9V |
| Number of Channels | 4 |
| Number of Circuits | 2 |
| Number of Inputs | 8 |
| Number of Outputs | 2 |
| Number of Pins | 16 |
| Operating Supply Current | 80µA |
| Power Dissipation | 2.9mW |
| Resistance | 14Ω |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Supply Type | Dual, Single |
| Turn-Off Delay Time | 189ns |
| Turn-On Delay Time | 218ns |
Compliance
RoHS : Unconfirmed

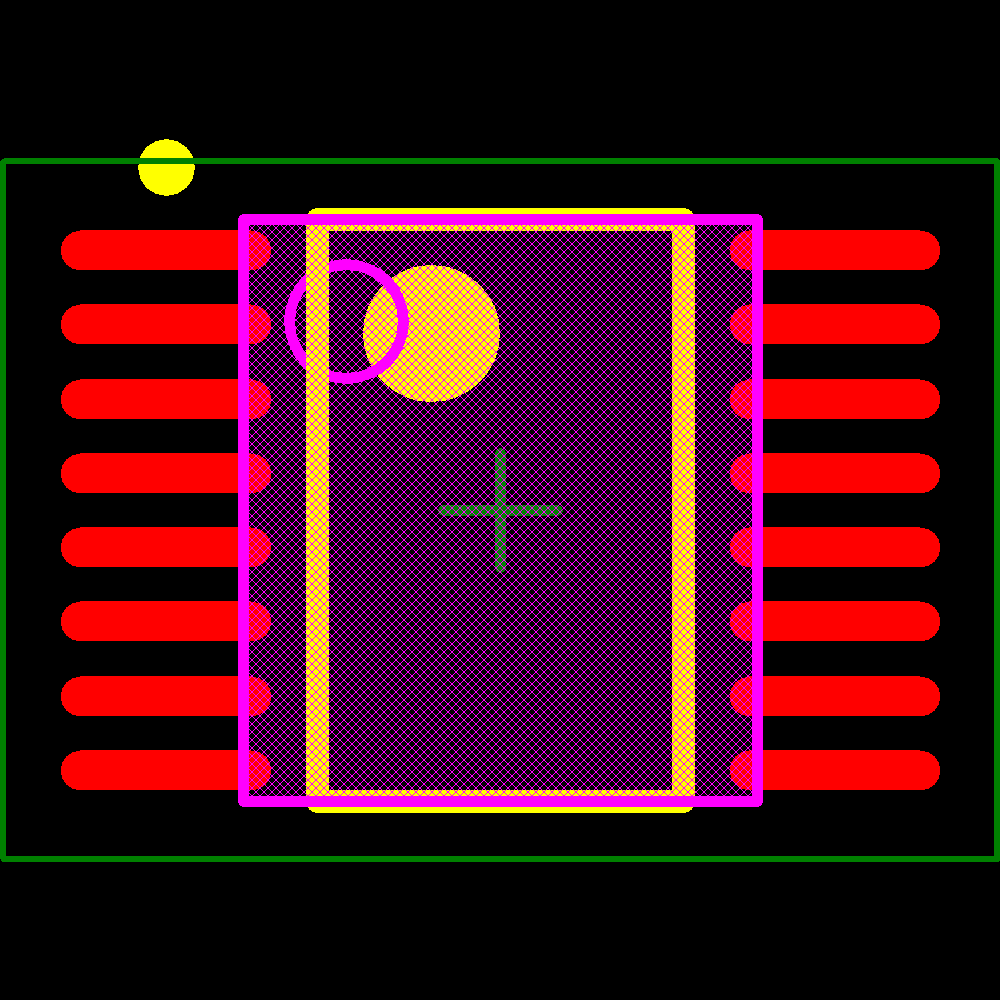

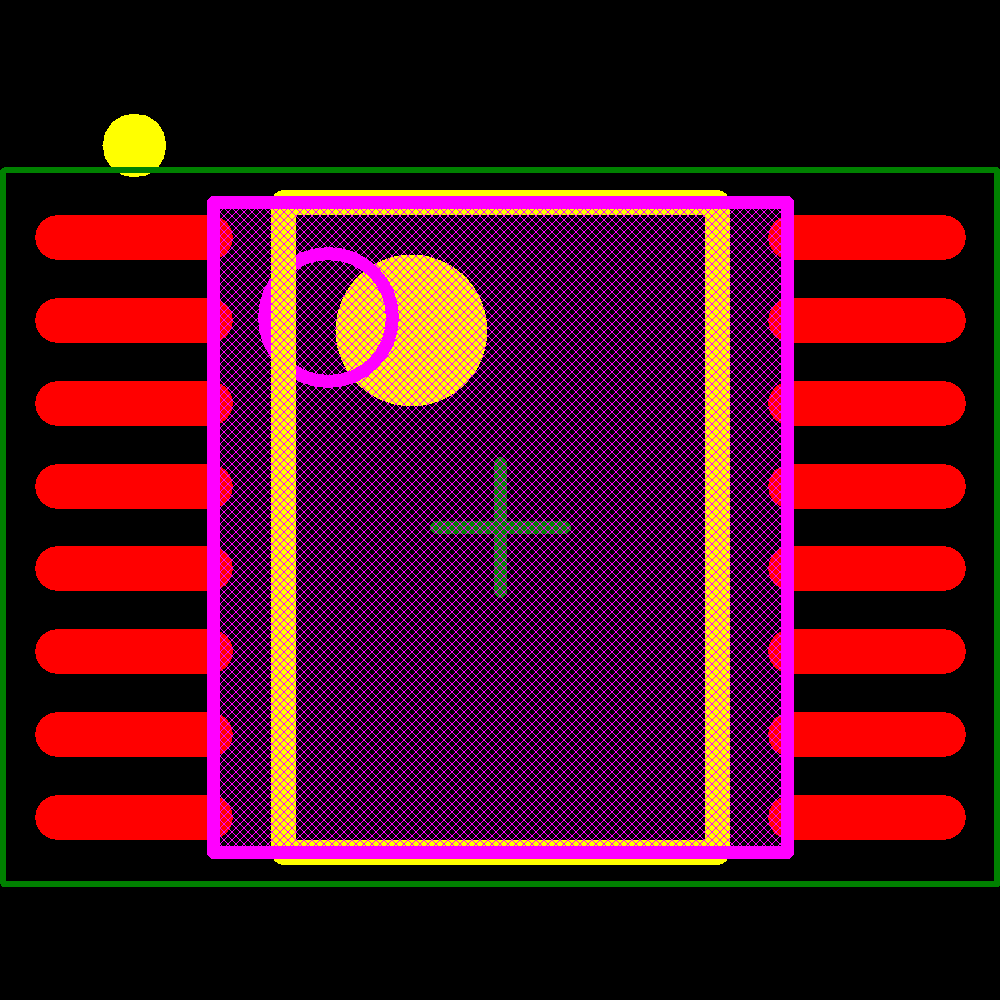

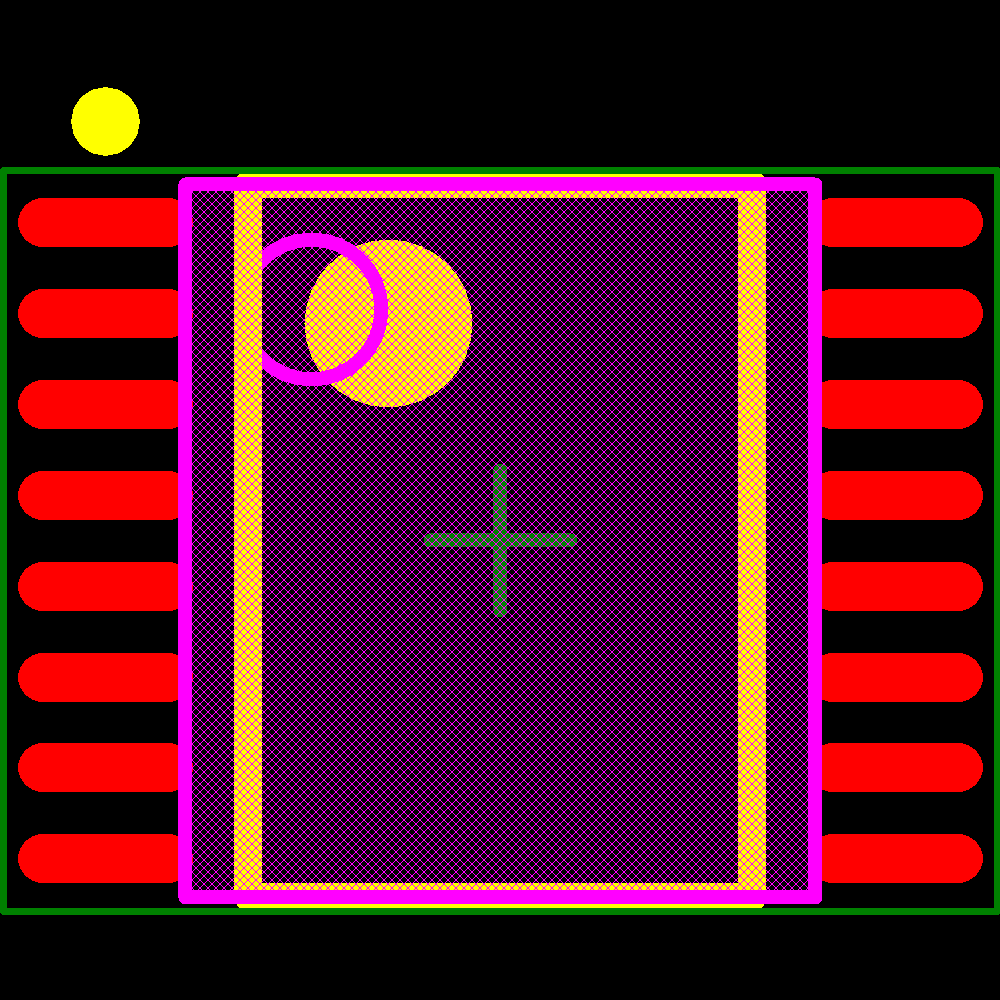

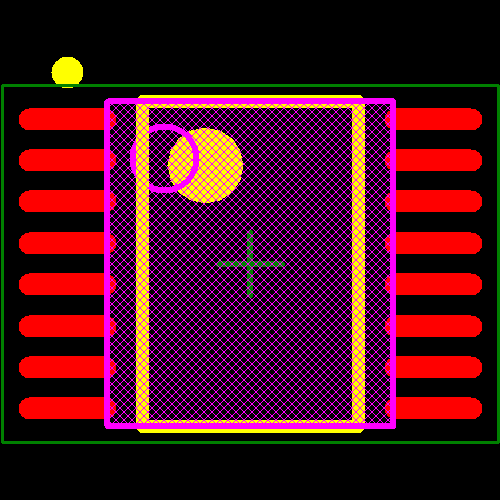

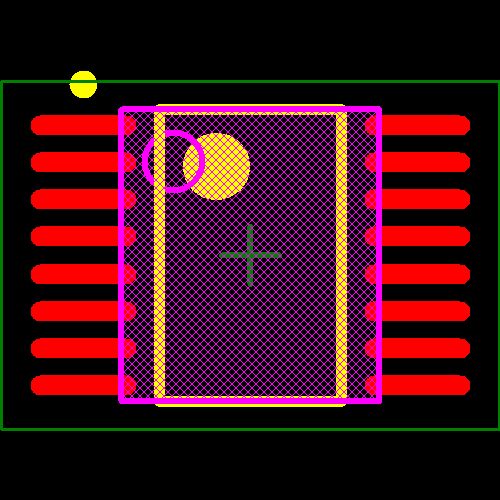

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Texas Instruments | Production | ||
| Vishay | Production | ||
| Vishay | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Vishay | Production | ||
| Analog Devices | Production |
