ADG5413BRUZ-REEL7 - Analog Devices
10Ω 4 SPST(SPST)-Normal Open/Normally closed TSSOP-16 Analog Switches / Multiplexers ROHS
Technical Details
| -3db Bandwidth | 160MHz |
| Bandwidth | 160MHz |
| Case/Package | TSSOP |
| Dual Supply Voltage | 15V |
| Insertion Loss (dB) | -0.6dB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 22V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1mW |
| Max Supply Current | 55µA |
| Max Supply Voltage | 40V |
| Min Dual Supply Voltage | 9V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 9V |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Number of Pins | 16 |
| Operating Supply Current | 80µA |
| Packaging | Tape & Reel |
| Power Dissipation | 1mW |
| REACH SVHC | No |
| Resistance | 10Ω |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Supply Type | Dual, Single |
| Test Frequency | 1MHz |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 145ns |
| Turn-On Delay Time | 202ns |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

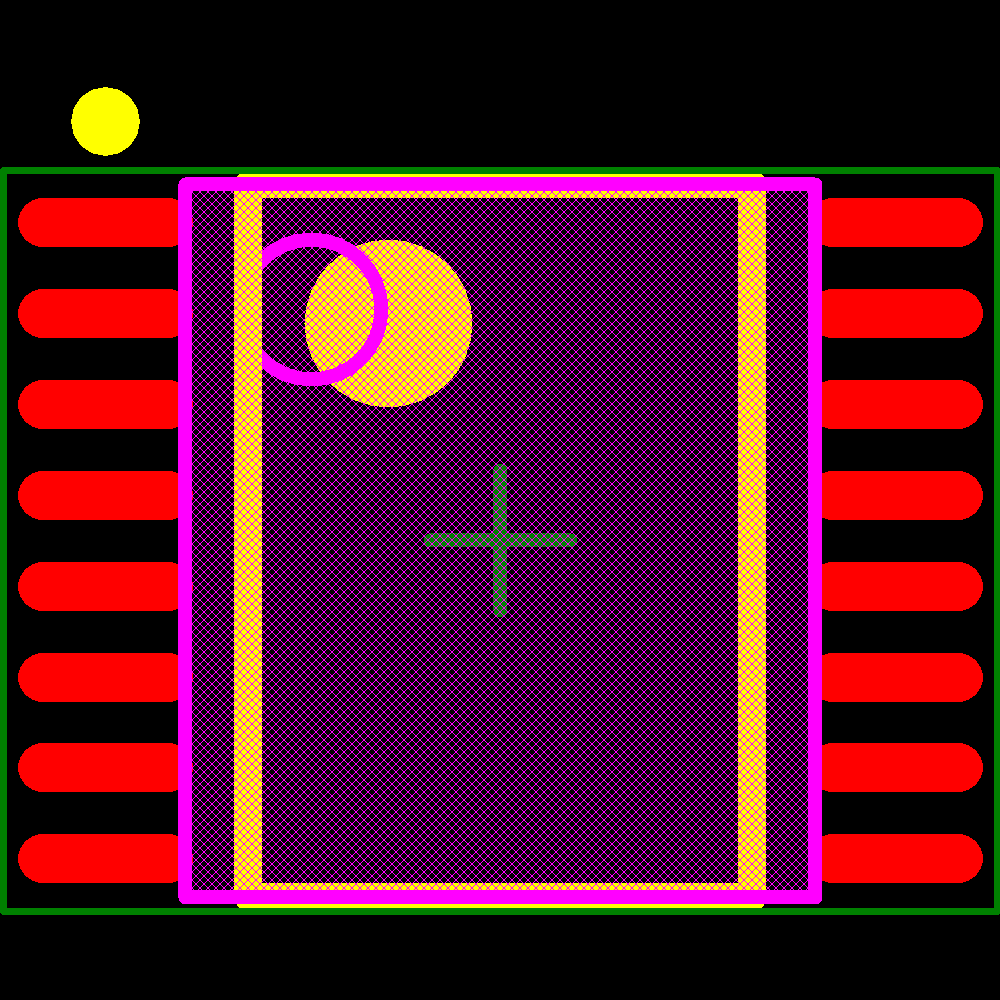

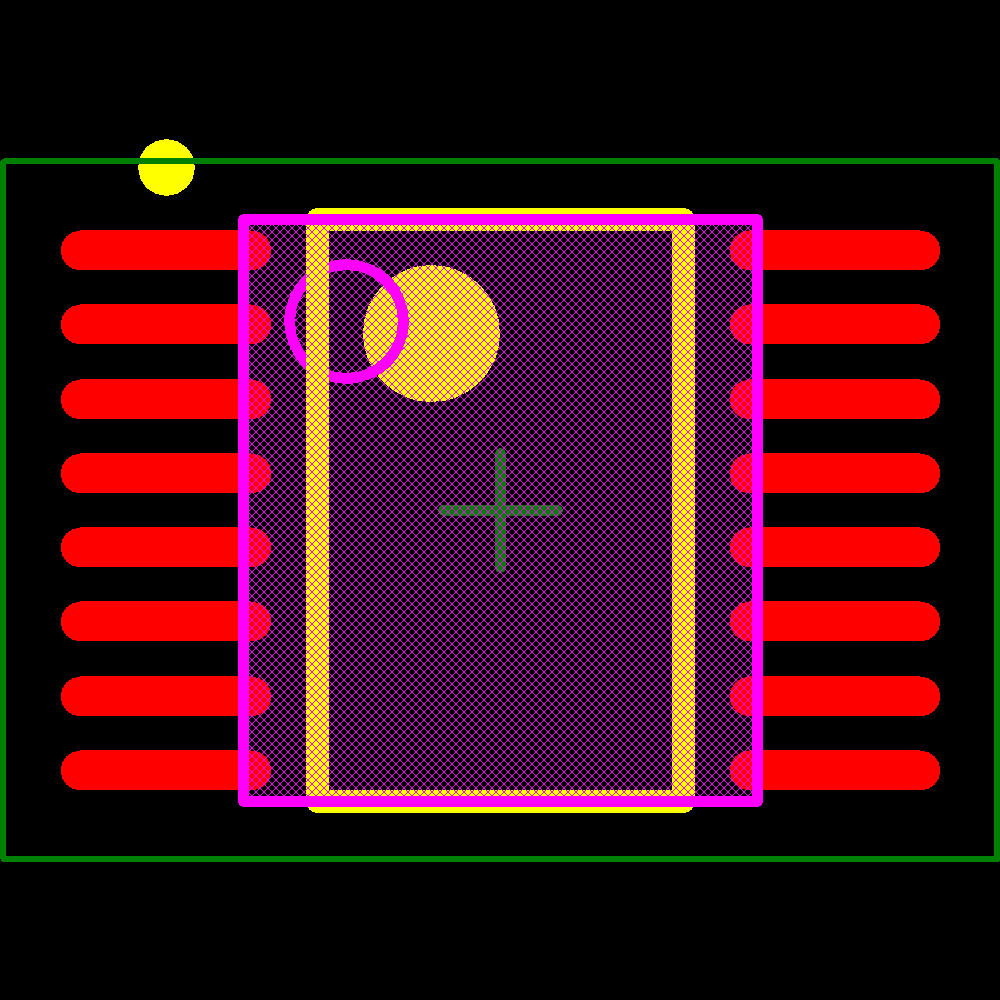

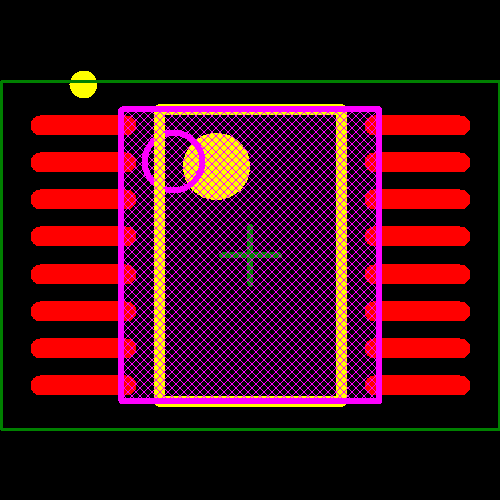

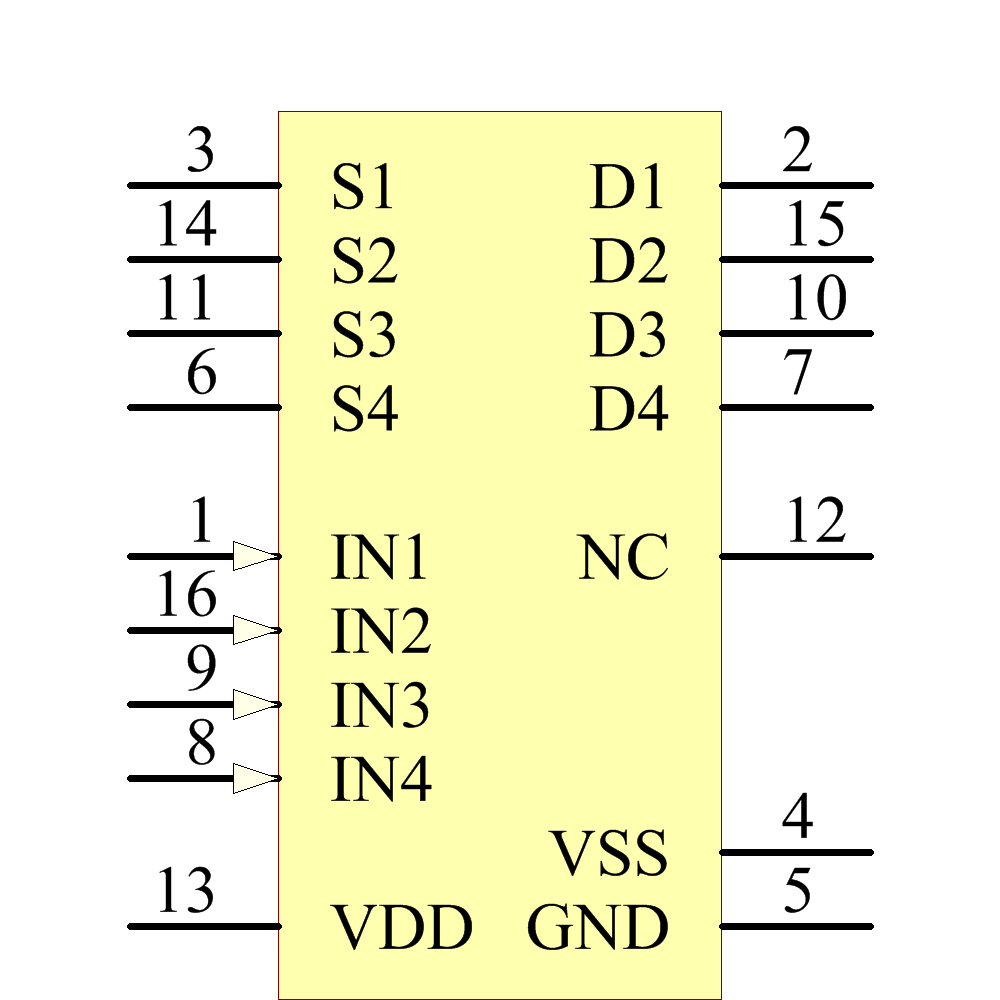

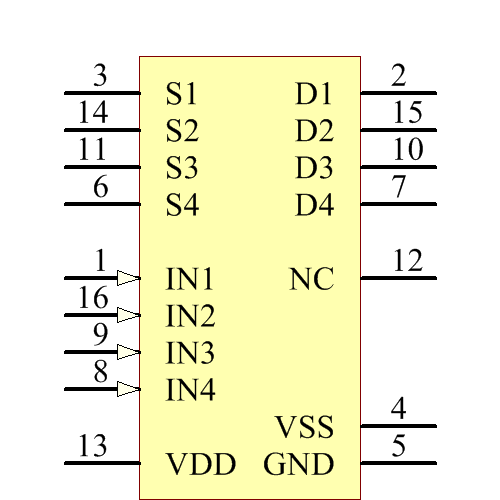

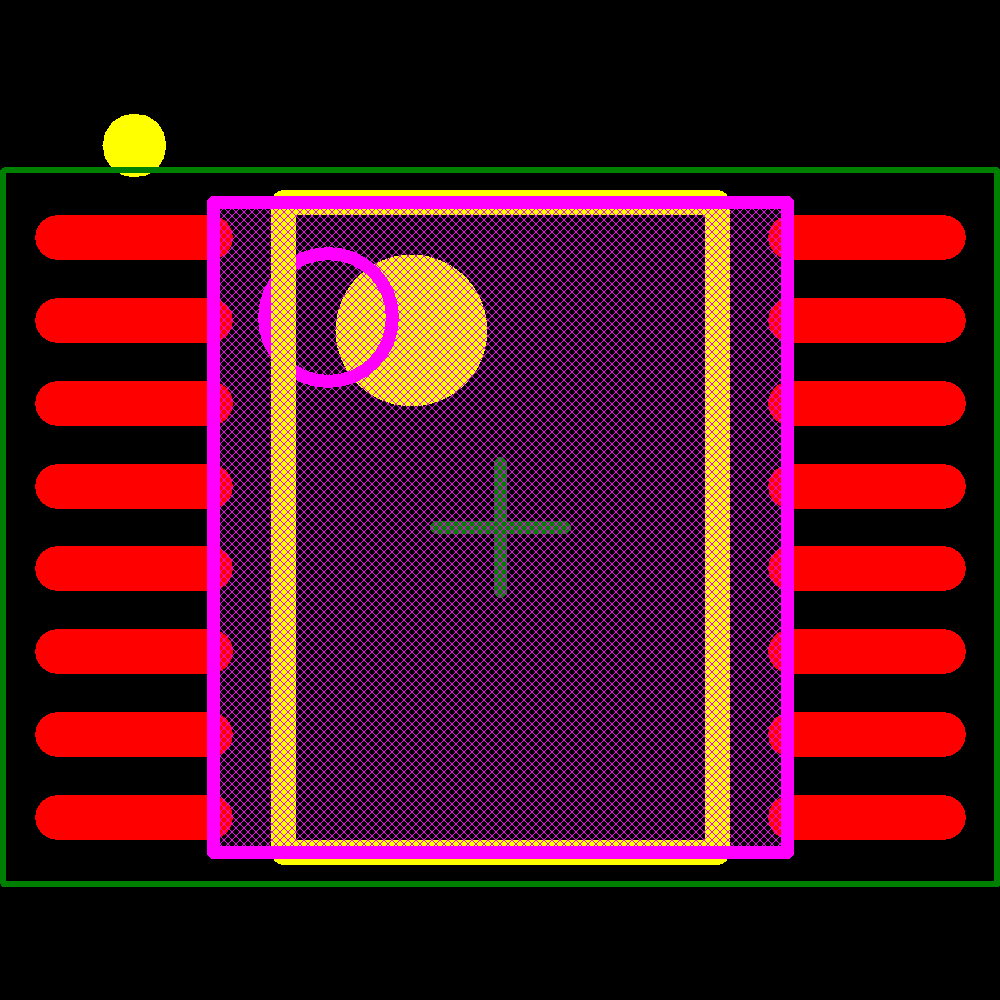

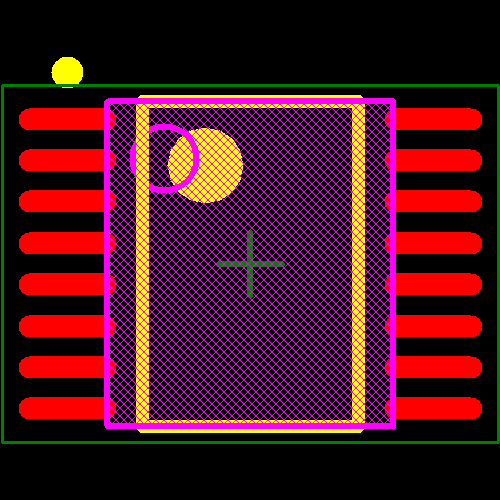

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Vishay | Production |
