ADG608BR - Analog Devices
Analog Multiplexer Single 8: 1 ±6.5 Volt 6.5 Volt 16-Pin SOIC N
Technical Details
| Case/Package | R |
| Dual Supply Voltage | 5V |
| Height | 1.5mm |
| High Level Output Current | 20mA |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Dual Supply Voltage | 6.5V |
| Max Operating Temperature | 125°C |
| Max Supply Current | 200nA |
| Max Supply Voltage | 6.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 3V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Operating Supply Current | 50nA |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Power Dissipation | 1.5µW |
| Propagation Delay | 75ns |
| Radiation Hardening | No |
| Resistance | 30Ω |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Supply Type | Dual, Single |
| Throw Configuration | DPST |
| Turn-Off Delay Time | 50ns |
| Turn-On Delay Time | 100ns |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

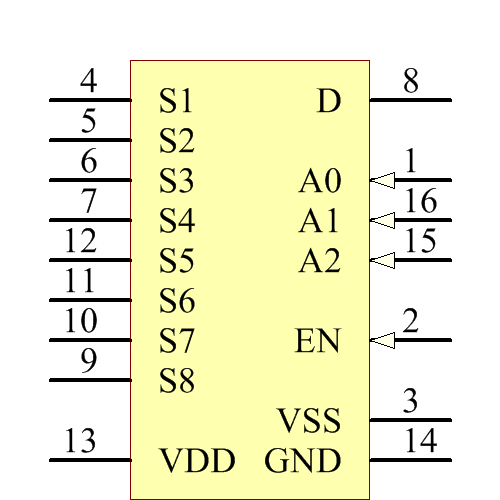

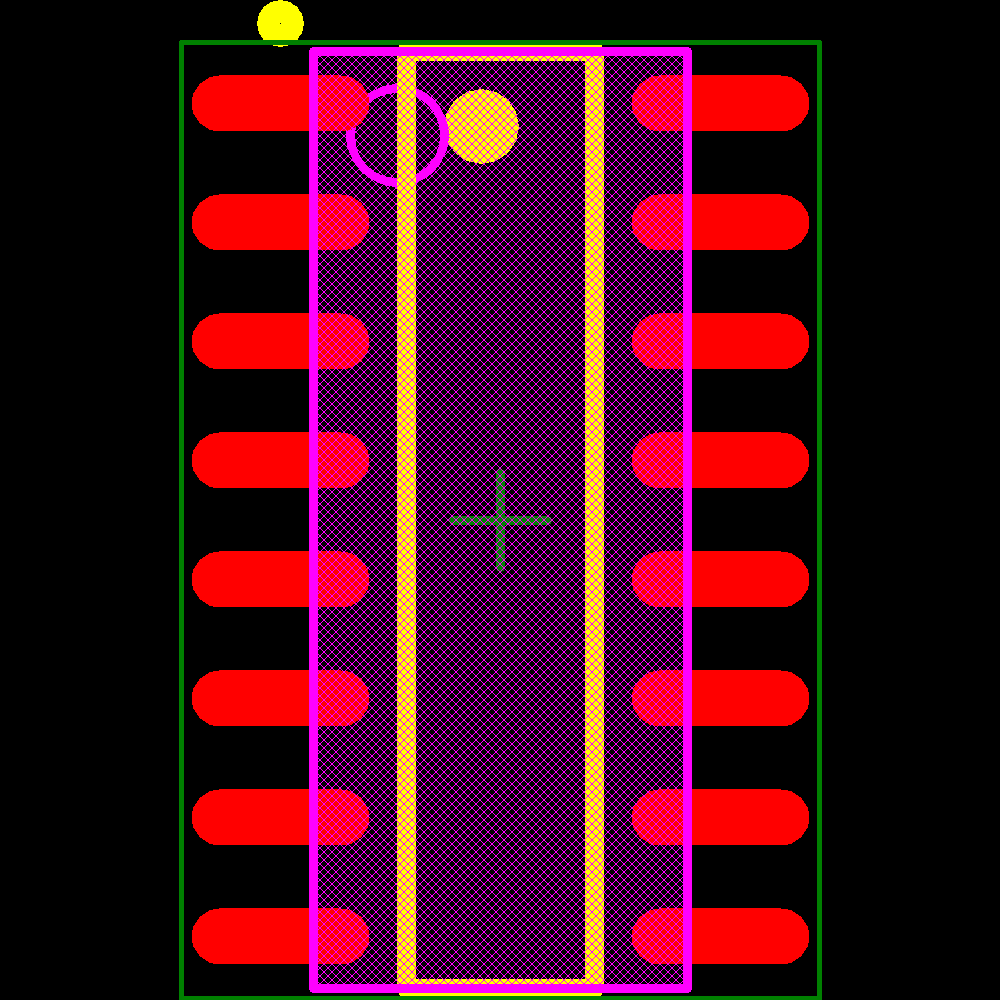

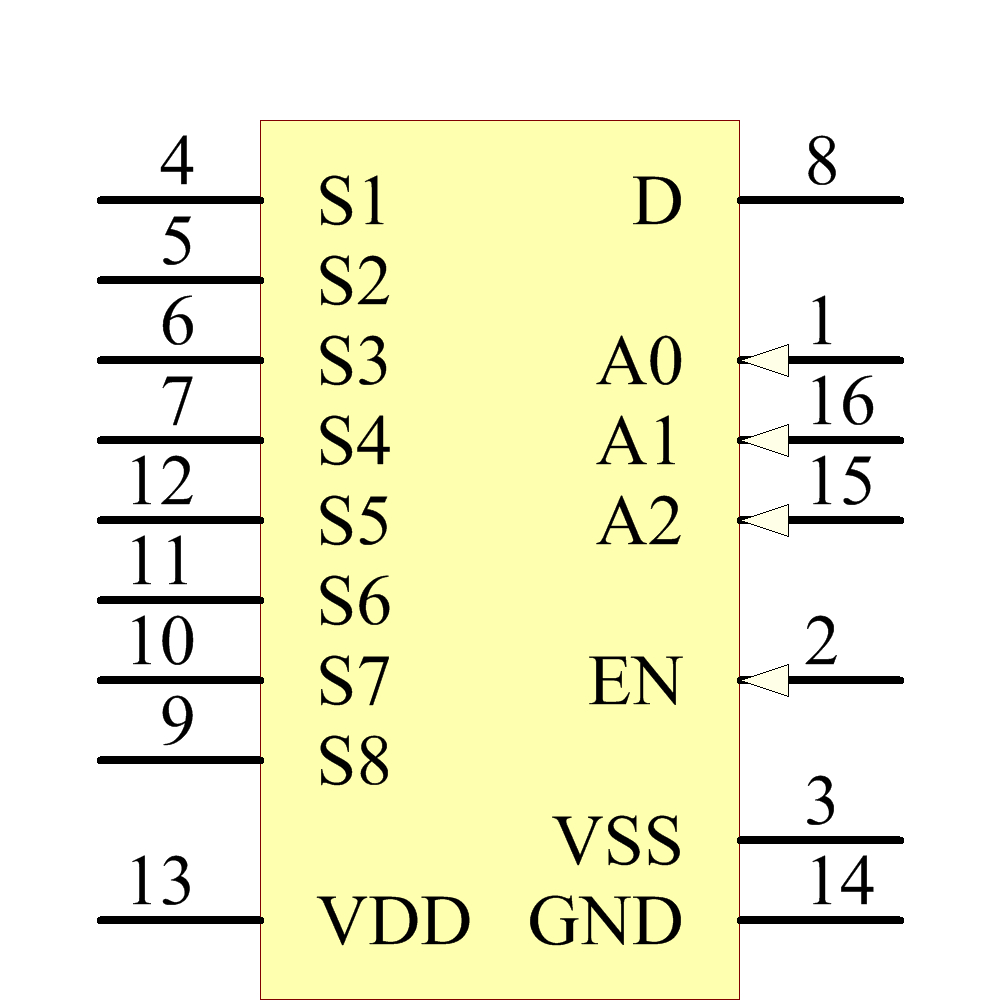

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Vishay | Obsolete | ||
| Analog Devices | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 3
|
$ | 3.07 | 2.92 | 2.61 | 2.46 | ||||
