ADG608BRZ - Analog Devices
3 V/5 V, 4/8 Channel High Performance Analog Multiplexers | IC MULTIPLEXER 8X1 16SOIC
Technical Details
| Case/Package | R |
| Drain to Source Resistance | 22Ω |
| Dual Supply Voltage | 5V |
| Height | 1.5mm |
| High Level Output Current | 20mA |
| Interface | Parallel |
| Length | 10mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 6.5V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1.5µW |
| Max Supply Current | 200nA |
| Max Supply Voltage | 6.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 3V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Inputs | 8 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Operating Supply Current | 50nA |
| Operating Supply Voltage | 5.5V |
| Packaging | Bulk |
| Power Dissipation | 1.5µW |
| Propagation Delay | 75ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| Resistance | 30Ω |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Throw Configuration | DPST |
| Turn-Off Delay Time | 75ns |
| Turn-On Delay Time | 225ns |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

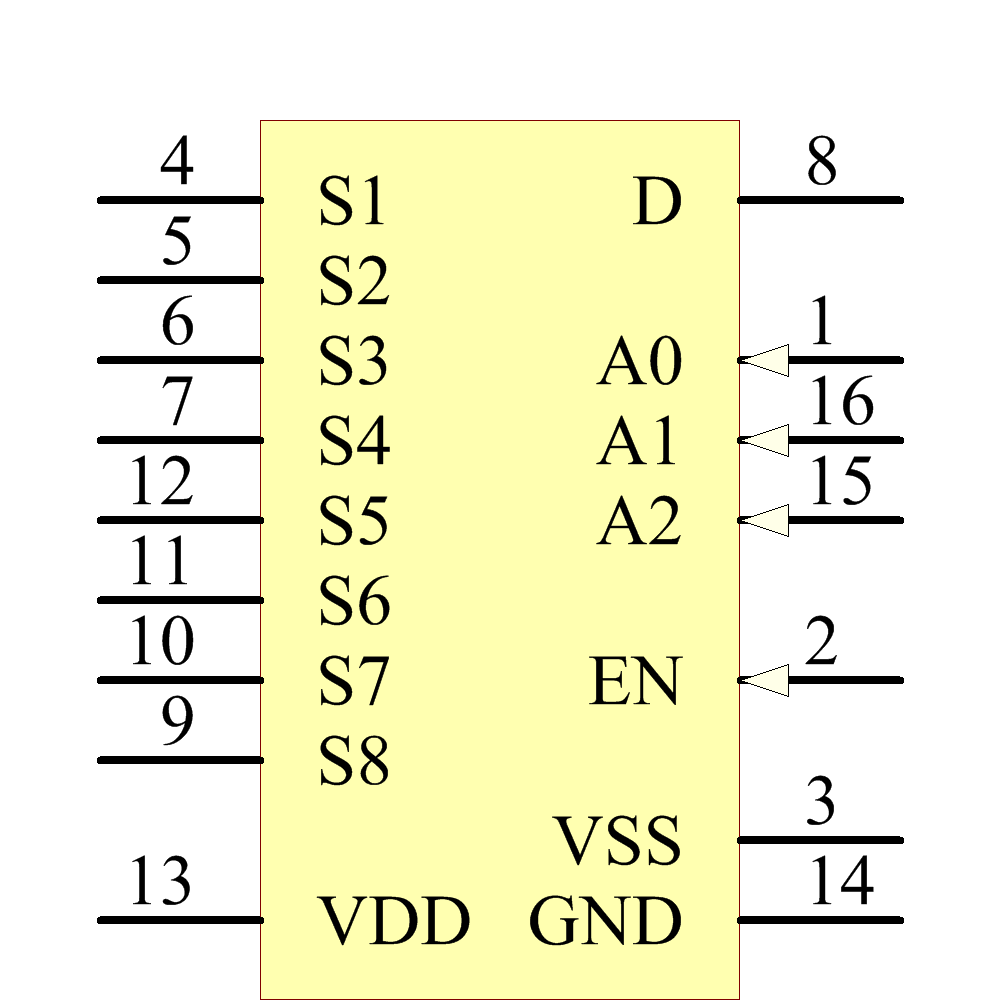

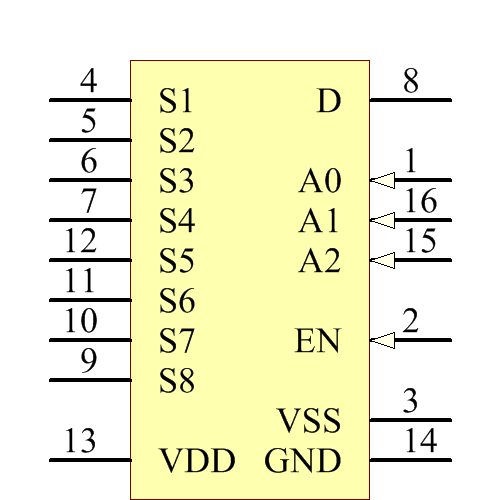

Images
