ADG612YRUZ-REEL - Analog Devices
1 pC Charge Injection, 100 pA Leakage, CMOS, ±5 V/+5 V/+3 V, Quad SPST Switches
Technical Details
| -3db Bandwidth | 680MHz |
| Bandwidth | 680MHz |
| Case/Package | TSSOP |
| Contact Plating | Tin |
| Dual Supply Voltage | 5V |
| Height | 1.2mm |
| High Level Output Current | 10mA |
| Interface | Parallel |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 5.5V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 10µW |
| Max Supply Current | 1µA |
| Max Supply Voltage | 5.5V |
| Min Dual Supply Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Number of Pins | 16 |
| On-State Resistance | 85Ω |
| Operating Supply Current | 1nA |
| Packaging | Tape & Reel (TR) |
| Polarity | Non-Inverting |
| Power Dissipation | 10µW |
| Resistance | 115Ω |
| RoHS | Compliant |
| Schedule B | 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Supply Type | Dual, Single |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 40ns |
| Turn-On Delay Time | 65ns |
Compliance
RoHS : Unconfirmed

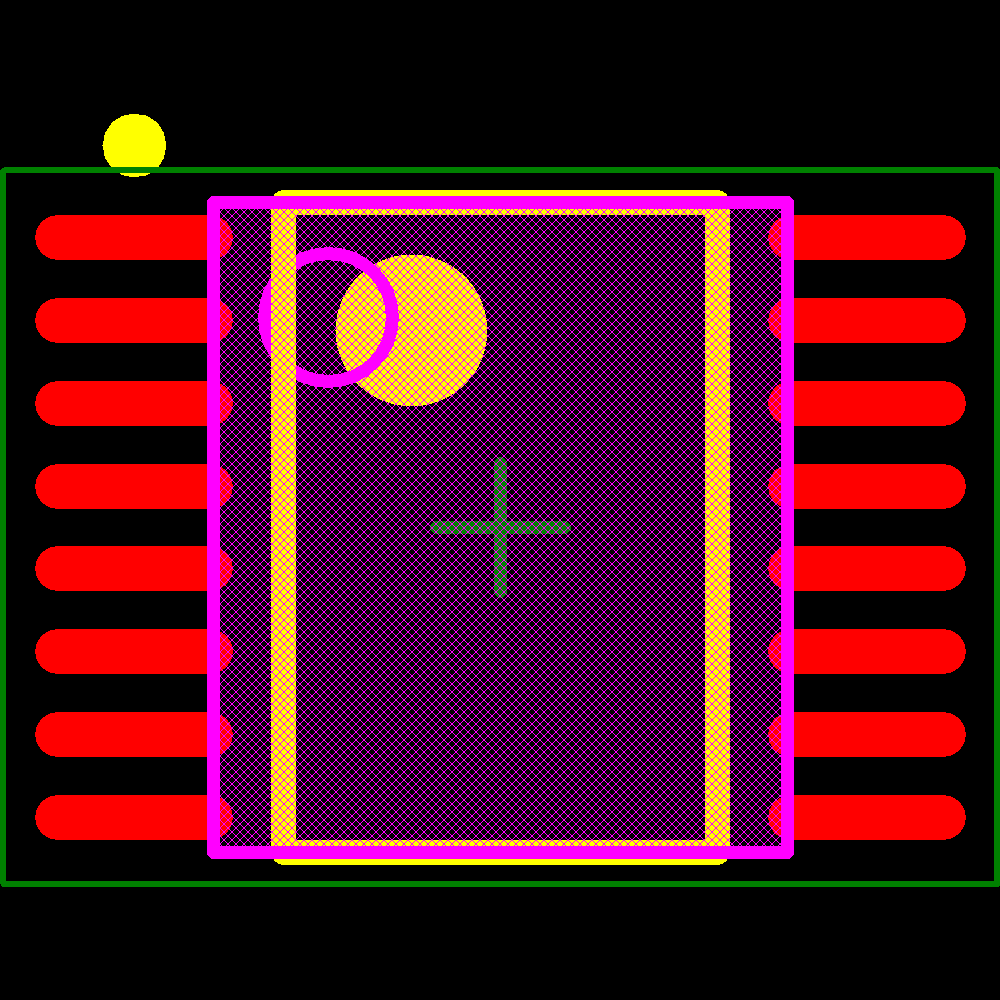

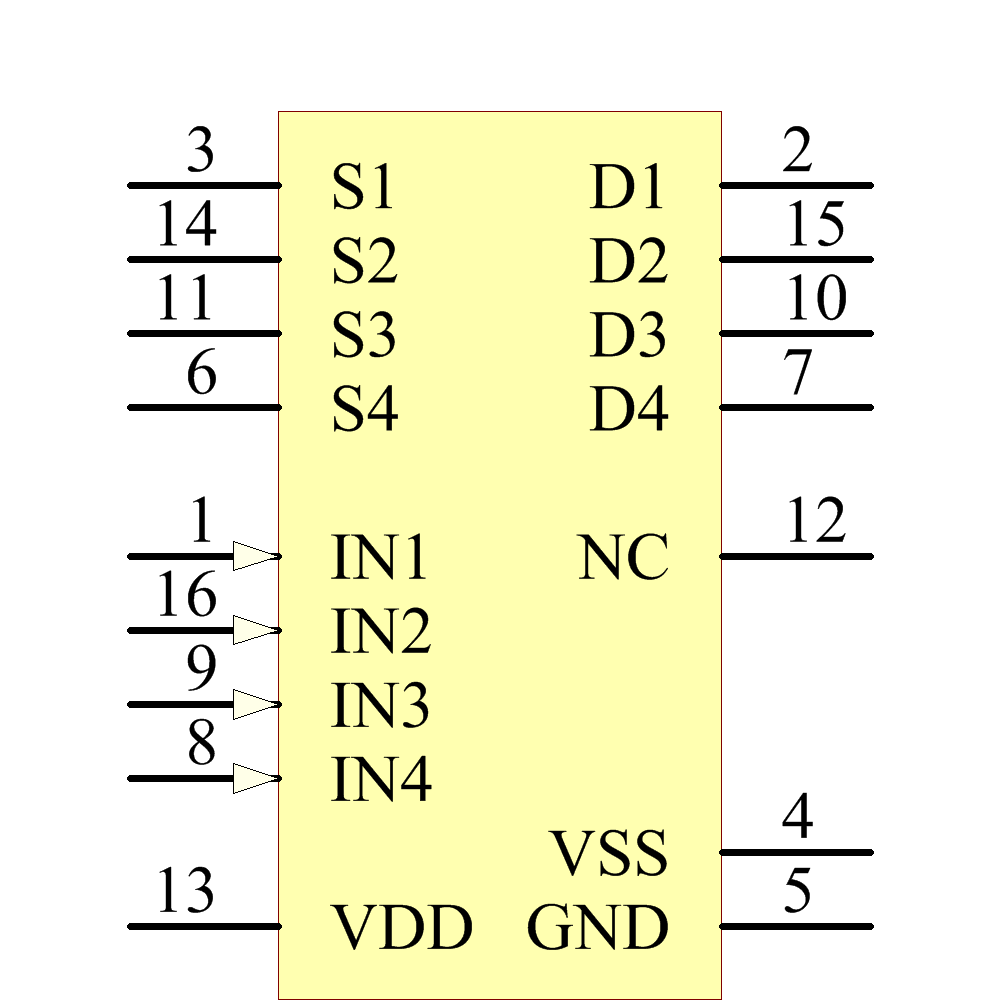

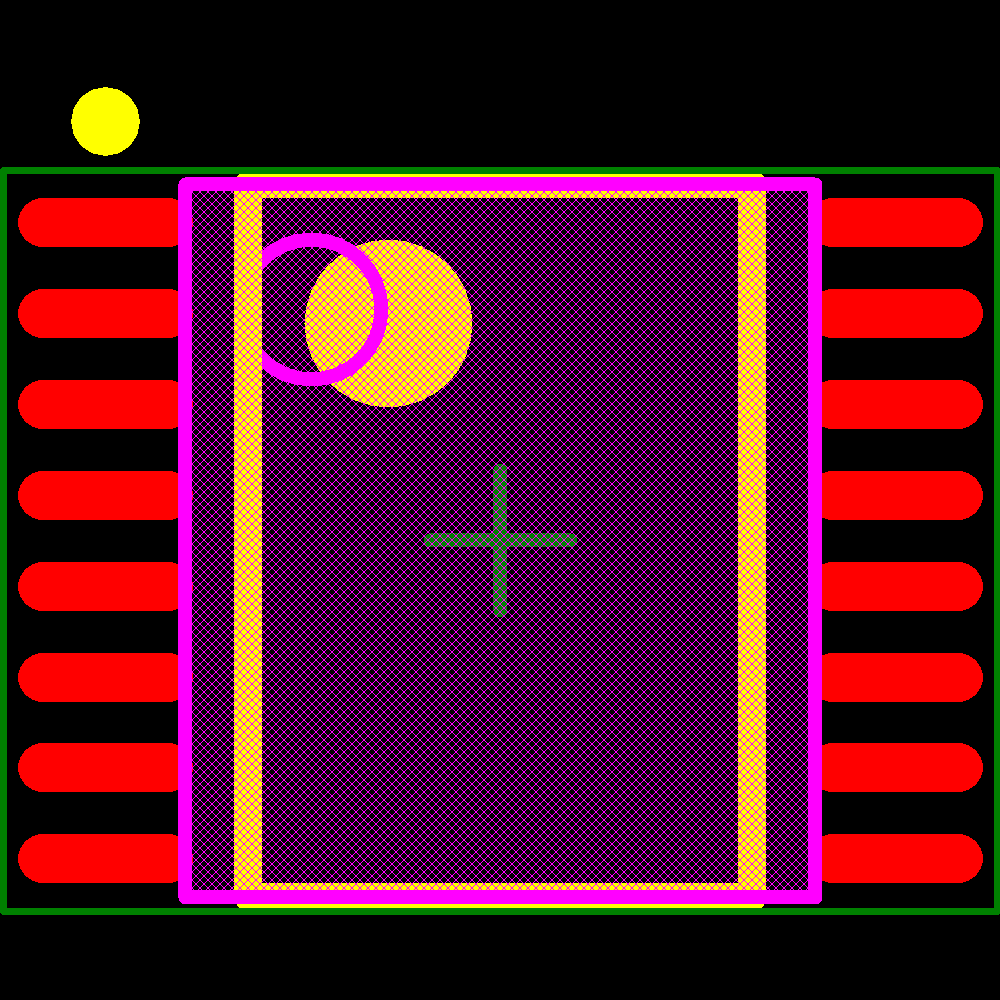

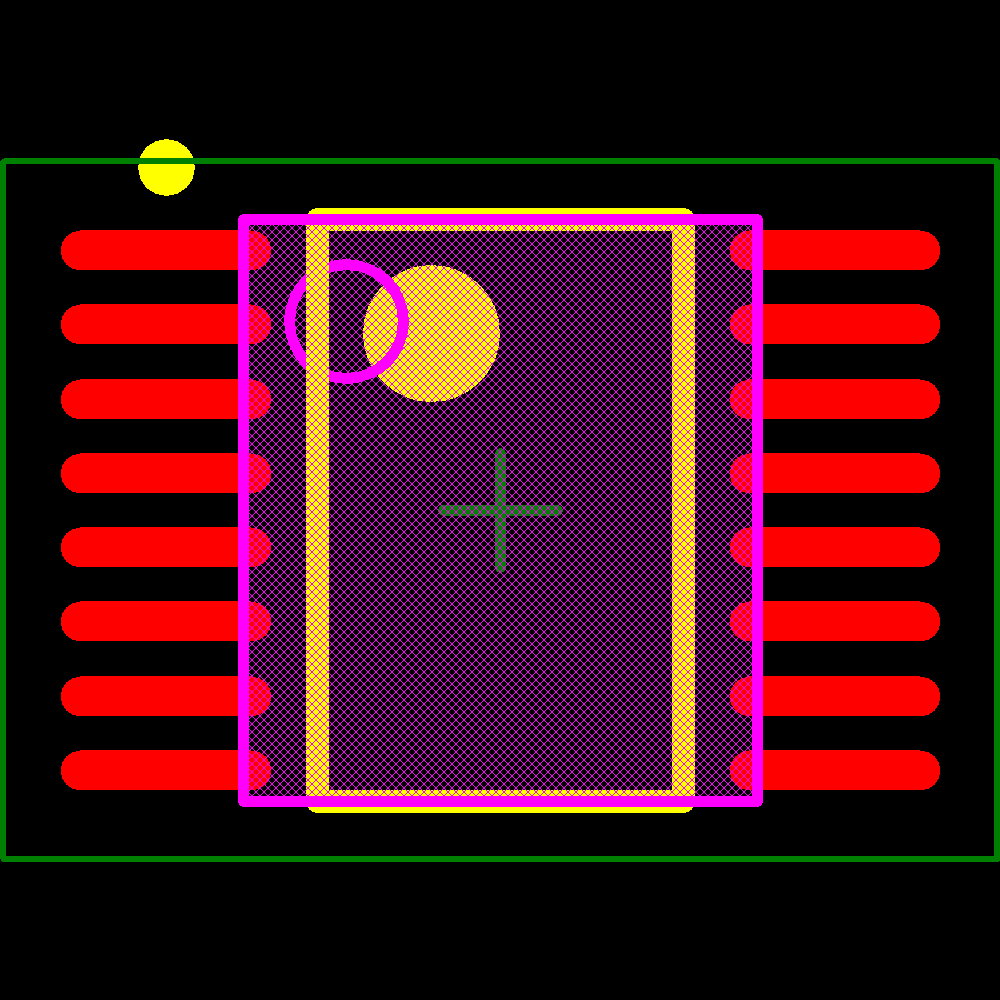

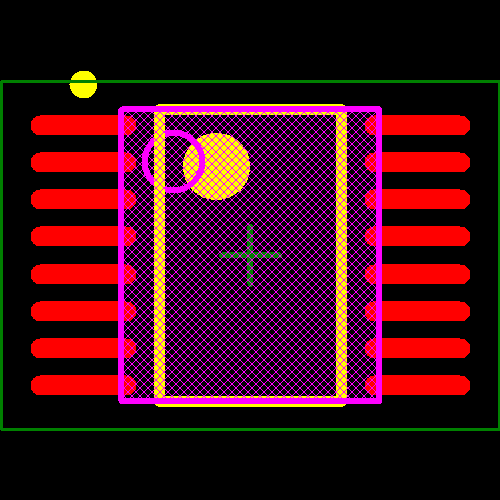

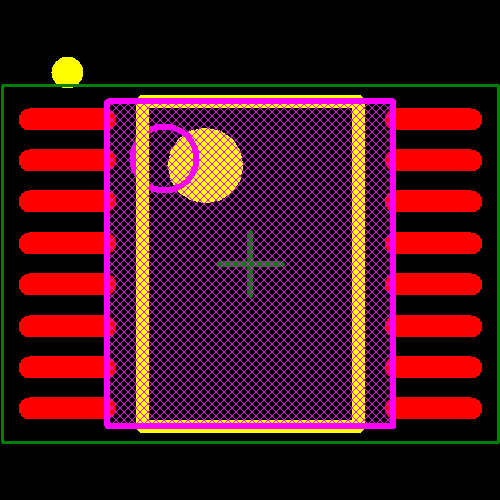

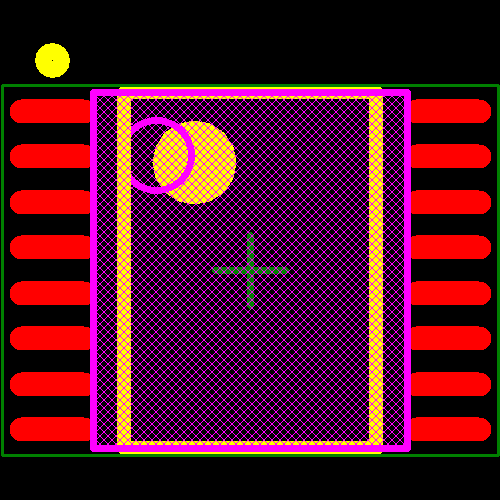

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete |
