ADG713BRUZ - Analog Devices

4Ω 4 SPST(SPST)-Normal Open/Normally closed TSSOP-16 Analog Switches / Multiplexers ROHS

Technical Details

-3db Bandwidth	200MHz
Bandwidth	200MHz
Case/Package	TSSOP
Drain to Source Resistance	2.5Ω
Height	1.2mm
High Level Output Current	30mA
Interface	Parallel
Length	5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	85°C
Max Power Dissipation	5µW
Max Supply Current	1µA
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	1.8V
Mount	Surface Mount
Nominal Supply Current	1nA
Number of Bits	4
Number of Channels	4
Number of Circuits	4
Number of Inputs	4
Number of Outputs	4
Number of Pins	16
On-State Resistance	2.5Ω
Operating Supply Current	1nA
Packaging	Bulk
Polarity	Non-Inverting
Power Dissipation	5µW
Radiation Hardening	No
REACH SVHC	No
Resistance	4Ω
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Throw Configuration	SPST
Turn-Off Delay Time	6ns
Turn-On Delay Time	11ns
Width	4.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Analog Devices ADG713BRUZ | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

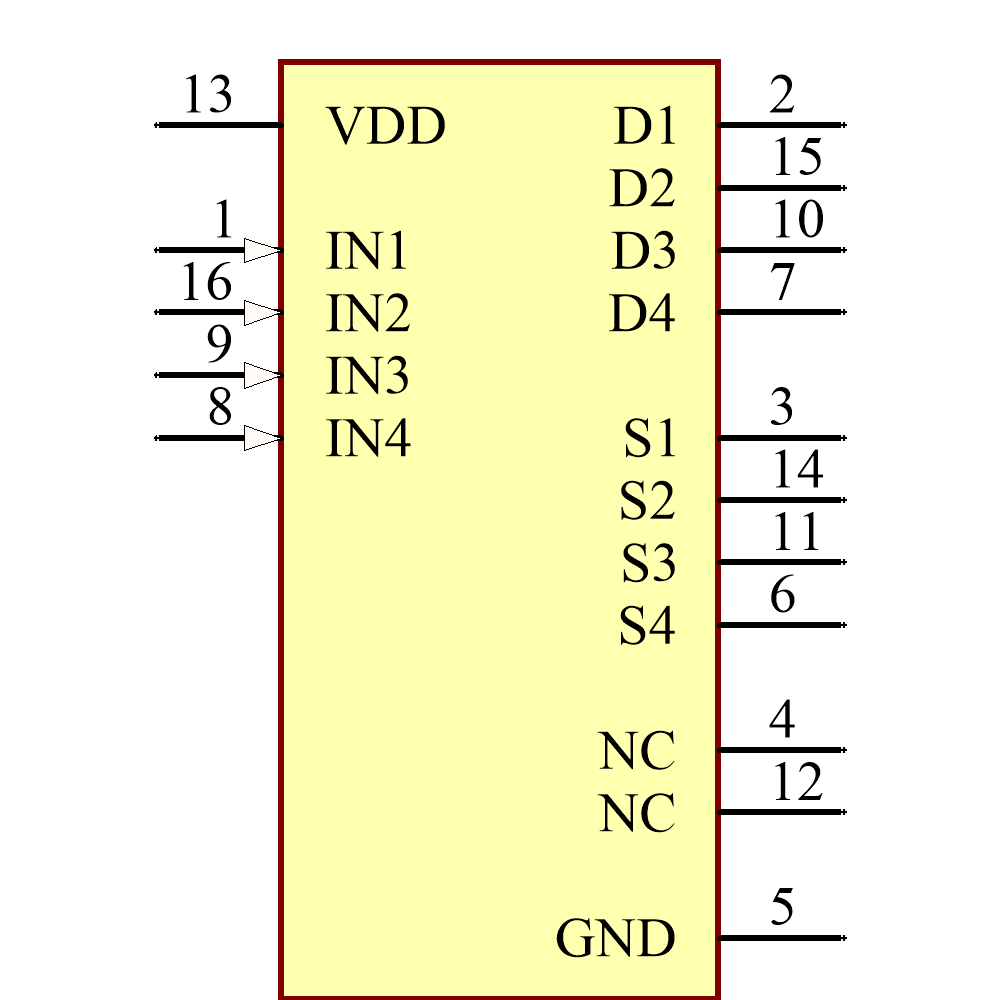

ADG713BRUZ Symbol - Analog Devices

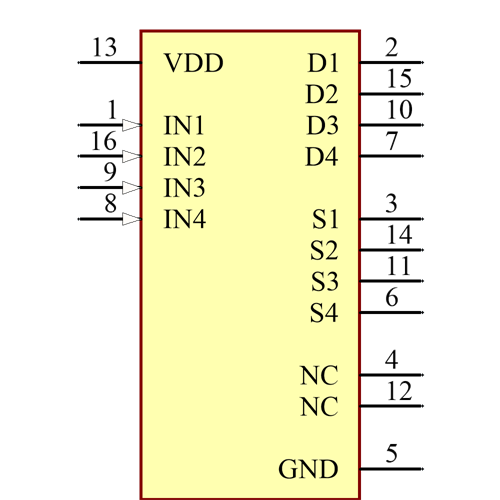

ADG713BRUZ Symbol - Analog Devices

ADG713BRUZ Symbol - Analog Devices

ADG713BRUZ Symbol - Analog Devices

‹ ›

Footprint

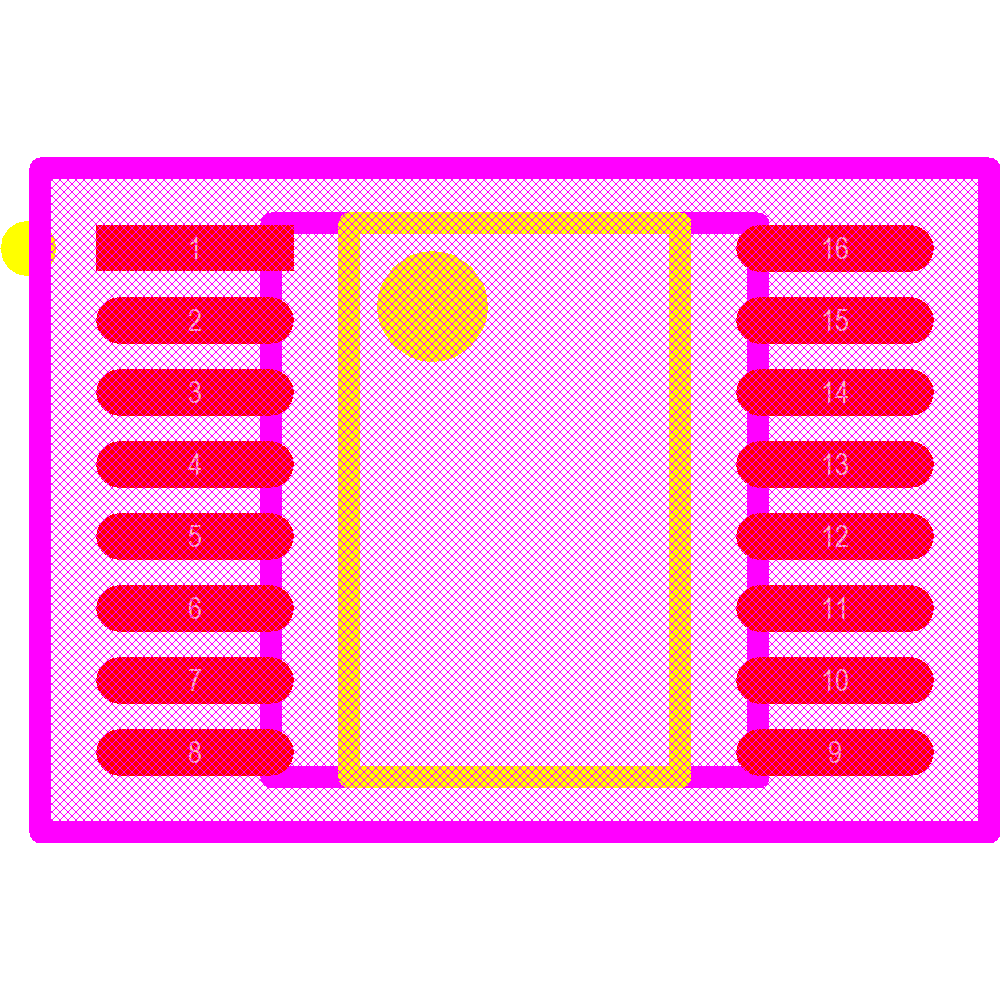

ADG713BRUZ Footprint - Analog Devices

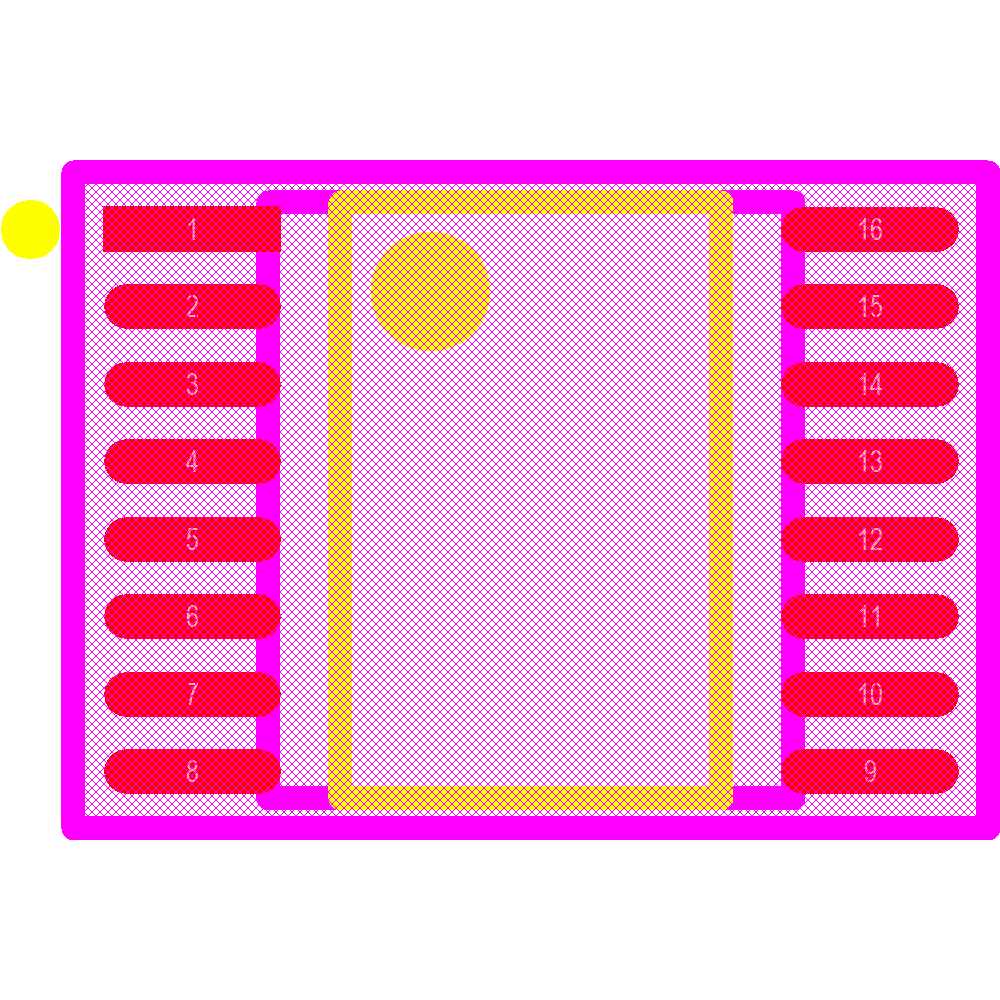

ADG713BRUZ Footprint - Analog Devices

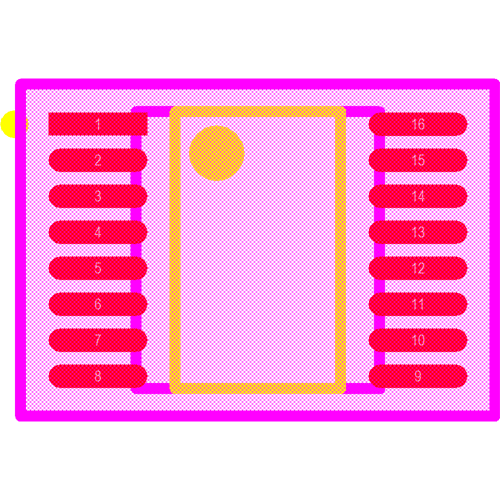

ADG713BRUZ Footprint - Analog Devices

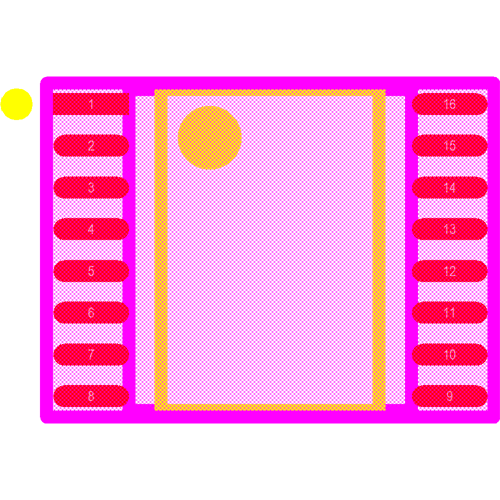

ADG713BRUZ Footprint - Analog Devices

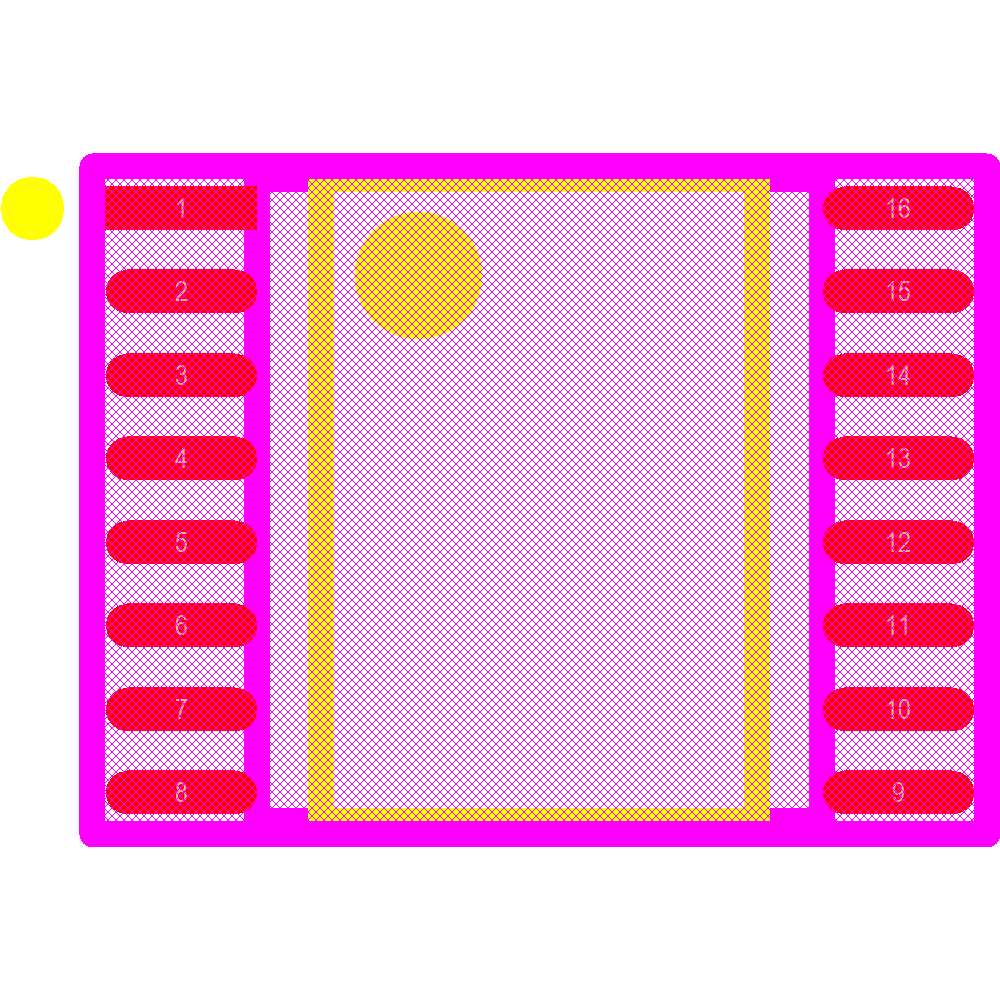

ADG713BRUZ Footprint - Analog Devices

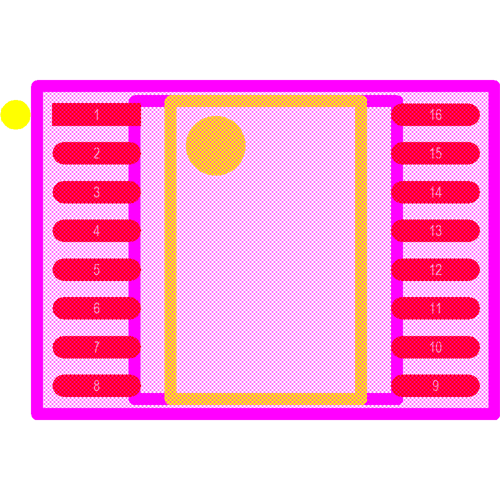

ADG713BRUZ Footprint - Analog Devices
