ADG722BRMZ-REEL7 - Analog Devices
2 4Ω SPST(SPST)-Normally closed MSOP-8 Analog Switches / Multiplexers ROHS
Technical Details
| -3db Bandwidth | 200MHz |
| Bandwidth | 200MHz |
| Case/Package | MSOP |
| Contact Plating | Tin |
| Height | 1.1mm |
| High Level Output Current | 30mA |
| Interface | Parallel |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 5µW |
| Max Supply Current | 1µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Nominal Supply Current | 1nA |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Number of Pins | 8 |
| On-State Resistance | 4Ω |
| Operating Supply Current | 1nA |
| Packaging | Tape & Reel (TR) |
| Polarity | Non-Inverting |
| Power Dissipation | 5µW |
| Resistance | 4Ω |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Supply Type | Single |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 10ns |
| Turn-On Delay Time | 20ns |
Compliance
RoHS : Unconfirmed

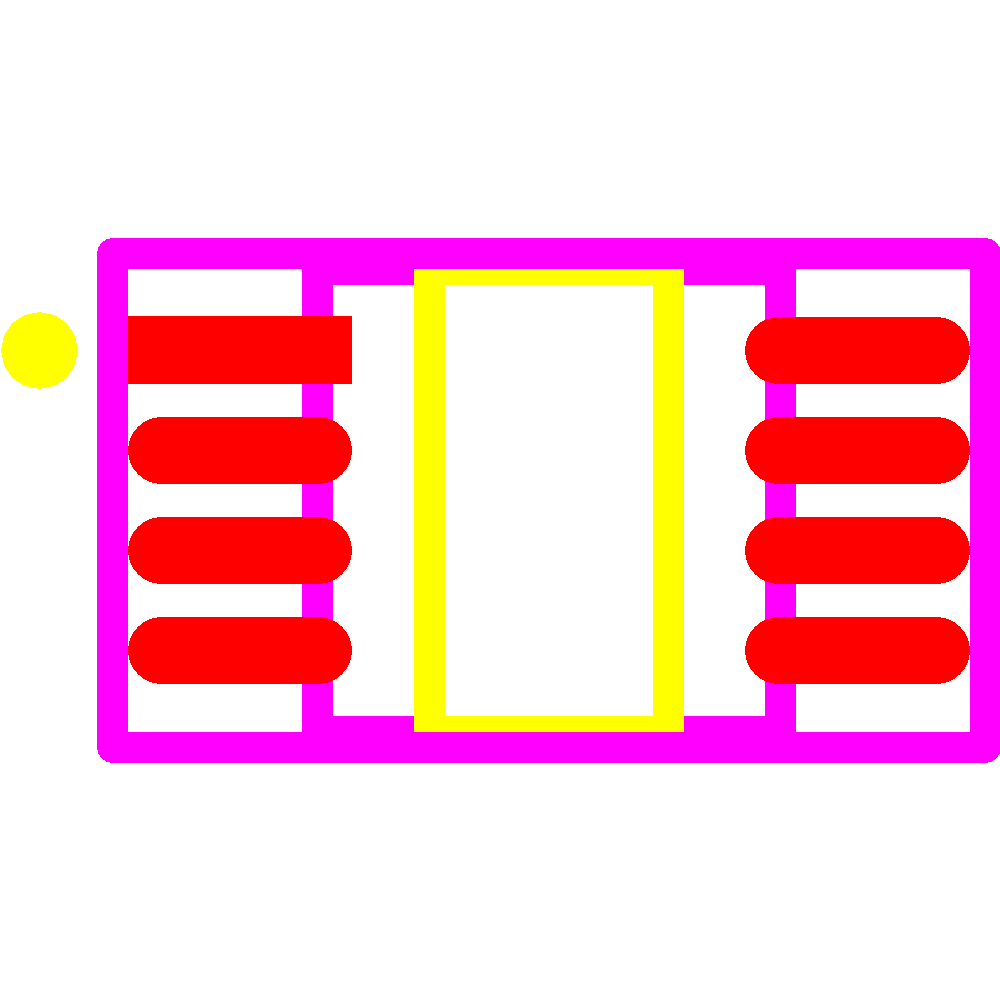

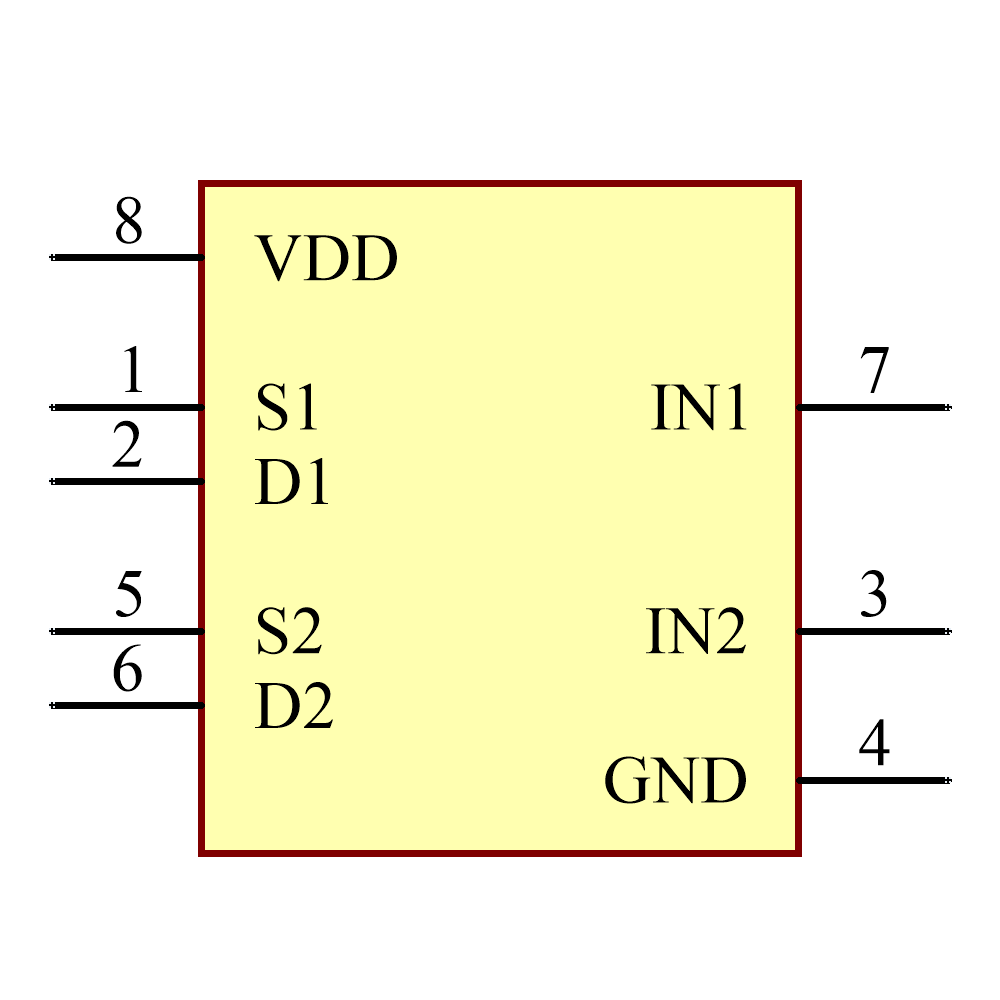

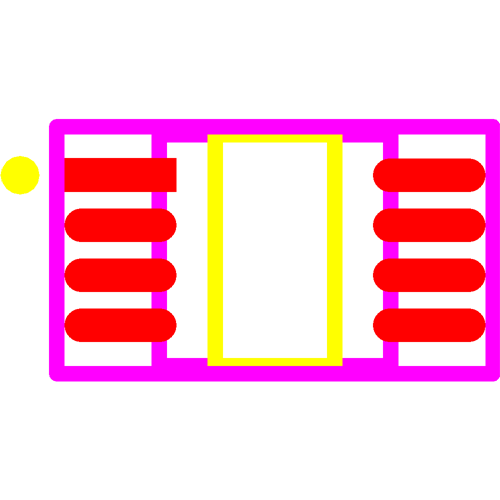

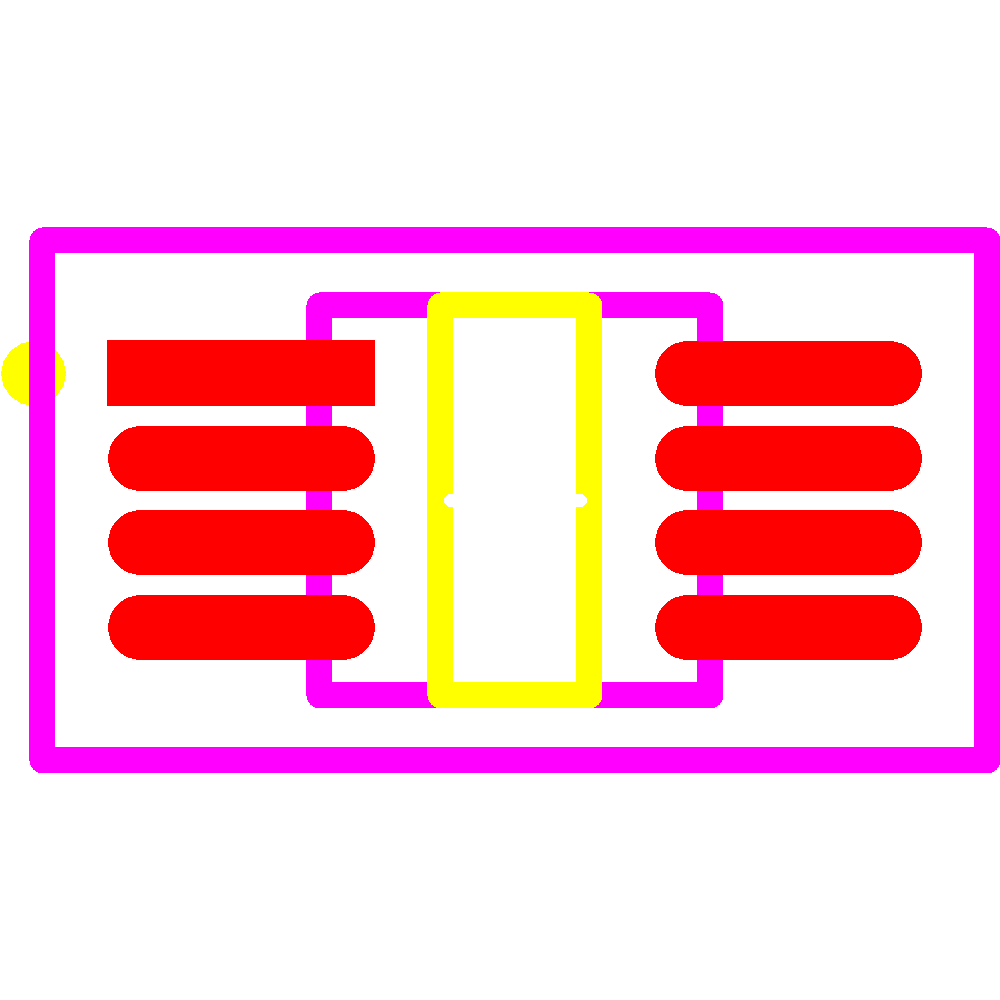

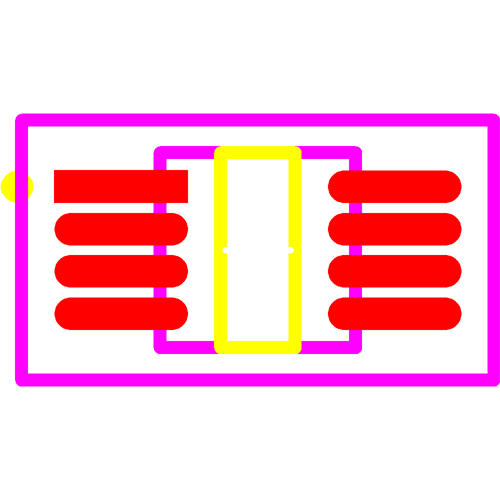

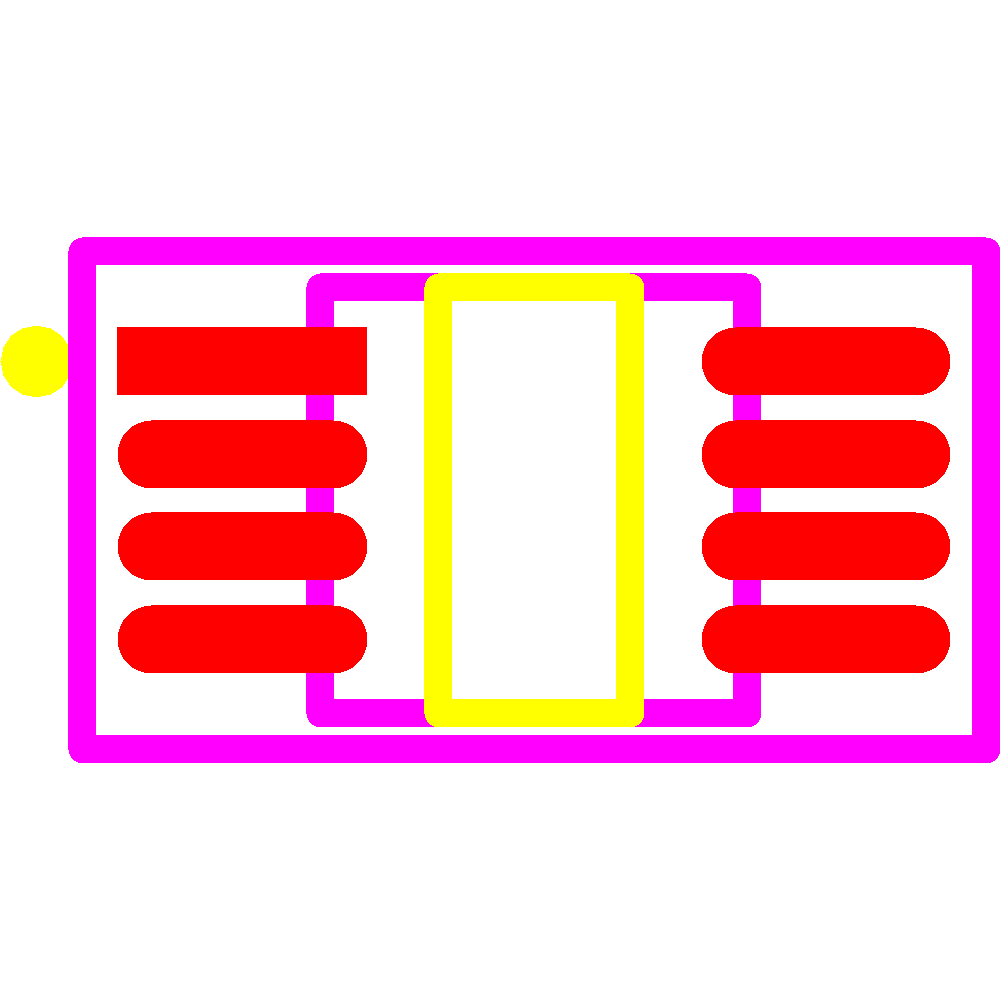

Images
