Integrated Circuits (ICs) > Linear ICs > Analog Switches and Multiplexers

ADG823BRMZ-REEL7 - Analog Devices

GULL WING Surface Mount Not Qualified ROHS3Compliant Switch IC 52dB 85pF 98pF 600mOhm 15pC

Technical Details

-3db Bandwidth	24MHz
Bandwidth	24MHz
Case/Package	MSOP
Interface	Parallel
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Operating Temperature	125°C
Max Power Dissipation	5µW
Max Supply Current	2µA
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	1.8V
Number of Bits	2
Number of Channels	2
Number of Circuits	2
Number of Inputs	2
Number of Outputs	2
Number of Pins	8
Operating Supply Current	1nA
Packaging	Tape & Reel (TR)
Power Dissipation	5µW
Resistance	600mΩ
RoHS	Compliant
Supply Type	Single
Throw Configuration	SPST
Turn-Off Delay Time	16ns
Turn-On Delay Time	45ns

Compliance

RoHS : Unconfirmed

Images

Analog Devices ADG823BRMZ-REEL7 | Analog Devices

Analog Devices

Datasheets

Lifecycle Status Indicator

Production

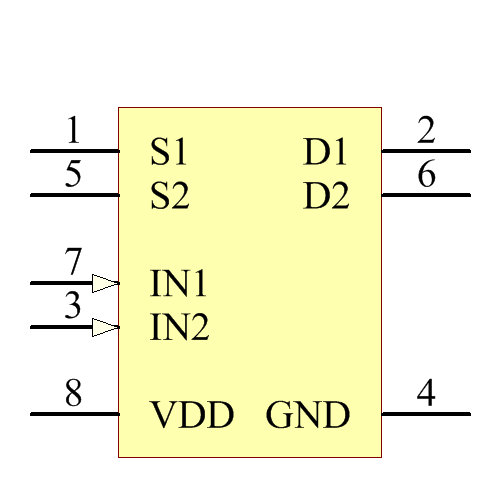

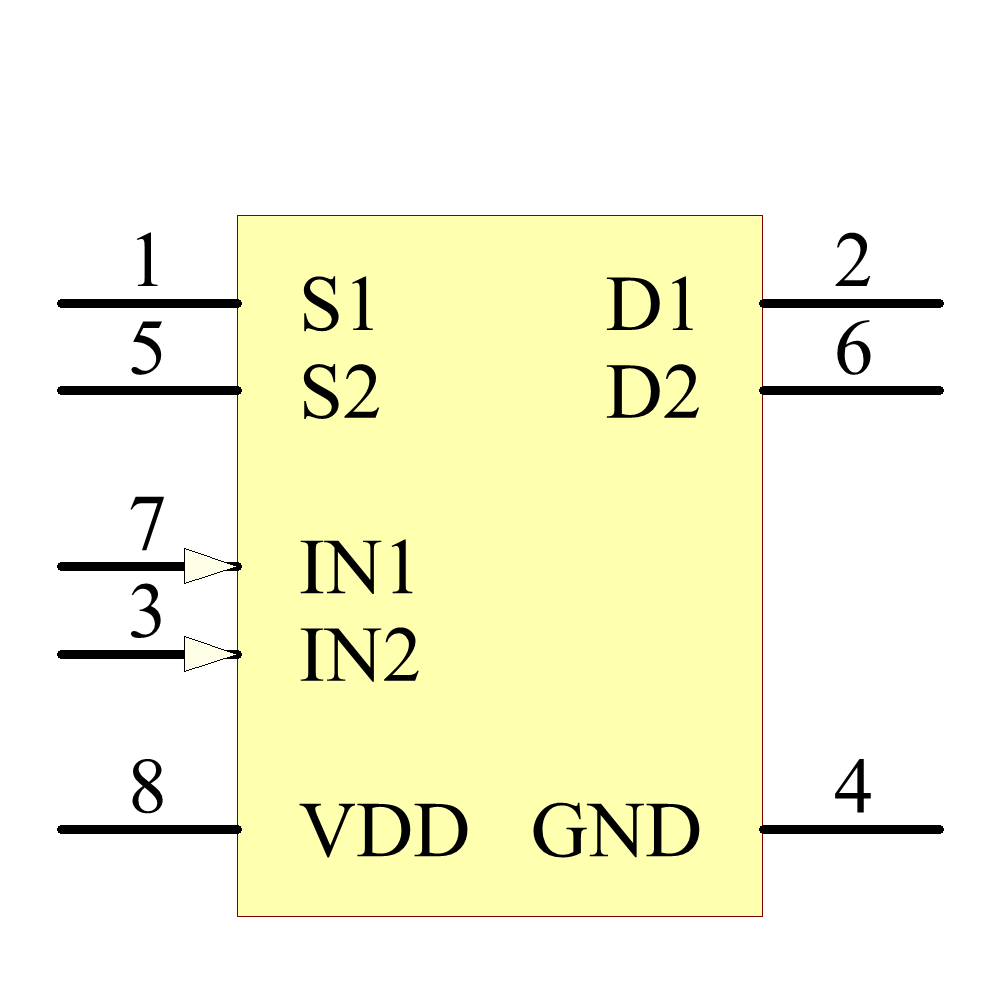

Symbol

ADG823BRMZ-REEL7 Symbol - Analog Devices

ADG823BRMZ-REEL7 Symbol - Analog Devices

ADG823BRMZ-REEL7 Symbol - Analog Devices

ADG823BRMZ-REEL7 Symbol - Analog Devices

‹ ›

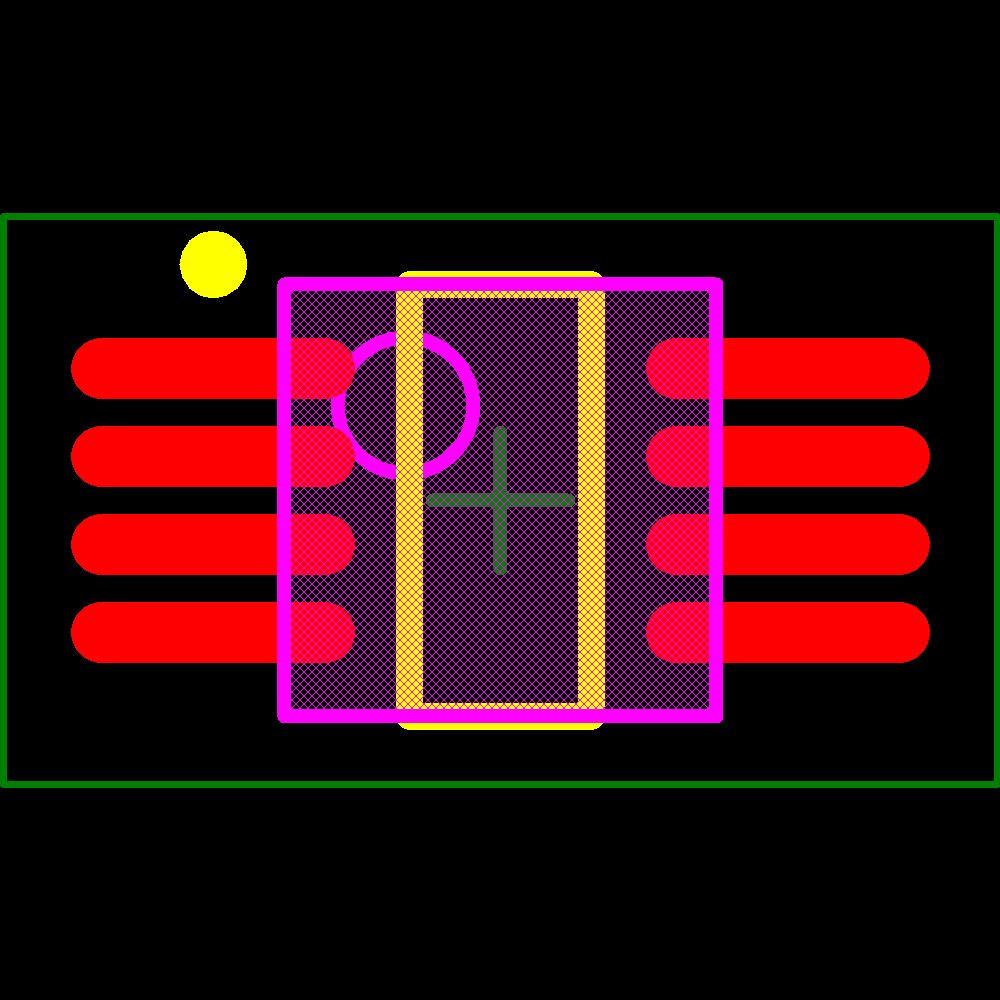

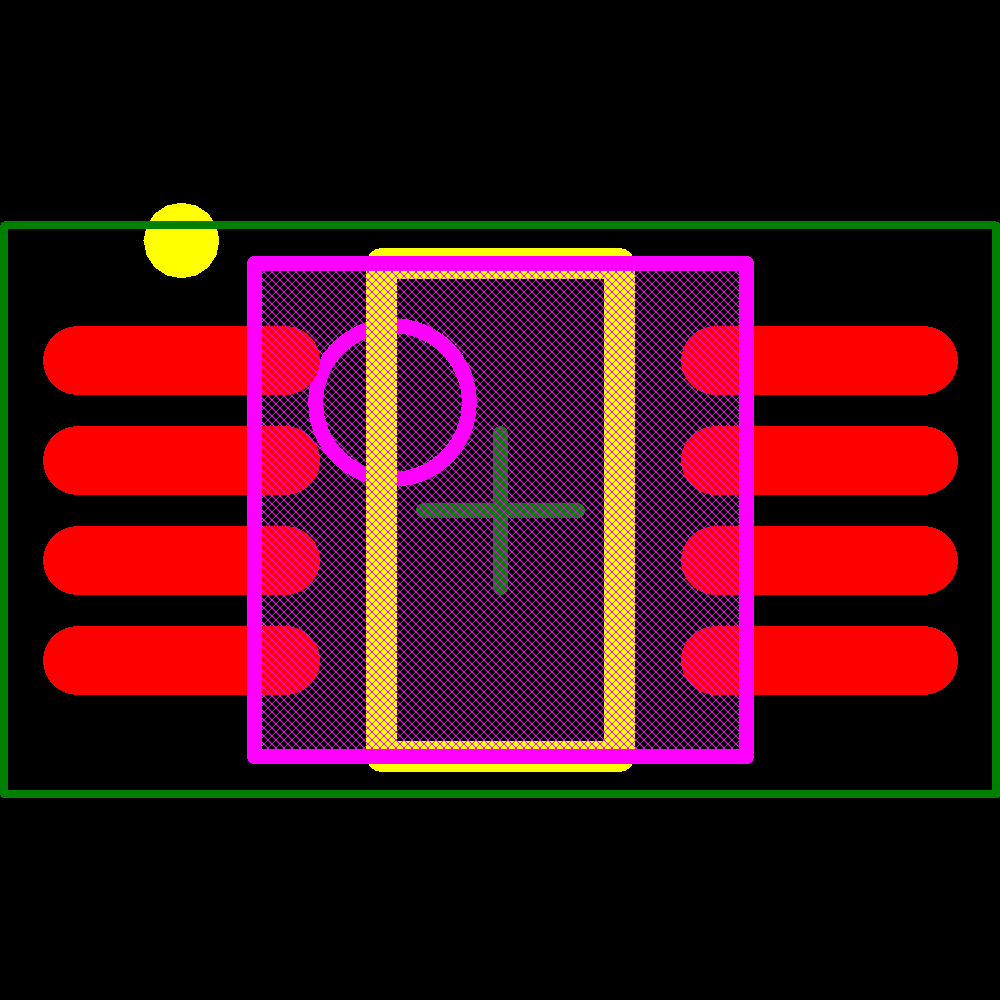

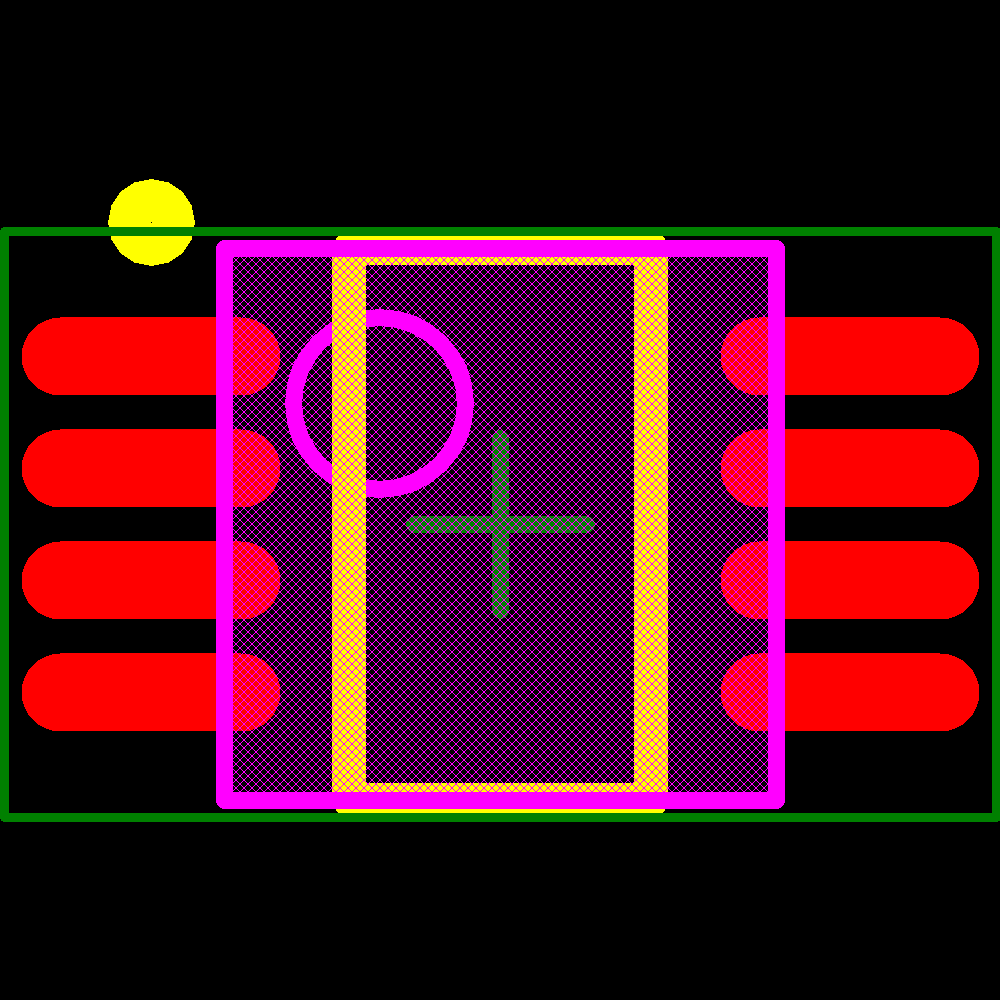

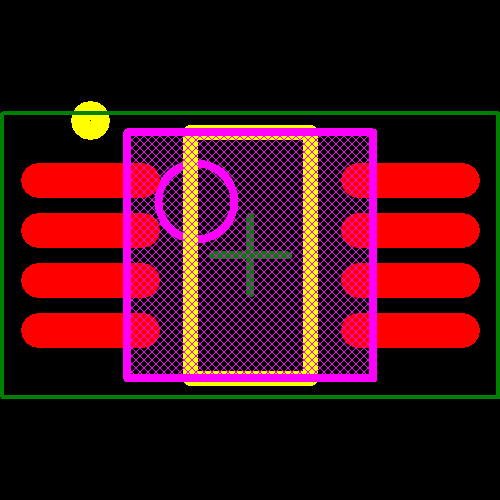

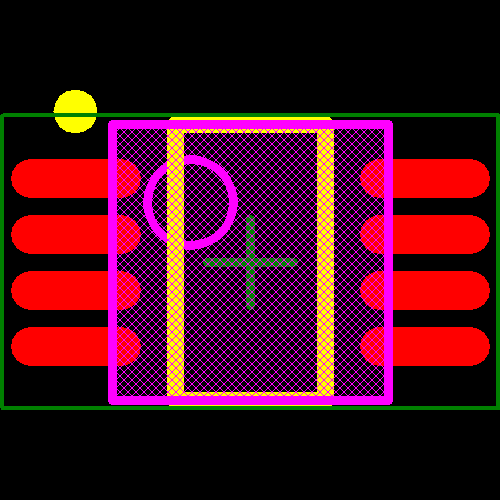

Footprint

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

ADG823BRMZ-REEL7 Footprint - Analog Devices

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Analog Devices	ADG823BRM-REEL	Unknown
Analog Devices	ADG823BRM	Unknown
Analog Devices	ADG823BRM-REEL7	Unknown
Analog Devices	ADG823BRMZ	Production
Analog Devices	ADG822BRMZ-REEL7	Production
Analog Devices	ADG822BRM-REEL	Unknown
Analog Devices	ADG822BRM	Unknown
Analog Devices	ADG822BRMZ	Production
Analog Devices	ADG822BRM-REEL7	Unknown
Analog Devices	ADG723BRMZ	Production

See more alternatives See less alternatives
