Integrated Circuits (ICs) > Power Management ICs > Voltage Supervisors

ADM1186-2ARQZ - Analog Devices

IC SUPERVISOR 4 CHANNEL 16QSOP Supervisor Open Drain or Open Collector 4 Channel 16-QSOP

Technical Details

Accuracy	0.8%
Case/Package	QSOP
Height	1.7526mm
Lead Free	Contains Lead
Length	4.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Junction Temperature (Tj)	125°C
Max Operating Temperature	85°C
Max Supply Current	210µA
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	2.7V
Mount	Surface Mount
Nominal Supply Current	146µA
Number of Monitored Inputs	4
Number of Outputs	4
Number of Pins	16
Number of Voltages Monitored	4
Operating Supply Current	146µA
Operating Supply Voltage	3.3V
Radiation Hardening	No
REACH SVHC	No
Reset	Active High
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Threshold Voltage	600mV
Type	Sequencer
Undervoltage Threshold	2.46V
Watchdog Timer	No
Width	3.9mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Analog Devices ADM1186-2ARQZ | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

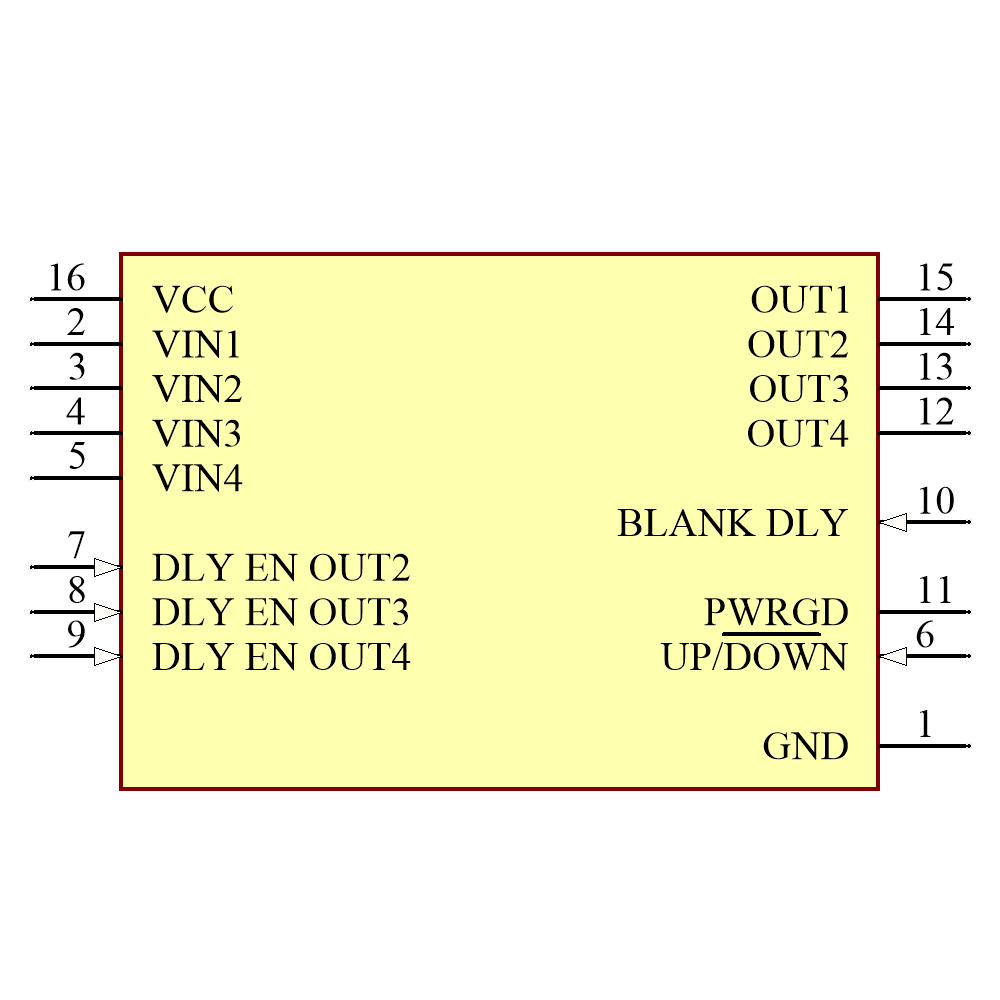

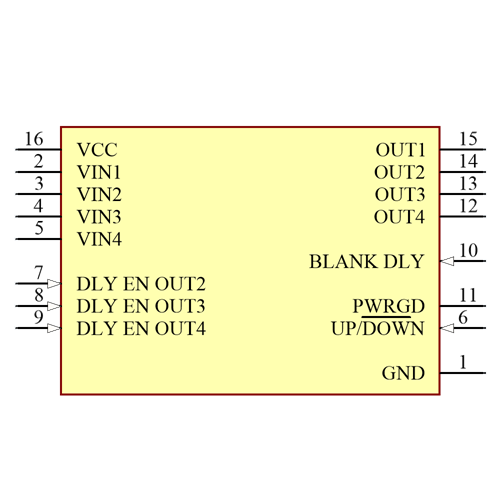

Symbol

ADM1186-2ARQZ Symbol - Analog Devices

ADM1186-2ARQZ Symbol - Analog Devices

ADM1186-2ARQZ Symbol - Analog Devices

ADM1186-2ARQZ Symbol - Analog Devices

‹ ›

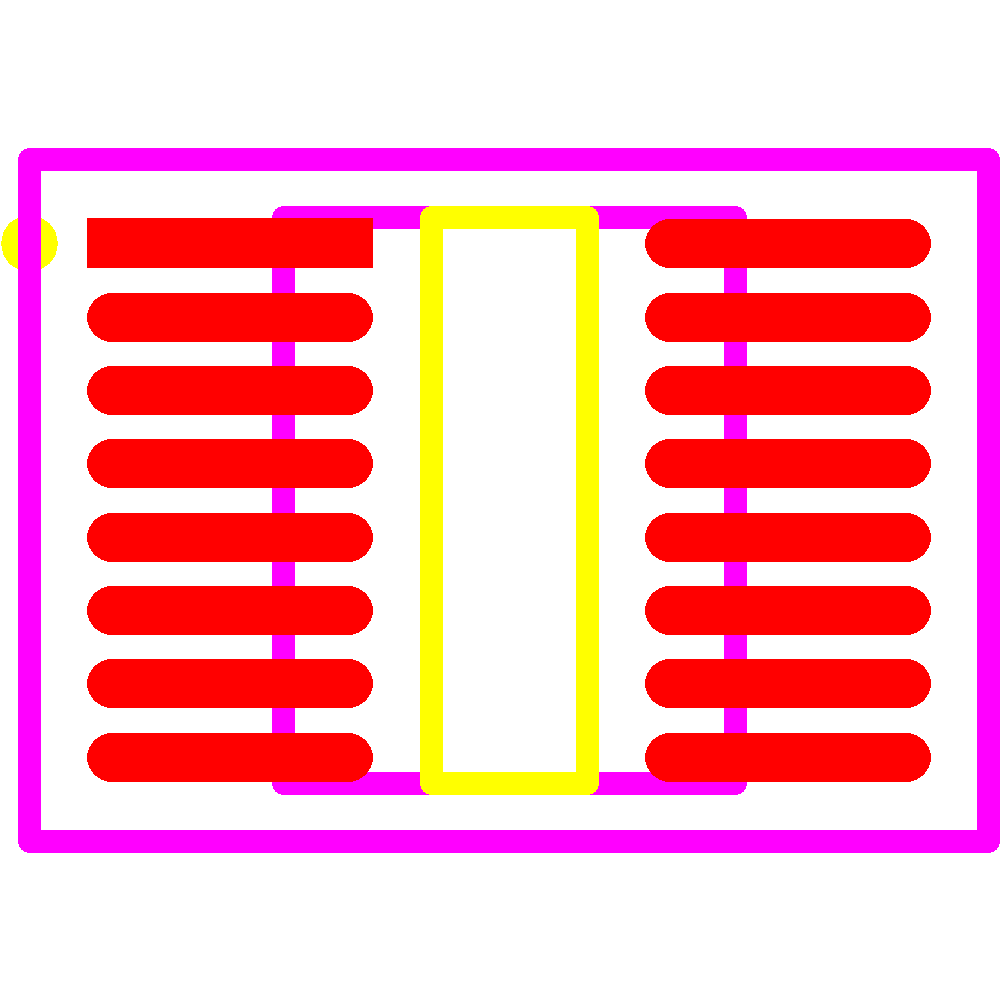

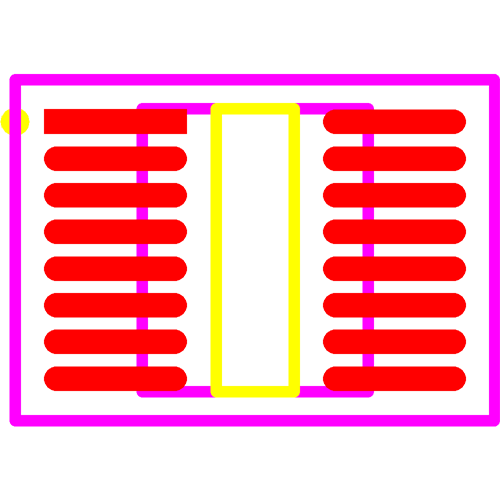

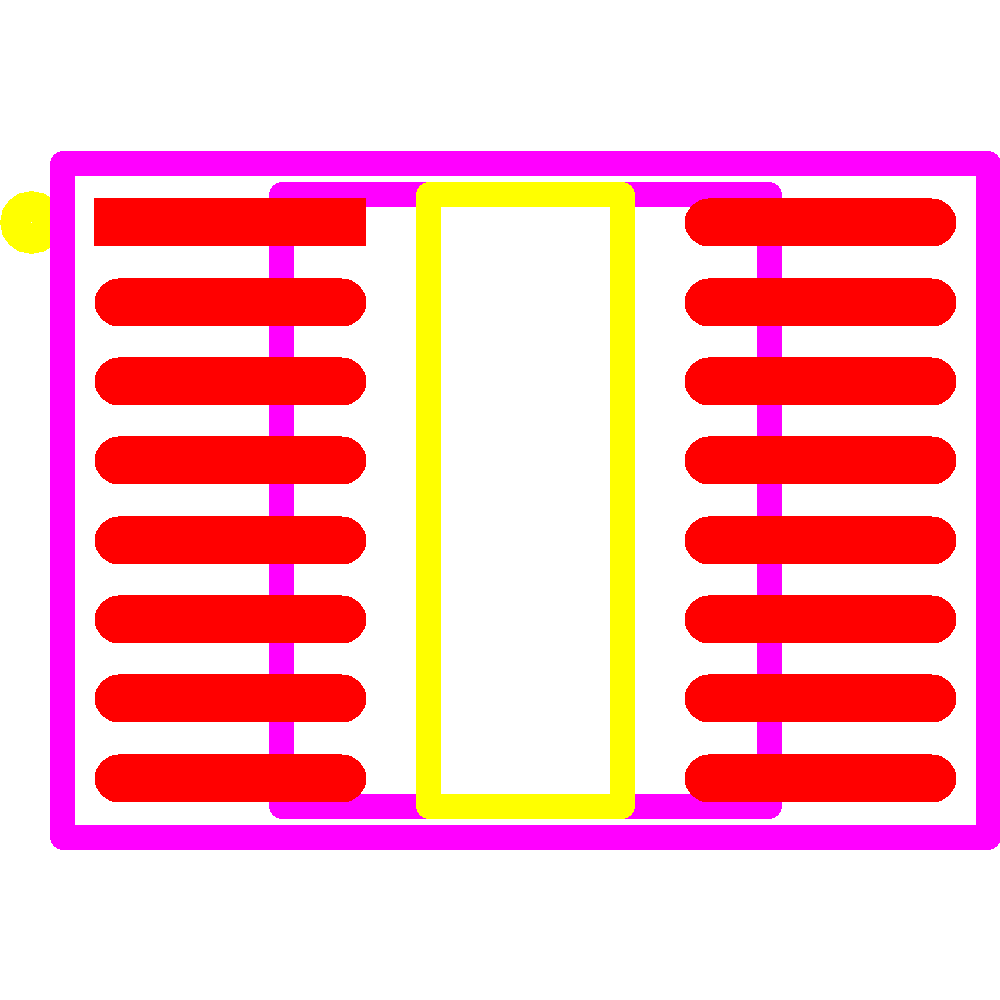

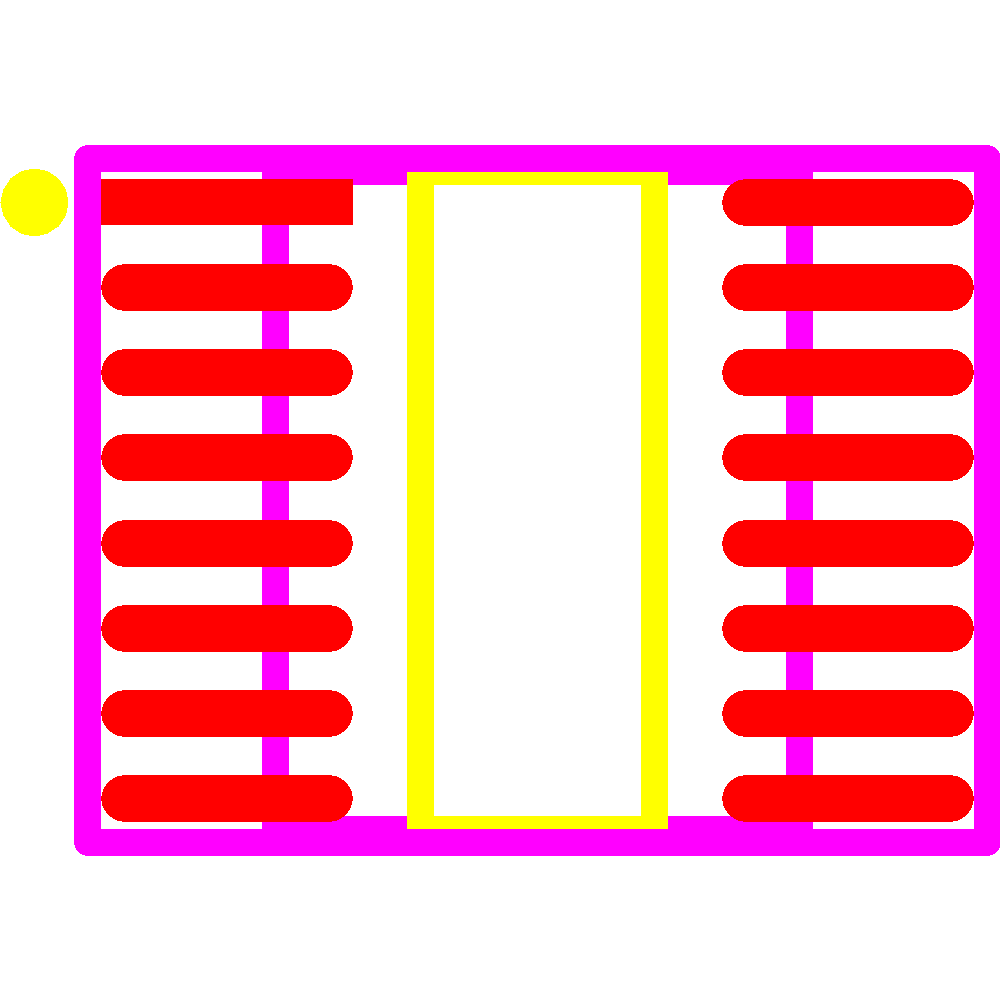

Footprint

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

ADM1186-2ARQZ Footprint - Analog Devices

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Analog Devices	ADM1186-2ARQZ-REEL	Production
Analog Devices	ADM1186-1ARQZ	Production
Analog Devices	ADM1186-1ARQZ-REEL	Production
