ADM1815-5AKS-RL7 - Analog Devices
IC SUPERVISOR 1 CHANNEL SC70-3 "Supervisor Push-Pull, Totem Pole 1 Channel SC-70-3"
Technical Details
| Case/Package | SC |
| Lead Free | Contains Lead |
| Max Operating Temperature | 105°C |
| Max Reset Threshold Voltage | 3.15V |
| Max Supply Current | 16µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 2.98V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Nominal Supply Current | 16µA |
| Number of Elements | 1 |
| Number of Monitored Inputs | 1 |
| Number of Pins | 3 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 16µA |
| Overvoltage Threshold | 3.15V |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| Reset | Active Low |
| Reset Delay Time | 250ms |
| Reset Timeout | 100ms |
| RoHS | Non-Compliant |
| Threshold Voltage | 3.06V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.98V |
| Watchdog Timer | No |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

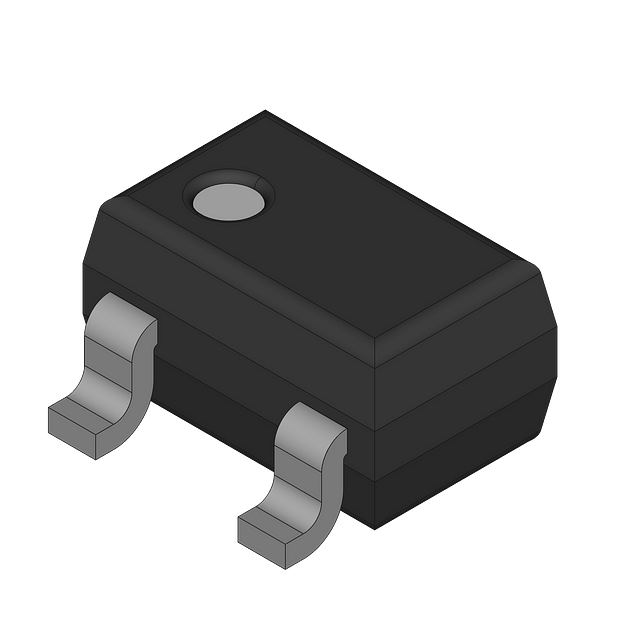

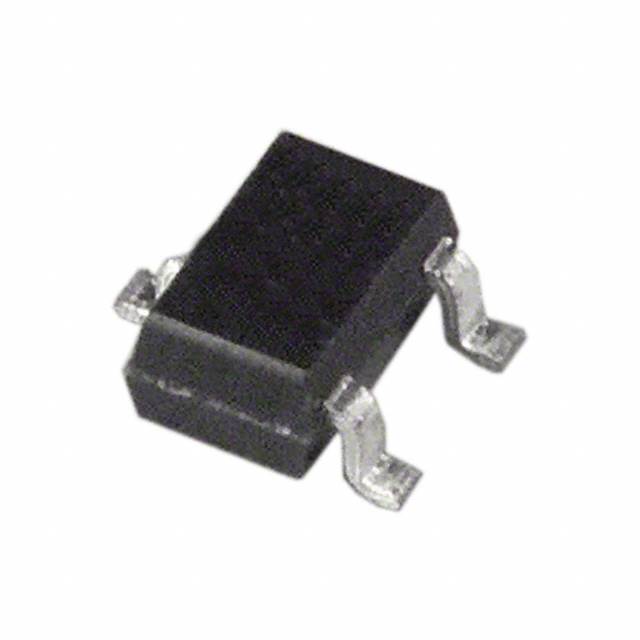

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| MaxLinear | Obsolete | ||
| Analog Devices | Unknown | ||
| Sipex | Obsolete | ||
| Sipex | Obsolete | ||
| Sipex | Obsolete | ||
| onsemi | Obsolete | ||
| Analog Devices | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 30528
|
$ | 0.8587 | 0.7127 | 0.6354 | |||||
