ADM3491ARZ-REEL7 - Analog Devices
3.3 V, Low Power, RS-485/RS-422 Transceiver (Full Duplex, 10 Mbps, Driver/Receiver Enable)
Technical Details
| Case/Package | SOIC |
| Contact Plating | Tin |
| Data Rate | 10Mbps |
| ESD Protection | No |
| Height | 1.5mm |
| Length | 8.75mm |
| Lifecycle Status | Production |
| Logic Function | Receiver, Transceiver |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Operating Temperature | 85°C |
| Max Supply Current | 2.2mA |
| Max Supply Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 2.2mA |
| Number of Drivers | 1 |
| Number of Pins | 14 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 1µA |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Receiver Hysteresis | 50mV |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Simplex/Duplex | Full Duplex |
| Weight | 338.011364mg |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

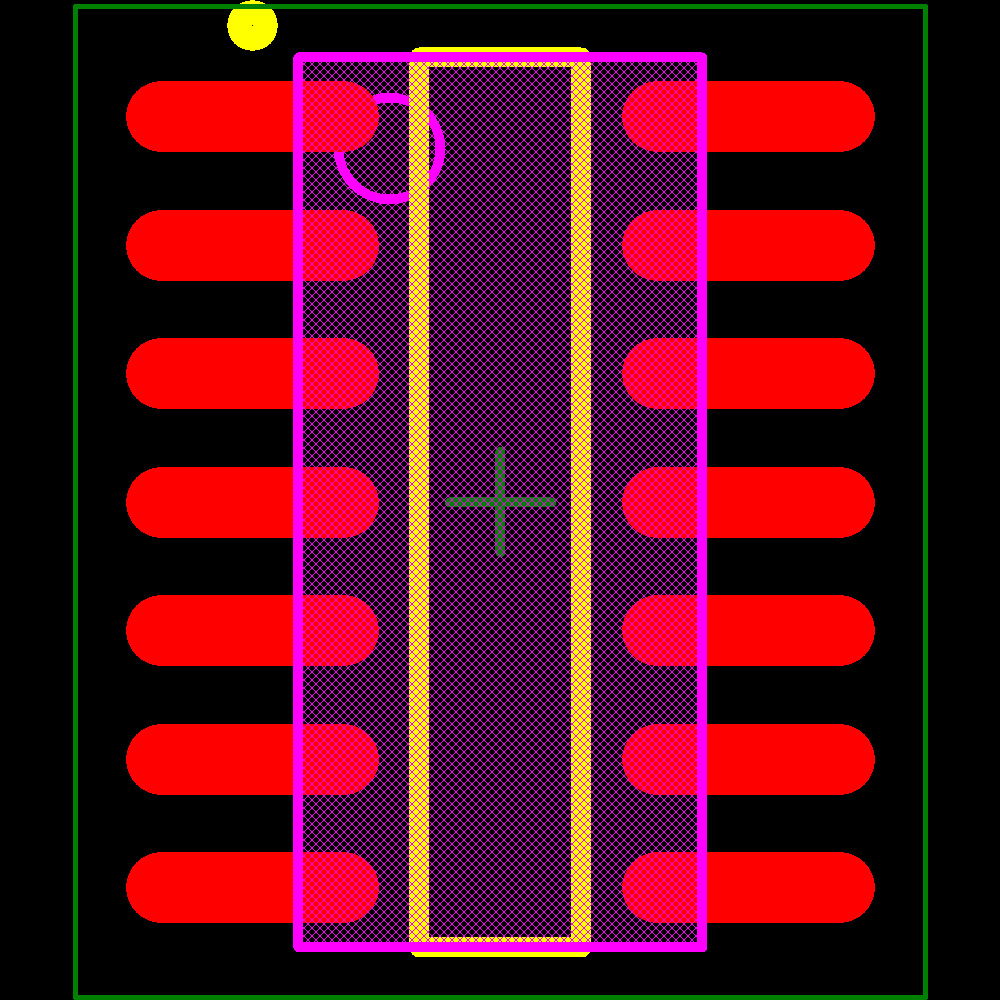

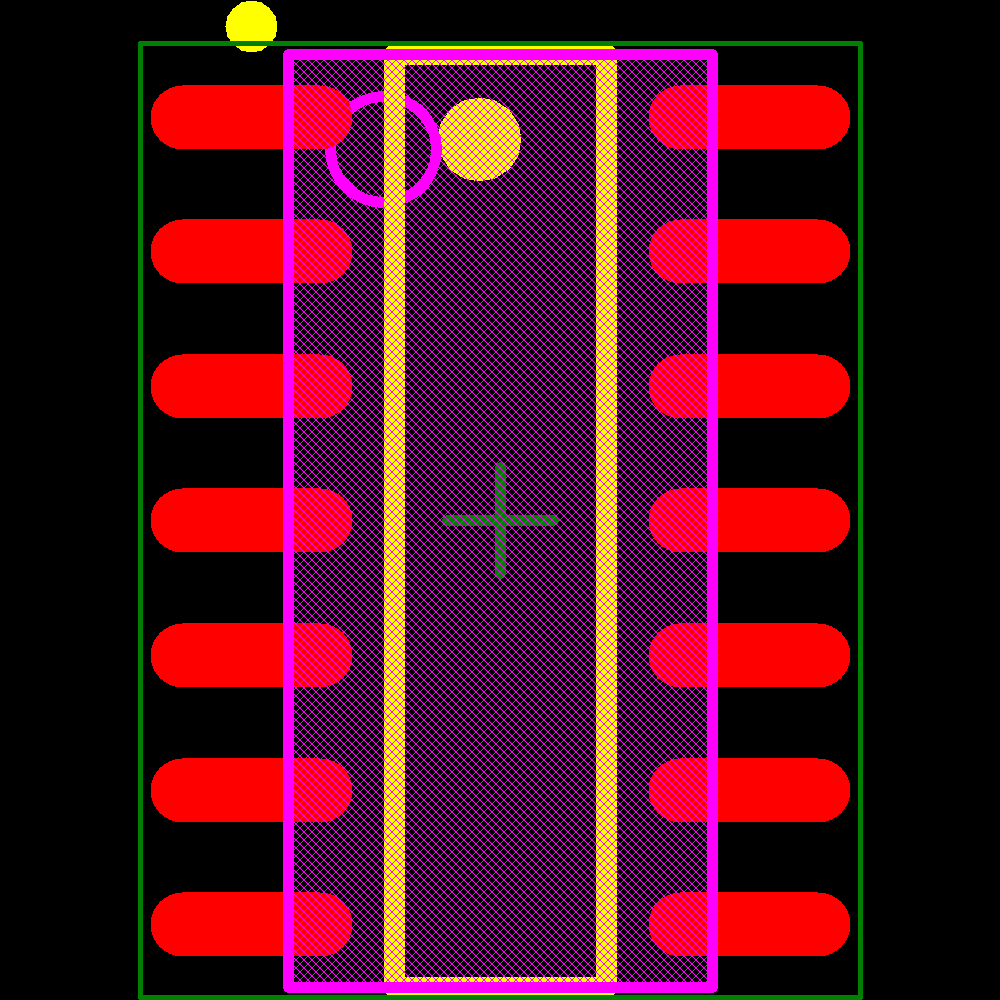

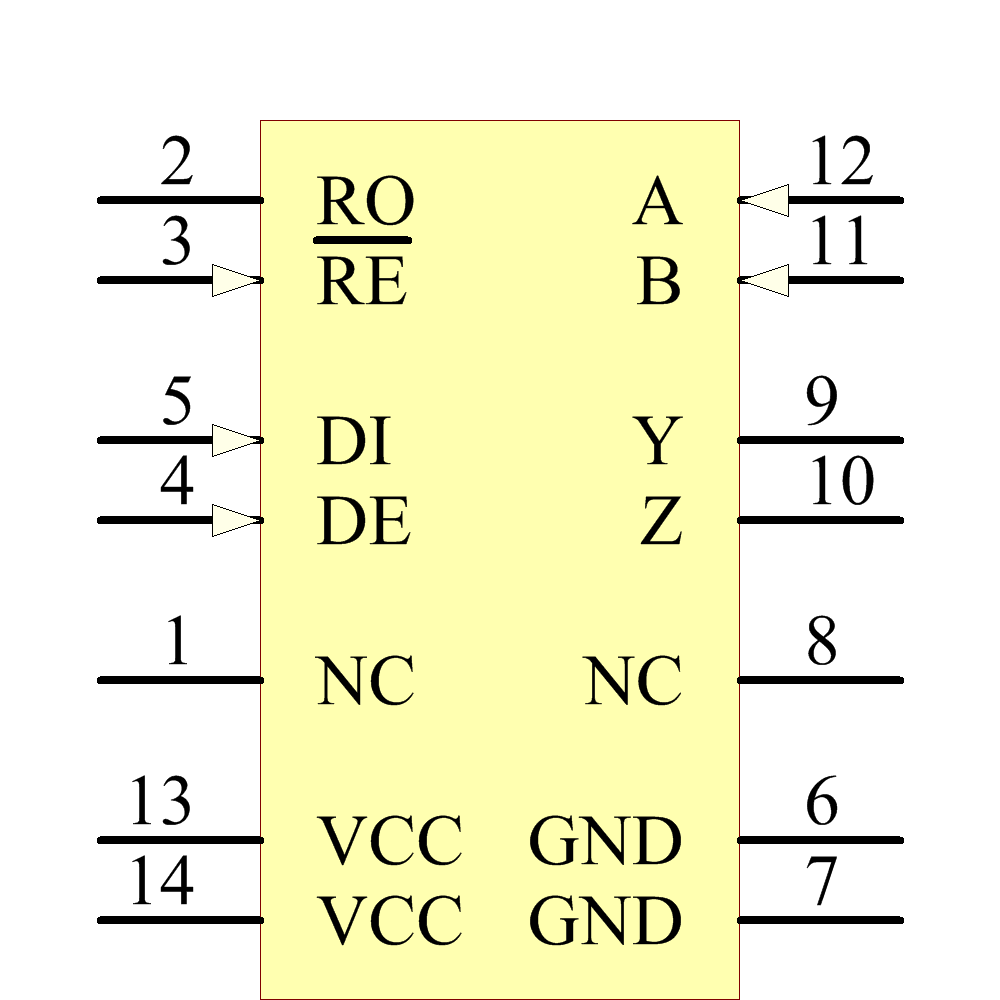

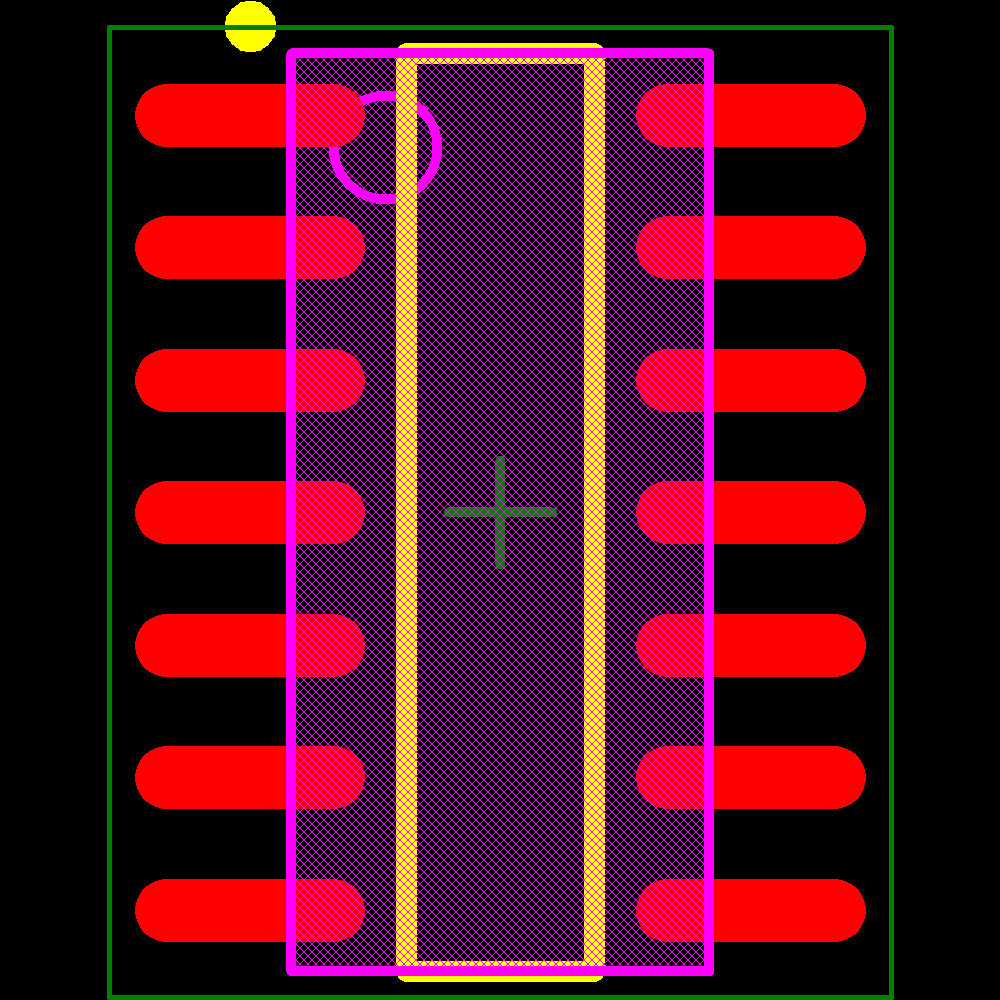

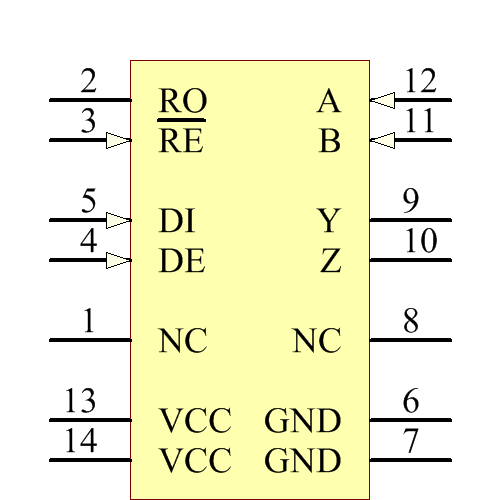

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| onsemi | Obsolete |
