ADM483EARZ-REEL - Analog Devices
5 V, ±15 kV ESD Protected, Slew Rate Limited, Low Power, Half Duplex RS-485/RS-422 Transceiver
Technical Details
| Case/Package | SOIC |
| Data Rate | 250kbps |
| ESD Protection | Yes |
| Height | 1.75mm |
| Interface | RS-422, RS-485 |
| Length | 5mm |
| Lifecycle Status | Production |
| Logic Function | Transceiver |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Operating Temperature | 85°C |
| Max Supply Current | 360µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 360µA |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 10µA |
| Operating Supply Voltage | 5V |
| Radiation Hardening | No |
| REACH SVHC | No |
| Receiver Hysteresis | 70mV |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Simplex/Duplex | Half Duplex |
| Weight | 540.001716mg |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

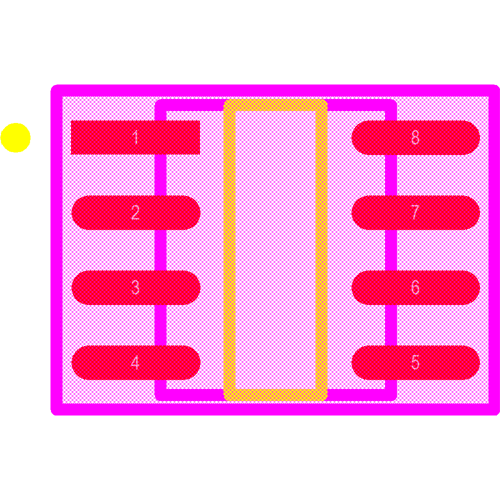

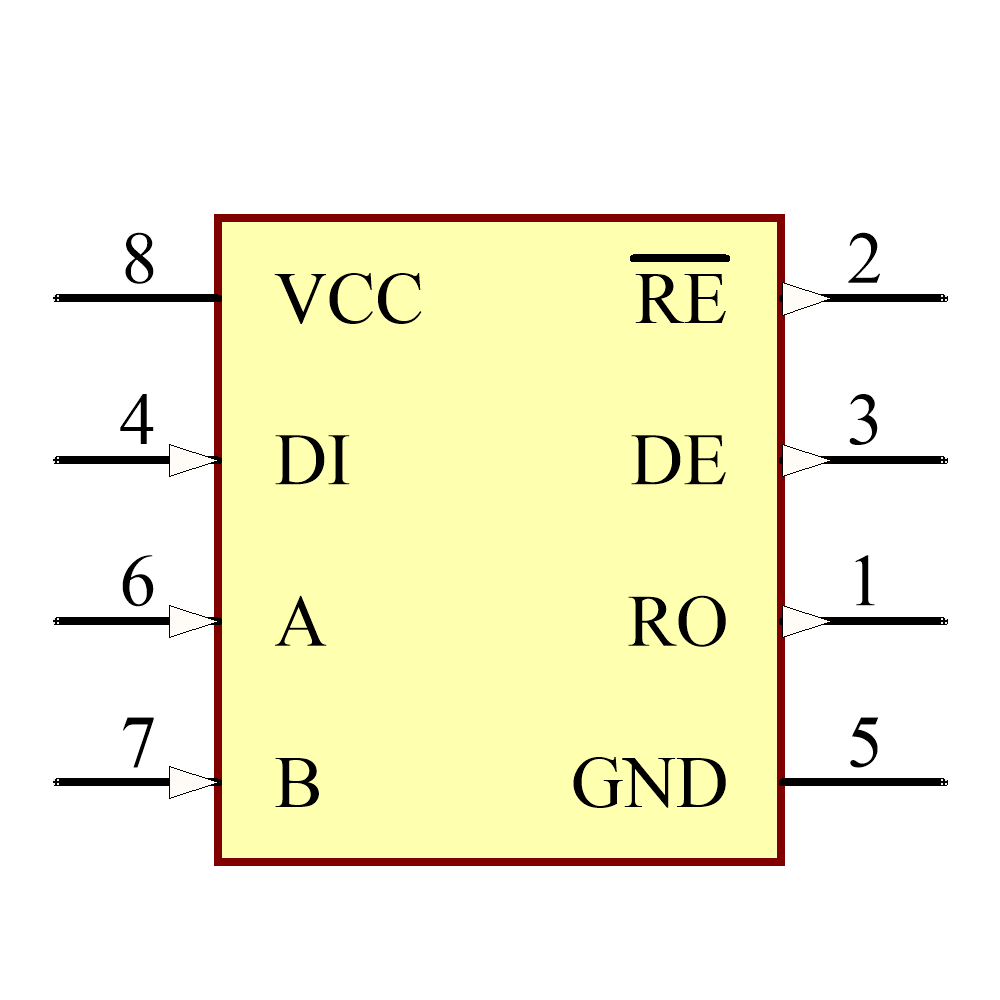

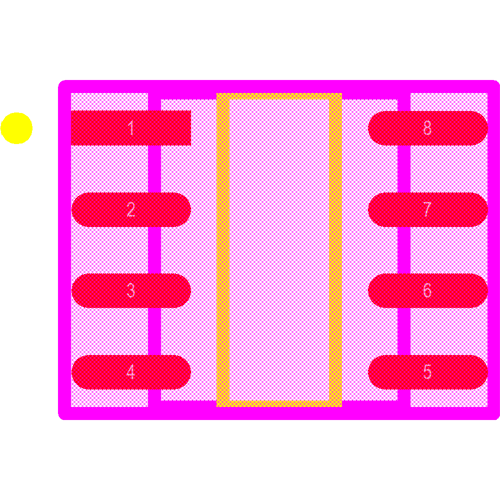

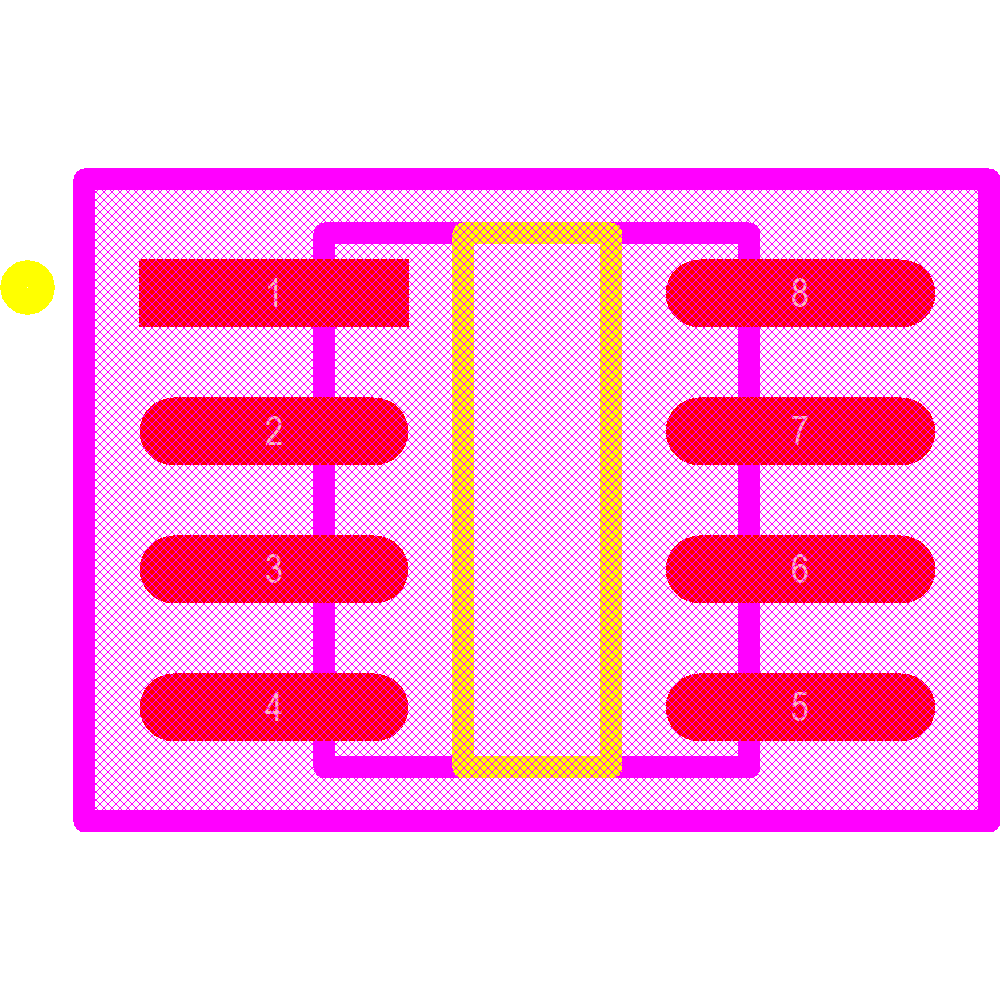

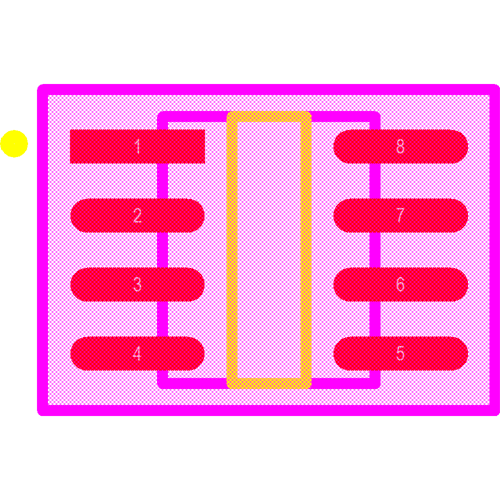

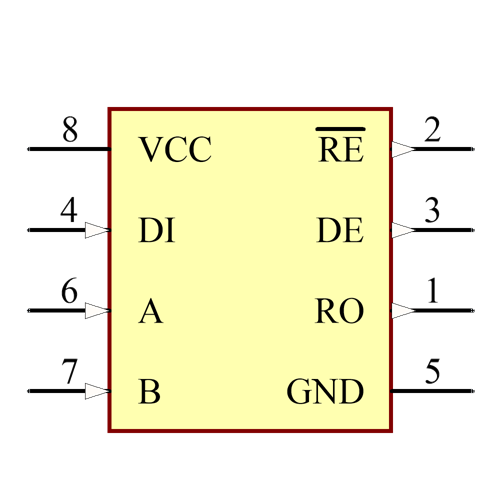

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production |
