ADM485ARZ-REEL - Analog Devices

Single Transmitter/Receiver RS-422/RS-485 8-Pin SOIC N T/R

Technical Details

Case/Package	SOIC
Contact Plating	Tin
Data Rate	5Mbps
ESD Protection	Yes
Height	1.75mm
Interface	RS-422, RS-485
Length	5mm
Lifecycle Status	Production
Logic Function	Transceiver
Manufacturer Lifecycle Status	PRODUCTION
Max Operating Temperature	85°C
Max Power Dissipation	450mW
Max Supply Current	2.2mA
Max Supply Voltage	5.25V
Min Operating Temperature	-40°C
Min Supply Voltage	4.75V
Mount	Surface Mount
Nominal Supply Current	2.2mA
Number of Drivers	1
Number of Pins	8
Number of Receivers	1
Number of Transceivers	1
Number of Transmitters	1
Operating Supply Current	2.2mA
Operating Supply Voltage	5V
Output Voltage	2V
Packaging	Cut Tape
Propagation Delay	10ns
Radiation Hardening	No
REACH SVHC	No
Receiver Hysteresis	70mV
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Simplex/Duplex	Half Duplex
Weight	540.001716mg
Width	4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

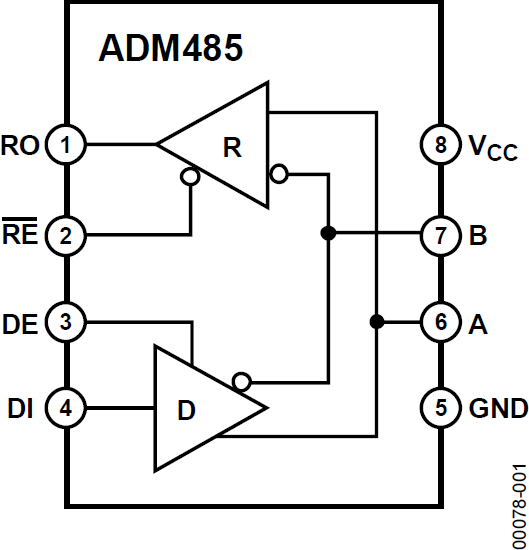

Analog Devices ADM485ARZ-REEL | Analog Devices

Analog Devices

Datasheets

Lifecycle Status Indicator

Production

Symbol

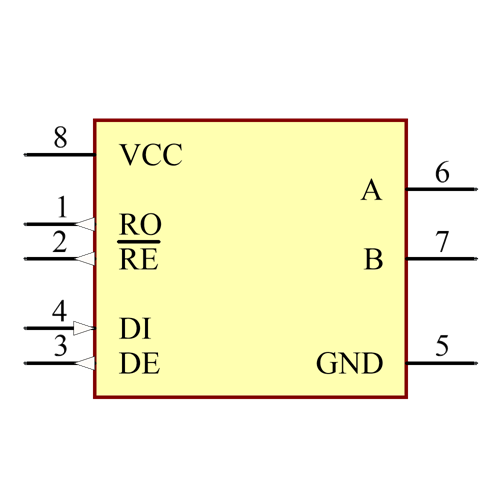

ADM485ARZ-REEL Symbol - Analog Devices

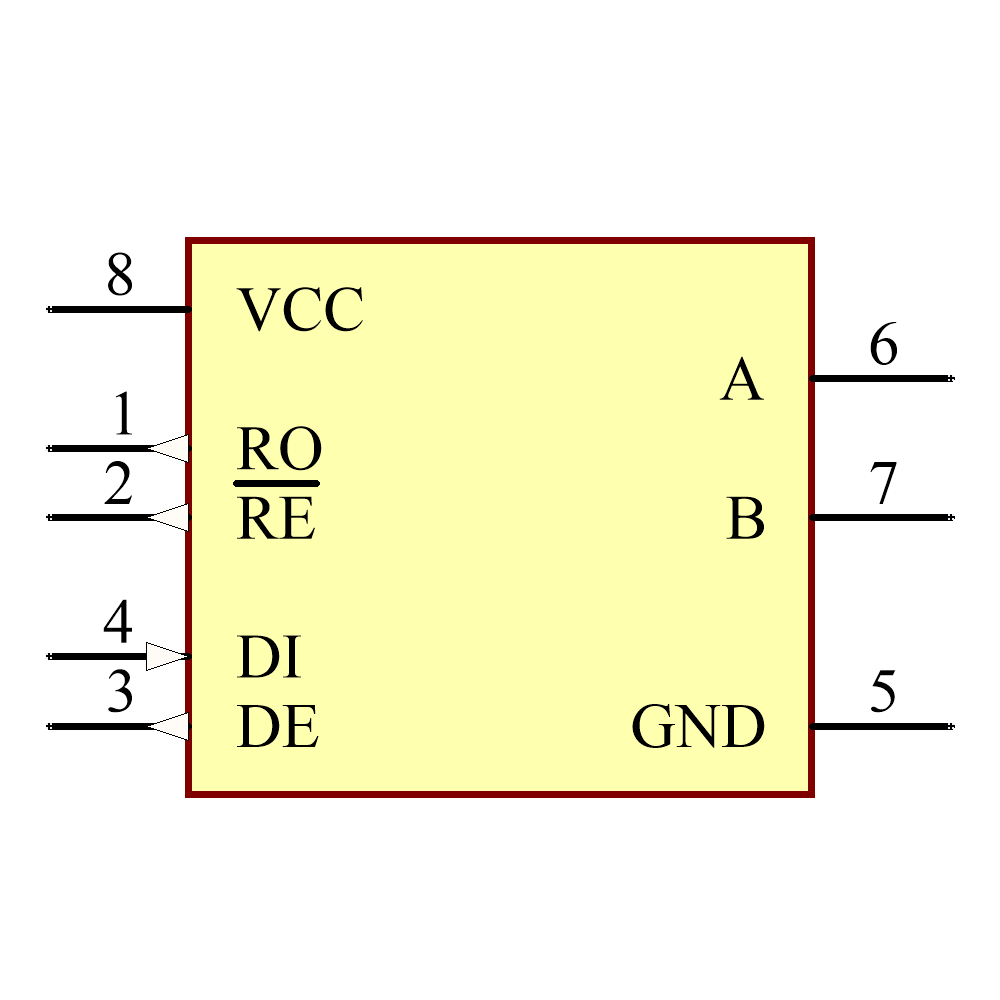

ADM485ARZ-REEL Symbol - Analog Devices

ADM485ARZ-REEL Symbol - Analog Devices

ADM485ARZ-REEL Symbol - Analog Devices

‹ ›

Footprint

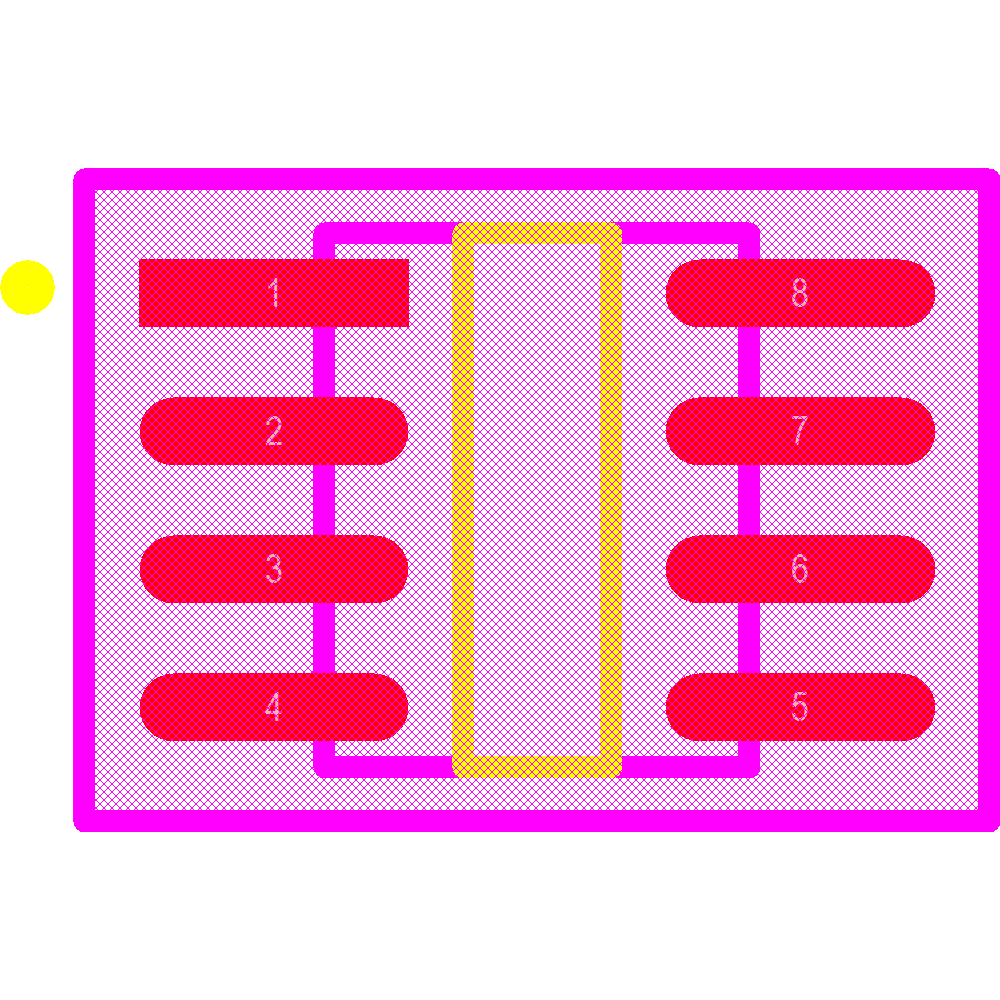

ADM485ARZ-REEL Footprint - Analog Devices

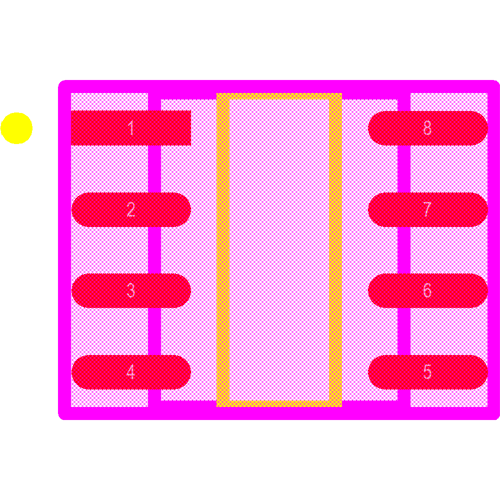

ADM485ARZ-REEL Footprint - Analog Devices

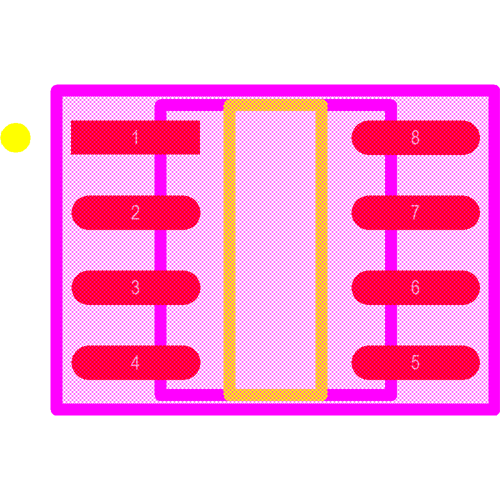

ADM485ARZ-REEL Footprint - Analog Devices

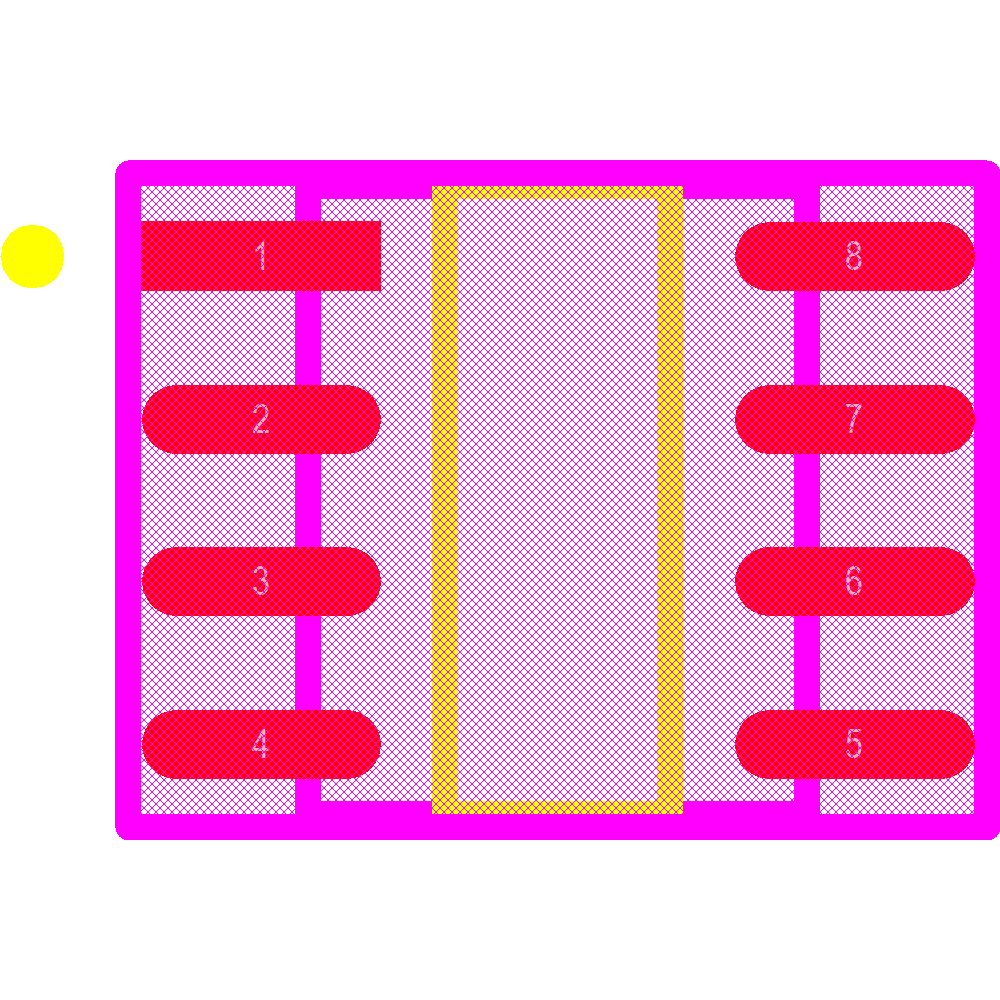

ADM485ARZ-REEL Footprint - Analog Devices

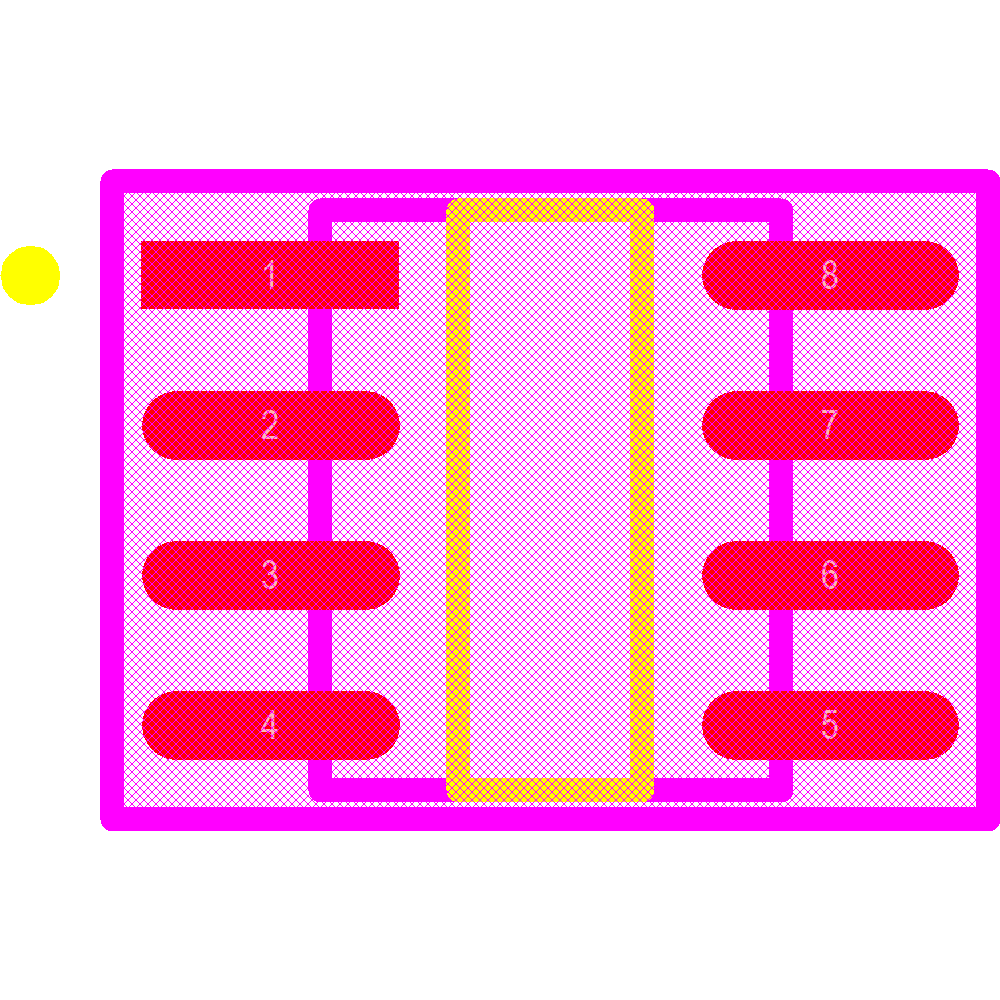

ADM485ARZ-REEL Footprint - Analog Devices
