Technical Details
| Case/Package | SOIC |
| Contact Plating | Tin |
| Data Rate | 250kbps |
| ESD Protection | Yes |
| Height | 1.5mm |
| Interface | RS-485 |
| Length | 5mm |
| Lifecycle Status | Production |
| Logic Function | Receiver, Transceiver |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Operating Temperature | 85°C |
| Max Supply Current | 74µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 74µA |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 37µA |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | No |
| Receiver Hysteresis | 70mV |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Simplex/Duplex | Full Duplex |
| Weight | 540.001716mg |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

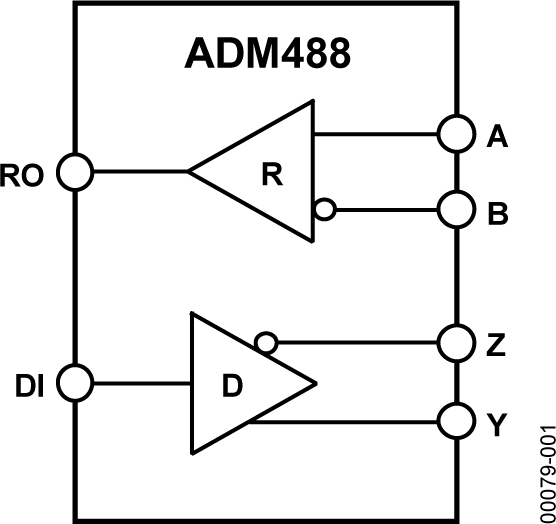

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Analog Devices |
US: 1960
|
$ | ||||||||
