ADM691AAN - Analog Devices
IC SUPERVISOR 1 CHANNEL 16DIP "Supervisor Open Drain, Push-Pull 1 Channel 16-PDIP"
Technical Details
| Case/Package | PDIP |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 842mW |
| Max Reset Threshold Voltage | 4.75V |
| Max Supply Current | 100µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Reset Threshold Voltage | 4.5V |
| Min Supply Voltage | 0V |
| Mount | Surface Mount, Through Hole |
| Nominal Supply Current | 100µA |
| Number of Elements | 1 |
| Number of Monitored Inputs | 1 |
| Number of Pins | 16 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 100µA |
| Overvoltage Threshold | 4.75V |
| Power Dissipation | 842mW |
| Radiation Hardening | No |
| Reset | Active High/Active Low |
| Reset Delay Time | 280ms |
| Reset Timeout | 140ms |
| RoHS | Compliant |
| Threshold Voltage | 4.65V |
| Type | Battery Backup Circuit |
| Undervoltage Threshold | 4.5V |
| Watchdog Timer | Yes |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

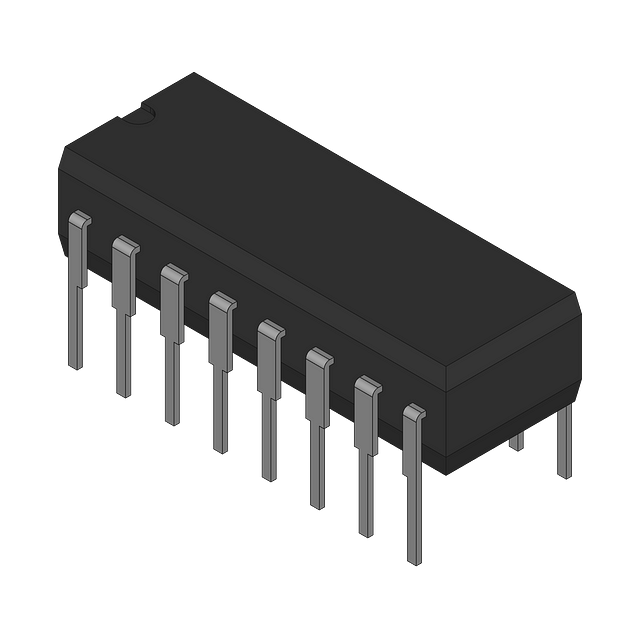

Images
