ADM8845ACPZ-REEL7 - Analog Devices
Tape & Reel (TR) ADM8845 Switched Capacitor (Charge Pump) PWM led driver 1mm 30mA 5.5V 2mW
Technical Details
| Case/Package | LFCSP EP |
| Dimming | PWM |
| Efficiency | 88% |
| Frequency | 1.5MHz |
| Height | 800µm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Output Current | 30mA |
| Max Power Dissipation | 2mW |
| Max Supply Current | 5mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 2.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.6V |
| Mount | Surface Mount |
| Nominal Supply Current | 2.6mA |
| Number of Outputs | 6 |
| Number of Pins | 16 |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Output Voltage | 4.81V |
| Power Dissipation | 2mW |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 1.5MHz |
| Topology | Charge Pump |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

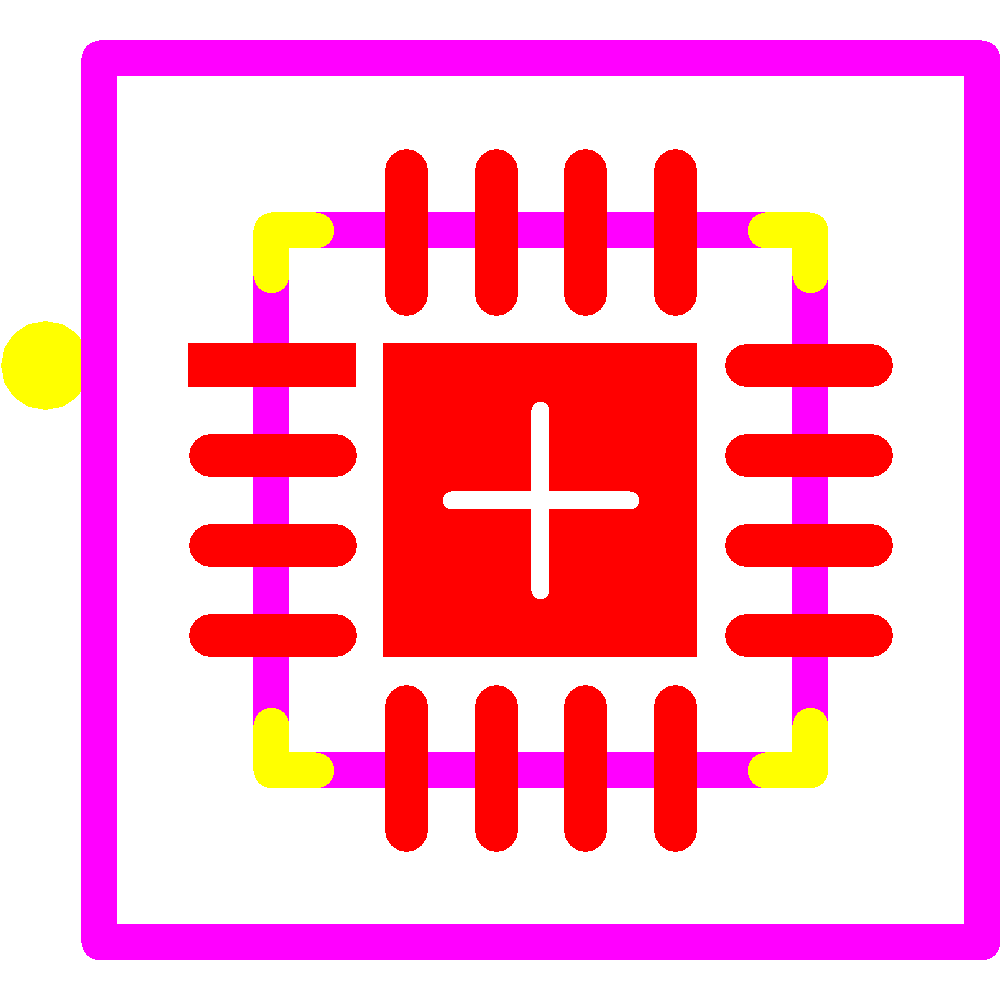

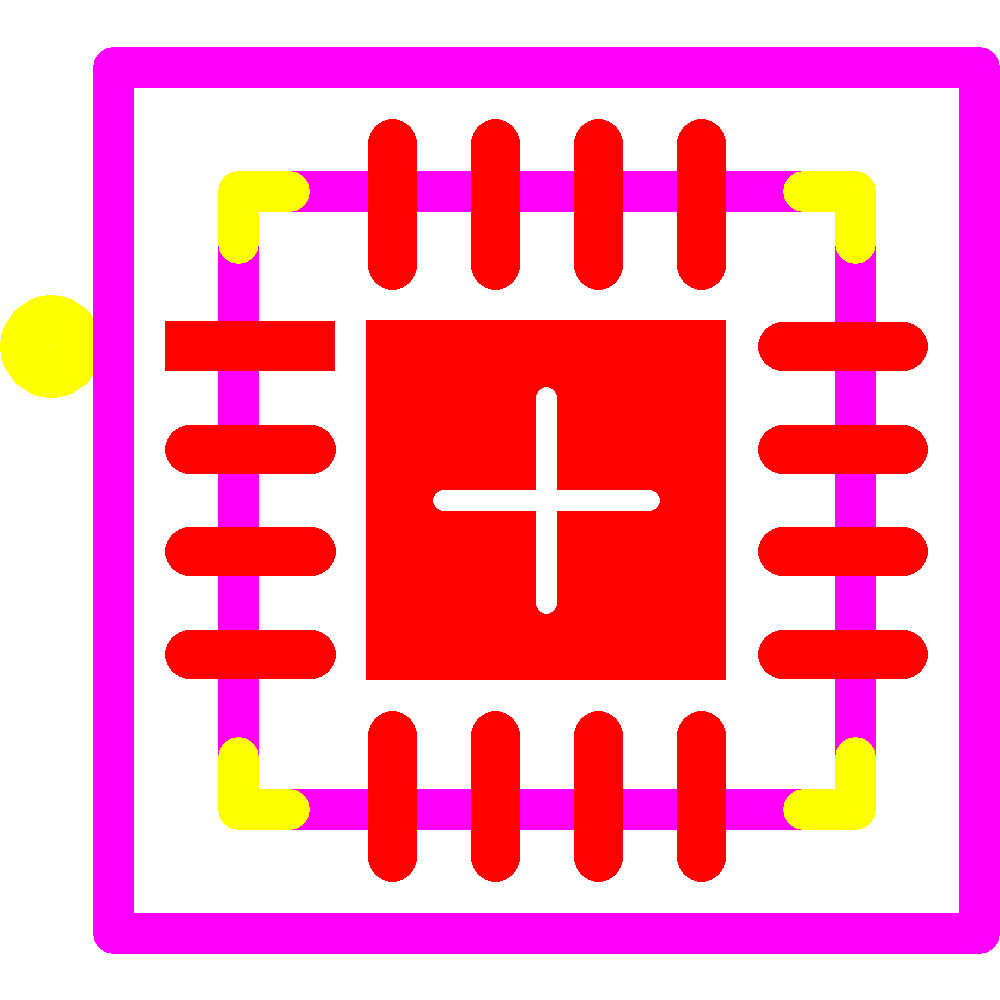

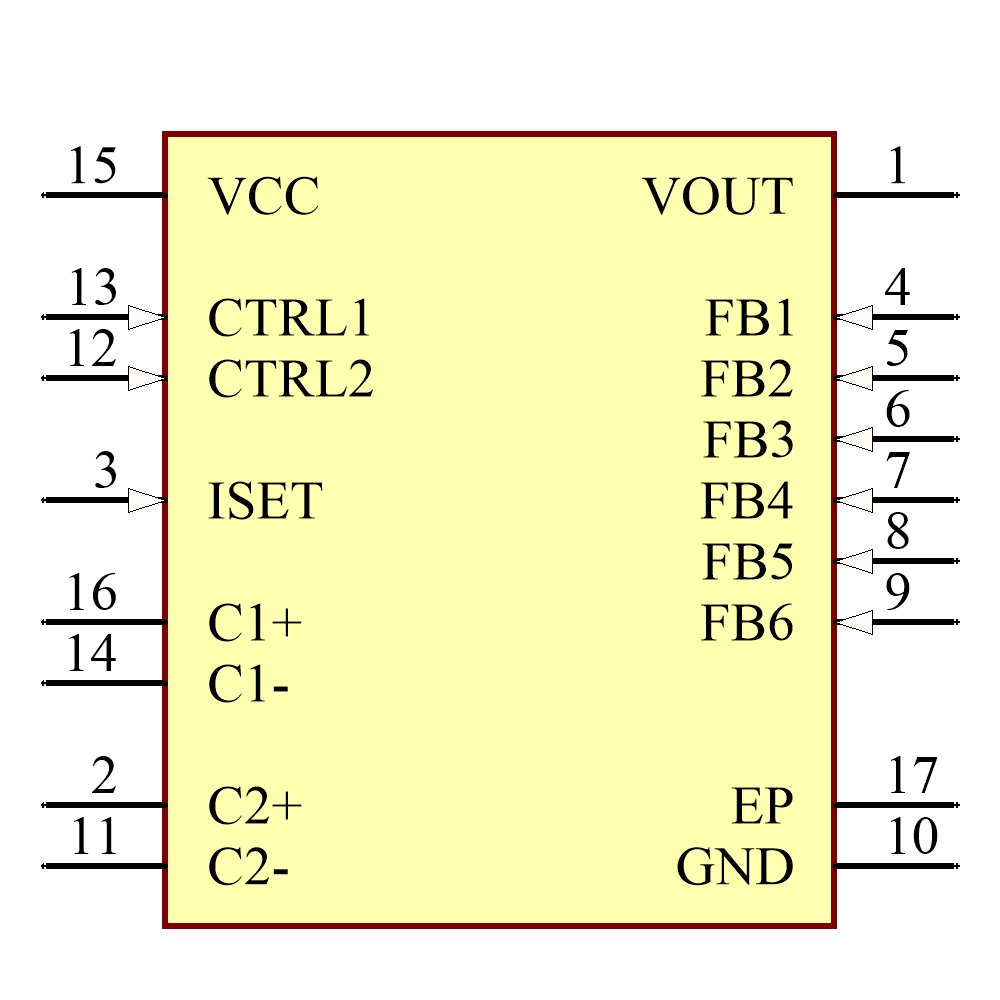

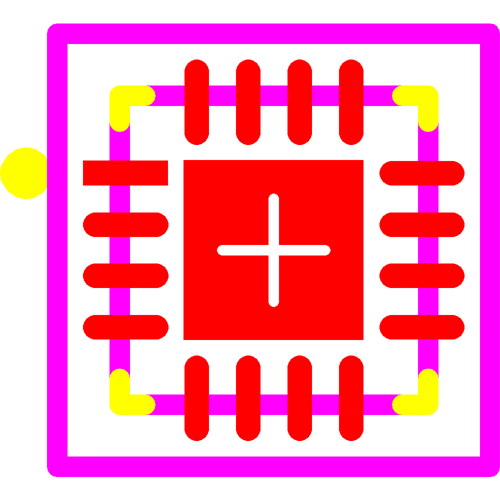

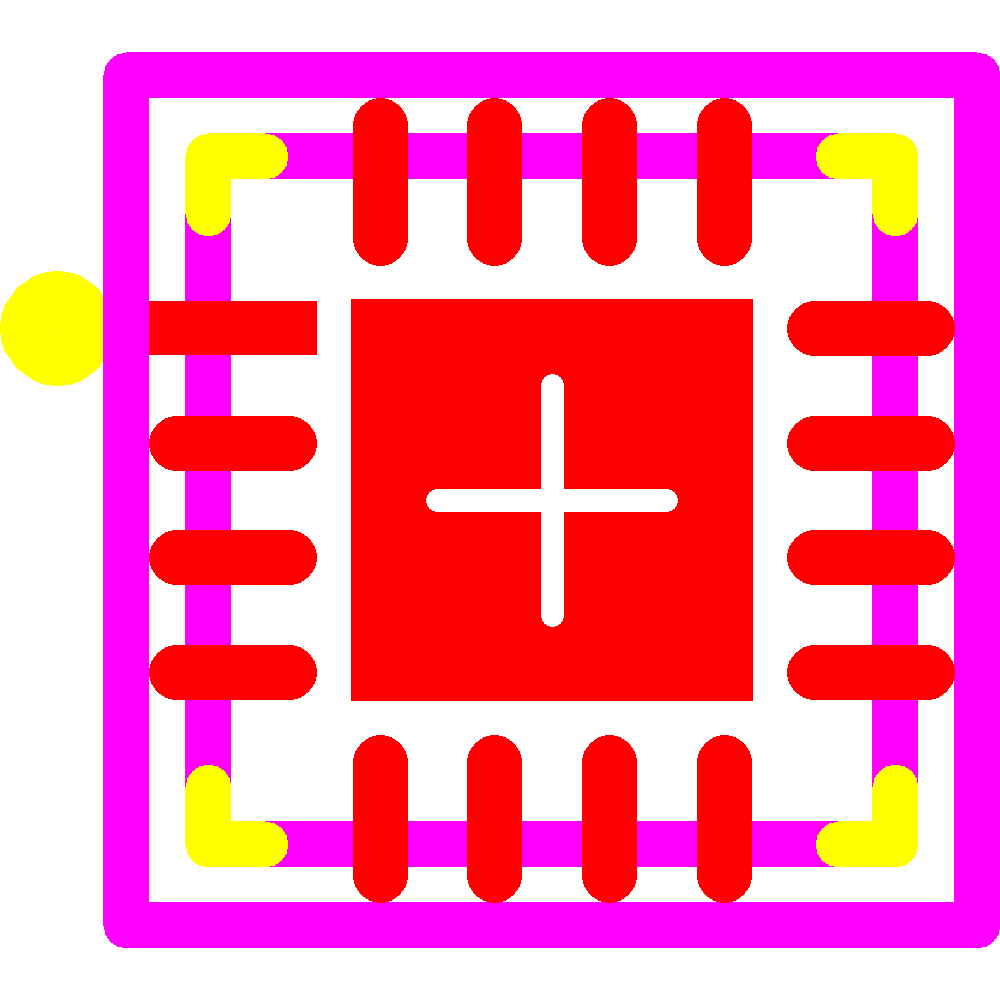

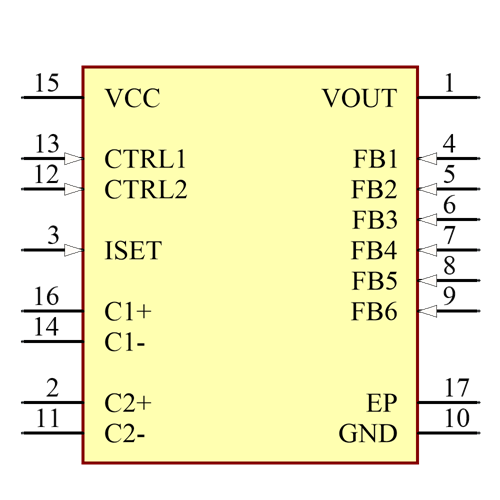

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | EOL | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Texas Instruments | Production |
