ADP1290ACBZ-R7 - Analog Devices

IC PWR SWITCH N-CHAN 1: 1 6WLCSP Power Switch/Driver 1: 1 N-Channel 2A 6-WLCSP (1.45x0.95)

Technical Details

Height	675µm
Interface	On/Off
Lead Free	Contains Lead
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Junction Temperature (Tj)	105°C
Max Operating Temperature	105°C
Max Output Current	2A
Max Supply Voltage	13.2V
Min Operating Temperature	-40°C
Min Supply Voltage	2.3V
Mount	Surface Mount
Nominal Input Voltage	13.2V
Nominal Supply Current	2A
Number of Outputs	1
Number of Pins	6
Output Configuration	High Side
Output Current	2A
Output Voltage	12V
Packaging	Tape & Reel (TR)
REACH SVHC	No
Resistance	40mΩ
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

Analog Devices ADP1290ACBZ-R7 | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

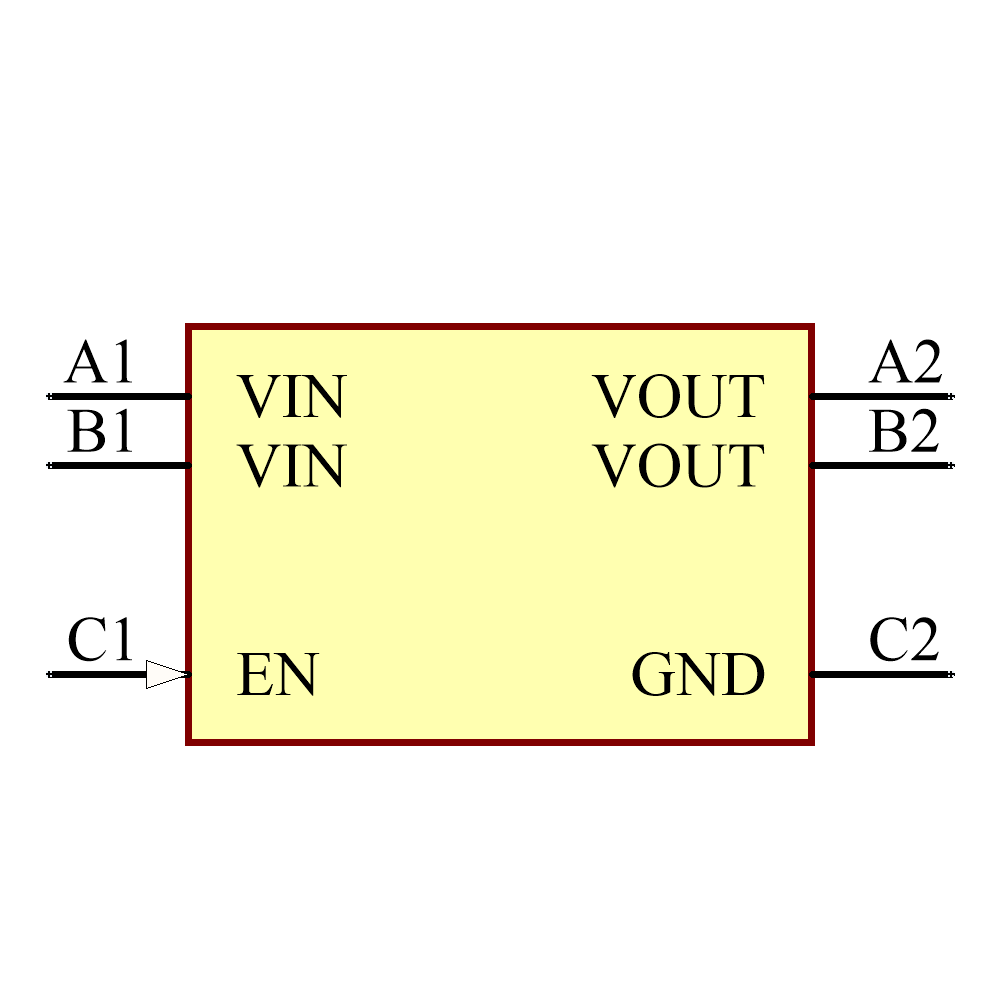

ADP1290ACBZ-R7 Symbol - Analog Devices

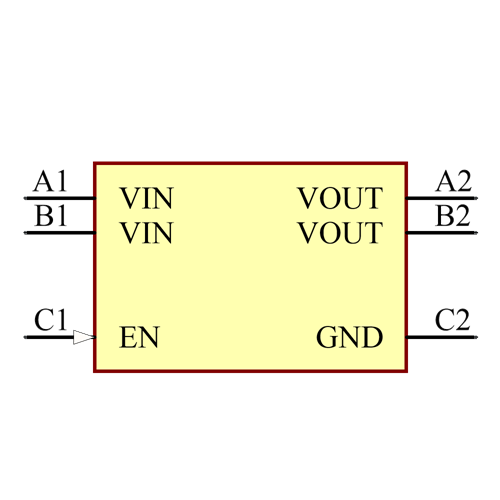

ADP1290ACBZ-R7 Symbol - Analog Devices

ADP1290ACBZ-R7 Symbol - Analog Devices

ADP1290ACBZ-R7 Symbol - Analog Devices

‹ ›

Footprint

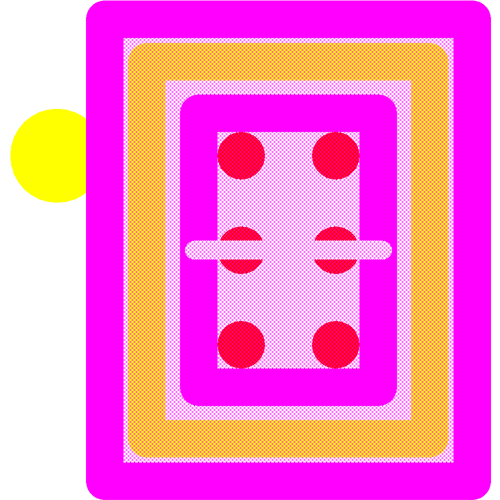

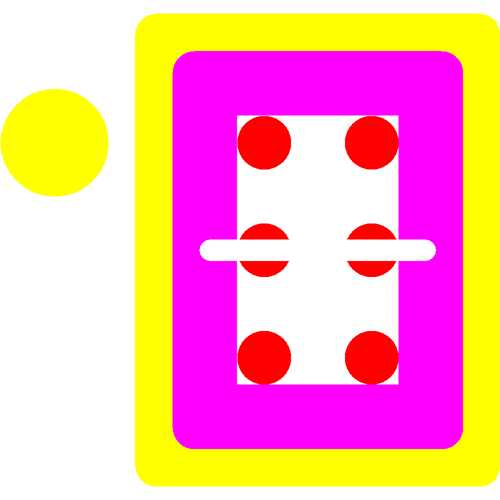

ADP1290ACBZ-R7 Footprint - Analog Devices

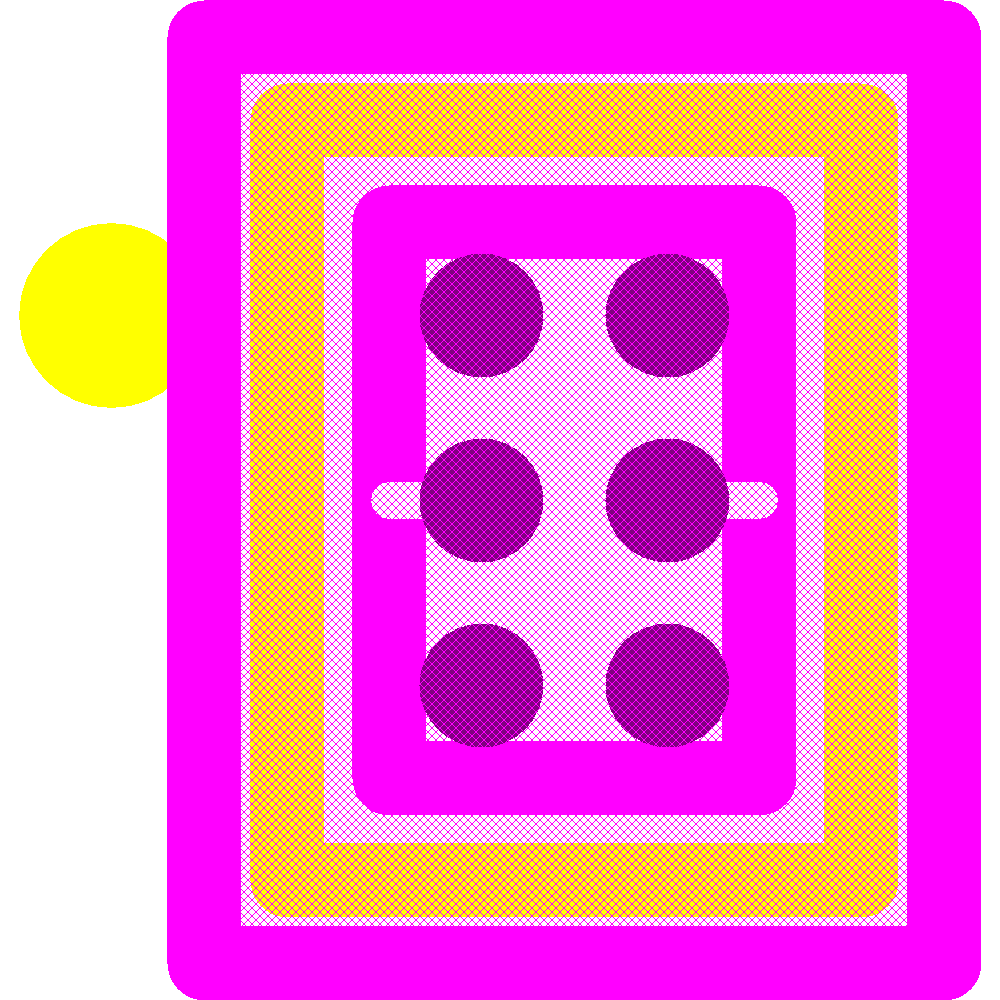

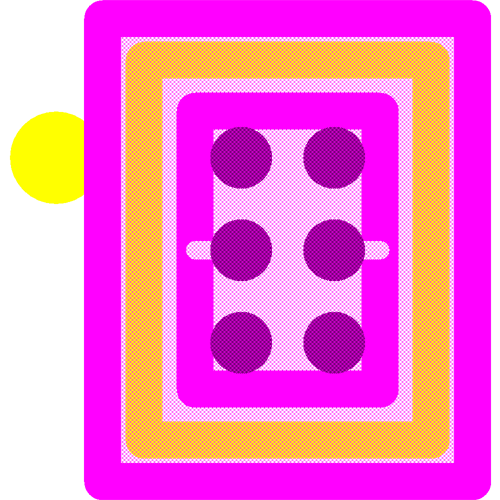

ADP1290ACBZ-R7 Footprint - Analog Devices

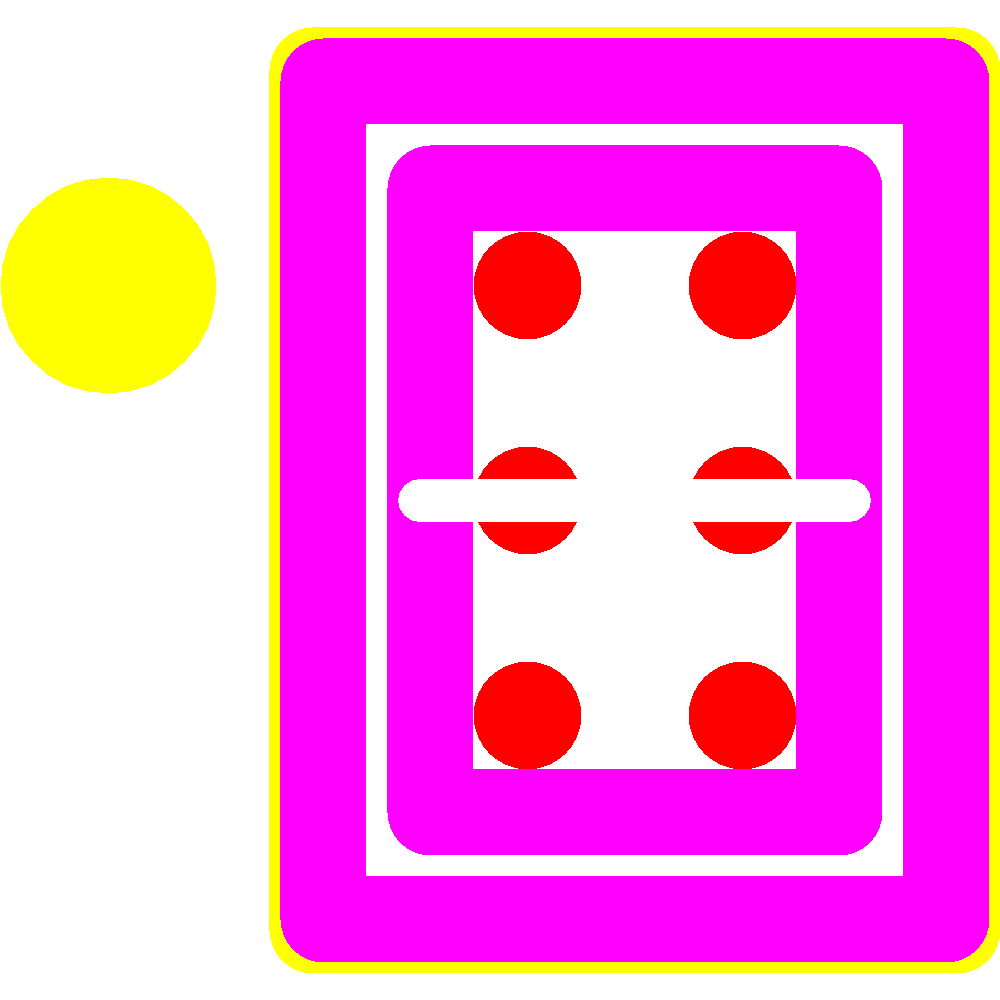

ADP1290ACBZ-R7 Footprint - Analog Devices

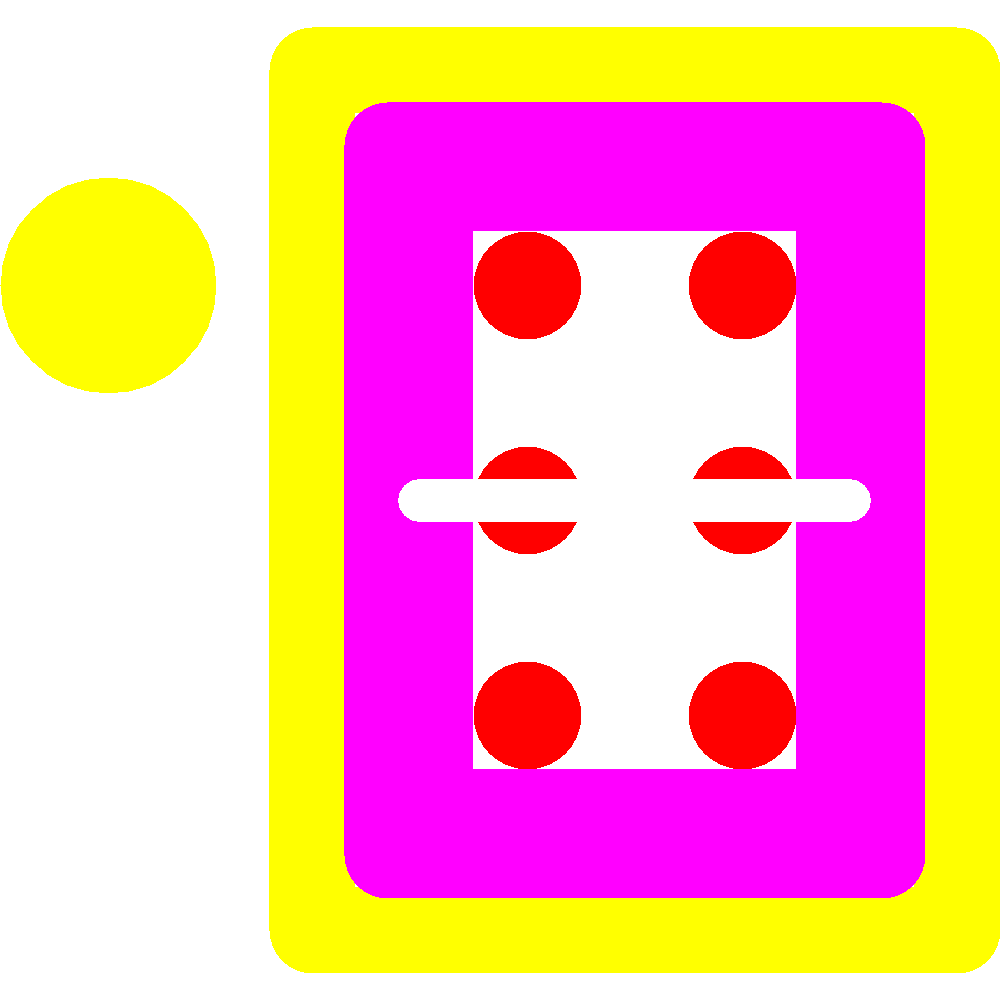

ADP1290ACBZ-R7 Footprint - Analog Devices

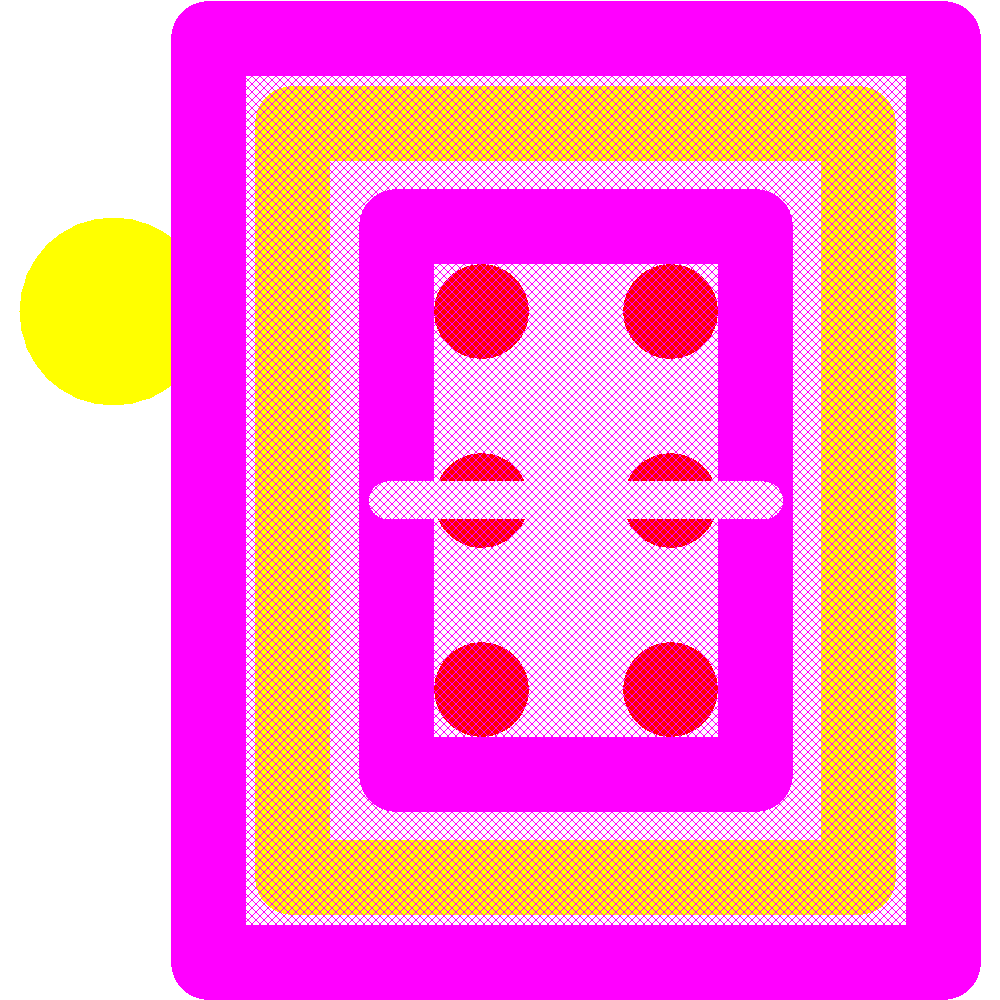

ADP1290ACBZ-R7 Footprint - Analog Devices

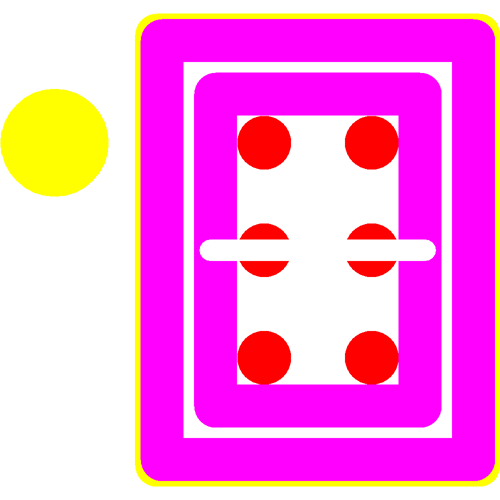

ADP1290ACBZ-R7 Footprint - Analog Devices
