Integrated Circuits (ICs)  >  Power Management ICs  >  Power Switch ICs - Power Distribution

Analog Devices - ADP197ACPZN-01-R7

ADP197ACPZN-01-R7 - Analog Devices

Tape & Reel (TR) ADP197 Over Temperature e4 power distribution switch 2mm 5.5V 3A 24muW

 Datasheets

Technical Details

Fault Protection Over Temperature
Height 600µm
Interface On/Off
Lead Free Contains Lead
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Input Voltage 5.5V
Max Junction Temperature (Tj) 105°C
Max Operating Temperature 105°C
Max Output Current 3A
Max Supply Voltage 5.5V
Min Input Voltage 1.8V
Min Operating Temperature -40°C
Min Supply Voltage 1.8V
Mount Surface Mount
Nominal Supply Current 28µA
Number of Outputs 1
Number of Pins 6
Operating Supply Current 18µA
Output Configuration High Side
Output Current 3A
Packaging Tape & Reel (TR)
Power Dissipation 24µW
RoHS Compliant

Compliance

   RoHS : Unconfirmed

Images

Datasheets

 Farnell
 Farnell
 Analog Devices

Lifecycle Status Indicator

   Production

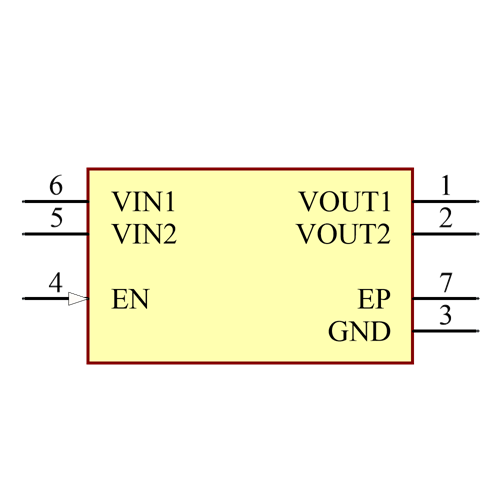

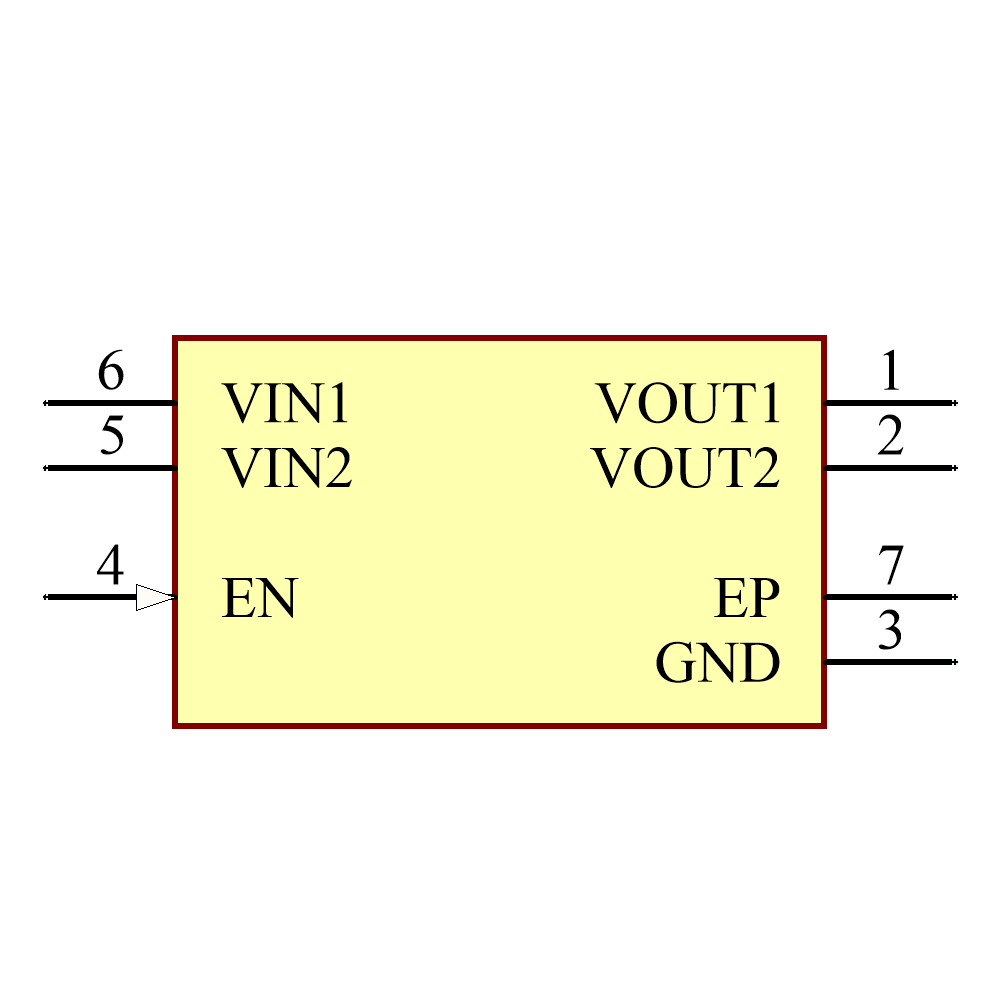

Symbol

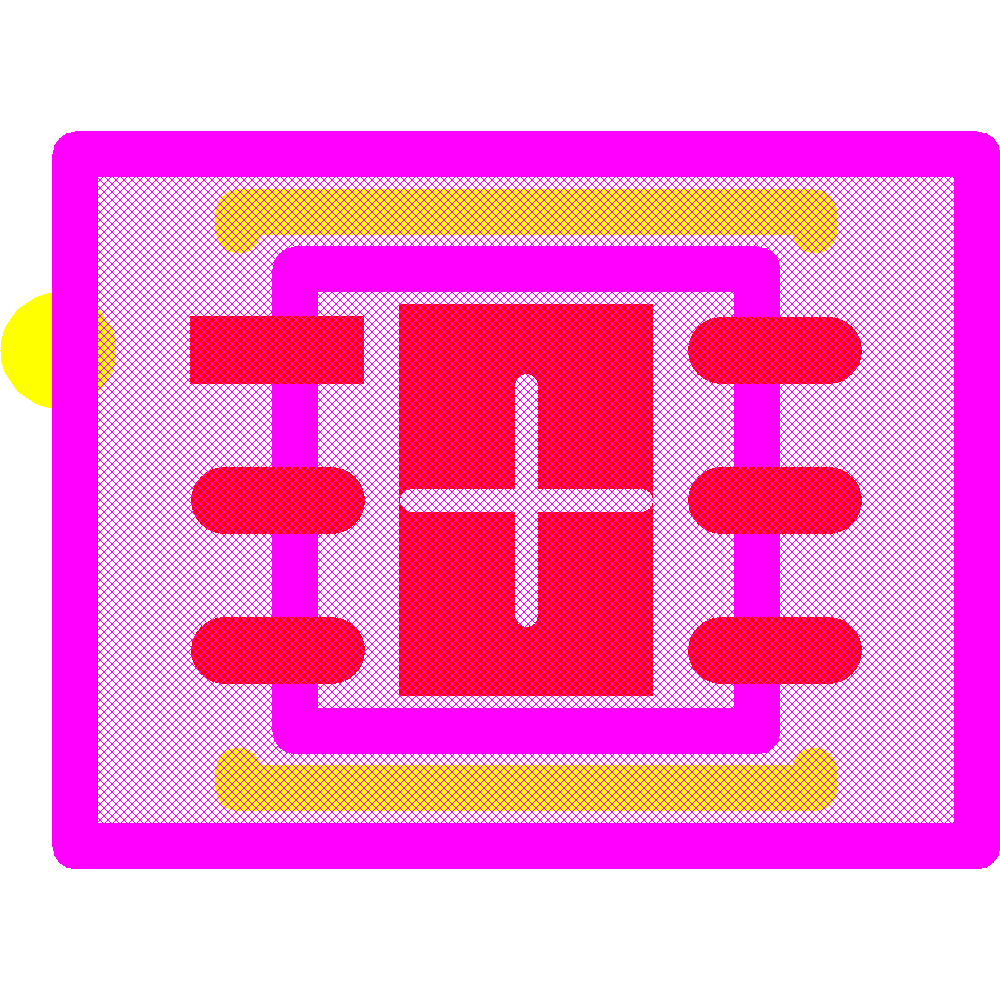

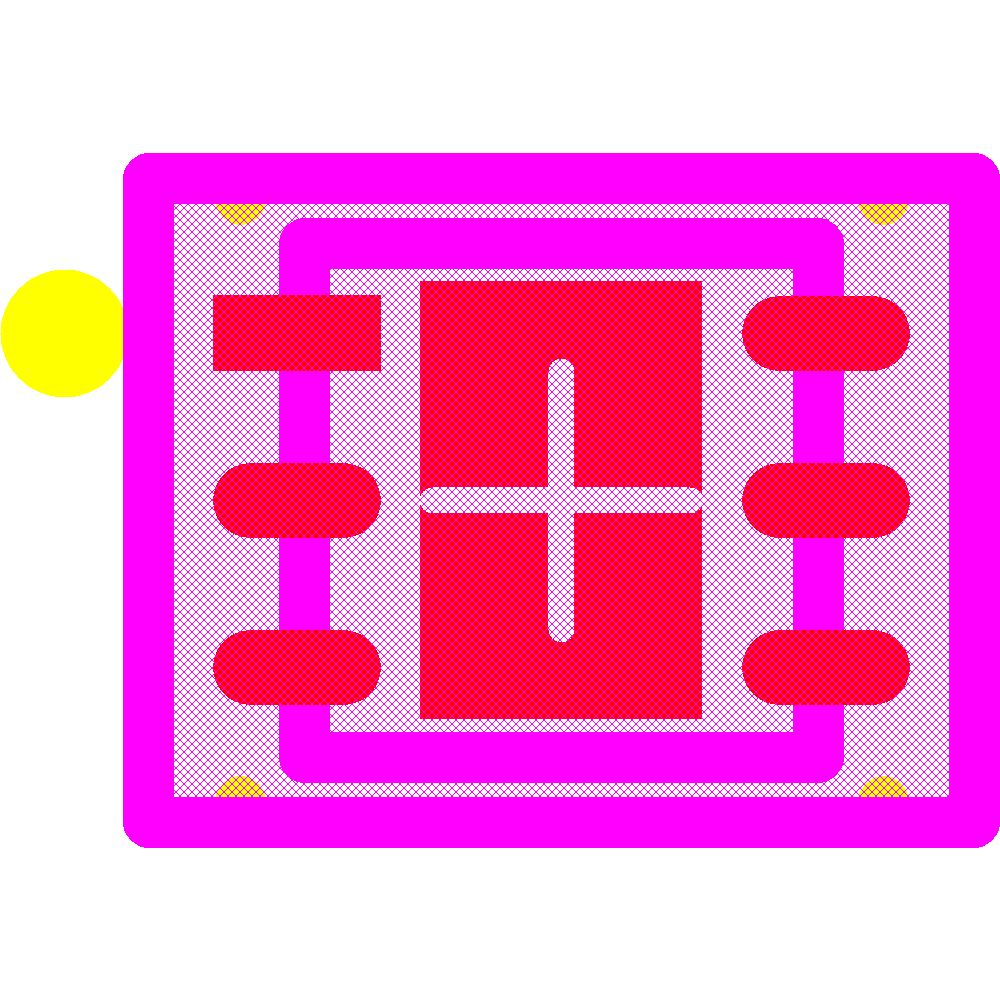

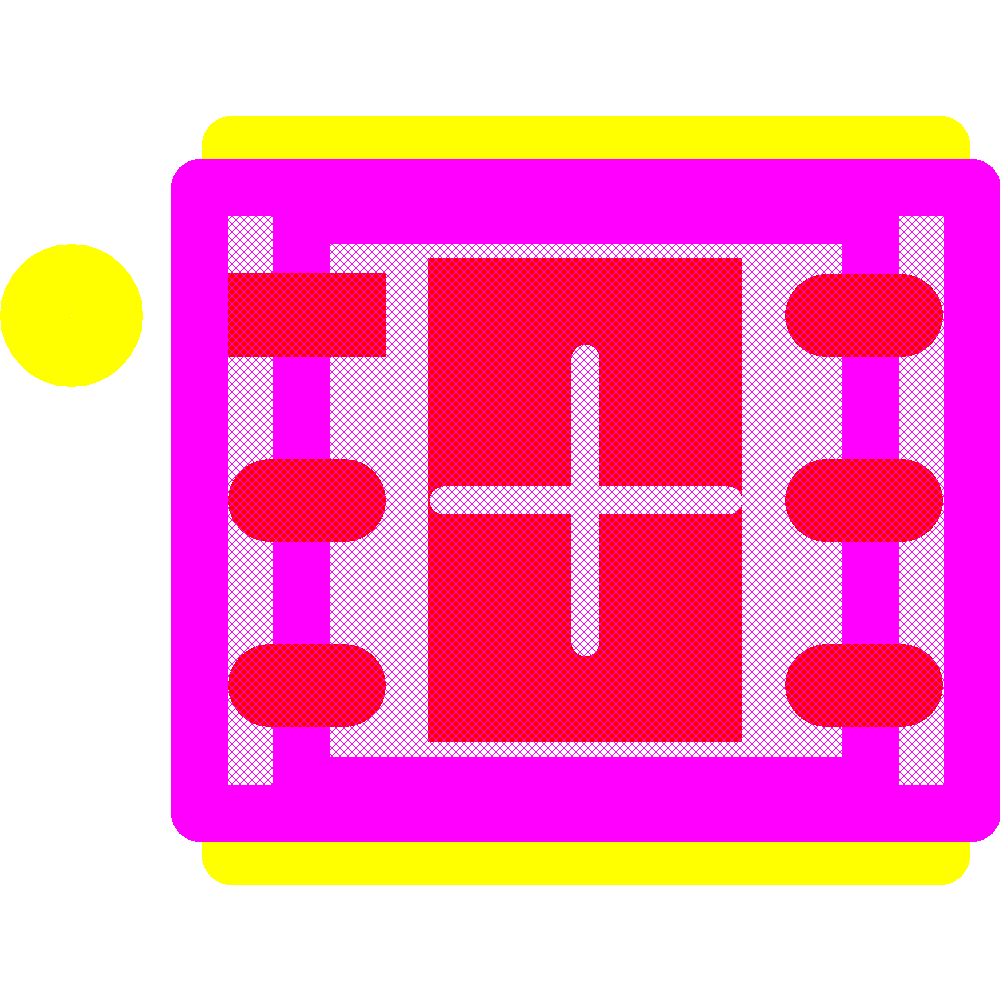

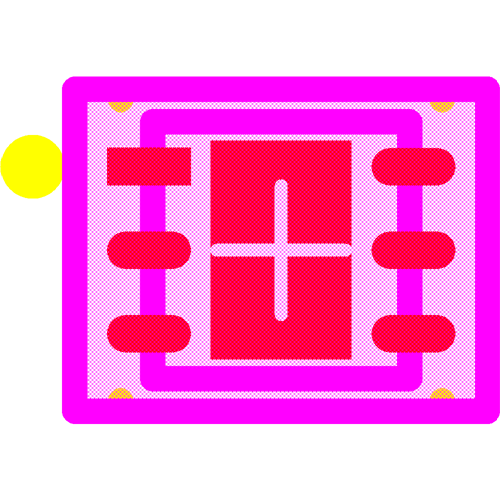

Footprint

Alternatives (Possible Substitutes)
