Analog Devices - ADP5301ACBZ-2-R7

ADP5301ACBZ-2-R7 - Analog Devices

IC REG BUCK PROG 0.8V 9WLCSP "Buck Switching Regulator IC Positive Programmable 0.8V 1 Output 50mA, 500mA 9-WFBGA,...

 Datasheets

Technical Details

Height 660µm
Lead Free Contains Lead
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Duty Cycle 100%
Max Input Voltage 6.5V
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 125°C
Max Output Voltage 5V
Max Supply Voltage 6.5V
Min Input Voltage 2.15V
Min Operating Temperature -40°C
Min Output Voltage 800mV
Min Supply Voltage 2.15V
Mount Surface Mount
Number of Outputs 1
Number of Pins 9
Operating Supply Voltage 6.5V
Output Configuration Positive
Output Current 500mA
Output Type Adjustable
Output Voltage 5V
Packaging Tape & Reel (TR)
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85
Switching Frequency 2MHz
Synchronous Rectifier Yes
Topology Buck

Compliance

   RoHS : Unconfirmed

Images

Analog Devices ADP5301ACBZ-2-R7 | Analog Devices

Analog Devices

Datasheets

 Farnell
 Farnell
 Analog Devices

Lifecycle Status Indicator

   Production

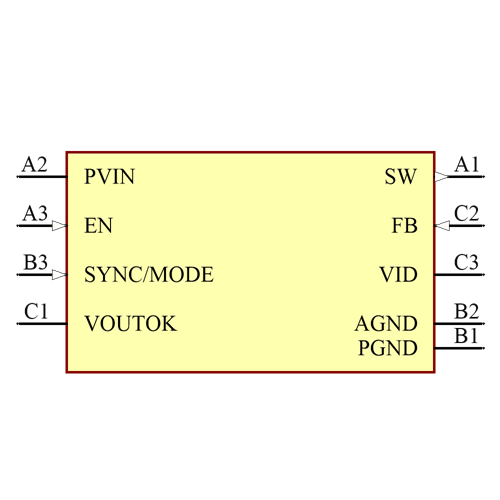

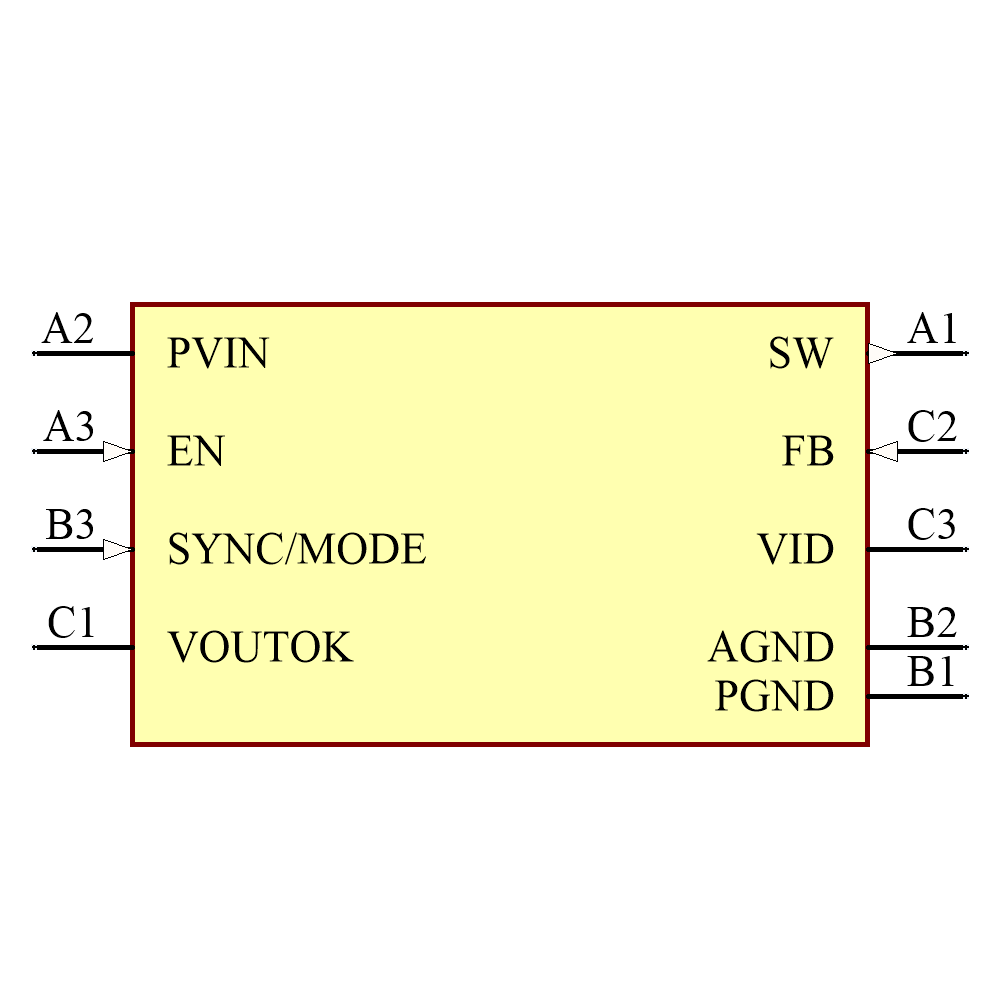

Symbol

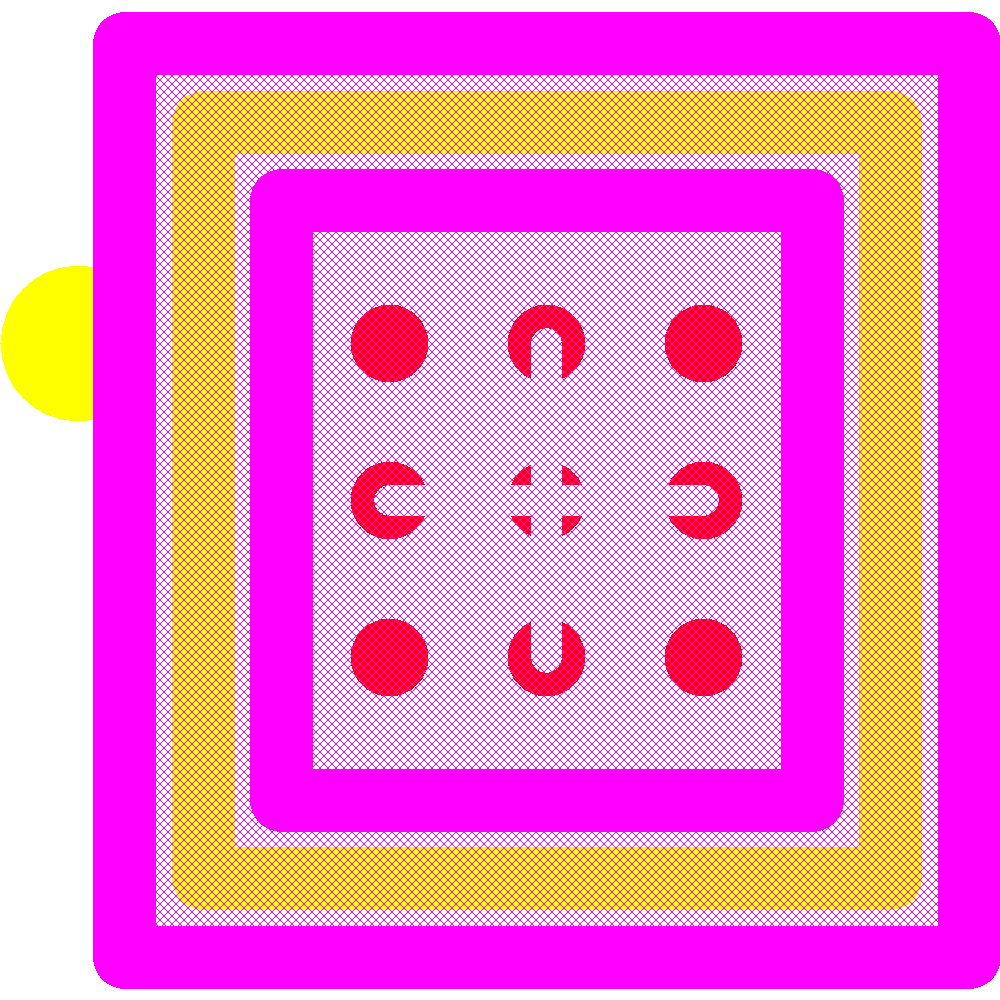

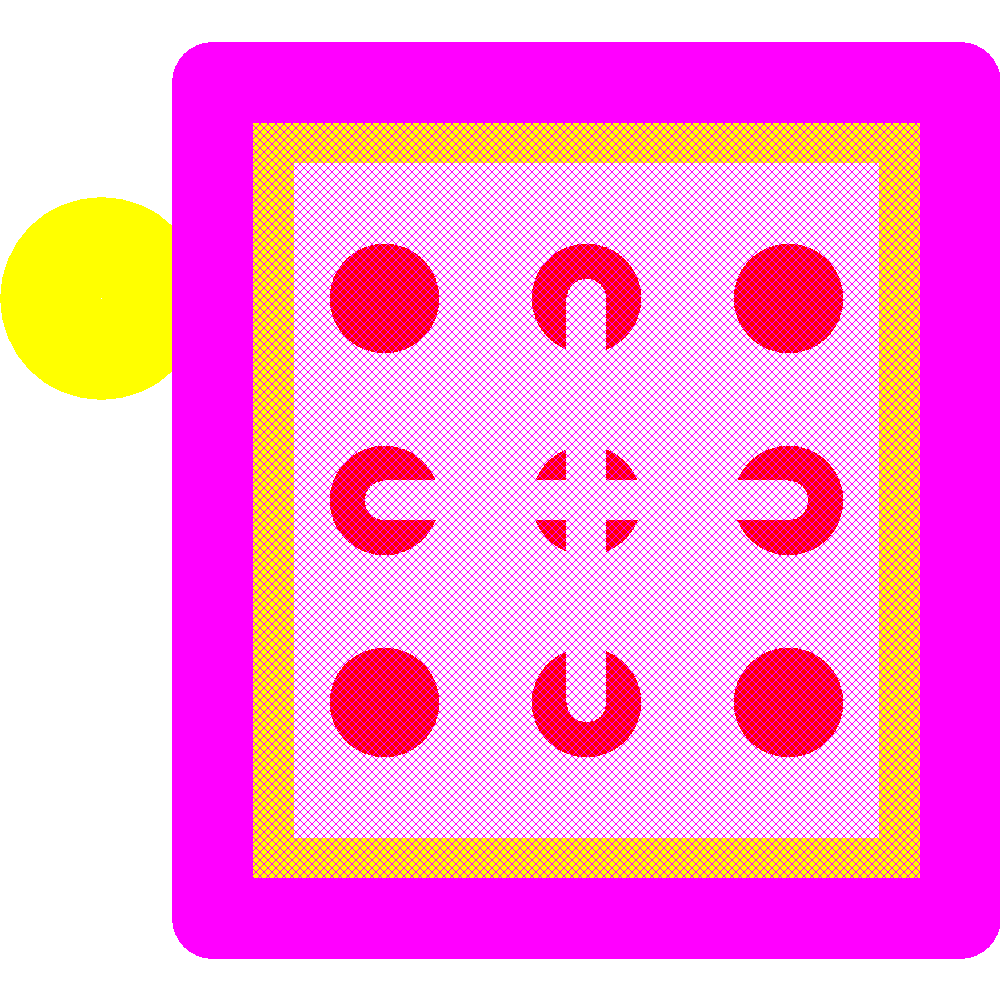

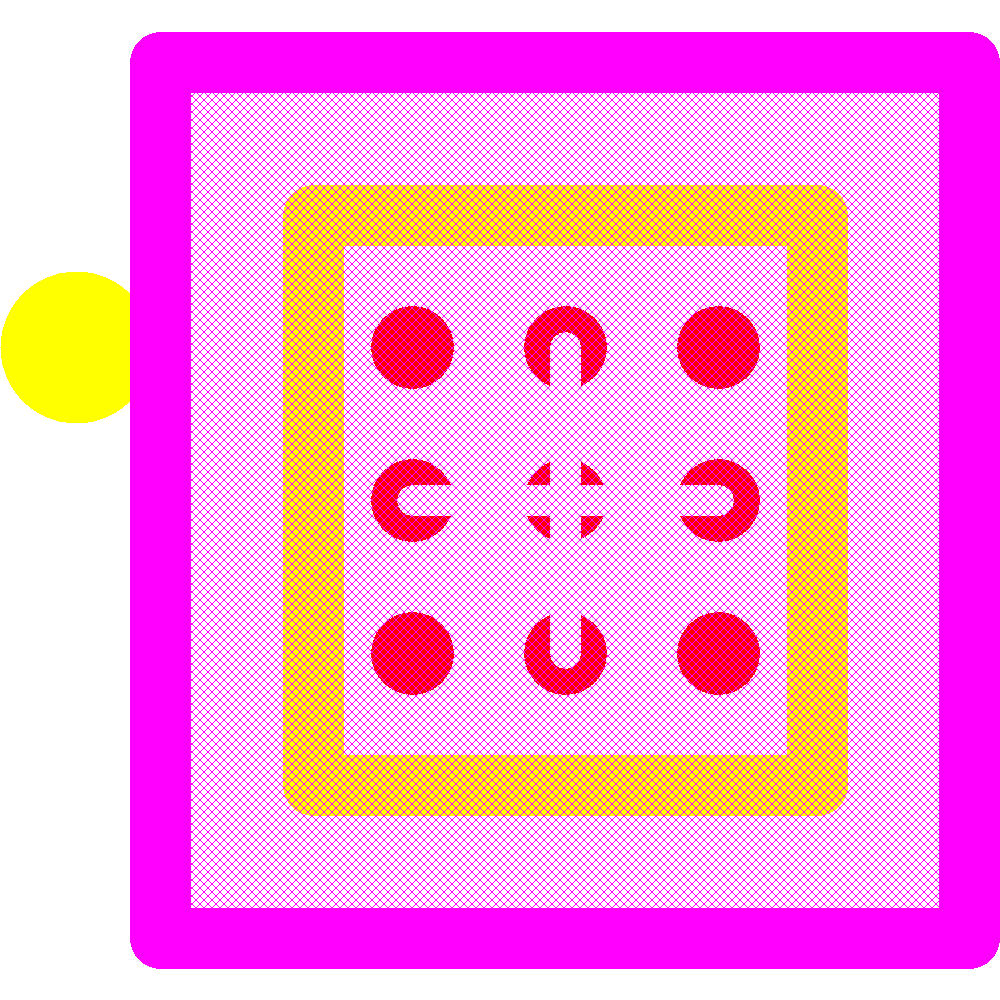

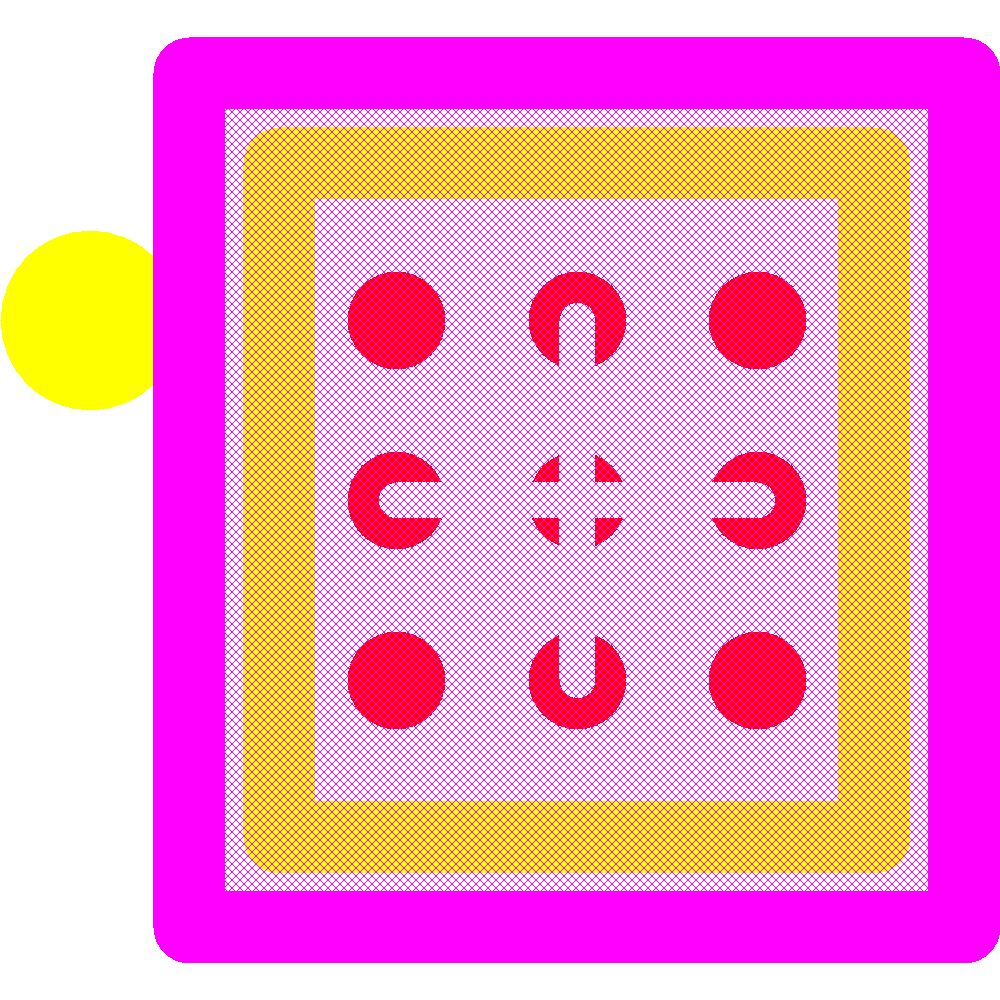

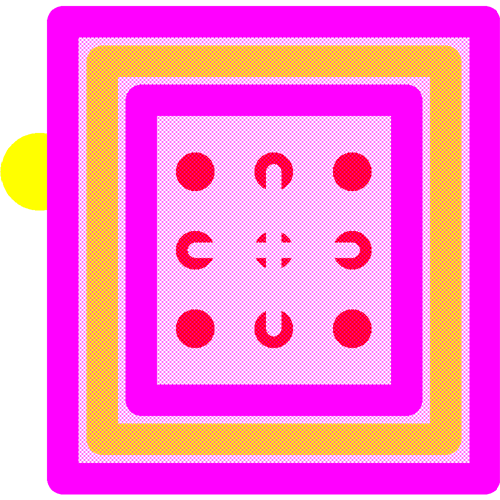

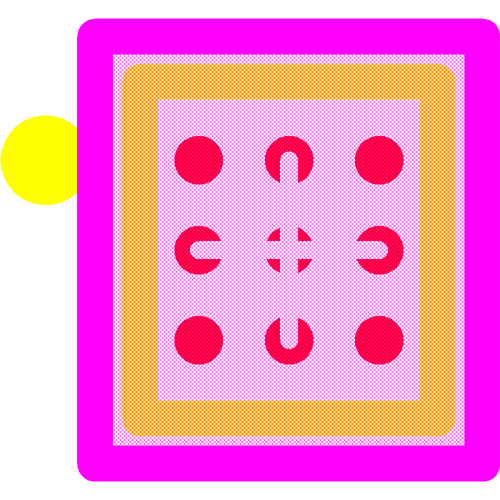

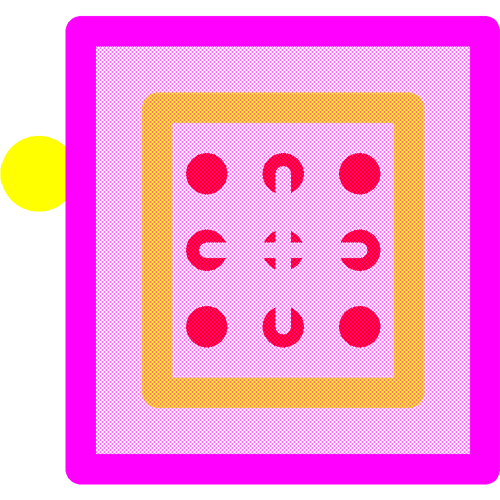

Footprint
