Integrated Circuits (ICs)  >  Power Management ICs  >  LED Drivers

Analog Devices - ADP8860ACBZ-R7

ADP8860ACBZ-R7 - Analog Devices

Charge Pump, 7-Channel Smart LED Driver with I2C Interface

 Datasheets

Technical Details

Ambient Temperature Range High 85°C
Contact Plating Copper, Silver, Tin
Dimming I²C
Efficiency 88%
Frequency 1MHz
Height 645µm
Lead Free Contains Lead
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Input Voltage 5.5V
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 85°C
Max Output Current 60mA
Max Supply Voltage 5.5V
Min Input Voltage 2.5V
Min Operating Temperature -40°C
Min Supply Voltage 2.5V
Mount Surface Mount
Nominal Supply Current 4.5mA
Number of Outputs 7
Number of Pins 20
Number of Segments 9
Output Current 60mA
Output Current per Channel 60mA
Output Voltage 4.9V
Packaging Digi-Reel®
RoHS Compliant
Switching Frequency 1MHz
Topology Charge Pump
Width 1.95mm

Compliance

   RoHS : Unconfirmed

Images

Analog Devices ADP8860ACBZ-R7 | Analog Devices

Analog Devices

Datasheets

 Rochester Electronics
 Analog Devices
 DigiKey

Lifecycle Status Indicator

   Production

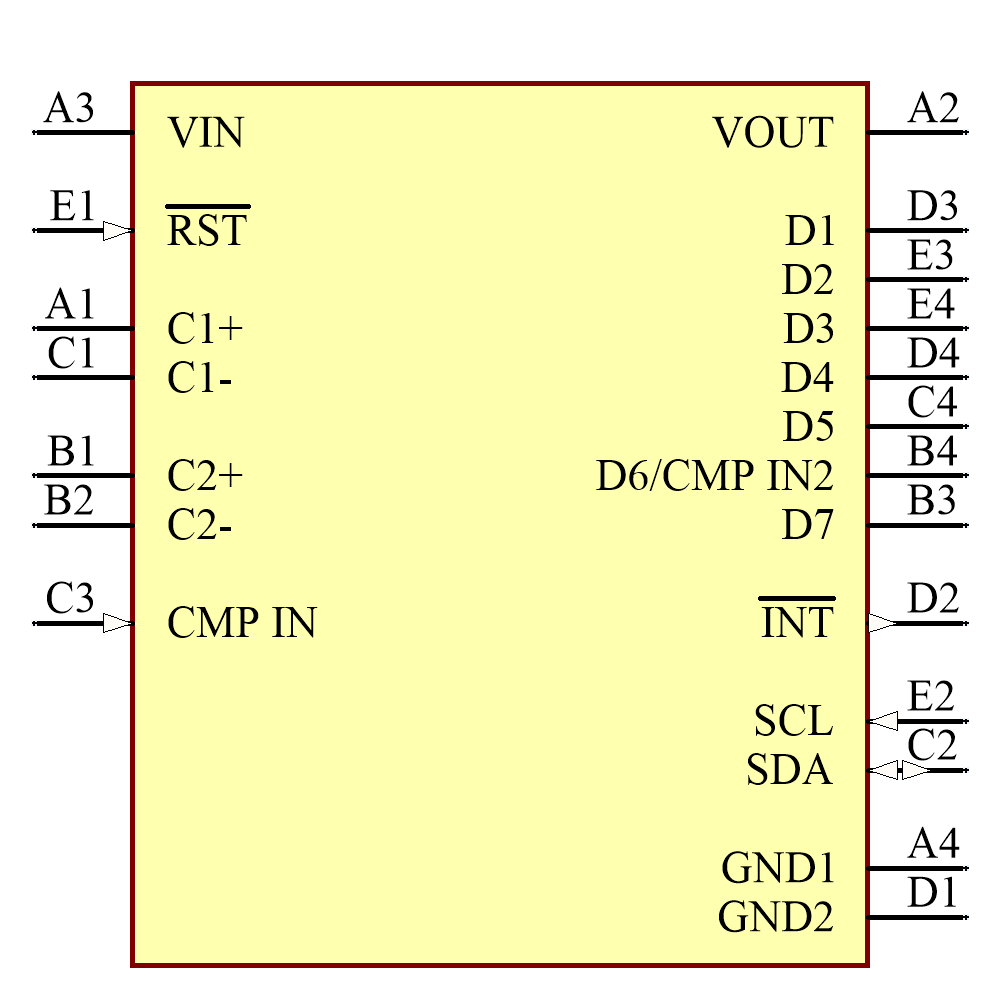

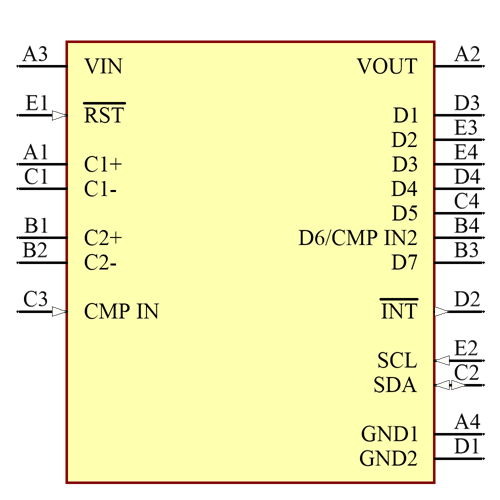

Symbol

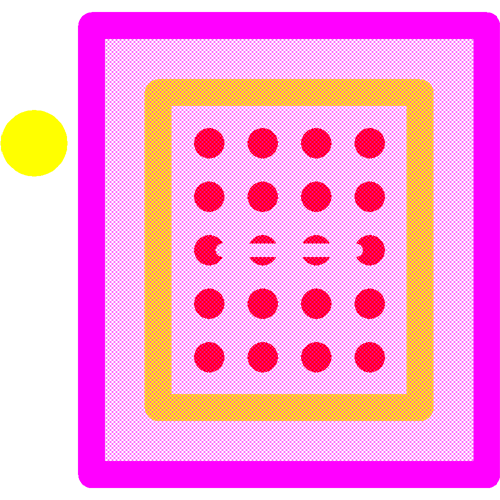

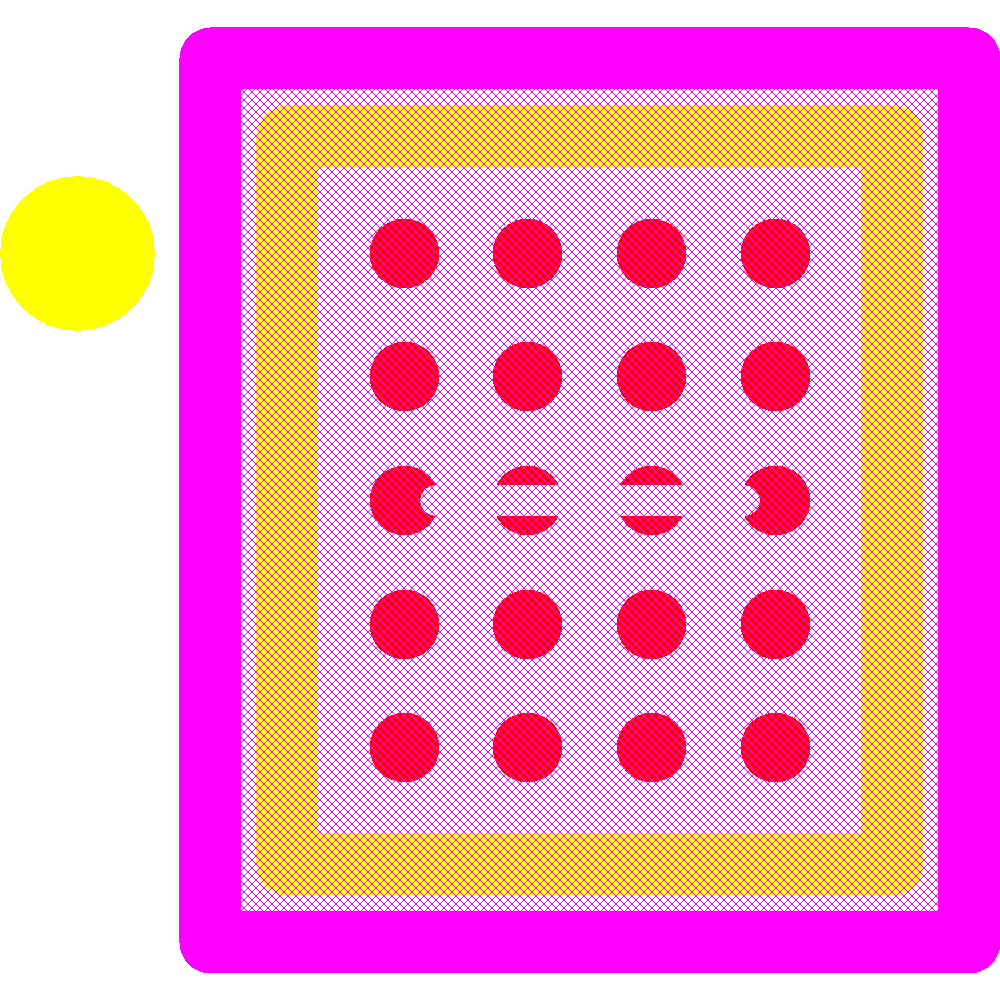

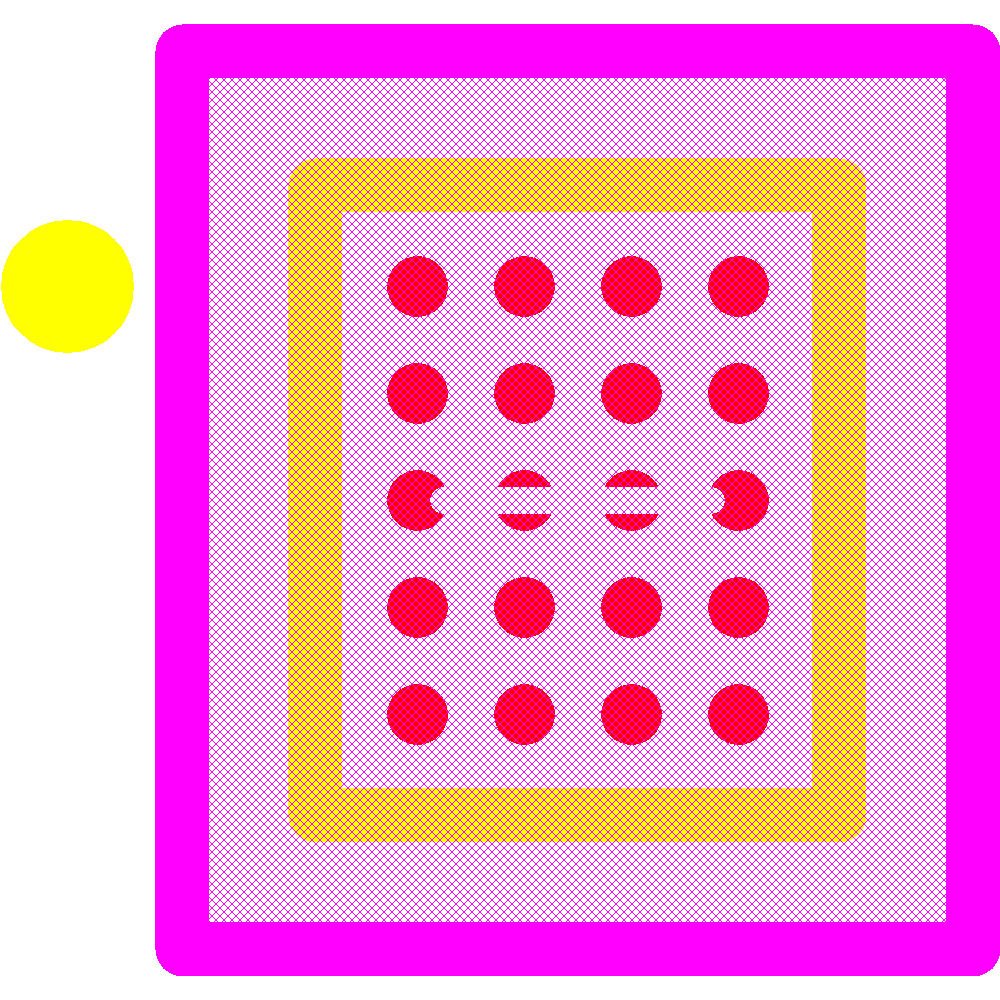

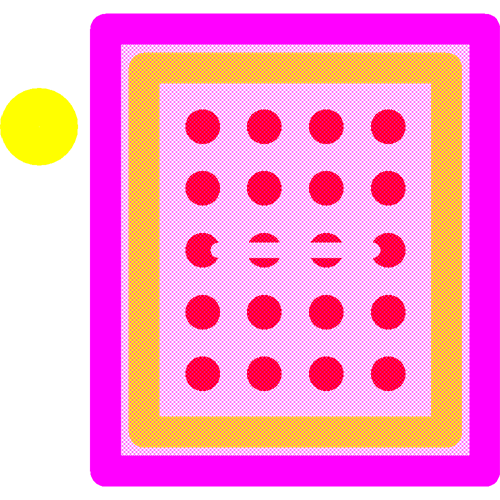

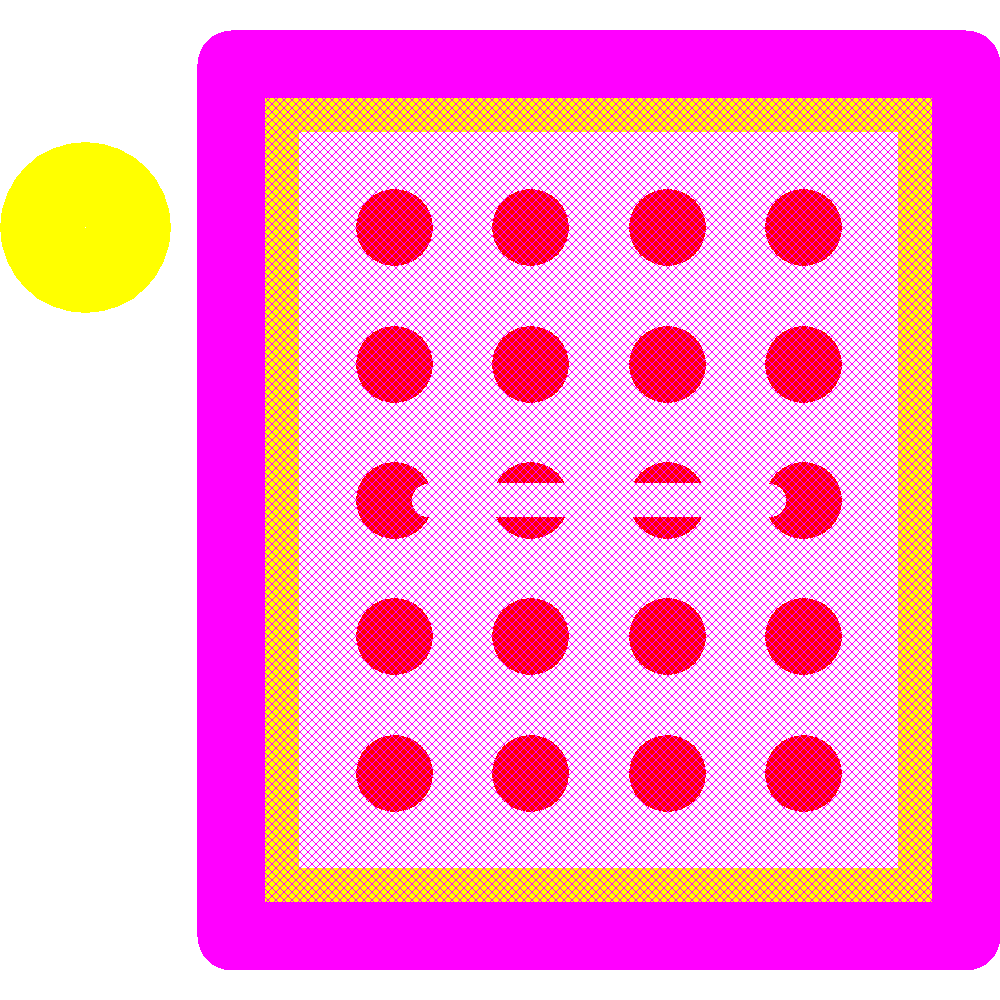

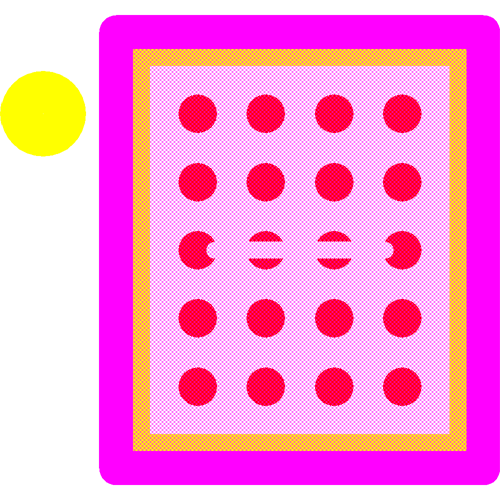

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Analog Devices
ADP8870ACBZ-R7
Production
Texas Instruments
LM2756TMX/NOPB
Production
Texas Instruments
TPS61325YFFT
Production
Texas Instruments
LM3535TME/NOPB
Production
Texas Instruments
TPS61300YFFR
Production
Texas Instruments
TPS61310YFFR
Production
Texas Instruments
TPS61325YFFR
Production
Texas Instruments
TPS61310YFFT
Production
Texas Instruments
TPS61301YFFT
Production
Texas Instruments
TPS61300YFFT
Production

See more alternatives See less alternatives
