ADP8870ACPZ-R7 - Analog Devices

Charge Pump Parallel Backlight Driver with Image Content PWM Input

Technical Details

Ambient Temperature Range High	85°C
Case/Package	LFCSP EP
Dimming	PWM
Height	800µm
Lead Free	Contains Lead
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Input Voltage	5.5V
Max Junction Temperature (Tj)	125°C
Max Operating Temperature	125°C
Max Output Current	240mA
Max Supply Voltage	5.5V
Min Input Voltage	2.5V
Min Operating Temperature	-40°C
Min Supply Voltage	2.5V
Mount	Surface Mount
Number of Outputs	7
Number of Pins	20
Output Current	30mA
Output Current per Channel	60mA
Output Voltage	5.5V
Packaging	Digi-Reel®
RoHS	Compliant
Switching Frequency	1MHz
Topology	Charge Pump
Width	4mm

Compliance

RoHS : Unconfirmed

Images

Analog Devices ADP8870ACPZ-R7 | Analog Devices

Analog Devices

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

ADP8870ACPZ-R7 Symbol - Analog Devices

ADP8870ACPZ-R7 Symbol - Analog Devices

ADP8870ACPZ-R7 Symbol - Analog Devices

ADP8870ACPZ-R7 Symbol - Analog Devices

‹ ›

Footprint

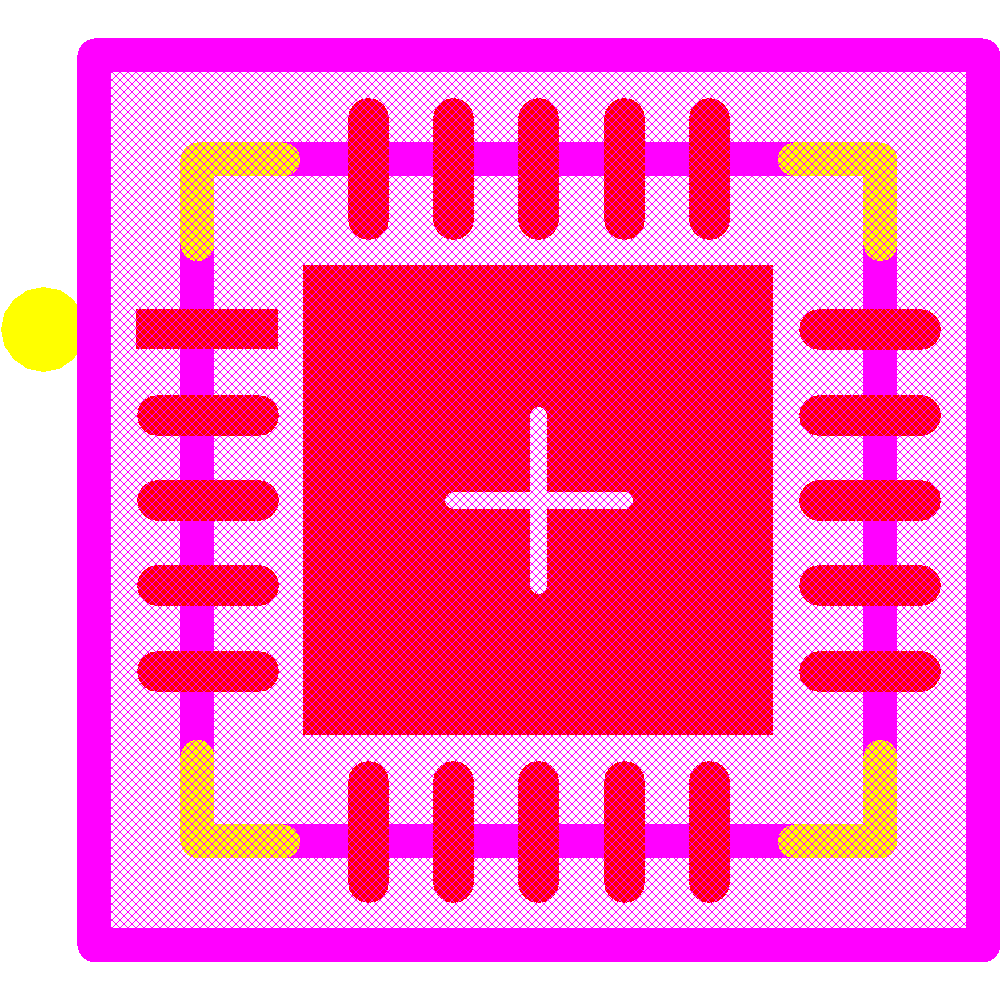

ADP8870ACPZ-R7 Footprint - Analog Devices

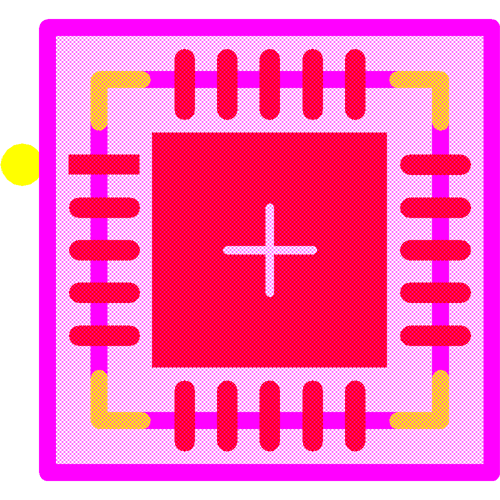

ADP8870ACPZ-R7 Footprint - Analog Devices

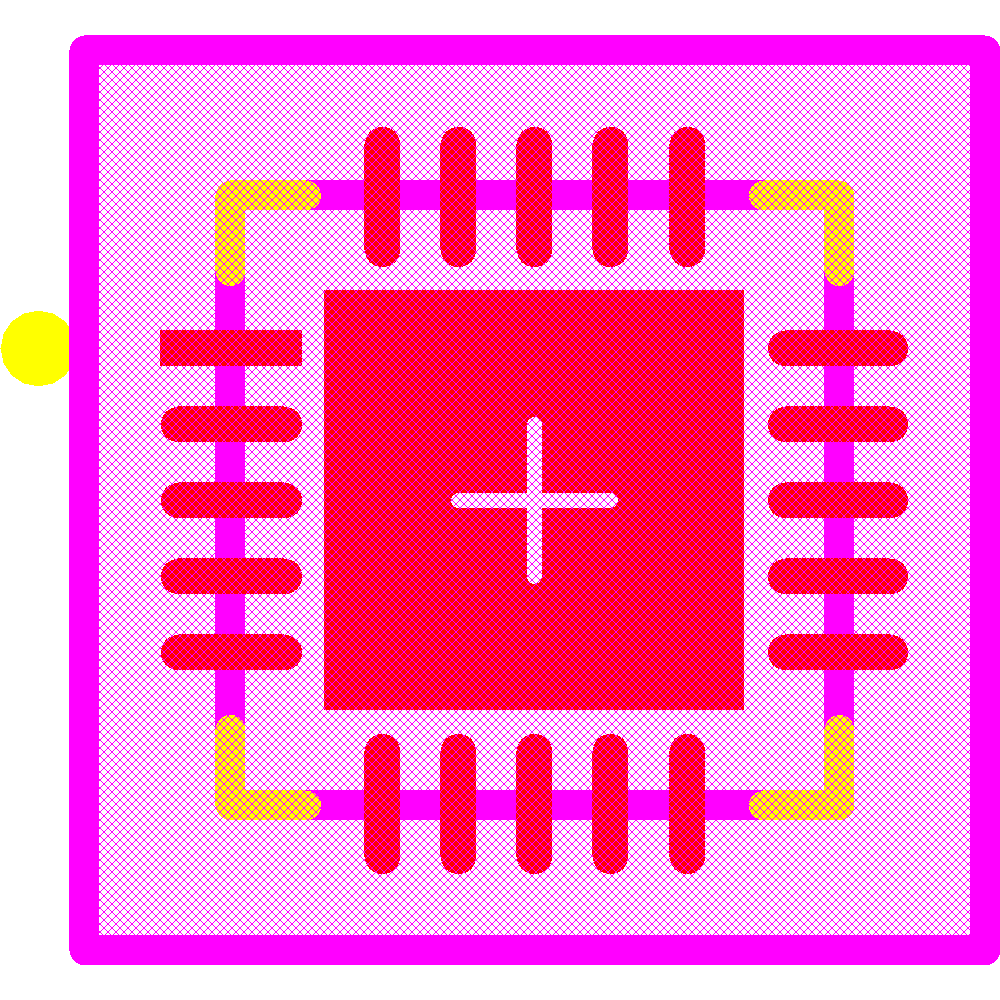

ADP8870ACPZ-R7 Footprint - Analog Devices

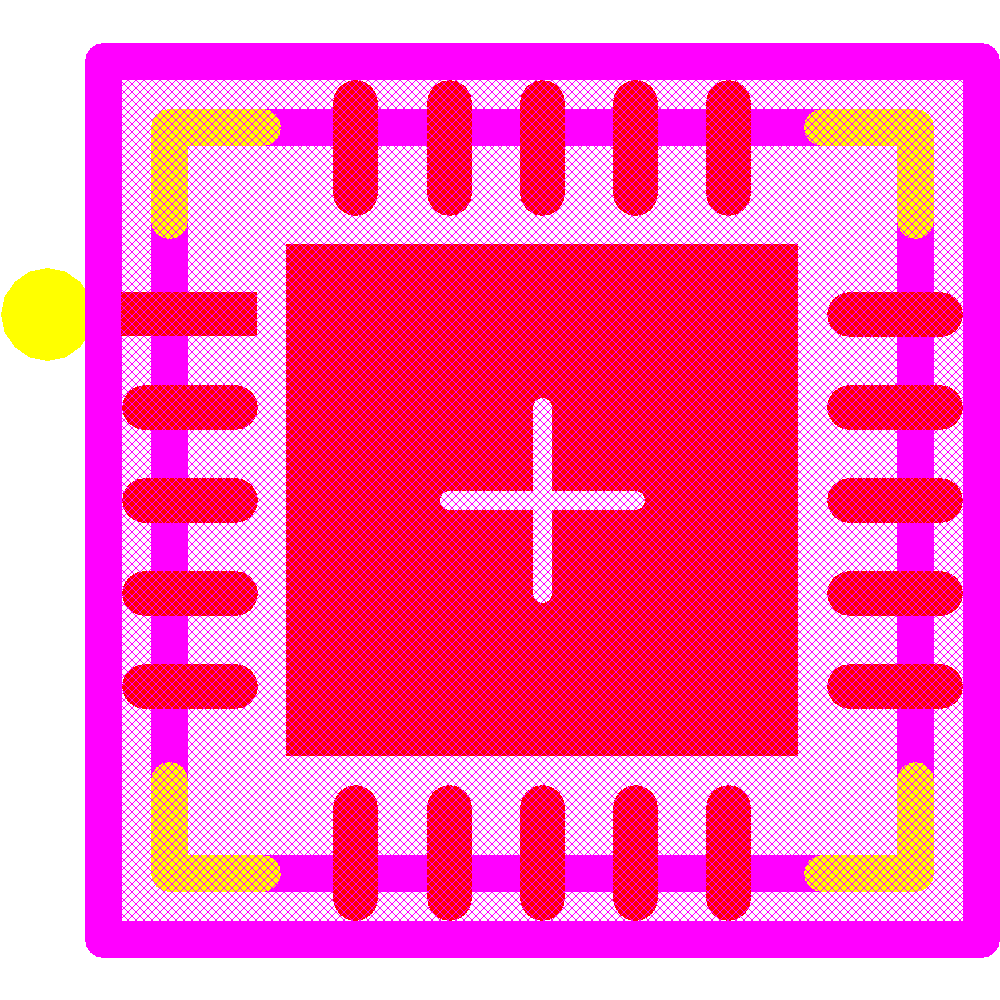

ADP8870ACPZ-R7 Footprint - Analog Devices

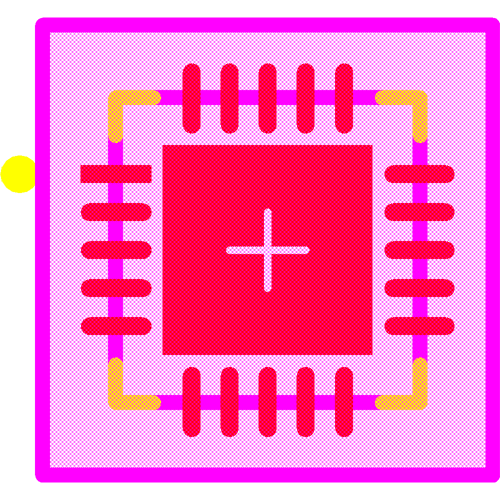

ADP8870ACPZ-R7 Footprint - Analog Devices
