ADUM1446ARSZ - Analog Devices
Micropower Quad-Channel Digital Isolator, Default Low (3/1 Channel Directionality)
Technical Details
| Ambient Temperature Range High | 125°C |
| Case/Package | SSOP |
| Channel Type | Unidirectional |
| Data Rate | 2Mbps |
| Height | 2mm |
| Isolated Power | No |
| Isolation Voltage | 2500Vrms |
| Lead Free | Contains Lead |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.25V |
| Number of Channels | 4 |
| Number of Pins | 20 |
| Operating Supply Current | 672µA |
| Propagation Delay | 180ns |
| Pulse Width Distortion (PWD) | 8ns |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Type | General Purpose |
Compliance
RoHS : Unconfirmed

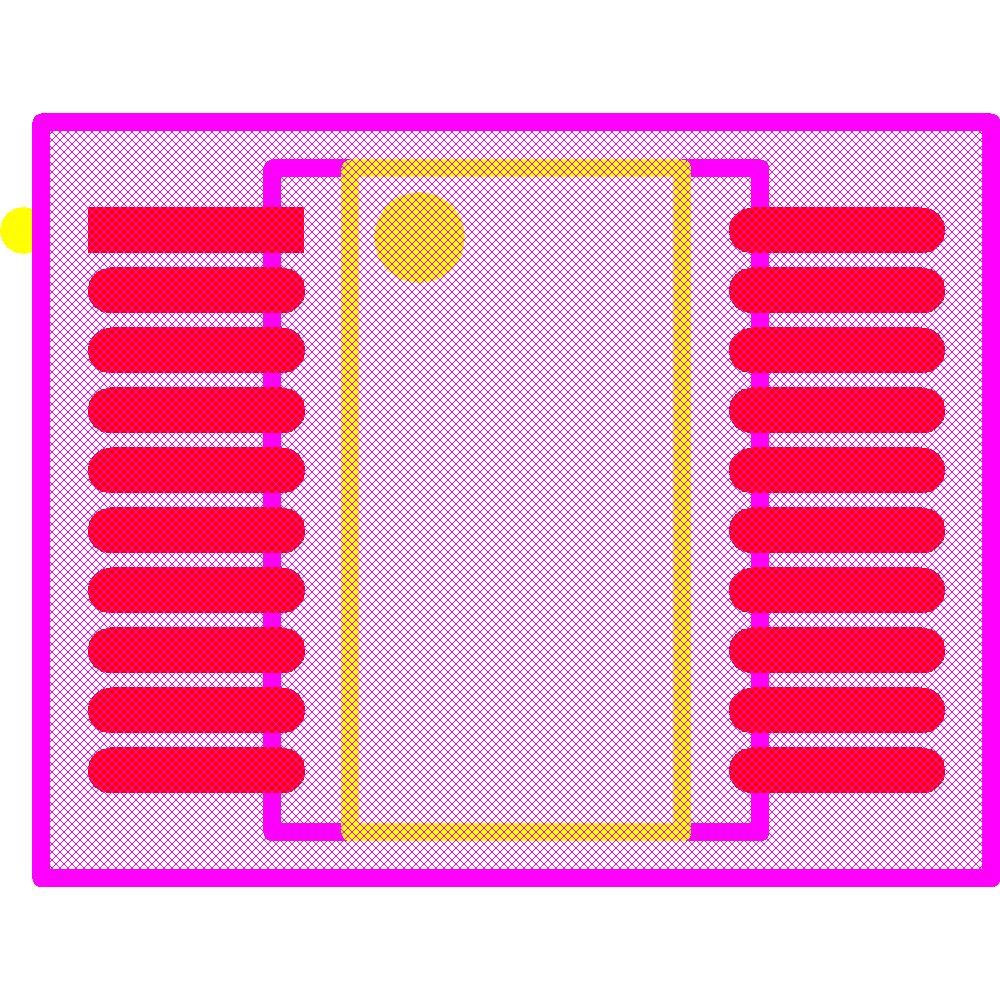

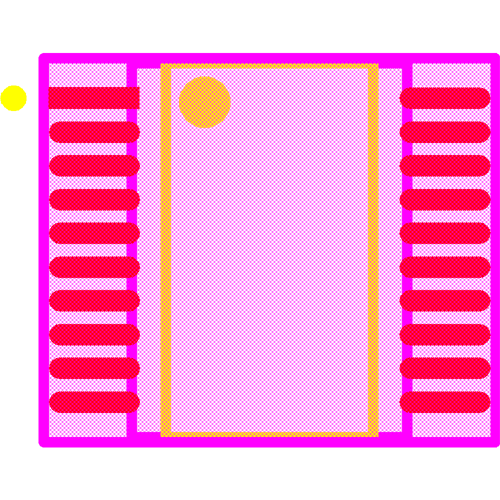

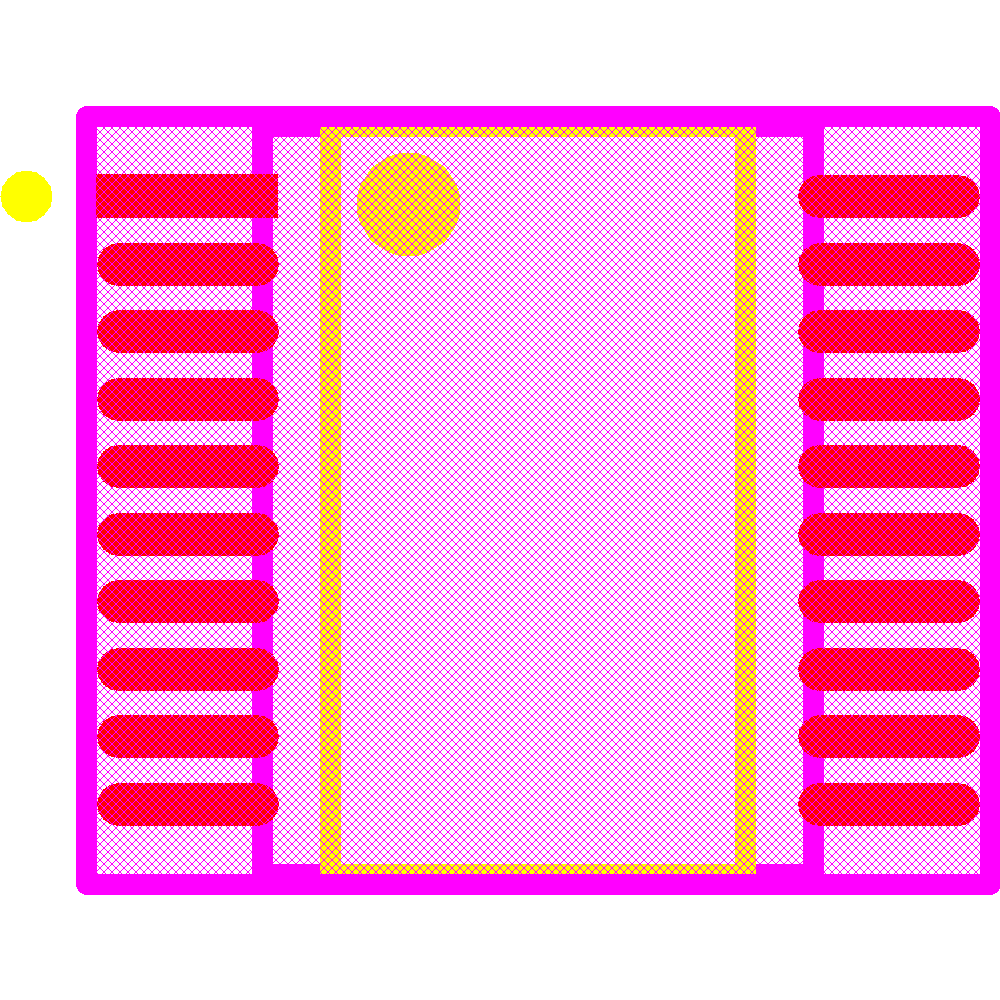

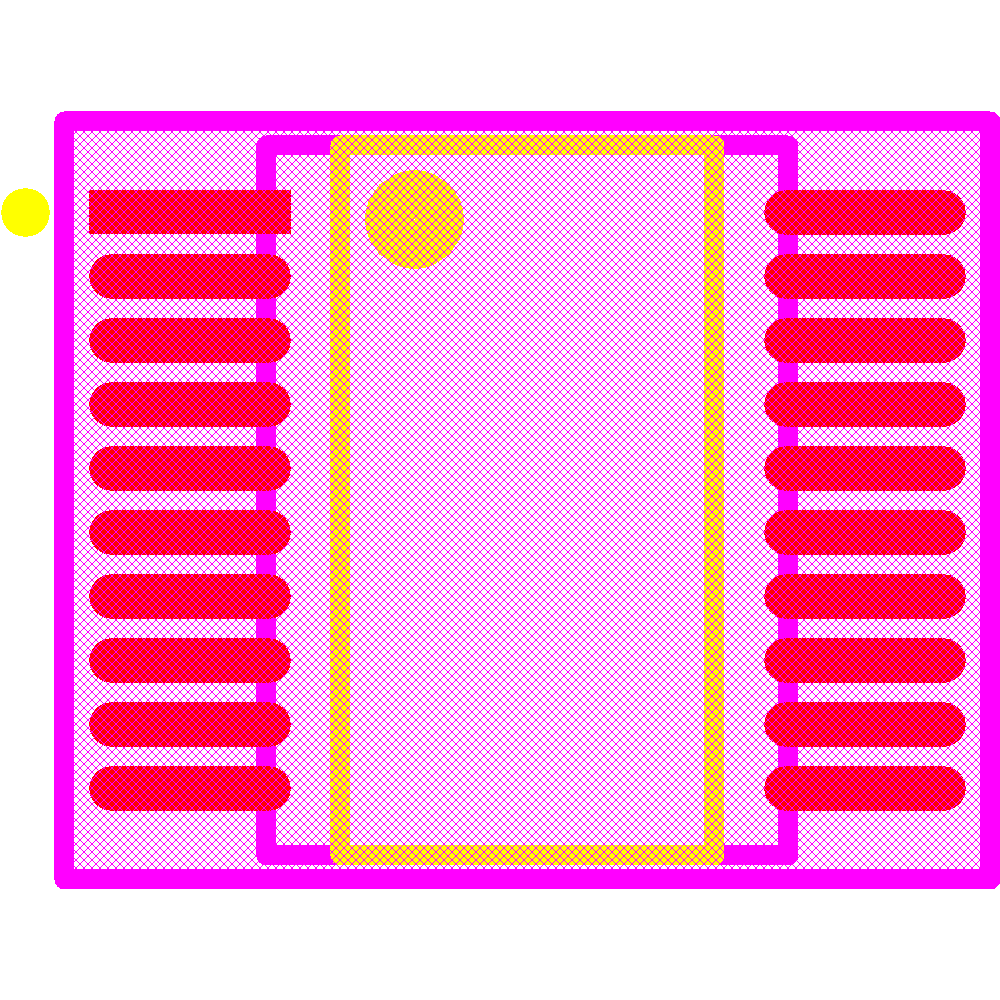

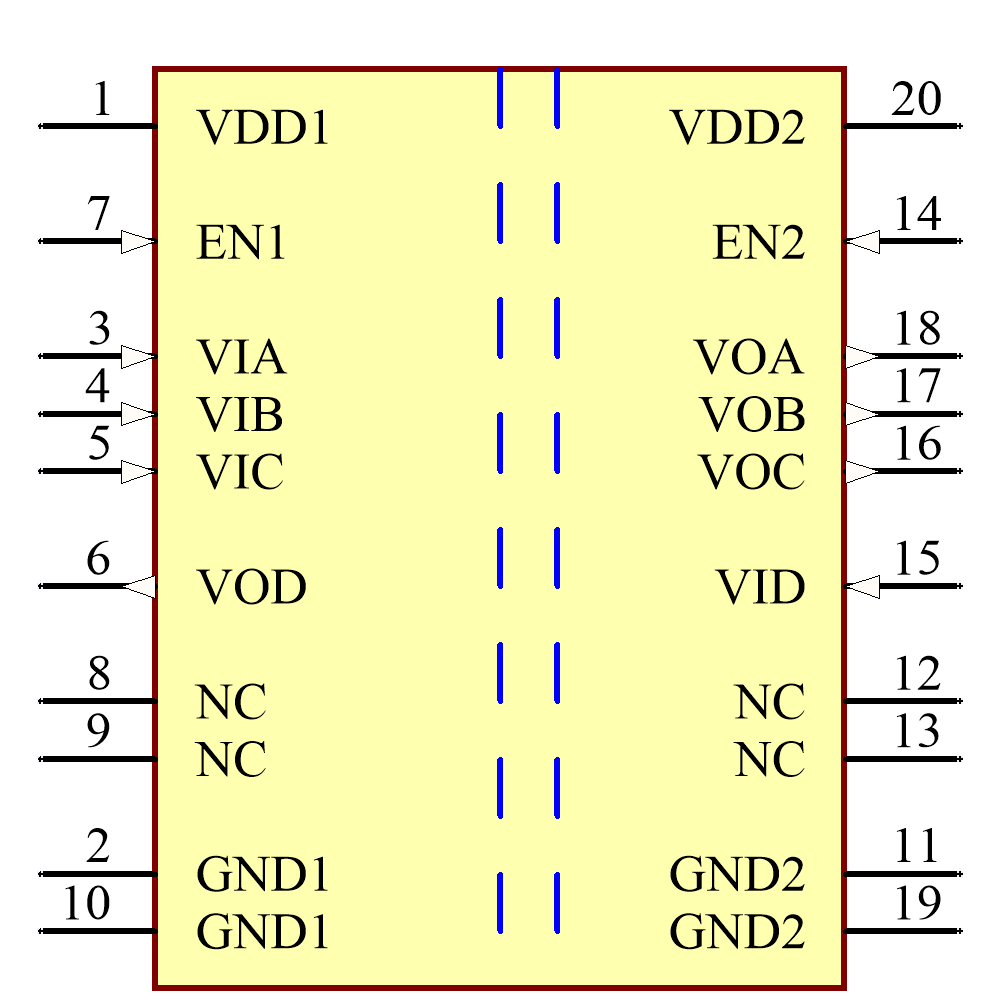

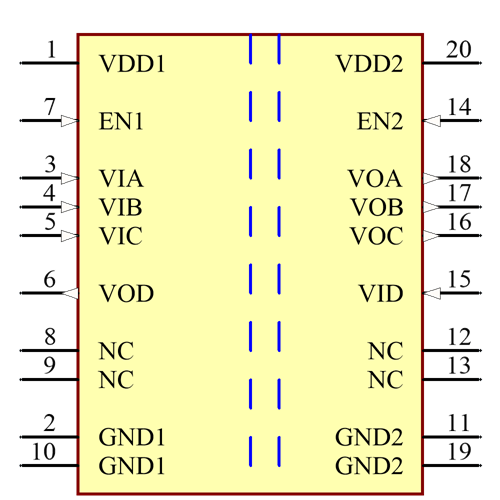

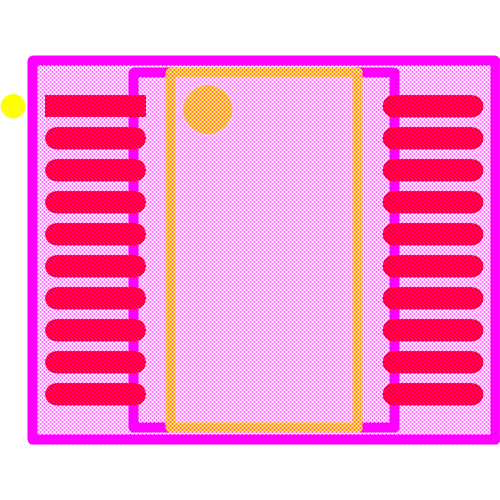

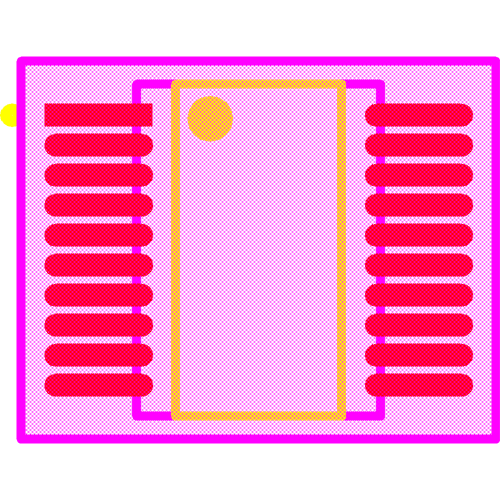

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Silicon Lab | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Silicon Lab | Unknown | ||
| Analog Devices | Production | ||
| NVE | Production |
