ADUM5230ARWZ - Analog Devices

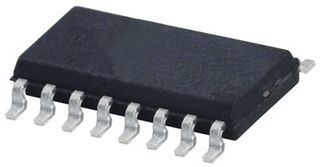

DGTL ISO 2.5KV 2CH GT DVR 16SOIC Gate Driver Magnetic Coupling 2500Vrms 2 Channel 16-SOIC
Technical Details
| Approvals | UR |
| Case/Package | SOIC |
| Depth | 2.35mm |
| Fall Time | 10ns |
| Frequency | 1MHz |
| Isolation Voltage | 2500Vrms |
| Lead Free | Contains Lead |
| Length | 10.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Input Current | 10µA |
| Max Operating Temperature | 105°C |
| Max Output Current | 10mA |
| Max Supply Current | 200mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 200mA |
| Number of Channels | 2 |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Number of Pins | 16 |
| Power Dissipation | 150mW |
| Propagation Delay | 100ns |
| Pulse Width Distortion (PWD) | 8ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| Rise Time | 25ns |
| RoHS | Compliant |
| Schedule B | 8543709655, 8543709655|8543709655|8543709655|8543709655|8543709655 |
| Turn-On Delay Time | 100ns |
| Type | General Purpose |
| Width | 7.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
