ADUM5240ARZ - Analog Devices
Magnetic isolation 2 General-purpose SOIC-8 Digital Isolators ROHS
Technical Details
| Case/Package | R |
| Channel Type | Unidirectional |
| Contact Plating | Tin |
| Data Rate | 1Mbps |
| Depth | 1.5mm |
| Isolated Power | Yes |
| Isolation Voltage | 2500Vrms |
| Length | 5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Input Current | 10µA |
| Max Operating Temperature | 105°C |
| Max Output Current | 10mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Nominal Supply Current | 140mA |
| Number of Channels | 2 |
| Number of Pins | 8 |
| Power Dissipation | 50mW |
| Propagation Delay | 70ns |
| Pulse Width Distortion (PWD) | 3ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| Rise Time | 2.5ns |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Termination | SMD/SMT |
| Turn-On Delay Time | 70ns |
| Type | General Purpose |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

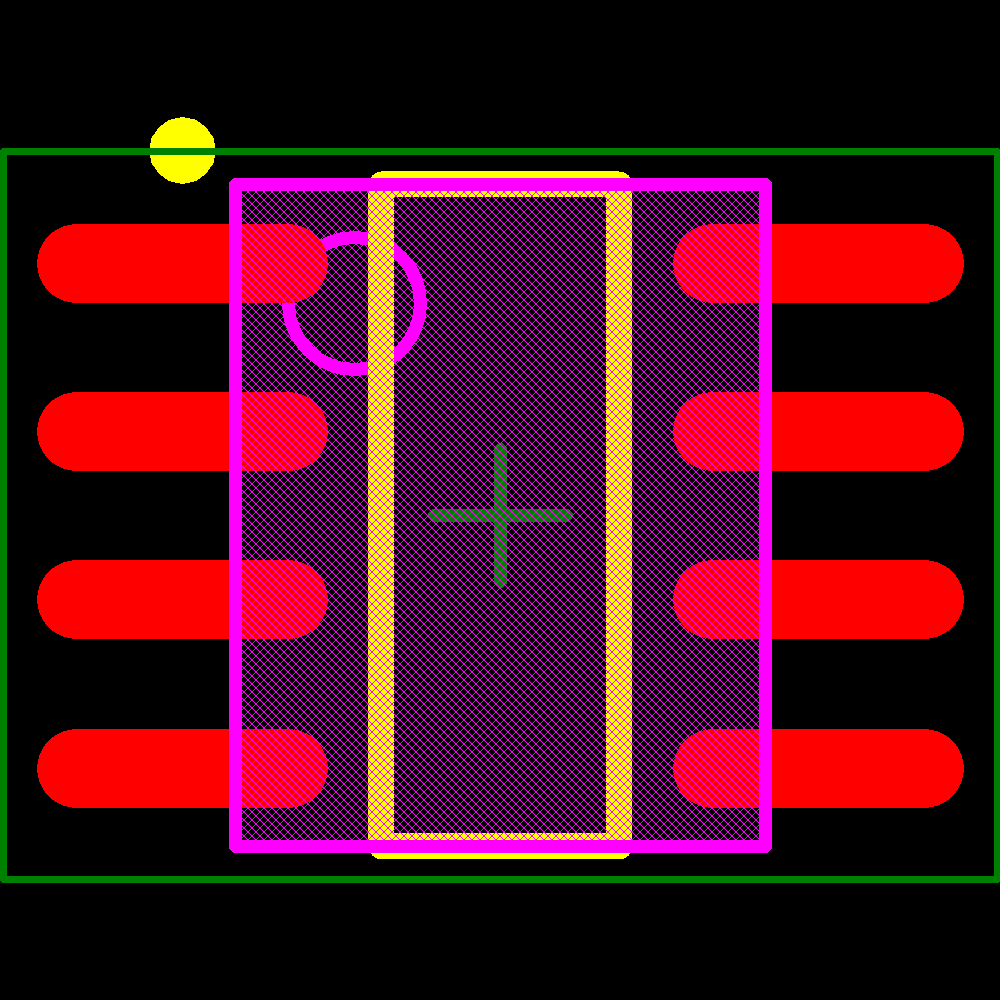

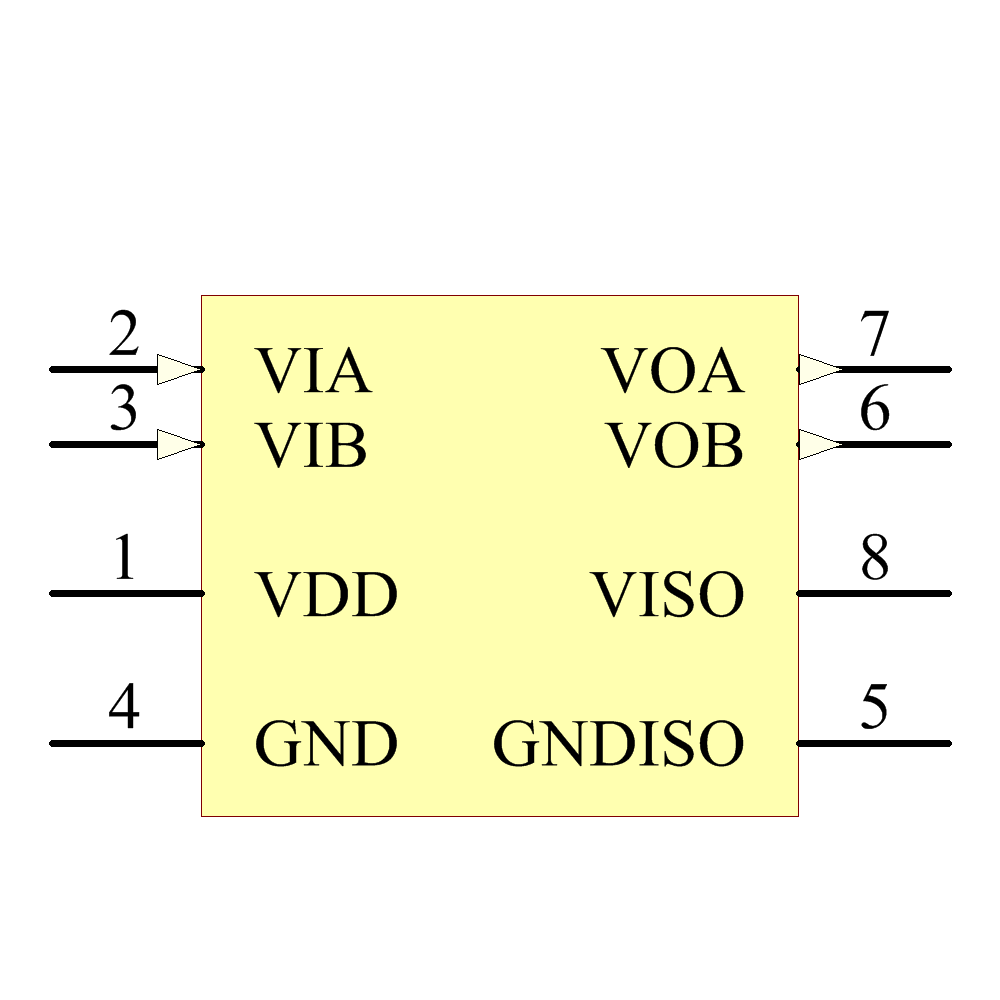

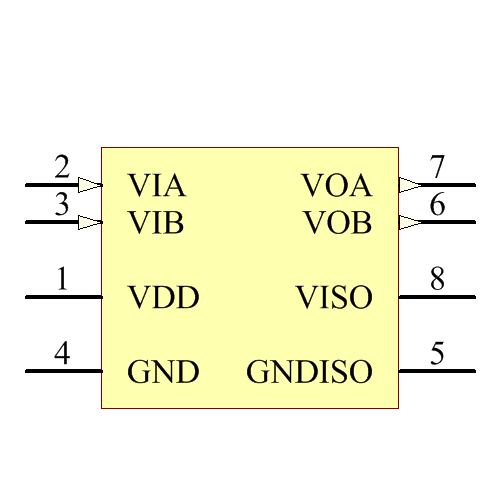

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production | ||
| Silicon Lab | Production |
