ADUM6132ARWZ - Analog Devices
DGT ISO 3.75KV 2CH GT DVR 16SOIC 200mA Gate Driver Magnetic Coupling 3750Vrms 2 Channel 16-SOIC
Technical Details
| Ambient Temperature Range High | 85°C |
| Approvals | CSA, UR |
| Case/Package | SOIC |
| Depth | 2.35mm |
| Fall Time | 15ns |
| Frequency | 1MHz |
| Height | 2.65mm |
| High Level Output Current | 200mA |
| Isolation Voltage | 3750Vrms |
| Lead Free | Contains Lead |
| Length | 10.5mm |
| Lifecycle Status | Production |
| Low Level Output Current | 200mA |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Input Current | 3mA |
| Max Operating Temperature | 85°C |
| Max Output Current | 22mA |
| Max Power Dissipation | 275mW |
| Max Supply Current | 350mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 280mA |
| Number of Channels | 2 |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Number of Pins | 16 |
| Operating Supply Current | 350mA |
| Output Current | 22mA |
| Output Voltage | 15V |
| Polarity | Unidirectional |
| Power Dissipation | 275W |
| Propagation Delay | 60ns |
| Pulse Width Distortion (PWD) | 10ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| Rise Time | 15ns |
| RoHS | Compliant |
| Schedule B | 8543709655, 8543709655|8543709655|8543709655|8543709655|8543709655 |
| Turn-On Delay Time | 100ns |
| Type | General Purpose |
| Weight | 665.986997mg |
| Width | 7.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

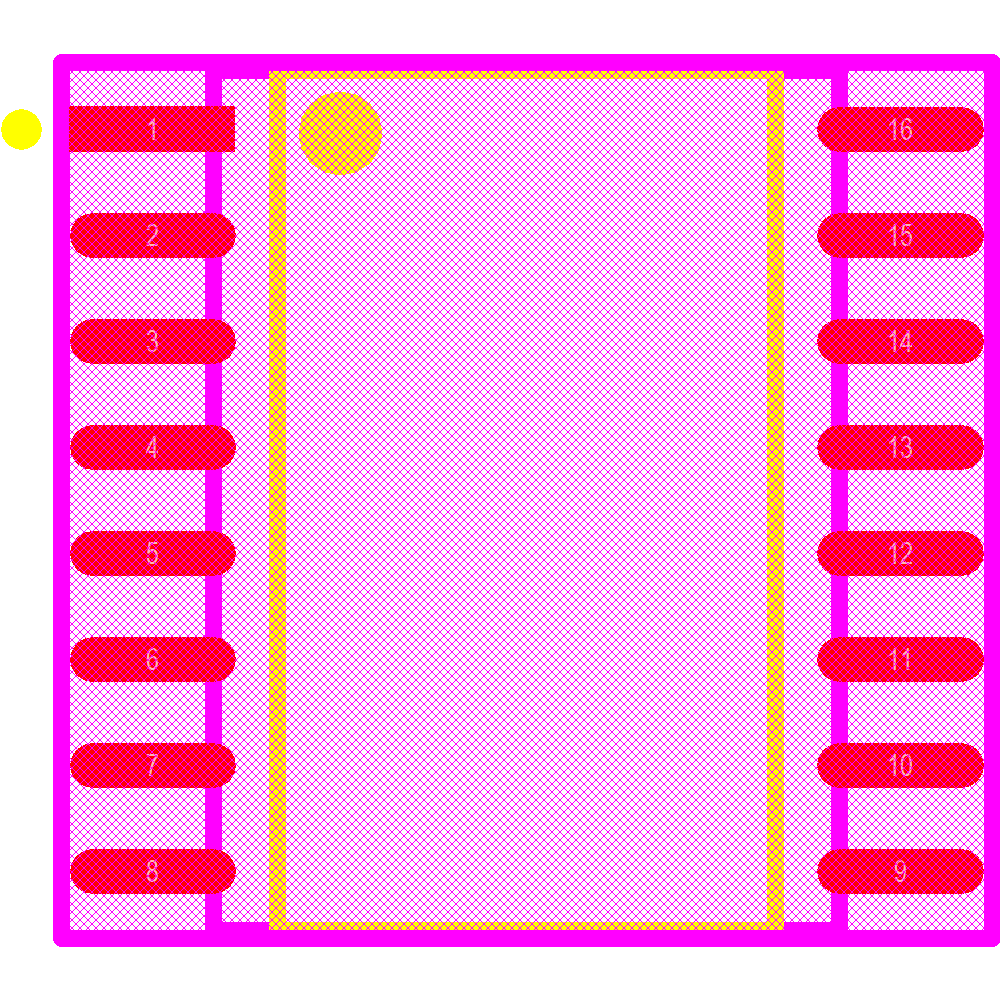

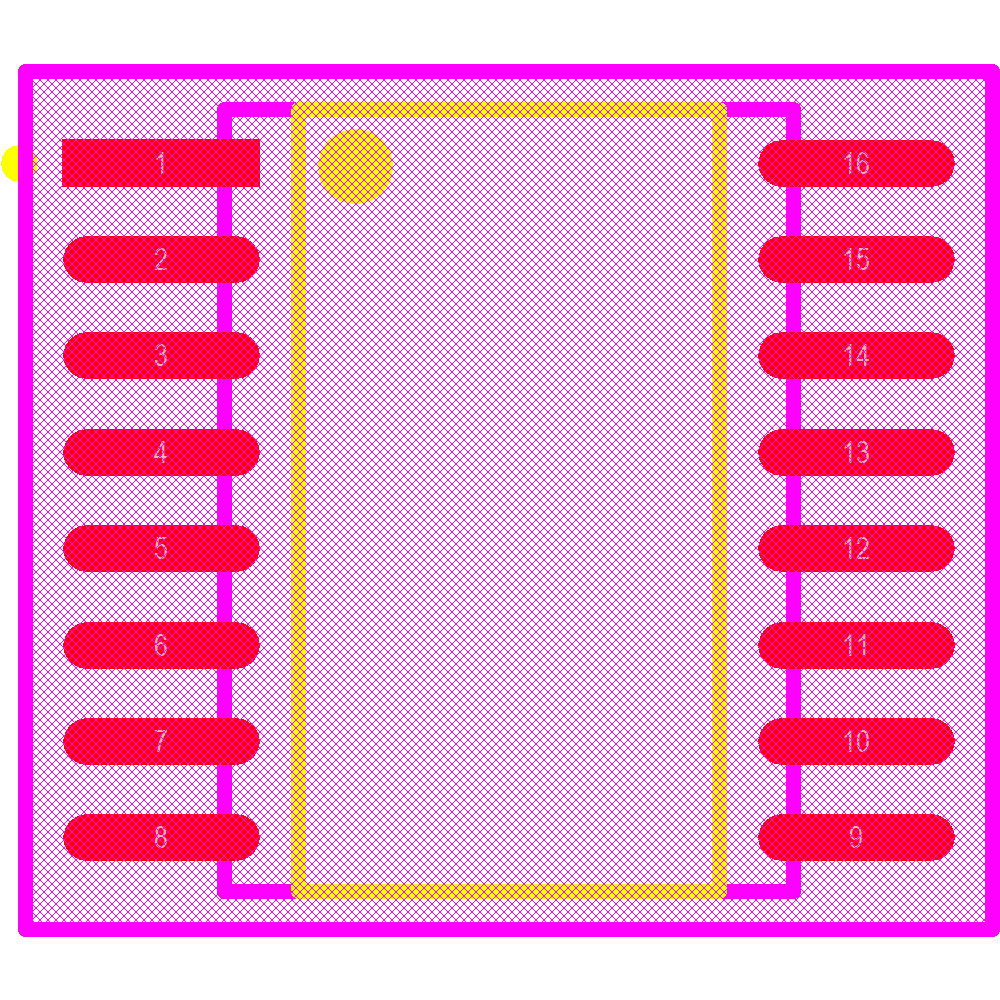

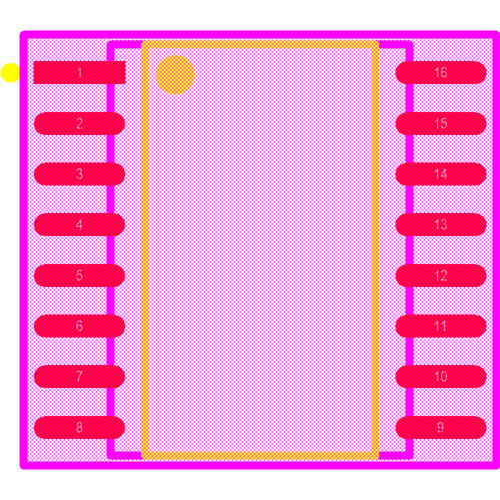

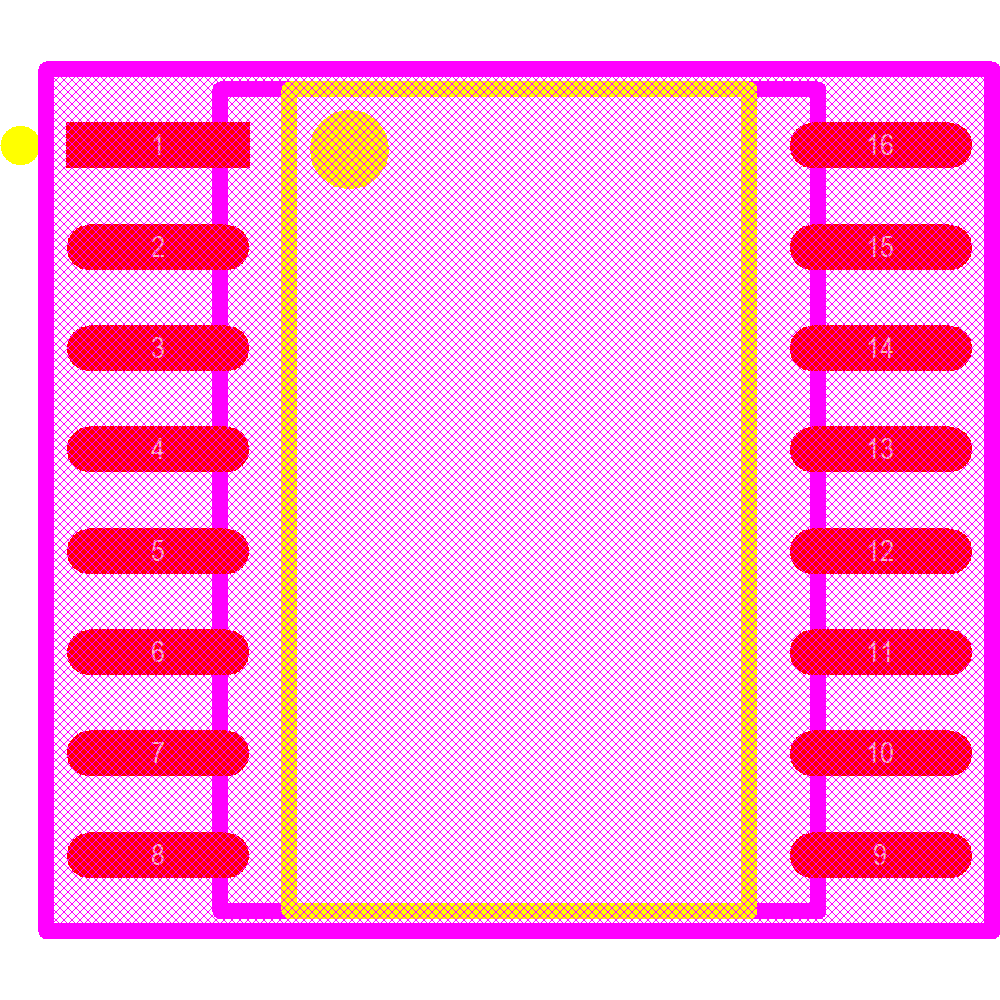

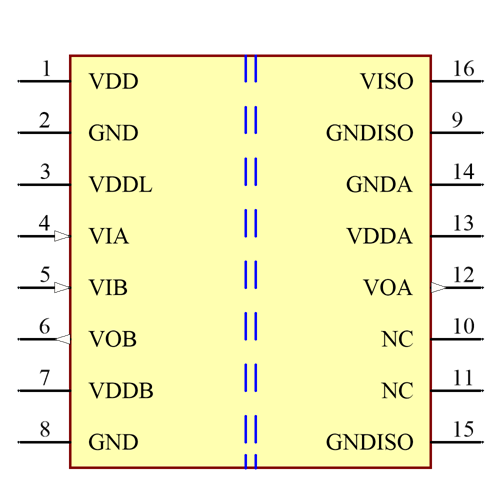

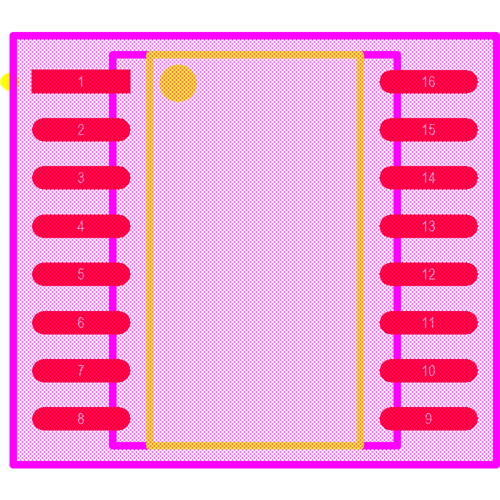

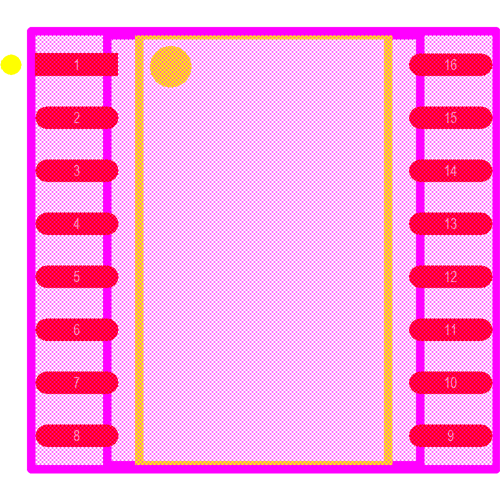

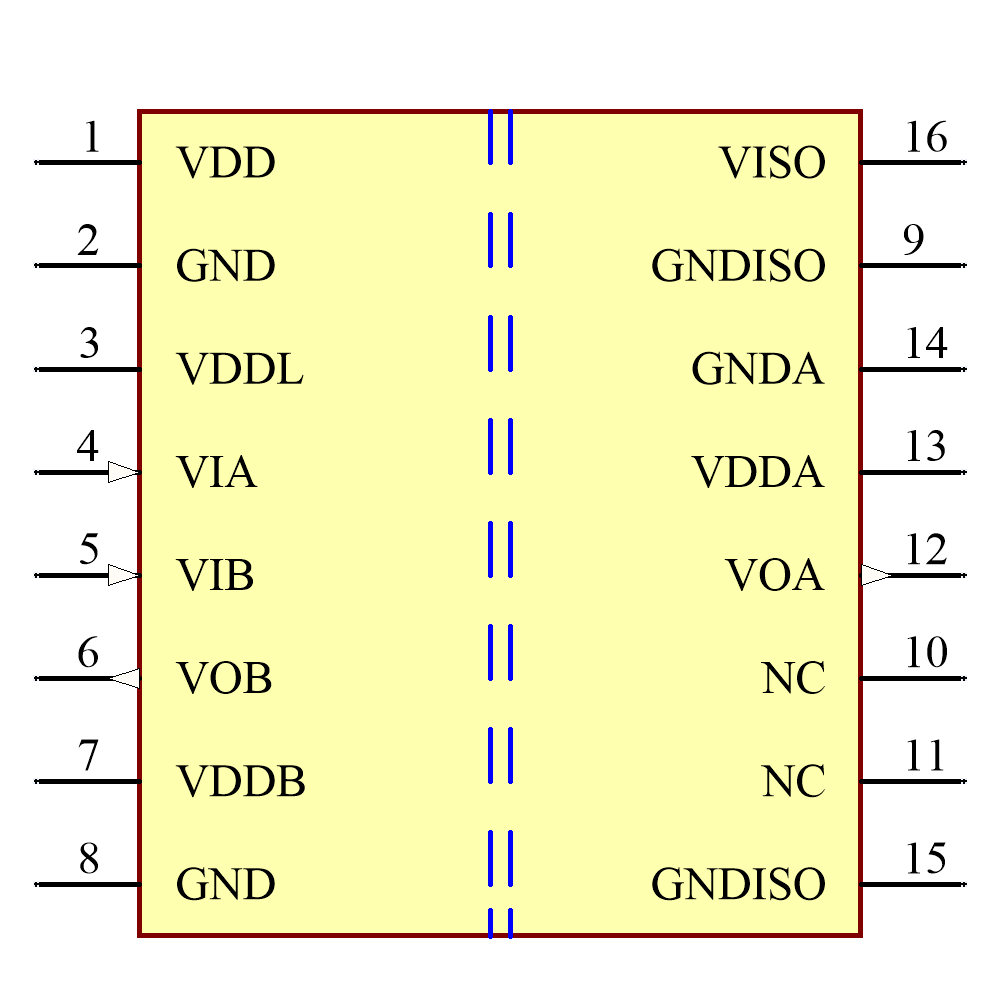

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Texas Instruments | Production | ||
| Micrel | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Intersil | Obsolete | ||
| Analog Devices / Linear Technology | Obsolete | ||
| Texas Instruments | Production | ||
| Microchip | Production |
