Integrated Circuits (ICs) > Linear ICs > Analog Switches and Multiplexers

ADV3228ACPZ - Analog Devices

Analog Video Crosspoint 1.2GHz 8 x 8 72-Pin LFCSP EP Tray

Technical Details

Bandwidth	1.2GHz
Case/Package	LFCSP EP
Dual Supply Voltage	5V
Height	950µm
Lead Free	Contains Lead
Length	10mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Dual Supply Voltage	5.5V
Max Operating Temperature	85°C
Max Output Voltage	3V
Max Supply Voltage	5.5V
Min Dual Supply Voltage	4.5V
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Number of Pins	72
Operating Supply Current	52mA
Operating Supply Voltage	5V
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Slew Rate	2500V/µs
Supply Type	Dual
Width	10mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Analog Devices ADV3228ACPZ | Analog Devices

Analog Devices

Datasheets

Lifecycle Status Indicator

Production

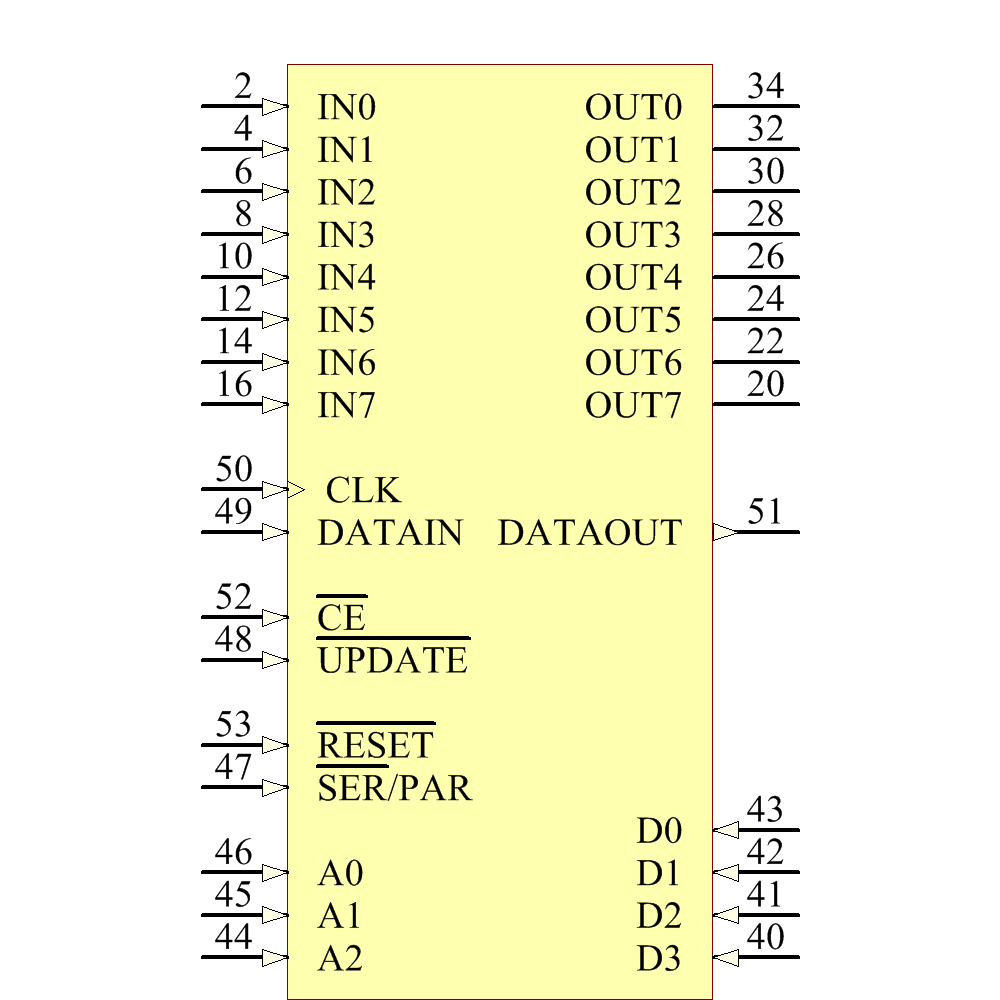

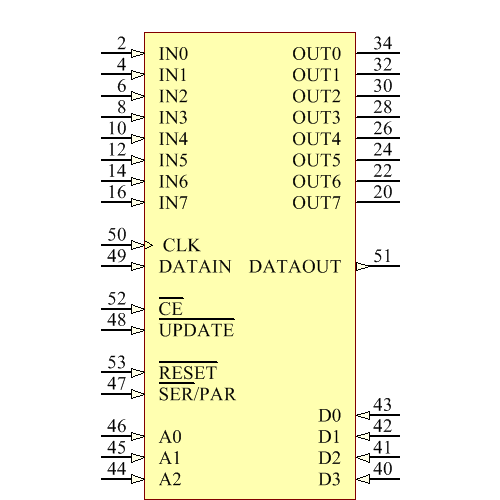

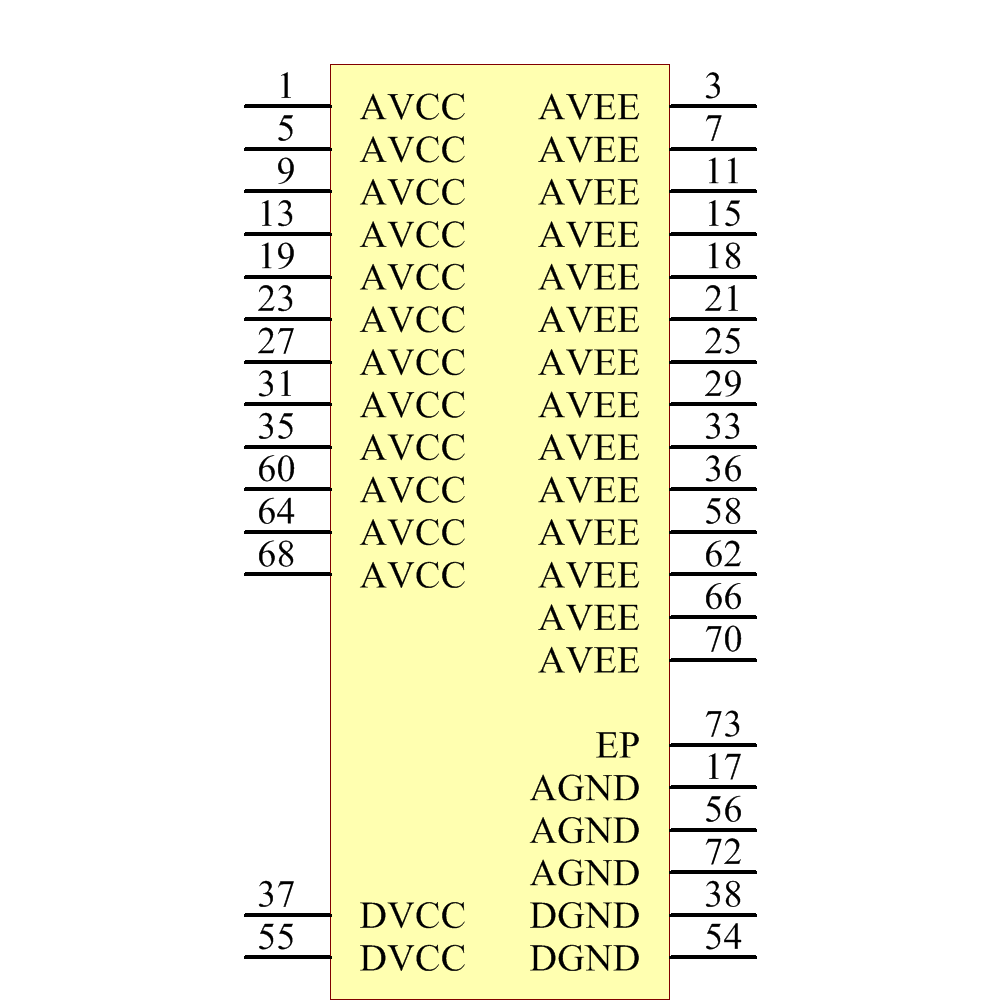

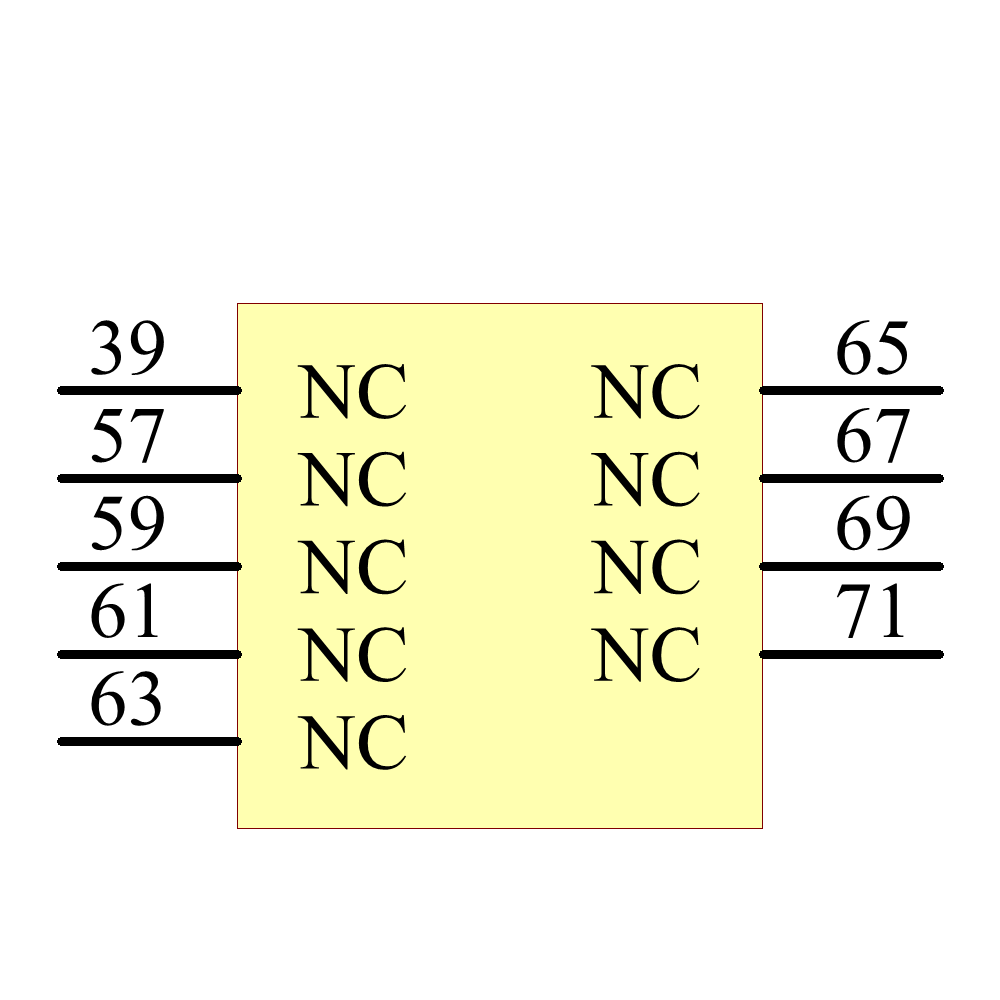

Symbol

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

ADV3228ACPZ Symbol - Analog Devices

‹ ›

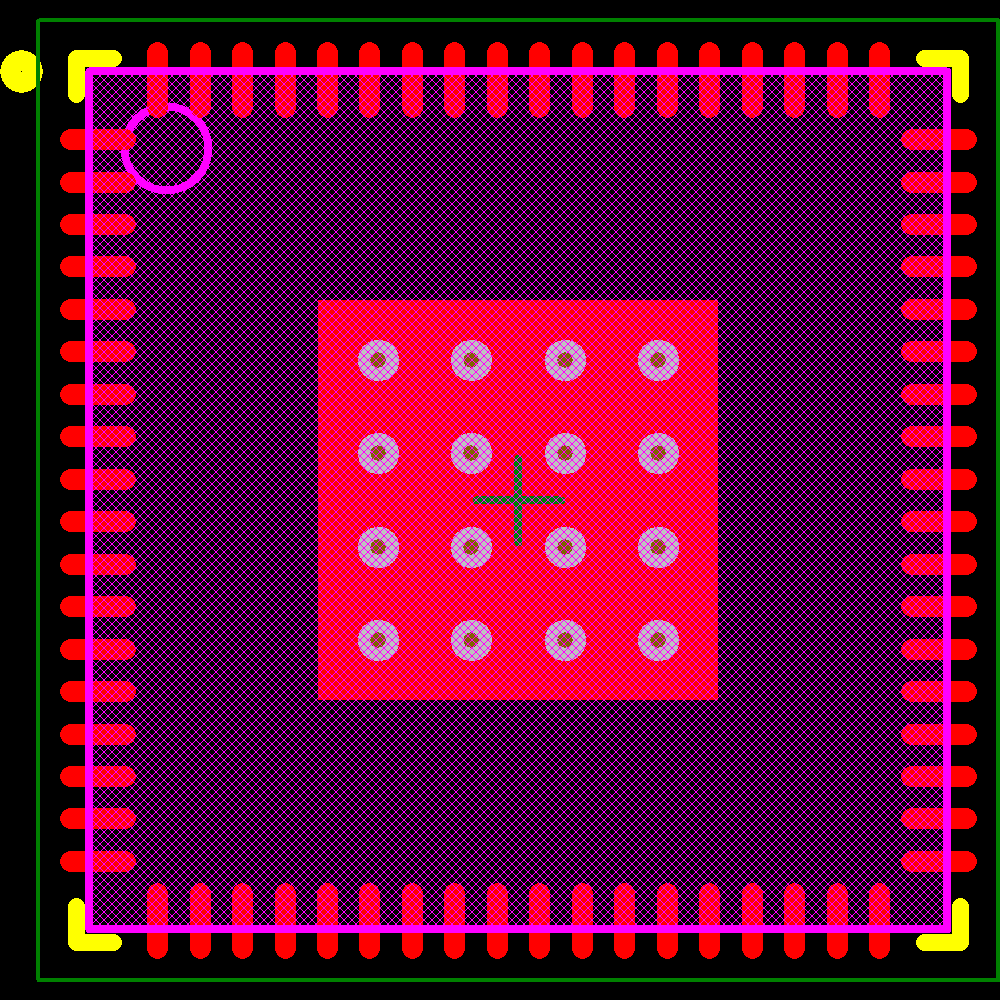

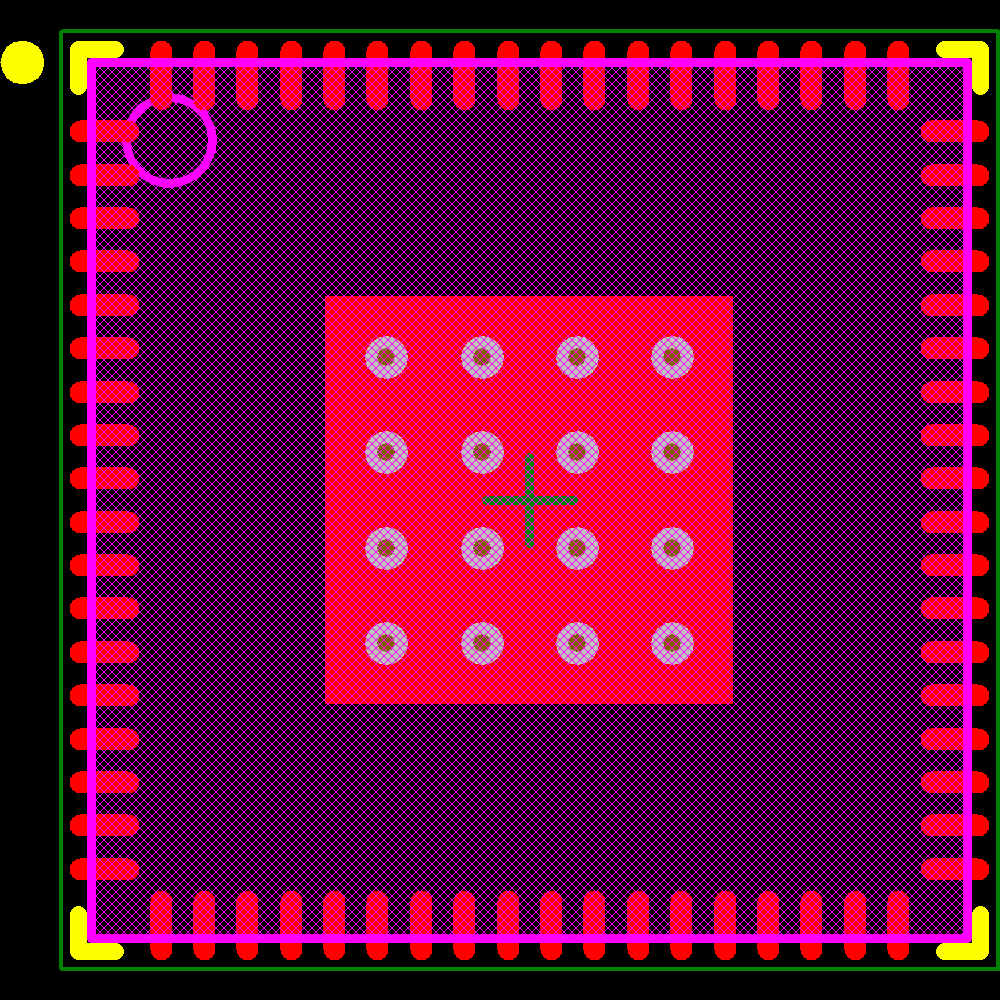

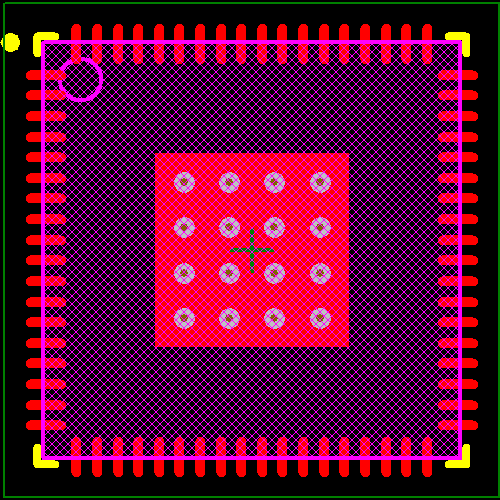

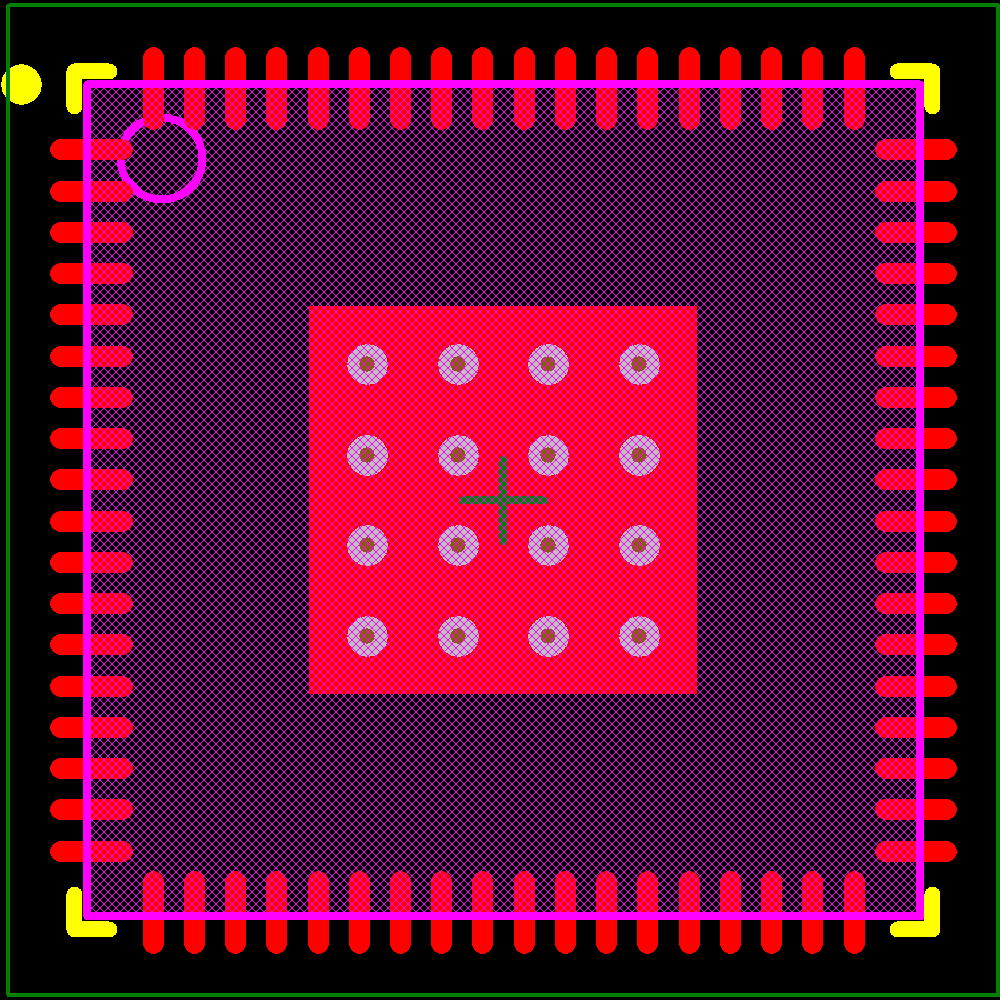

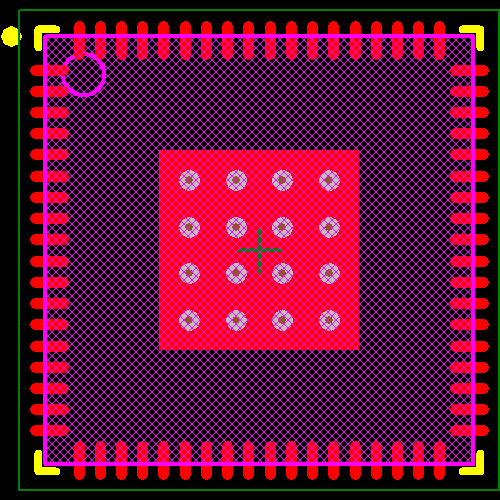

Footprint

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

ADV3228ACPZ Footprint - Analog Devices

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Analog Devices	AD8111ASTZ	Production
Analog Devices	AD8108ASTZ	Production
Analog Devices	AD8109ASTZ	Production
Analog Devices	AD8110ASTZ	Production
Analog Devices	AD8113JSTZ	Production
Analog Devices	AD8115ASTZ	Production
Analog Devices	ADV3224ACPZ	Production
Analog Devices	ADV3225ACPZ	Production
Analog Devices	ADV3229ACPZ	Production
Analog Devices	AD8106ASTZ	Production

See more alternatives See less alternatives
