Technical Details
| Case/Package | SOIC |
| Contact Plating | Tin |
| Dual Supply Voltage | 9V |
| Height | 1.5mm |
| High Level Output Current | 30mA |
| Lead Free | Lead Free |
| Length | 10mm |
| Logic Function | Multiplexer |
| Max Dual Supply Voltage | 20V |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 696mW |
| Max Supply Voltage | 30V |
| Min Dual Supply Voltage | 5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 5V |
| Mount | Surface Mount |
| Nominal Supply Current | 16µA |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Pins | 16 |
| Operating Supply Current | 500µA |
| Operating Supply Voltage | 28V |
| Propagation Delay | 175ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| Resistance | 175Ω |
| RoHS | Compliant |
| Supply Type | Dual, Single |
| Throw Configuration | DPST |
| Turn-Off Delay Time | 300ns |
| Turn-On Delay Time | 600ns |
| Voltage | 32V |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

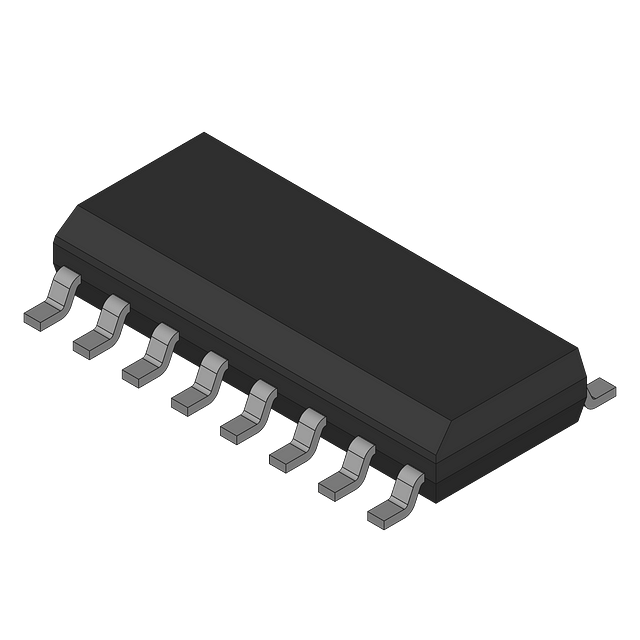

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Renesas | Obsolete | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Vishay | Production | ||
| Renesas | Obsolete | ||
| Vishay | Production | ||
| Harris | Obsolete | ||
| Analog Devices | Production | ||
| Renesas | Production | ||
| Renesas | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 130
|
$ | 2.07 | 1.97 | 1.76 | 1.66 | ||||
