Analog Devices - DS1815R-10+T&R

DS1815R-10+T&R - Analog Devices

Processor Supervisor 2.88V 0V to 5.5V 3-Pin SOT-23 T/R

 Datasheets

Technical Details

Case/Package SOT-23
Height 1.12mm
Lead Free Lead Free
Length 3.04mm
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Operating Temperature 85°C
Max Reset Threshold Voltage 2.97V
Max Supply Current 35µA
Max Supply Voltage 5.5V
Min Operating Temperature -40°C
Min Reset Threshold Voltage 2.8V
Min Supply Voltage 0V
Mount Surface Mount
Nominal Supply Current 28µA
Number of Outputs 1
Number of Pins 3
Number of Voltages Monitored 1
Operating Supply Current 35µA
Output Current 10mA
Overvoltage Threshold 2.97V
Packaging Cut Tape
Radiation Hardening No
REACH SVHC Unknown
Reset Active Low
Reset Timeout 150ms
RoHS Compliant
Schedule B 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85
Threshold Voltage 2.88V
Type Power Supply Monitor, Simple Reset/Power-On Reset
Undervoltage Threshold 2.8V
Watchdog Timer No
Width 1.4mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Unknown

Images

Analog Devices DS1815R-10+T&R | Analog Devices

Analog Devices

Datasheets

 Farnell
 Farnell
 Analog Devices

Lifecycle Status Indicator

   Production

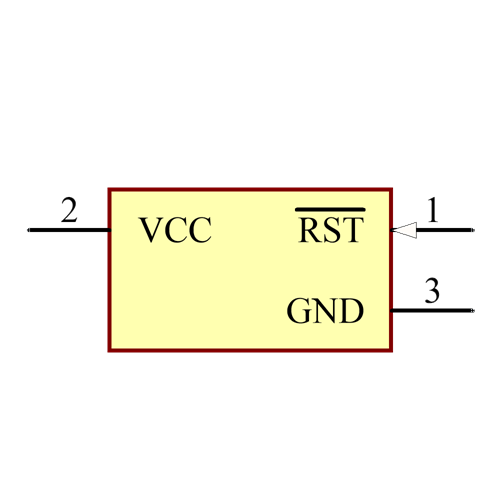

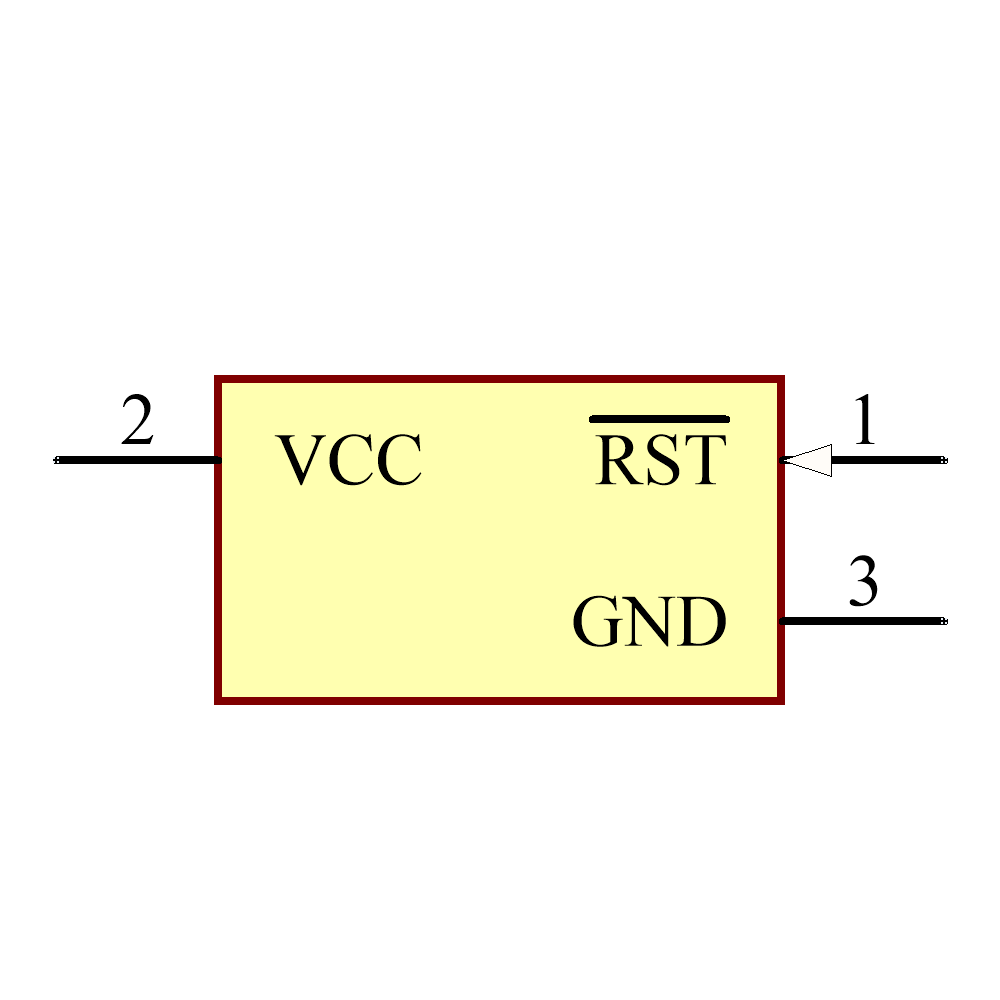

Symbol

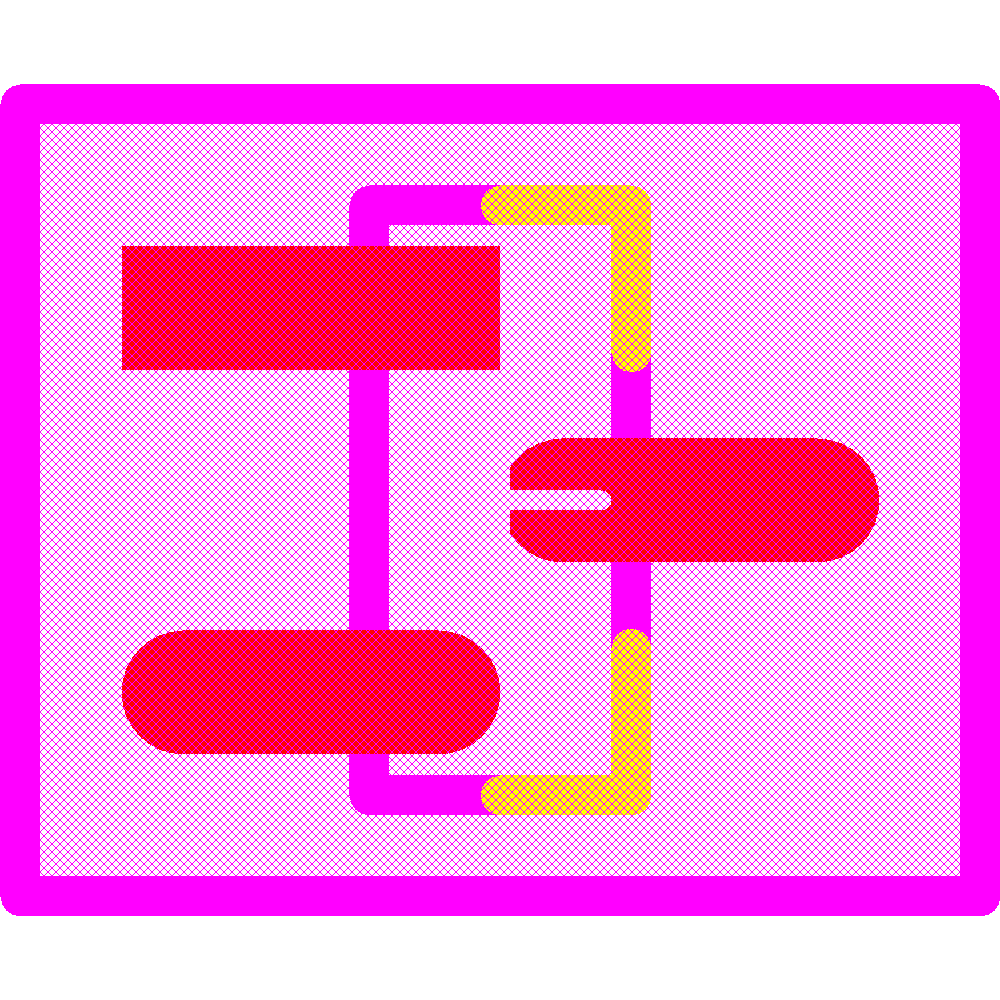

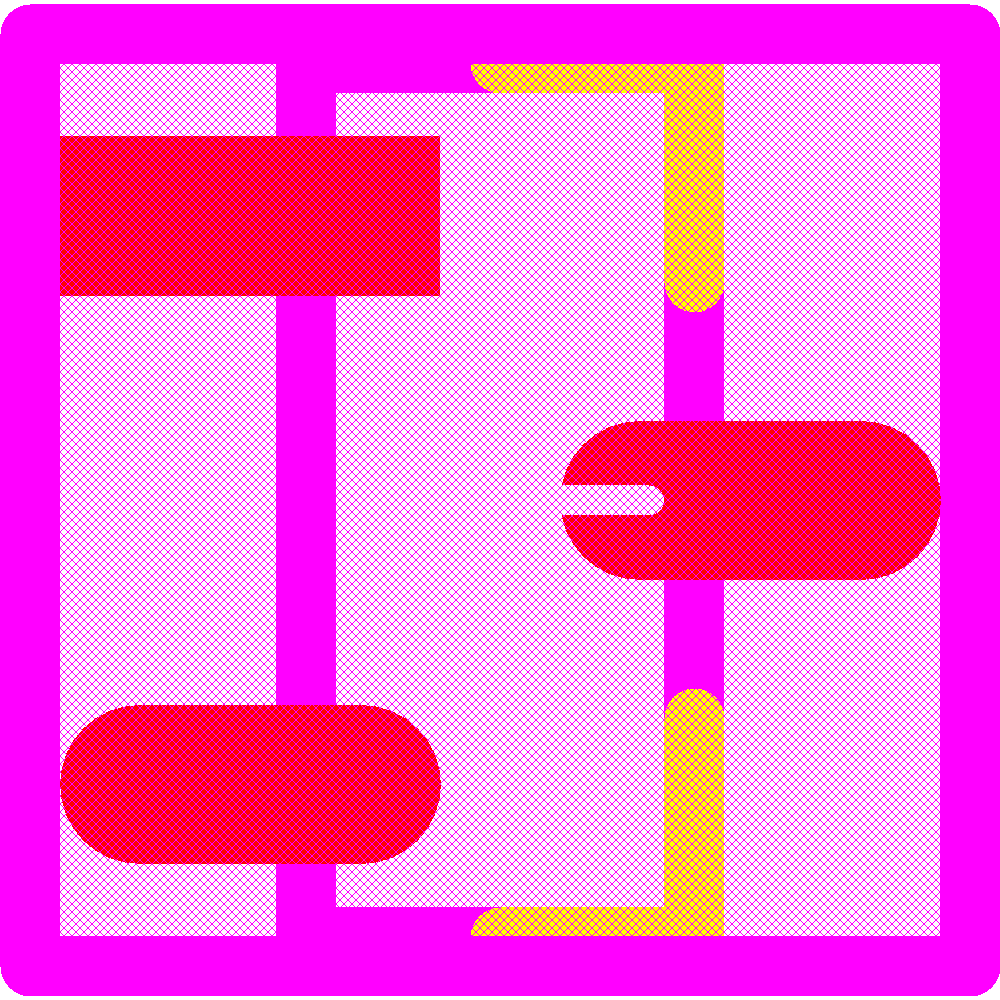

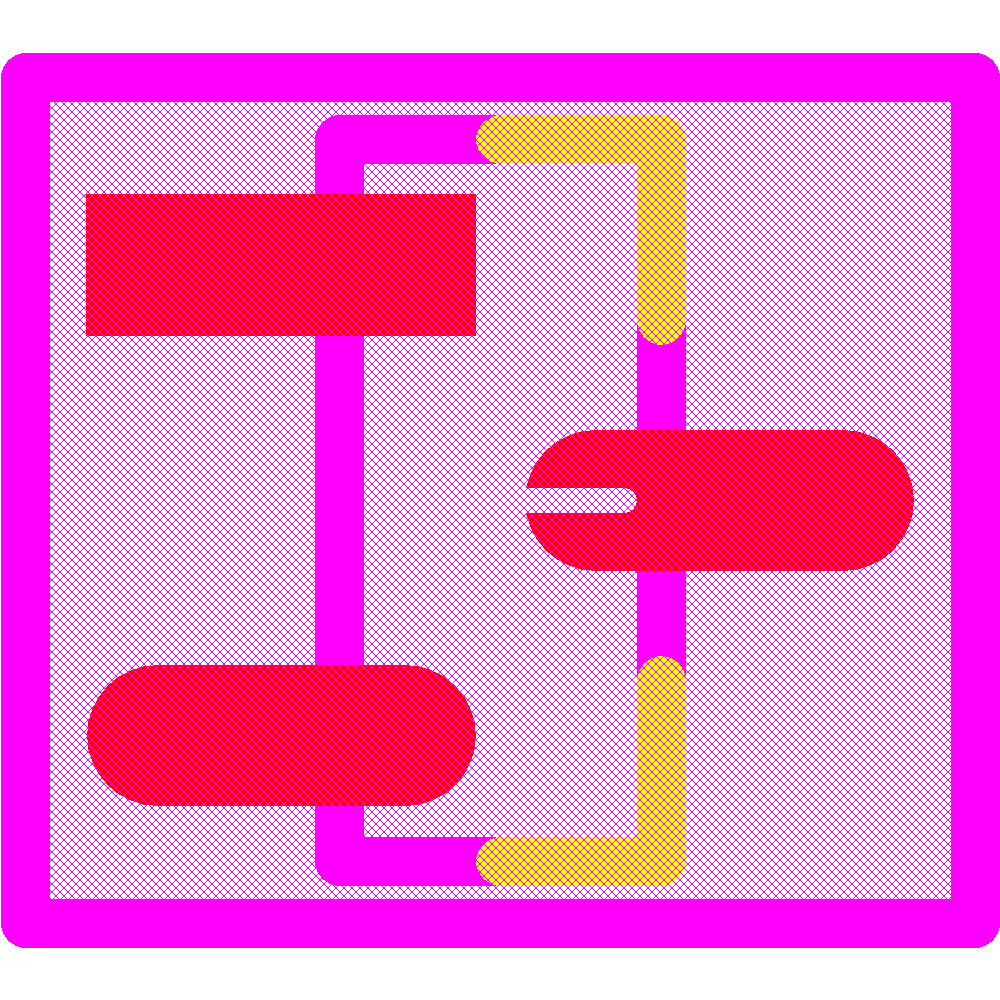

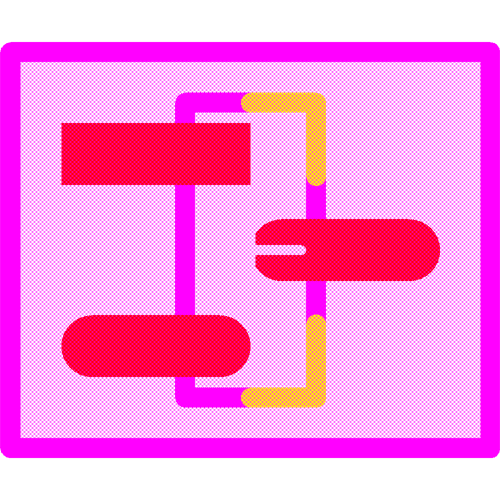

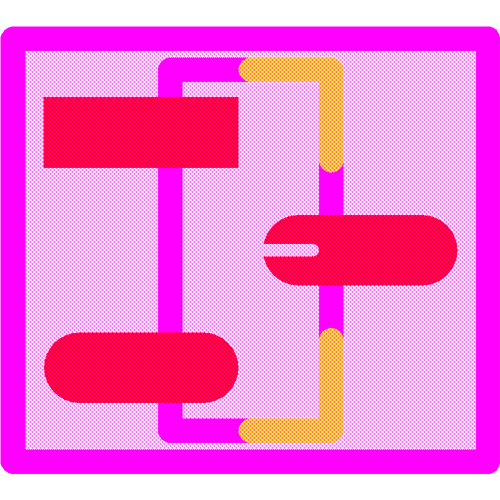

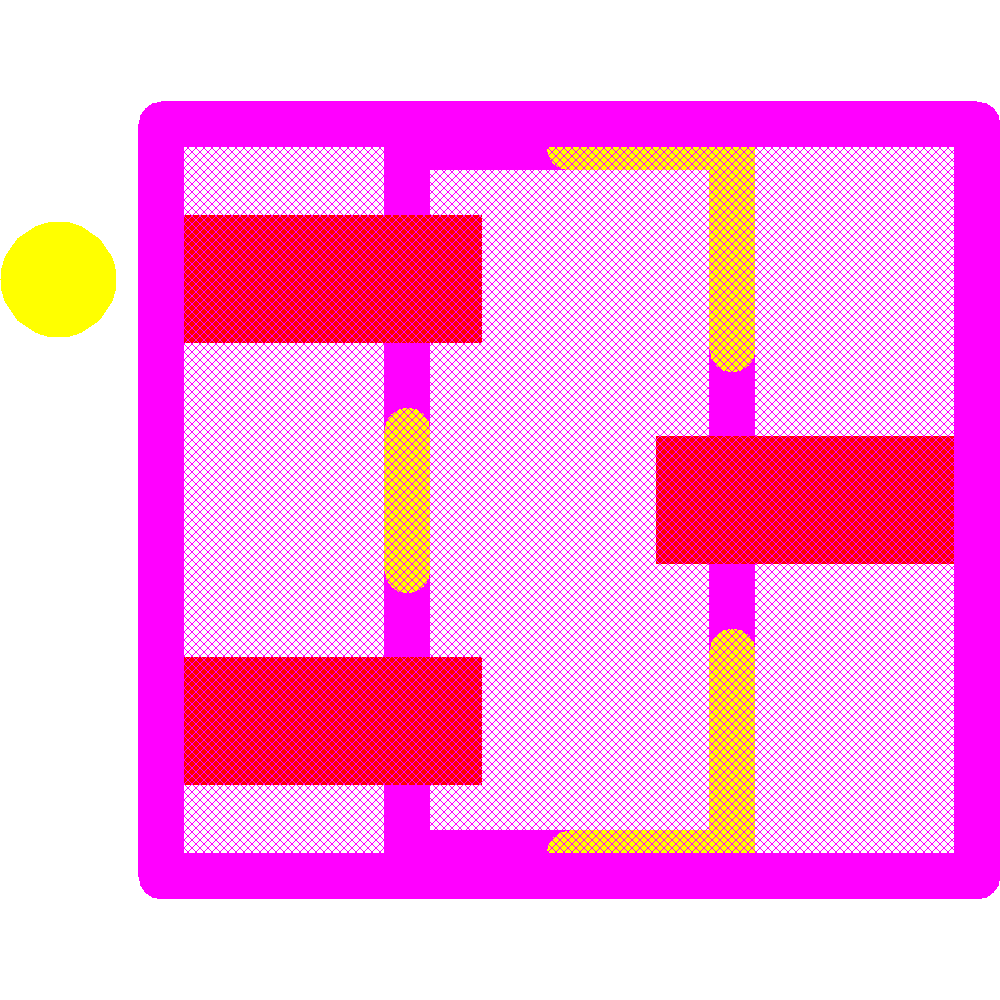

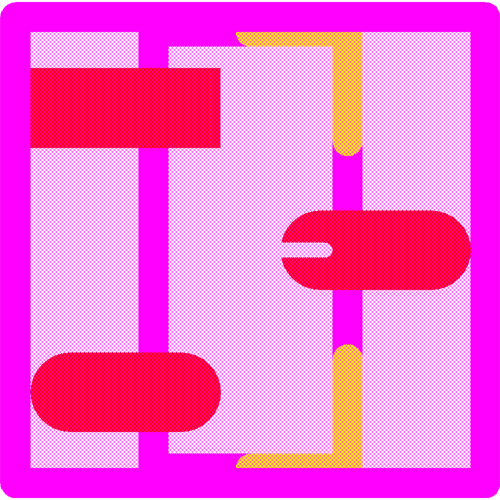

Footprint
