LT1076CQ#PBF - Analog Devices

Conv DC-DC 7.3V to 45V Step Down Single-Out 2.5V to 50V 10A 6-Pin(5+Tab) DDPAK

Technical Details

Case/Package	Q
Frequency	100kHz
Height	4.57mm
Lead Free	Lead Free
Length	10.54mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Input Voltage	45V
Max Operating Temperature	70°C
Max Output Current	10A
Max Output Voltage	50V
Min Input Voltage	7.3V
Min Operating Temperature	0°C
Min Output Voltage	2.5V
Number of Channels	1
Number of Outputs	1
Number of Pins	5
Output Current	2A
Output Type	Adjustable
Output Voltage	50V
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|85
Switching Frequency	100kHz
Synchronous Rectifier	No
Topology	Buck
Width	9.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Analog Devices LT1076CQ#PBF | Analog Devices

Analog Devices

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

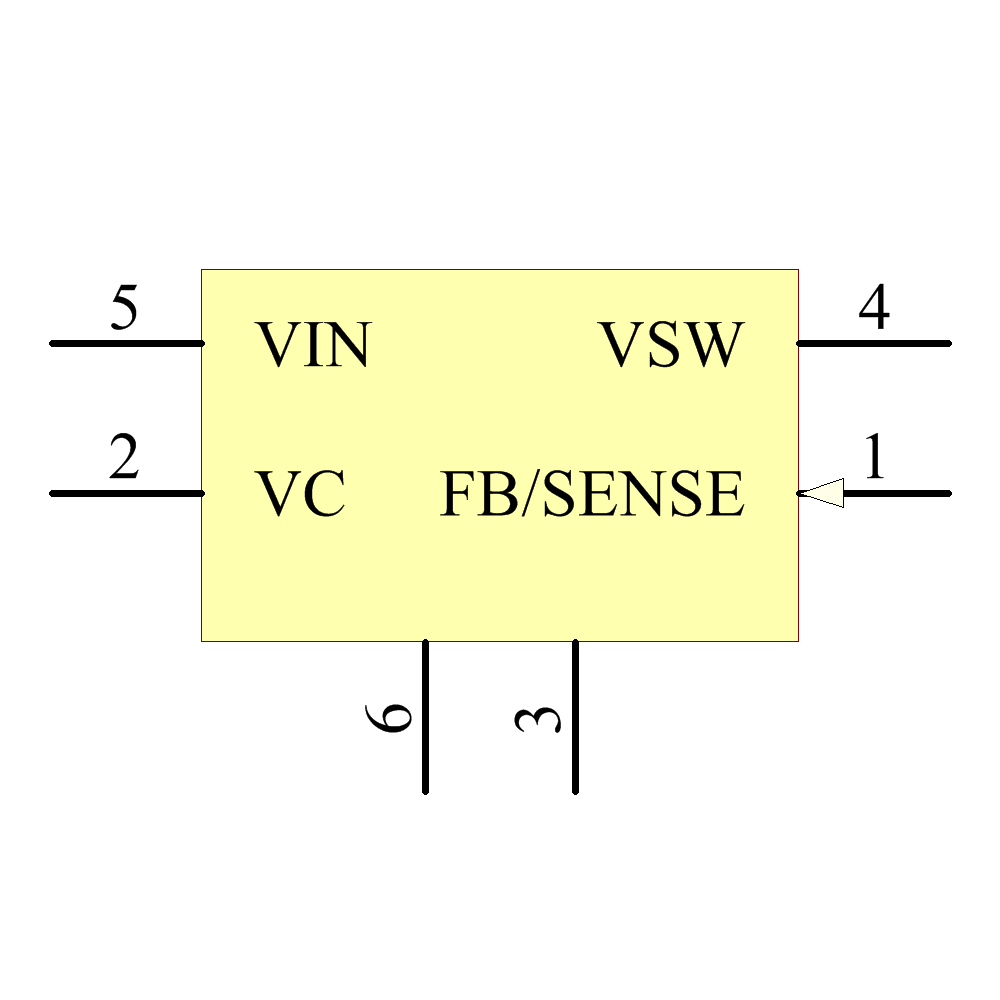

LT1076CQ#PBF Symbol - Analog Devices

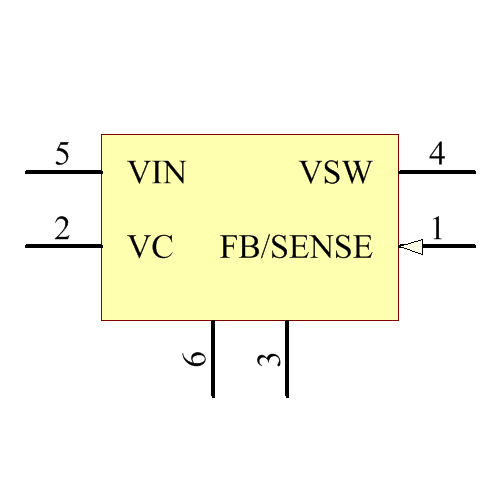

LT1076CQ#PBF Symbol - Analog Devices

LT1076CQ#PBF Symbol - Analog Devices

LT1076CQ#PBF Symbol - Analog Devices

‹ ›

Footprint

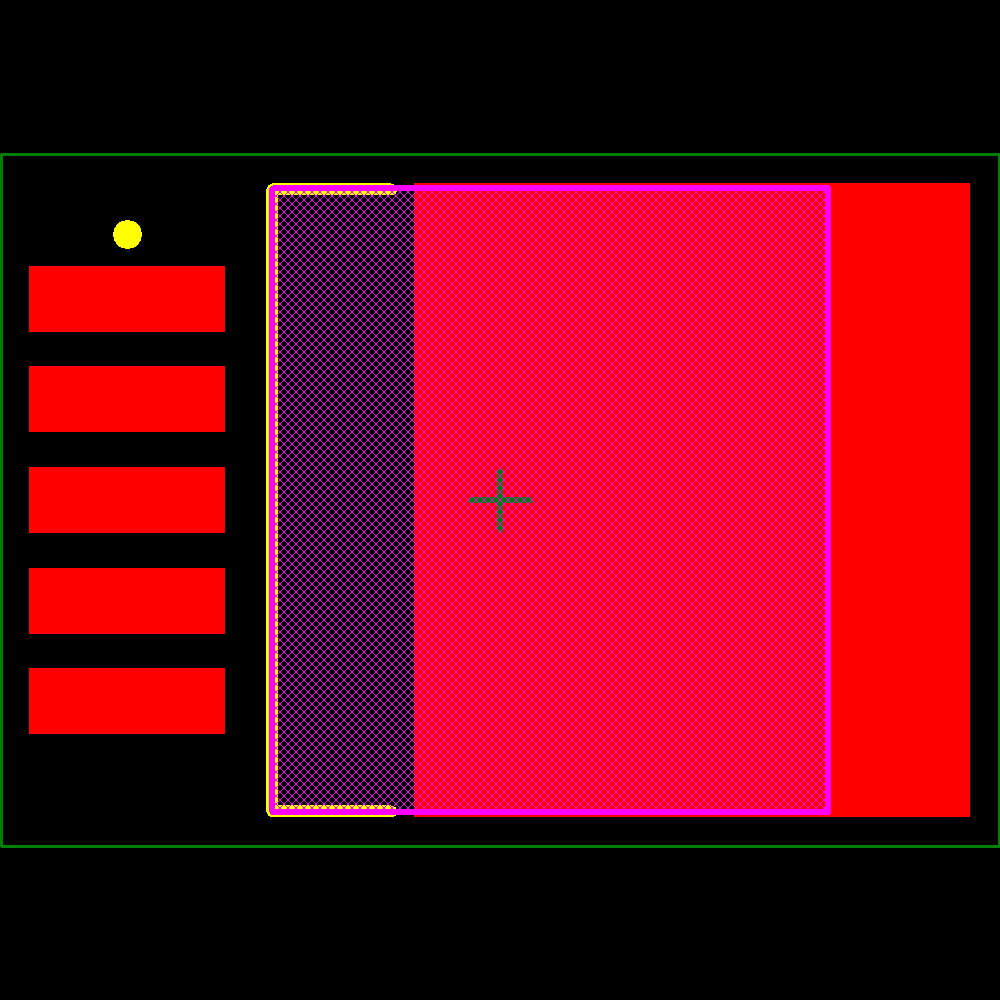

LT1076CQ#PBF Footprint - Analog Devices

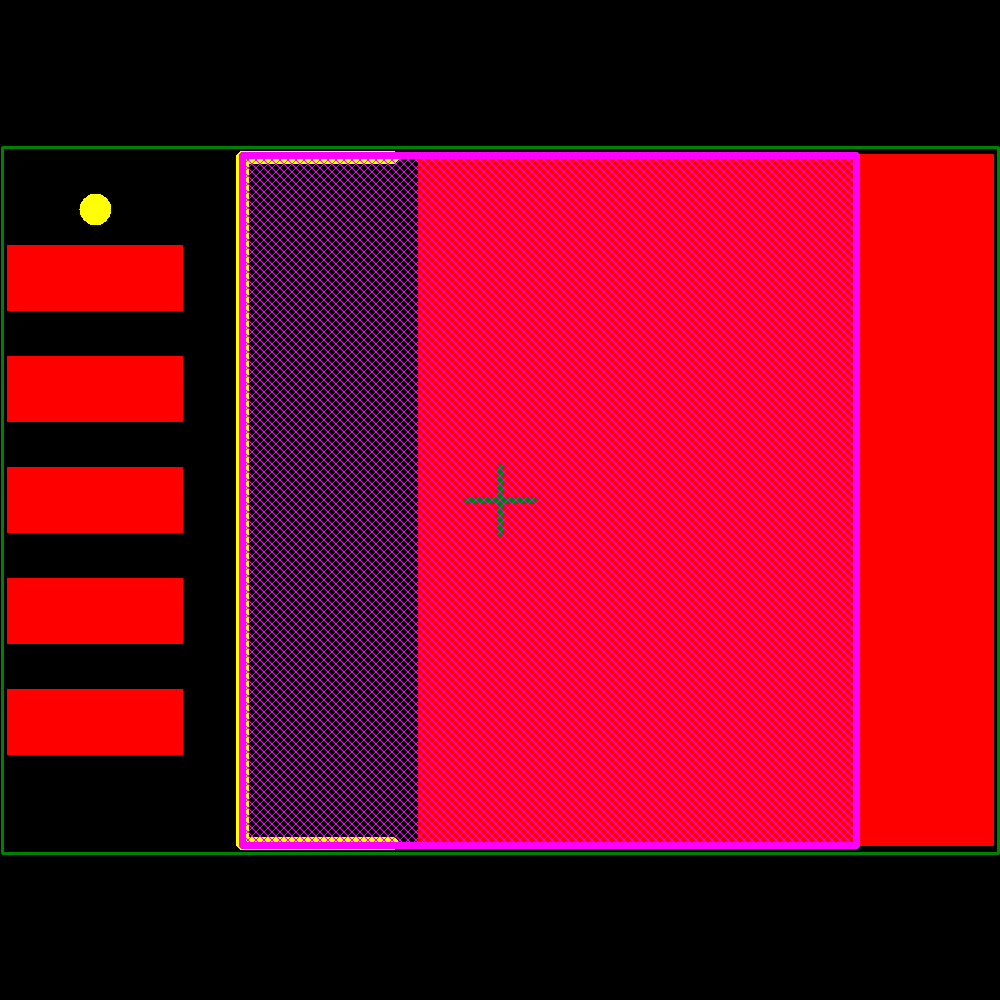

LT1076CQ#PBF Footprint - Analog Devices

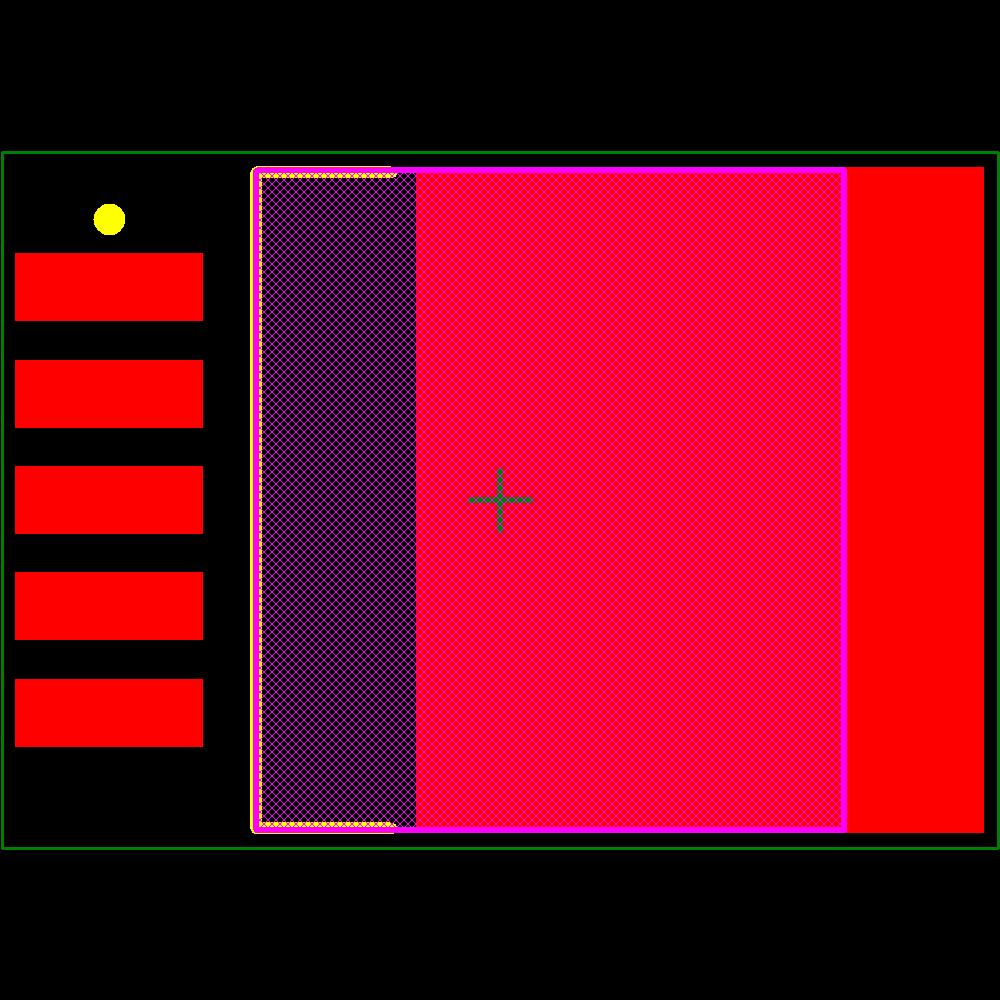

LT1076CQ#PBF Footprint - Analog Devices

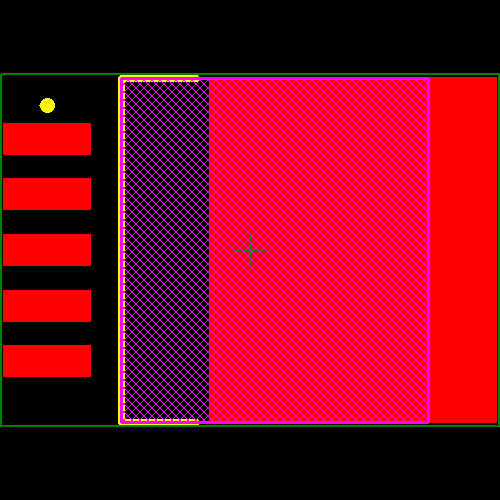

LT1076CQ#PBF Footprint - Analog Devices

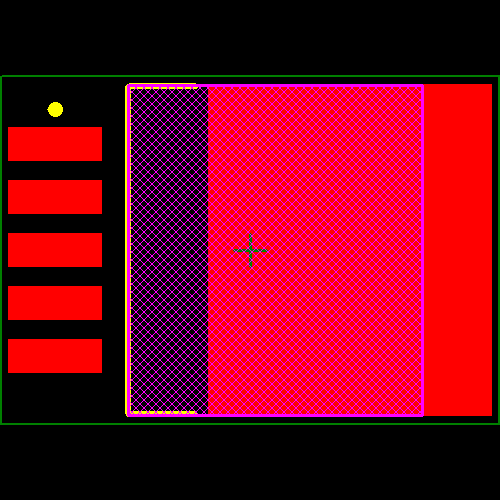

LT1076CQ#PBF Footprint - Analog Devices
