LT1205CS#TRPBF - Analog Devices
IC VIDEO MULTIPLEXER SPDT 16SOIC Video Switch IC 2 Channel 16-SO
Technical Details
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Logic Function | Multiplexer |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 15V |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 36V |
| Min Dual Supply Voltage | 5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 9V |
| Nominal Gain Bandwidth Product | 150MHz |
| Number of Channels | 2 |
| Number of Inputs | 4 |
| Number of Outputs | 2 |
| Number of Pins | 16 |
| Operating Supply Current | 20mA |
| RoHS | Compliant |
| Slew Rate | 300V/µs |
| Supply Type | Dual |
| Throw Configuration | SPDT |
Compliance
RoHS : Unconfirmed

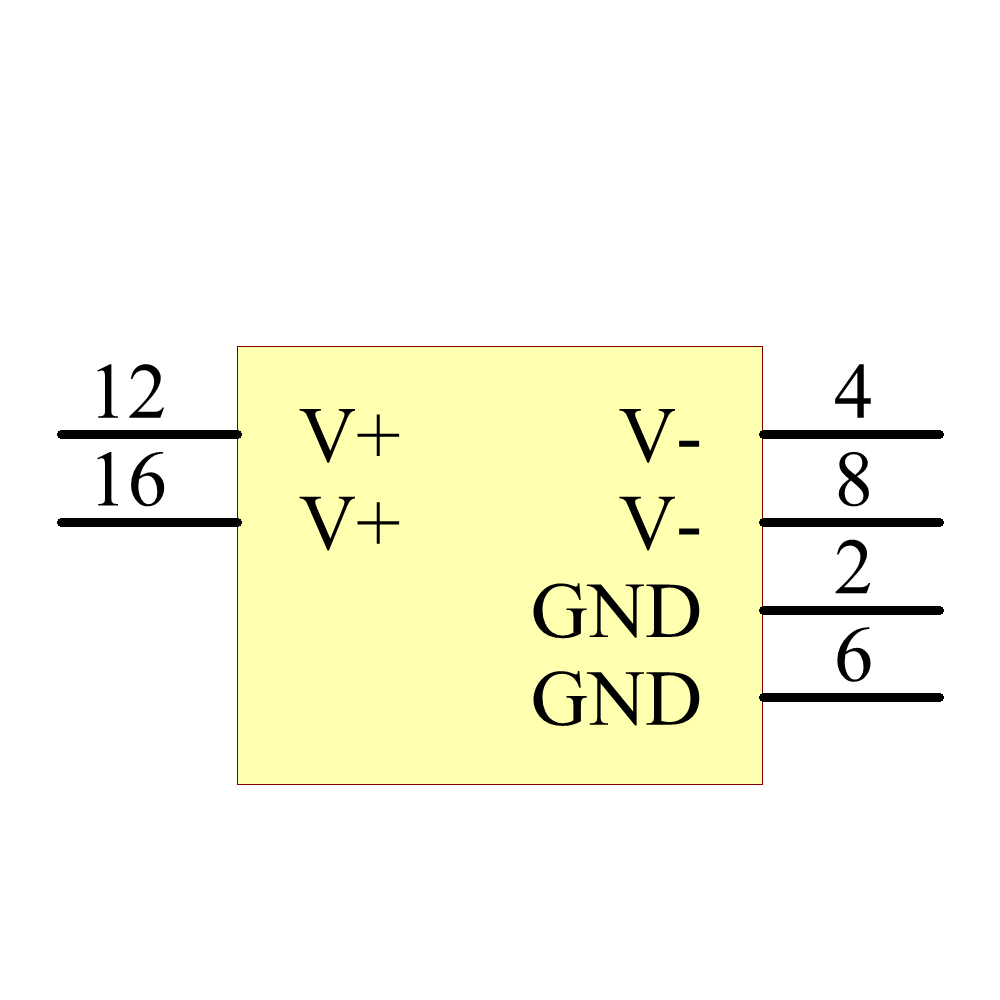

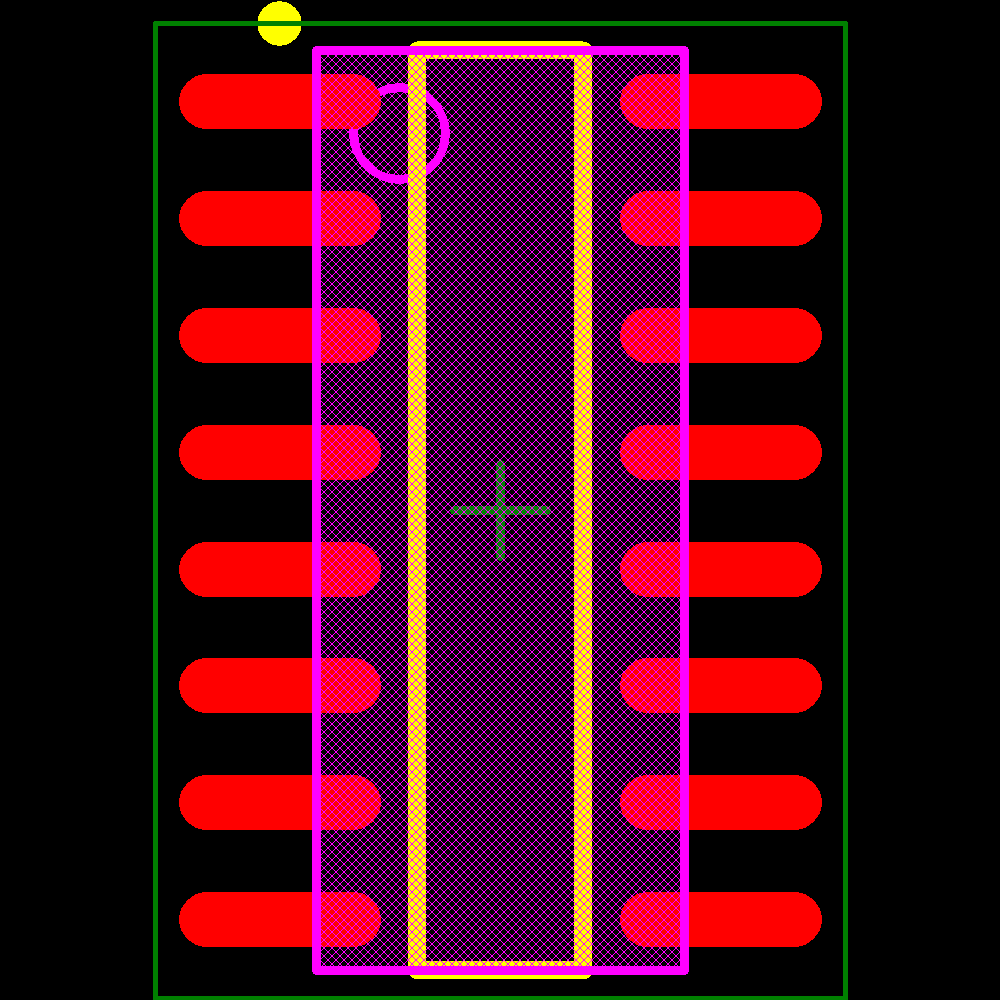

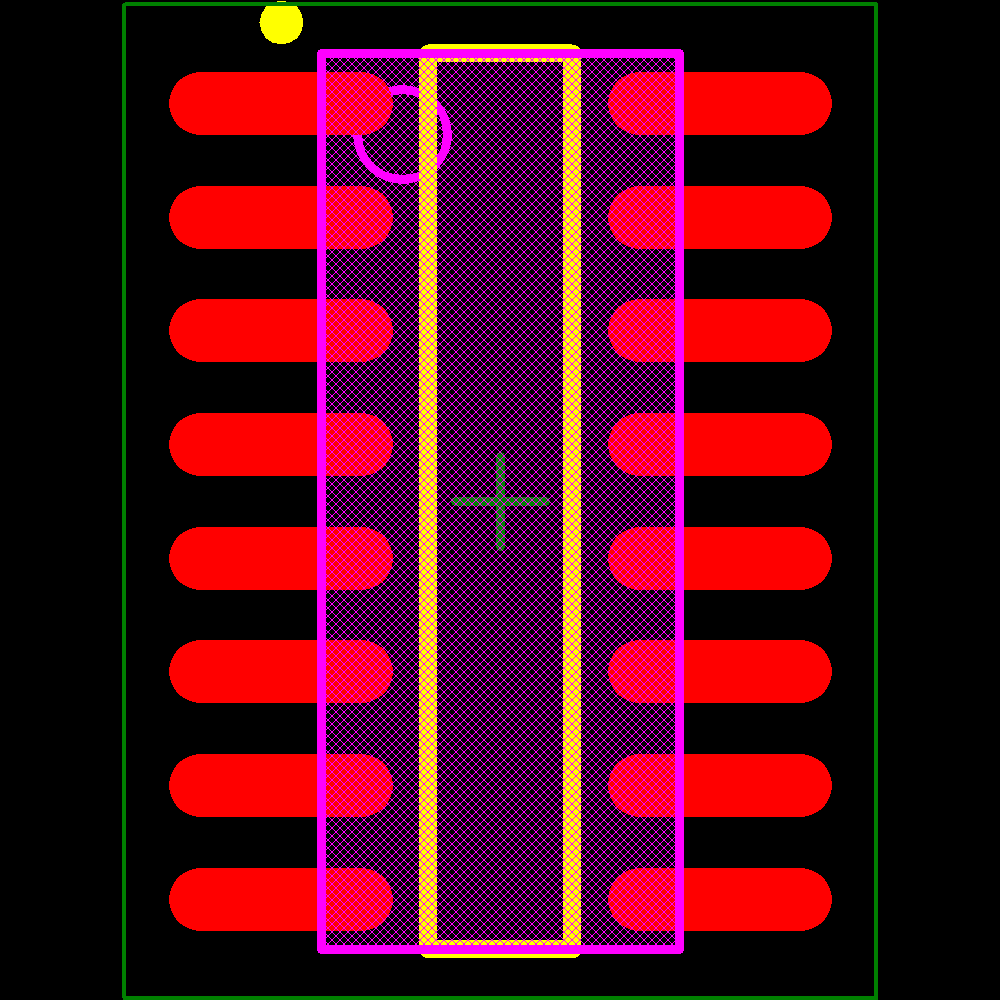

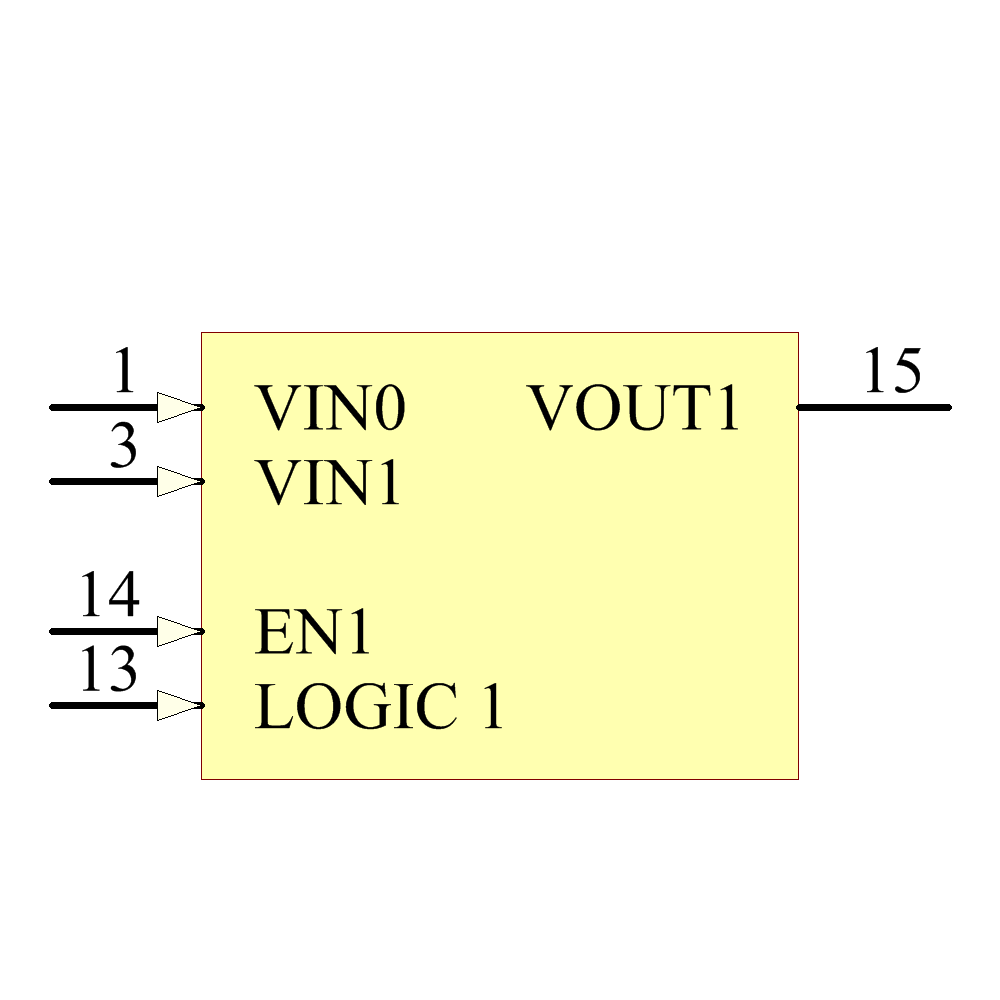

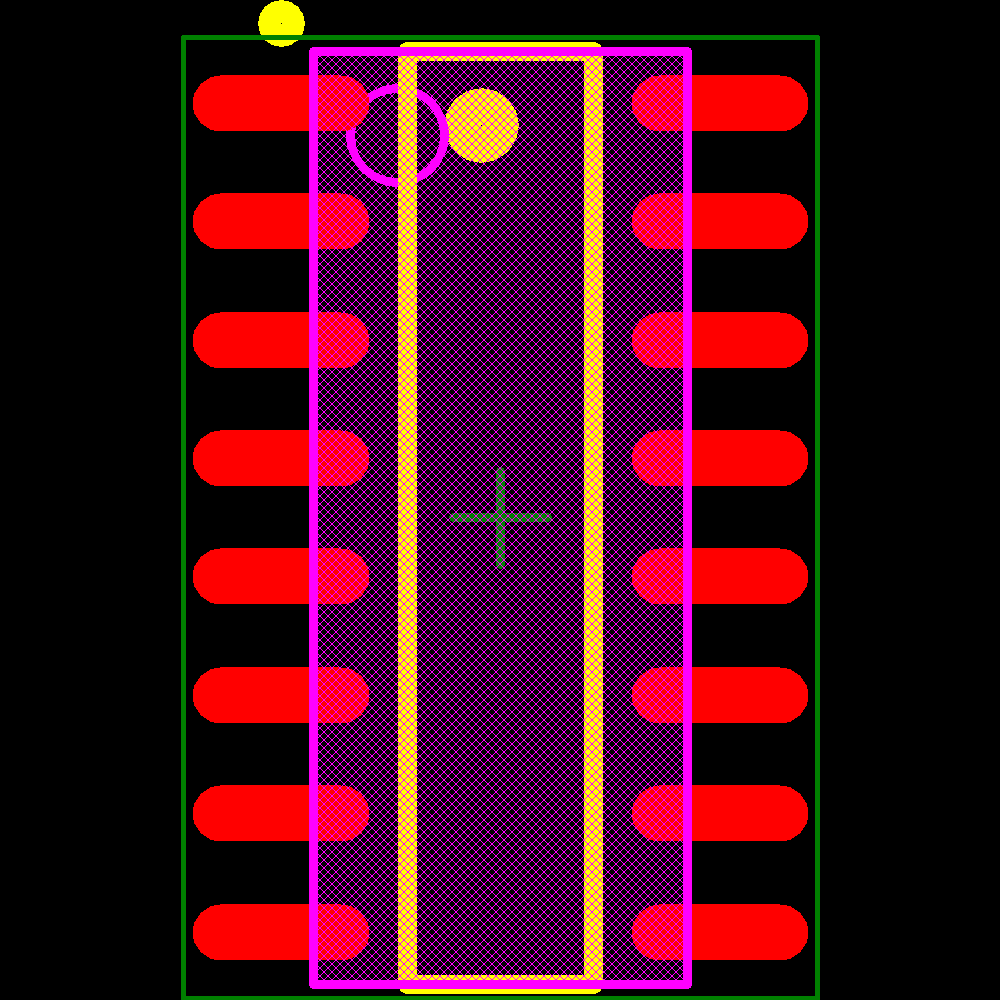

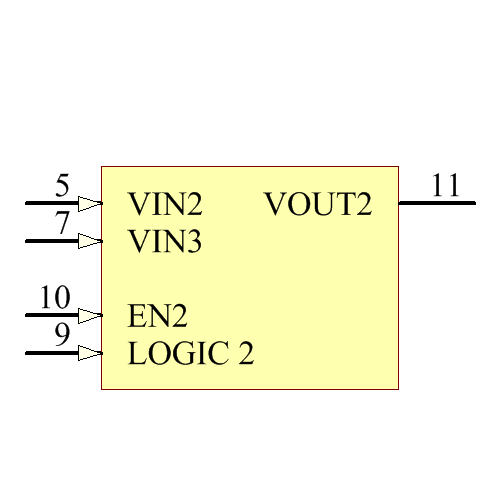

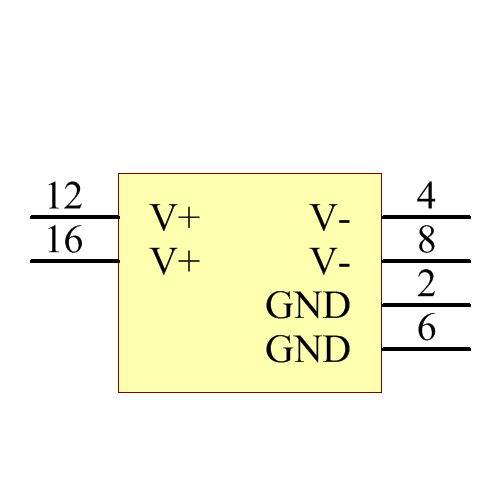

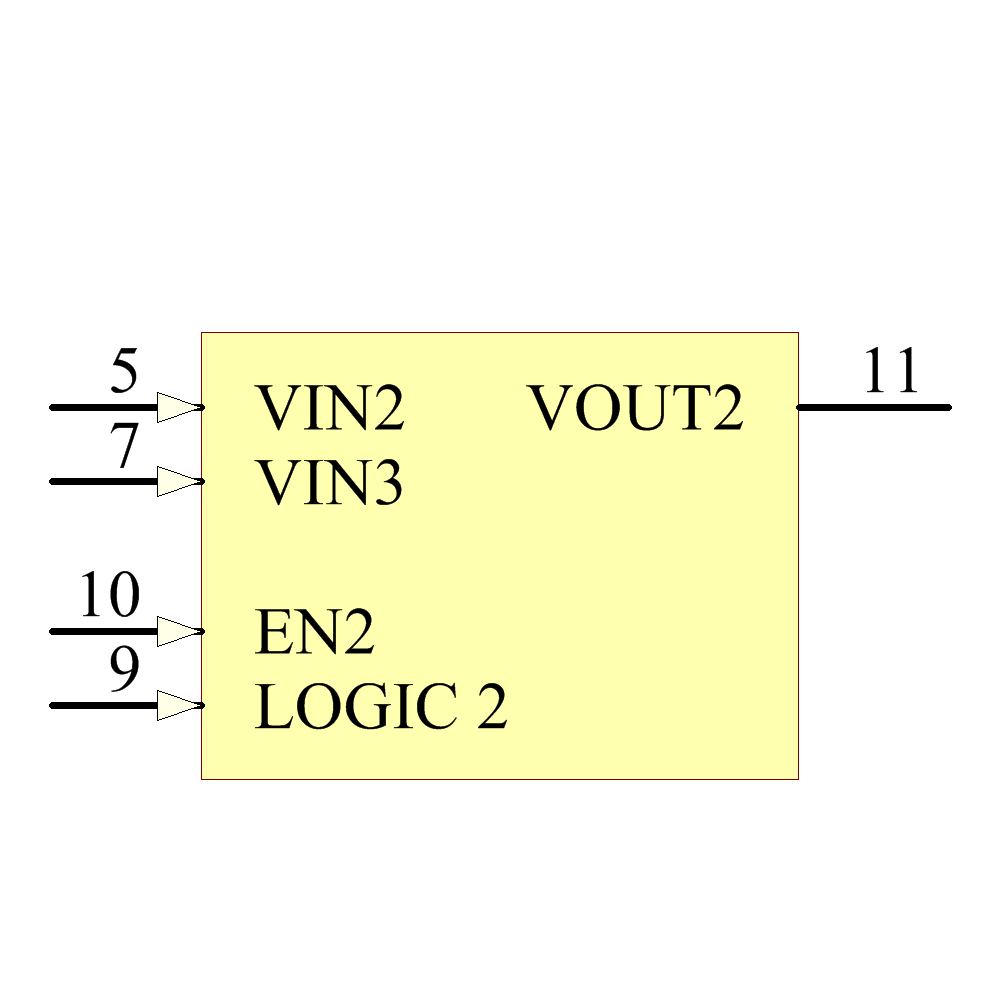

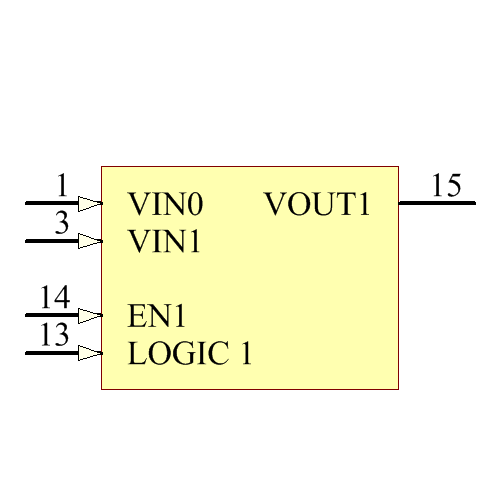

Images
Analog Devices
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Analog Devices |
US: 0
|
$ | 4.51 | |||||||
| DigiKey |
DE: 0
|
$ | 6.3591 | |||||||
| Richardson RFPD |
US: -3
|
$ | 5.98 | |||||||
| Arrow Electronics |
US: 0
|
$ | 5.637 | |||||||
