LT1359IN#PBF - Analog Devices
Op Amp Quad High Speed Amplifier ±18V Automotive 14-Pin PDIP N Tube
Technical Details
| Bandwidth | 9.6MHz |
| Common Mode Rejection Ratio | 78dB |
| Gain Bandwidth Product | 22MHz |
| Height | 3.937mm |
| Input Bias Current | 120nA |
| Input Offset Voltage (Vos) | 300µV |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 15V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 36V |
| Min Dual Supply Voltage | 2.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 5V |
| Nominal Gain Bandwidth Product | 25MHz |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Pins | 14 |
| Operating Supply Current | 2mA |
| Output Current per Channel | 30mA |
| Power Supply Rejection Ratio (PSRR) | 92dB |
| Response Time | 380ns |
| RoHS | Compliant |
| Schedule B | 8542330000|8542330000|8542330000|8542330000|8542330000 |
| Slew Rate | 600V/µs |
| Voltage Gain | 93.06dB |
Compliance
RoHS : Unconfirmed

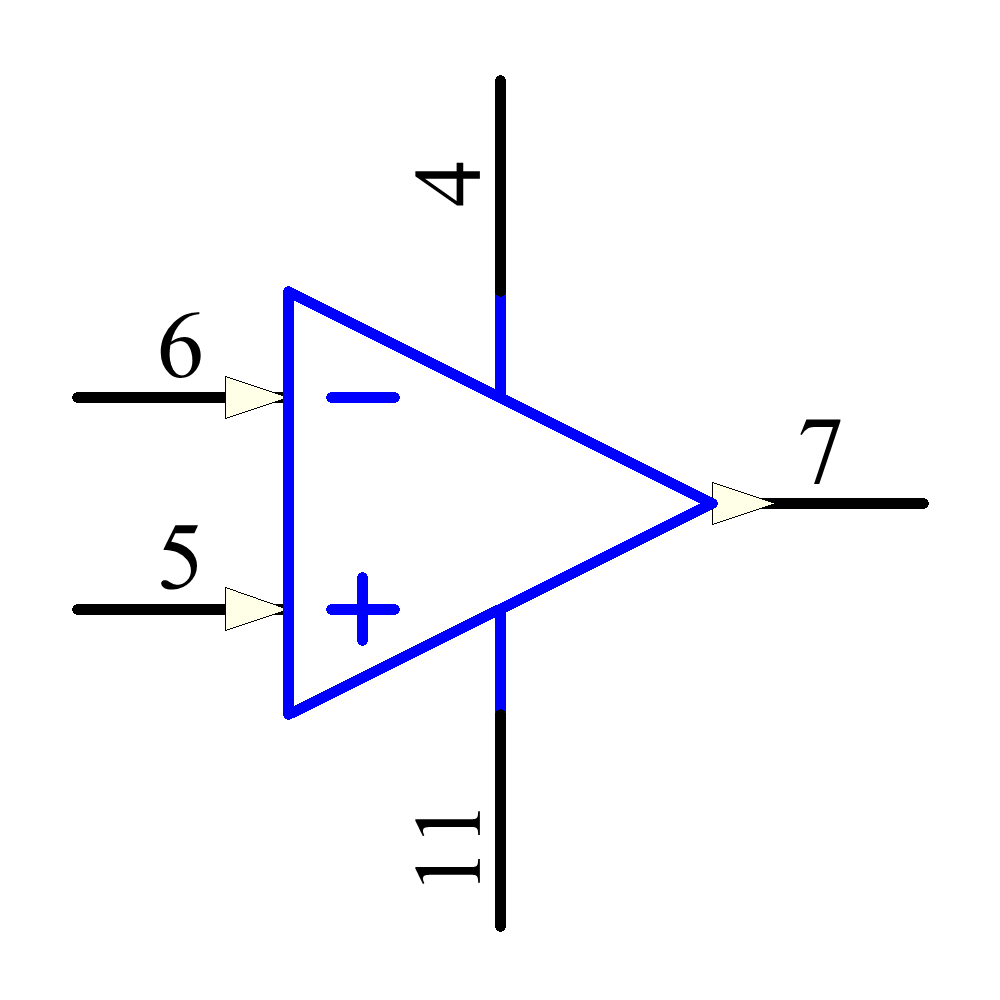

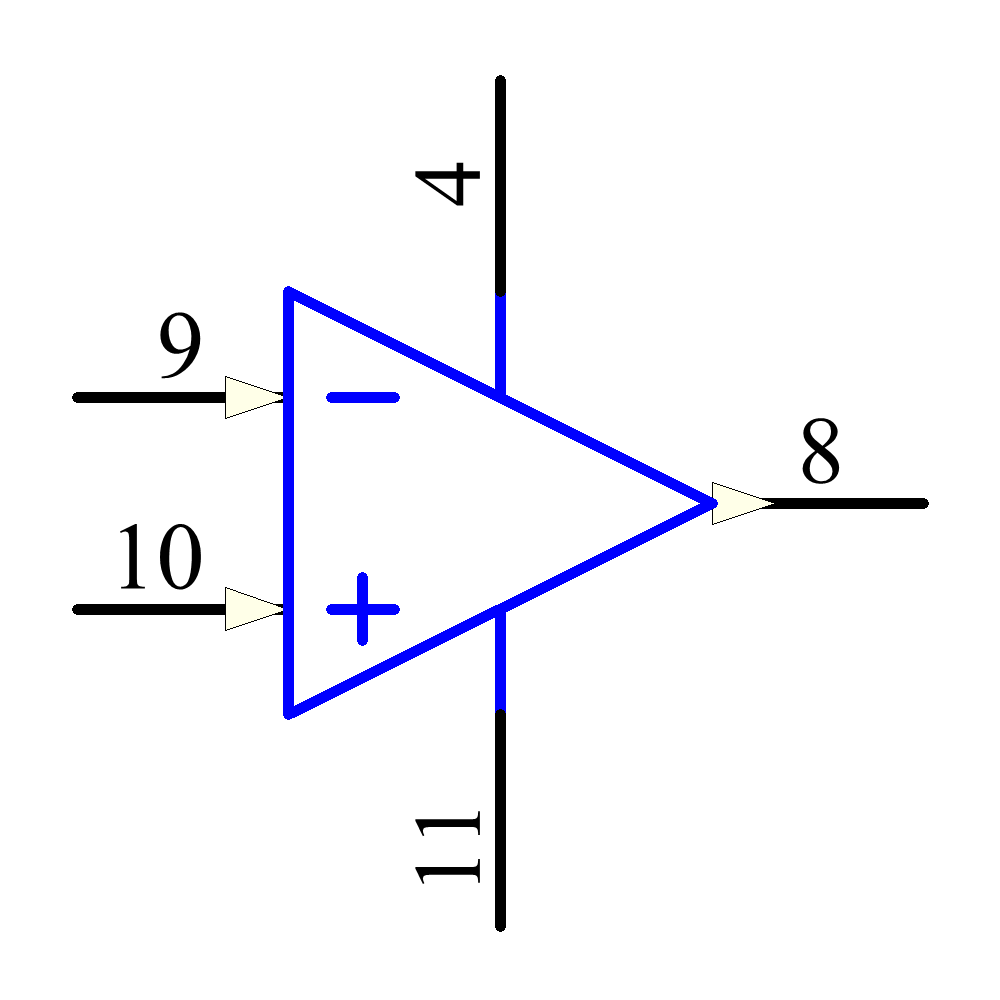

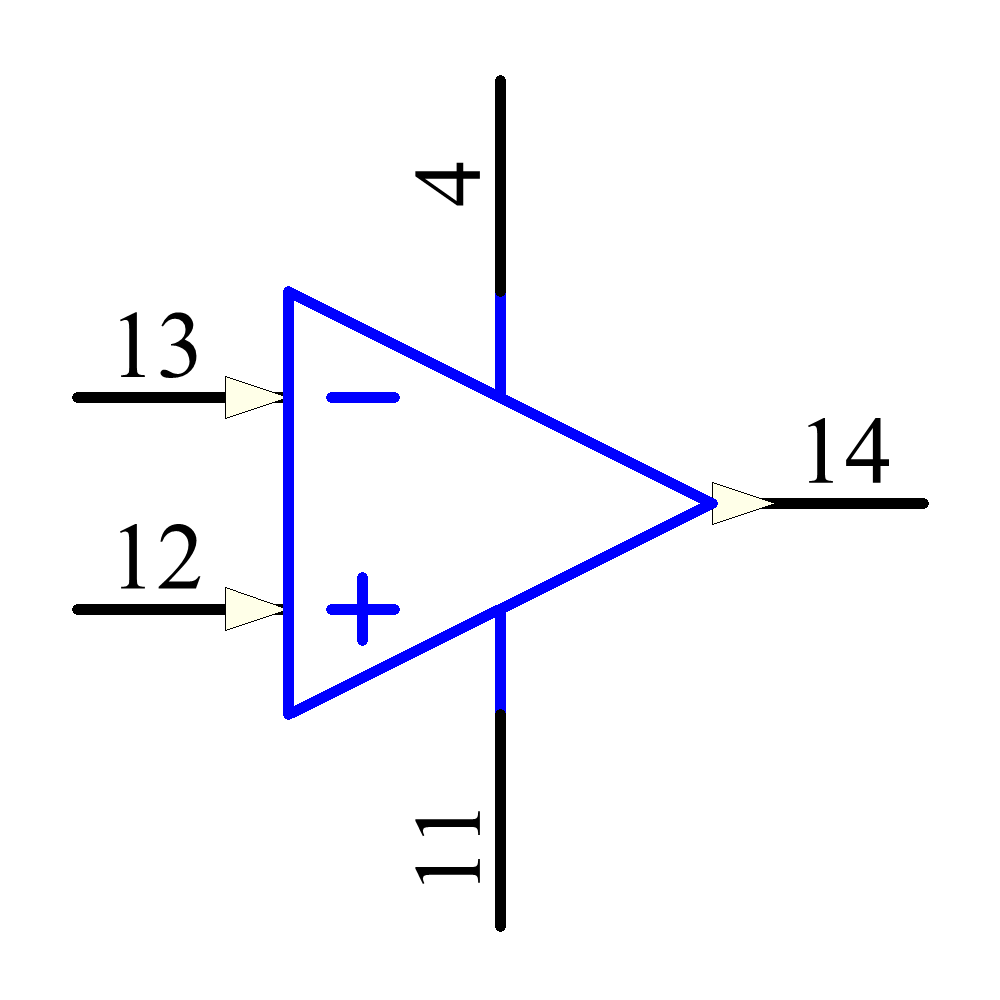

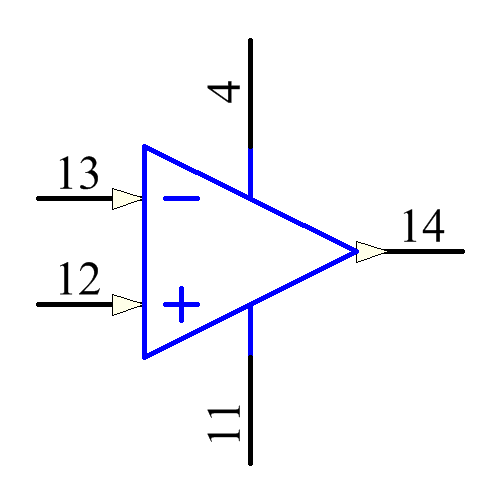

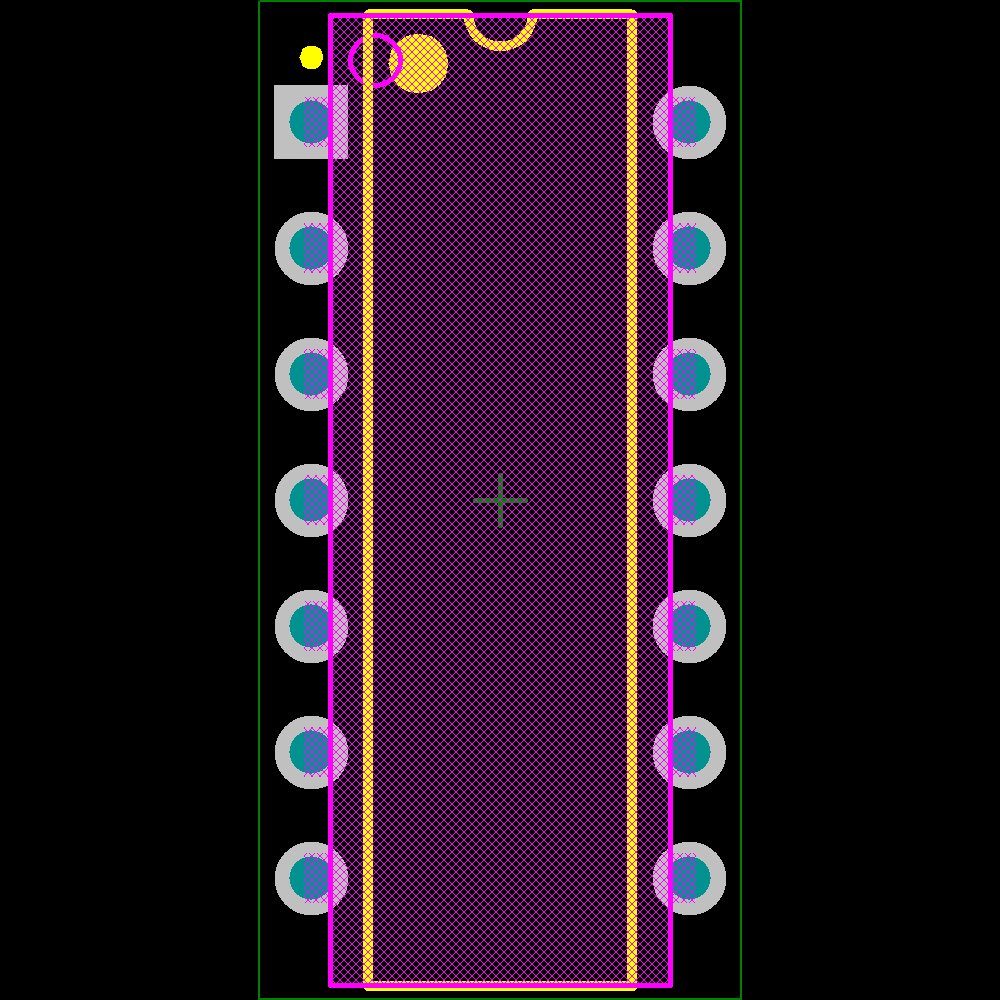

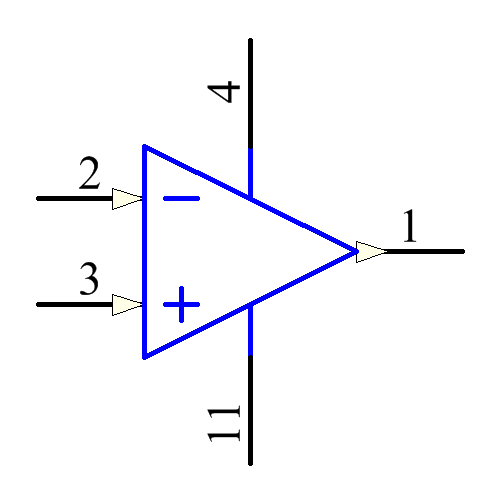

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices / Linear Technology | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Analog Devices | Unknown | ||
| onsemi | Obsolete | ||
| Analog Devices | Unknown | ||
| onsemi | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices / Linear Technology | Unknown |
