LT1365CN#PBF - Analog Devices
Operational Amplifier, 4 Func, 2000uV Offset-Max, BIPolar, PDIP14
Technical Details
| Bandwidth | 23.9MHz |
| Common Mode Rejection Ratio | 76dB |
| Gain Bandwidth Product | 50MHz |
| Height | 3.937mm |
| Input Bias Current | 600nA |
| Input Offset Voltage (Vos) | 700µV |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 18V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 36V |
| Min Dual Supply Voltage | 1.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.1V |
| Nominal Gain Bandwidth Product | 70MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Pins | 14 |
| Operating Supply Current | 6.3mA |
| Output Current per Channel | 105mA |
| Power Supply Rejection Ratio (PSRR) | 90dB |
| Radiation Hardening | No |
| REACH SVHC | No |
| Response Time | 80ns |
| RoHS | Compliant |
| Slew Rate | 1000V/µs |
| Voltage Gain | 76.12dB |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

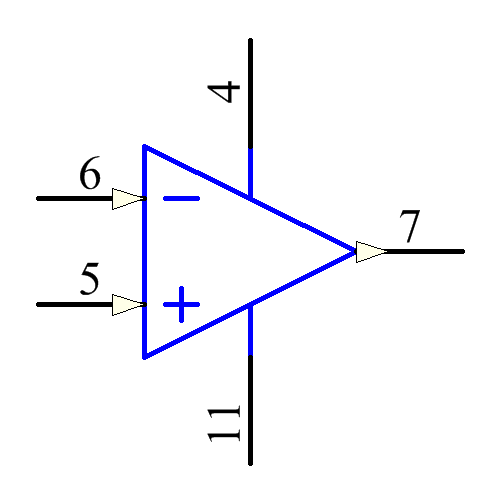

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices / Linear Technology | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Analog Devices | Unknown | ||
| onsemi | Obsolete | ||
| Analog Devices | Unknown | ||
| onsemi | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices / Linear Technology | Unknown |
