Integrated Circuits (ICs)  >  Power Management ICs  >  LED Drivers

Analog Devices - LT3466EFE#PBF

LT3466EFE#PBF - Analog Devices

Dual Full Function White LED Step-Up Converter with Built-In Schottky Diodes

 Datasheets

Technical Details

Case/Package TSSOP
Efficiency 81%
Frequency 2MHz
Lead Free Lead Free
Lifecycle Status Production
Manufacturer Lifecycle Status PRODUCTION
Max Input Voltage 24V
Max Operating Temperature 85°C
Max Supply Voltage 24V
Min Input Voltage 2.7V
Min Operating Temperature -40°C
Min Supply Voltage 2.7V
Number of Outputs 2
Number of Pins 16
Number of Segments 20
Output Current 300mA
Output Voltage 39.5V
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Switching Frequency 1MHz
Topology Boost

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Analog Devices LT3466EFE#PBF | Analog Devices

Analog Devices

Datasheets

 Farnell
 Analog Devices
 Arrow Electronics

Lifecycle Status Indicator

   Production

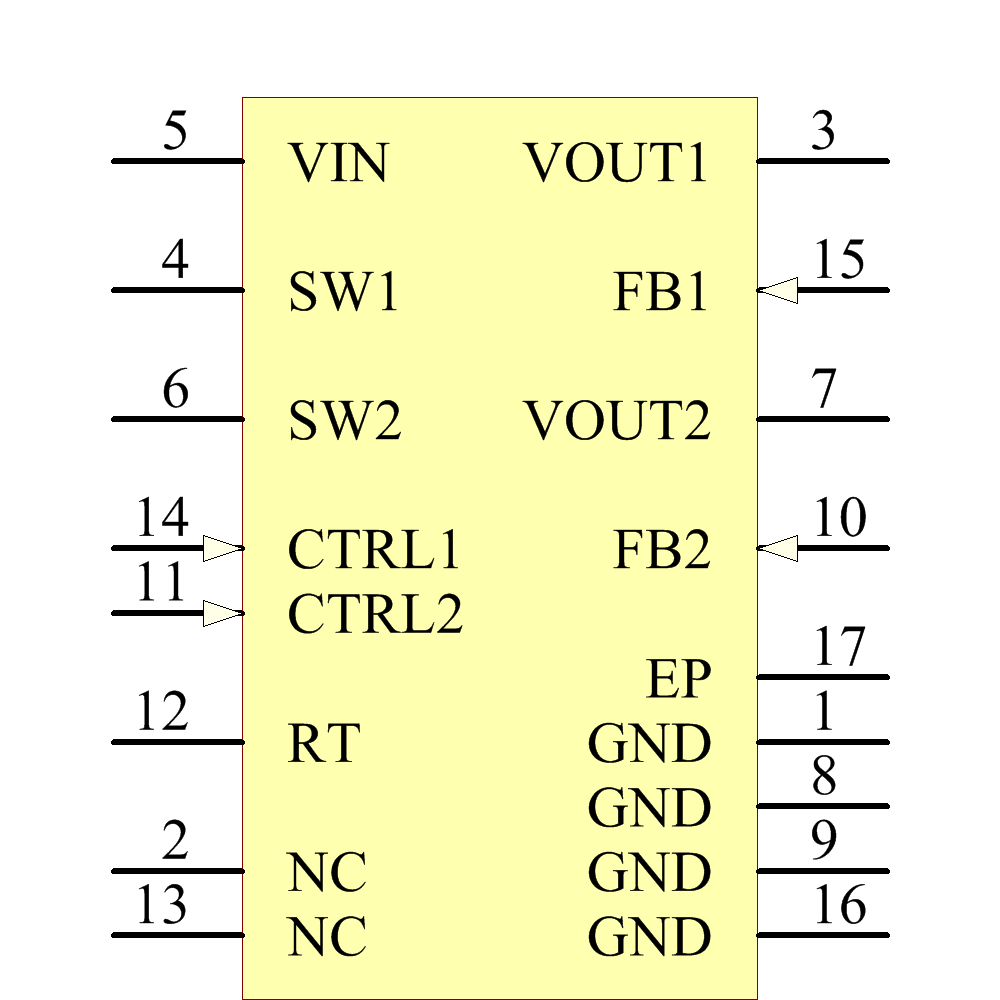

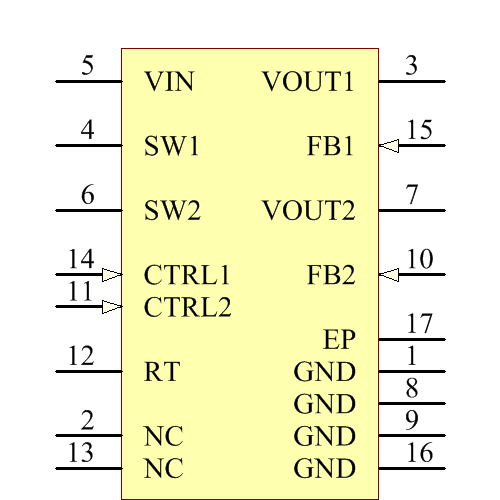

Symbol

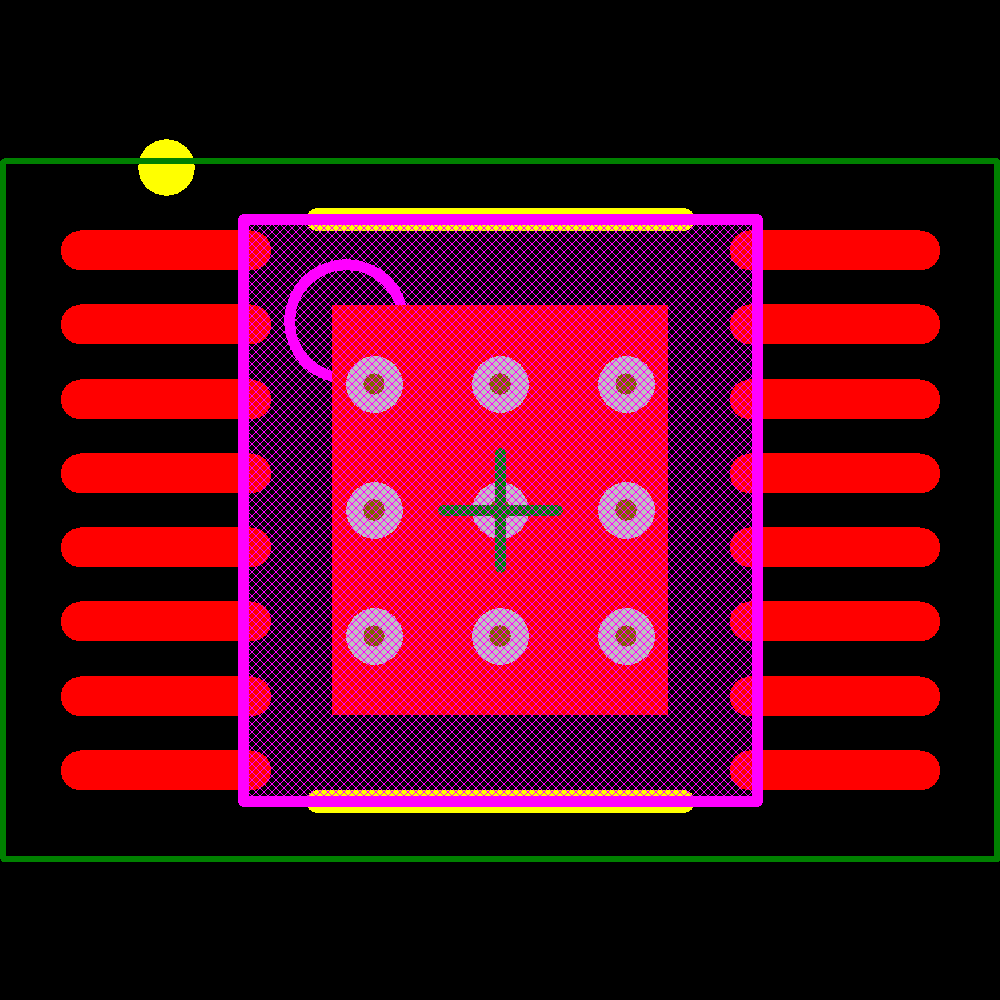

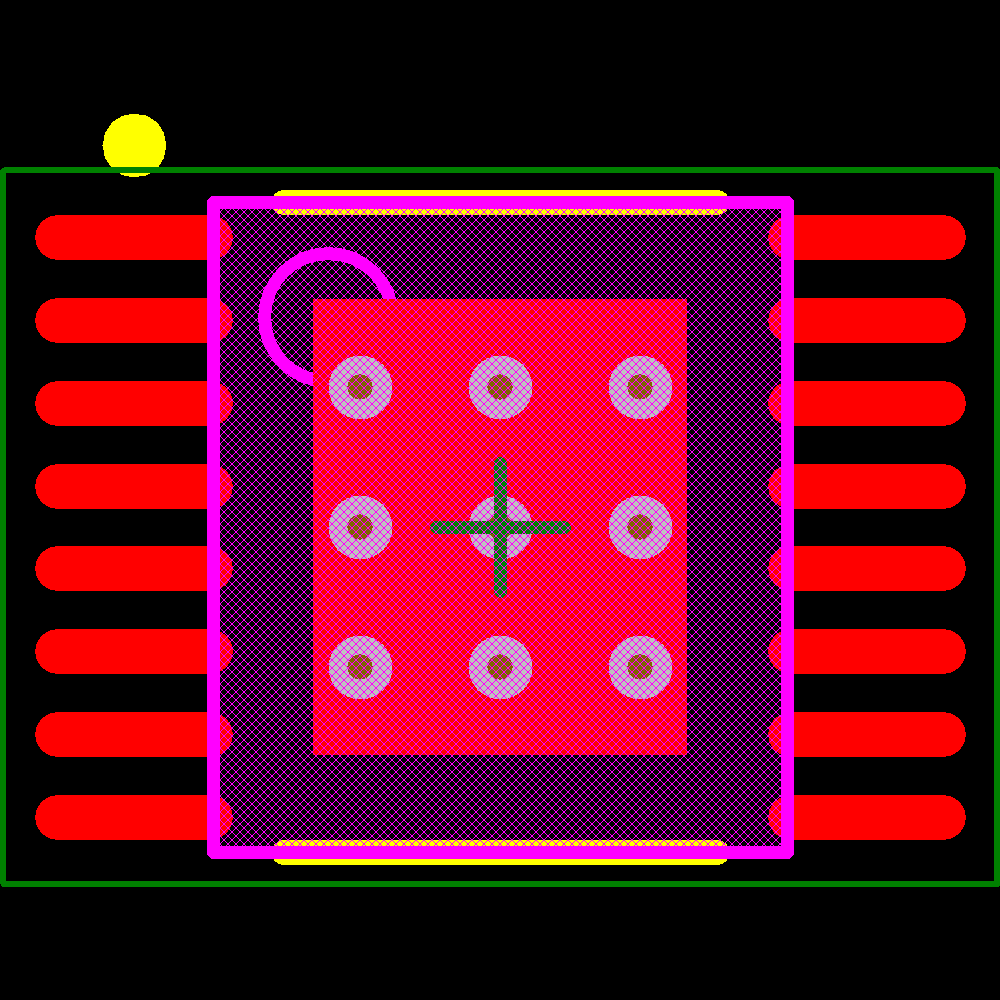

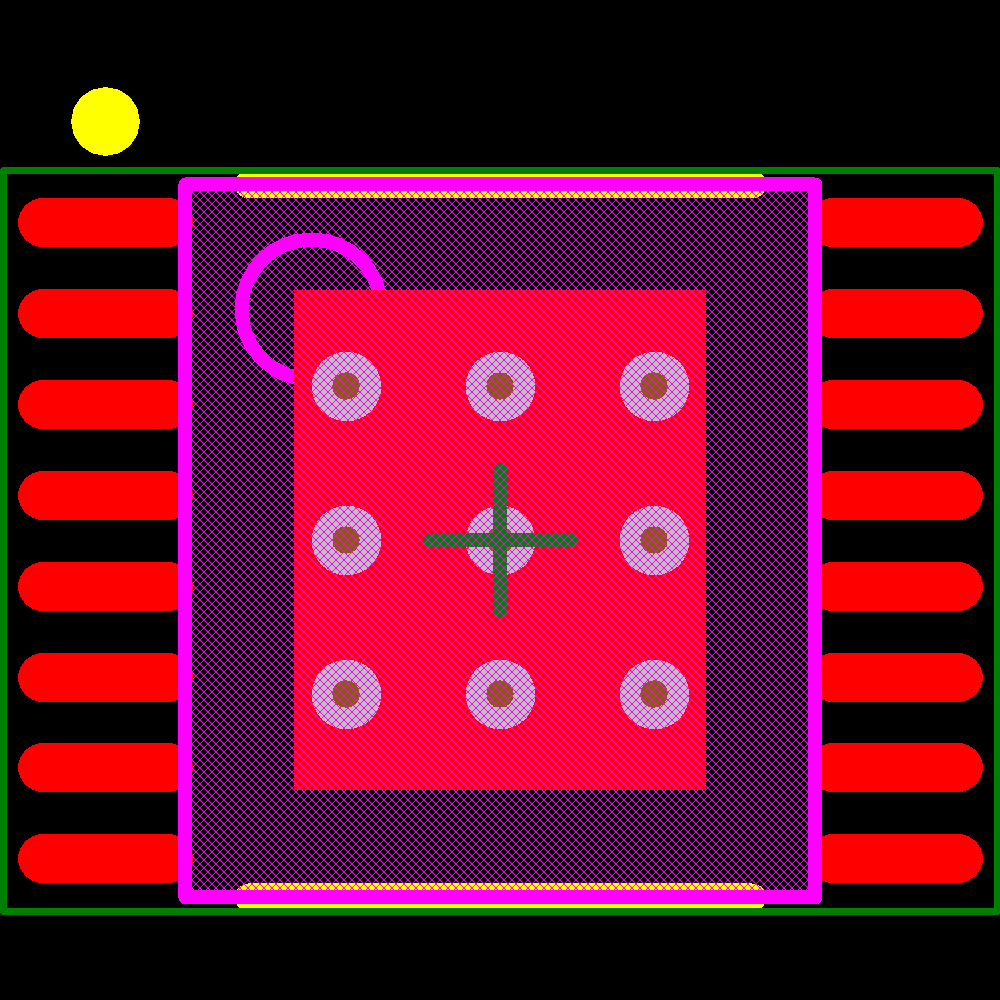

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
MIC3230YTSE-TR
Production
Microchip
MIC3231YTSE-TR
Production
Microchip
MIC3230YTSE
Production
Texas Instruments
TPS92690Q1PWPR/NOPB
Production
Texas Instruments
TPS92690Q1PWP/NOPB
Production
Analog Devices
LTC3783EFE#PBF
Production
Analog Devices
LTC3783IFE#TRPBF
Production
Analog Devices / Linear Technology
LTC3783IFE
Unknown
Analog Devices / Linear Technology
LTC3783EFE
Unknown
Analog Devices
LTC3783EFE#TRPBF
Production

See more alternatives See less alternatives
