Integrated Circuits (ICs)  >  Power Management ICs  >  LED Drivers

Analog Devices - LT3475EFE-1#TRPBF

LT3475EFE-1#TRPBF - Analog Devices

Tape & Reel (TR) LT3475 Step-Down (Buck) PWM led driver 6.5mm 1.5A 12V 200kHz~2MHz

 Datasheets

Technical Details

Frequency 2MHz
Height 1.2mm
High Level Output Current 50µA
Lifecycle Status Production
Low Level Output Current 50µA
Manufacturer Lifecycle Status PRODUCTION
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 85°C
Max Supply Voltage 36V
Manufacturer Package Identifier FE-20-05-08-1663-CB
Min Input Voltage 4V
Min Operating Temperature -40°C
Min Supply Voltage 3.4V
Nominal Supply Current 6mA
Number of Outputs 2
Number of Pins 20
Number of Segments 2
Output Current 2.7A
Packaging Tape and Reel
RoHS Compliant
Topology Buck

Compliance

   RoHS : Unconfirmed

Images

Datasheets

 Analog Devices
 DigiKey
 Richardson RFPD

Lifecycle Status Indicator

   Production

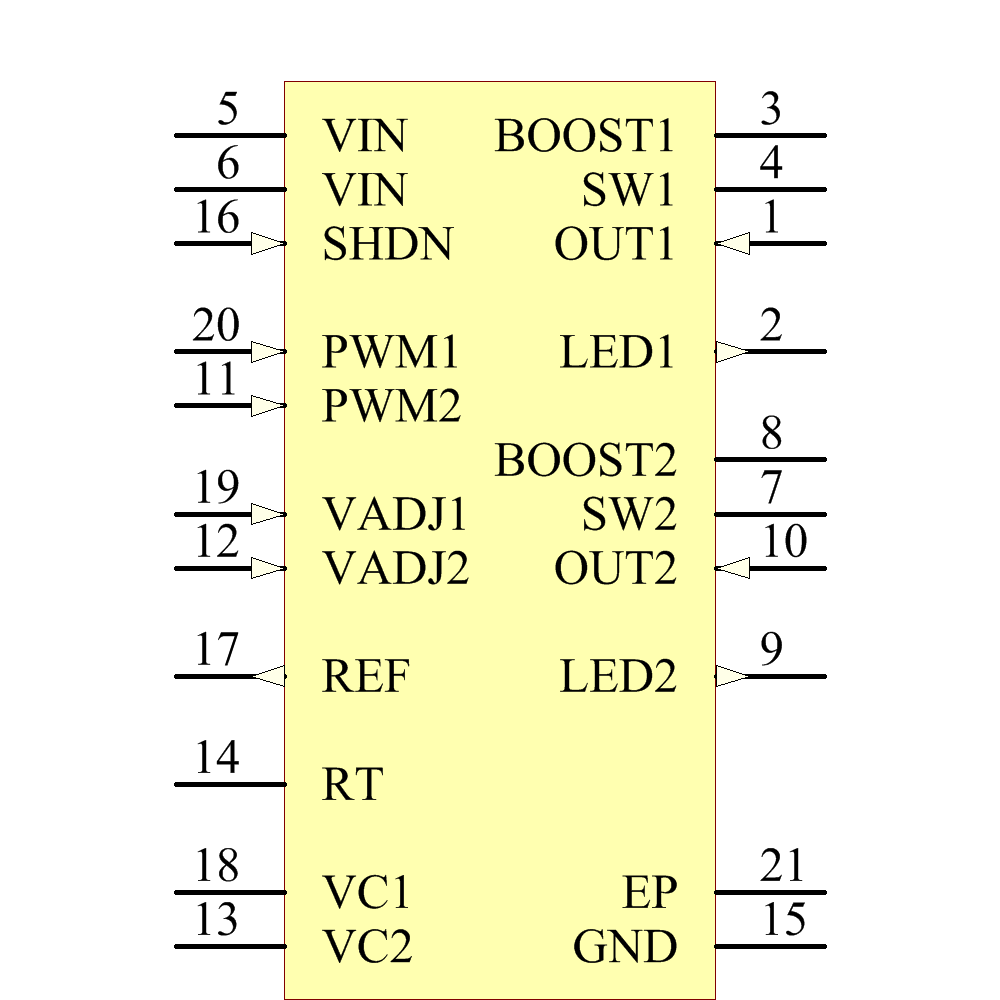

Symbol

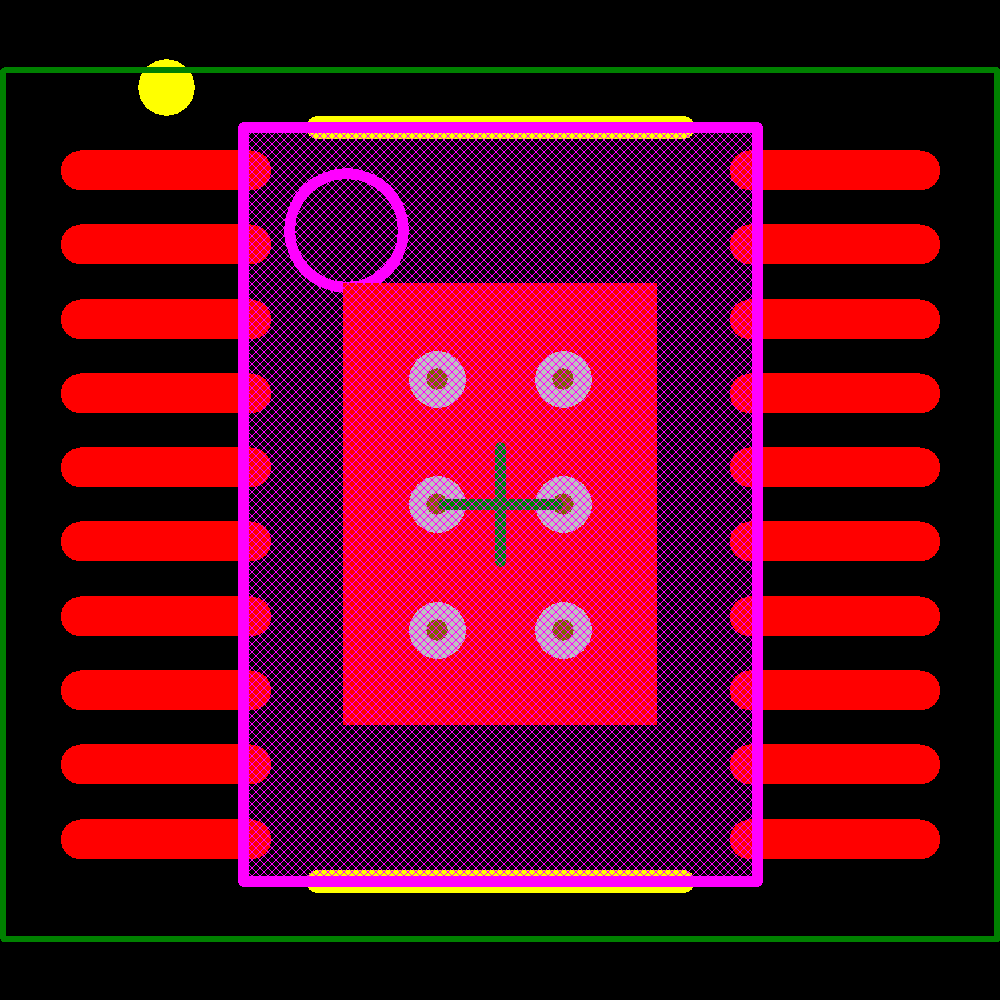

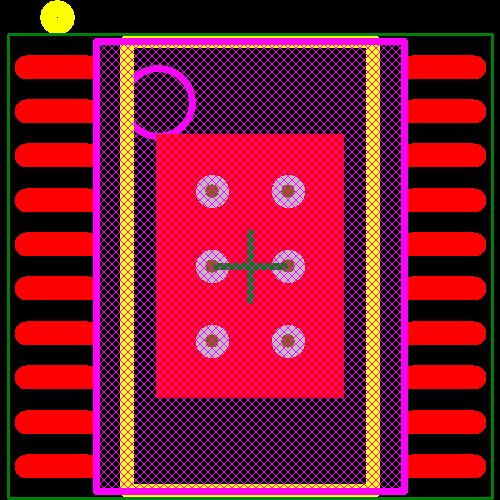

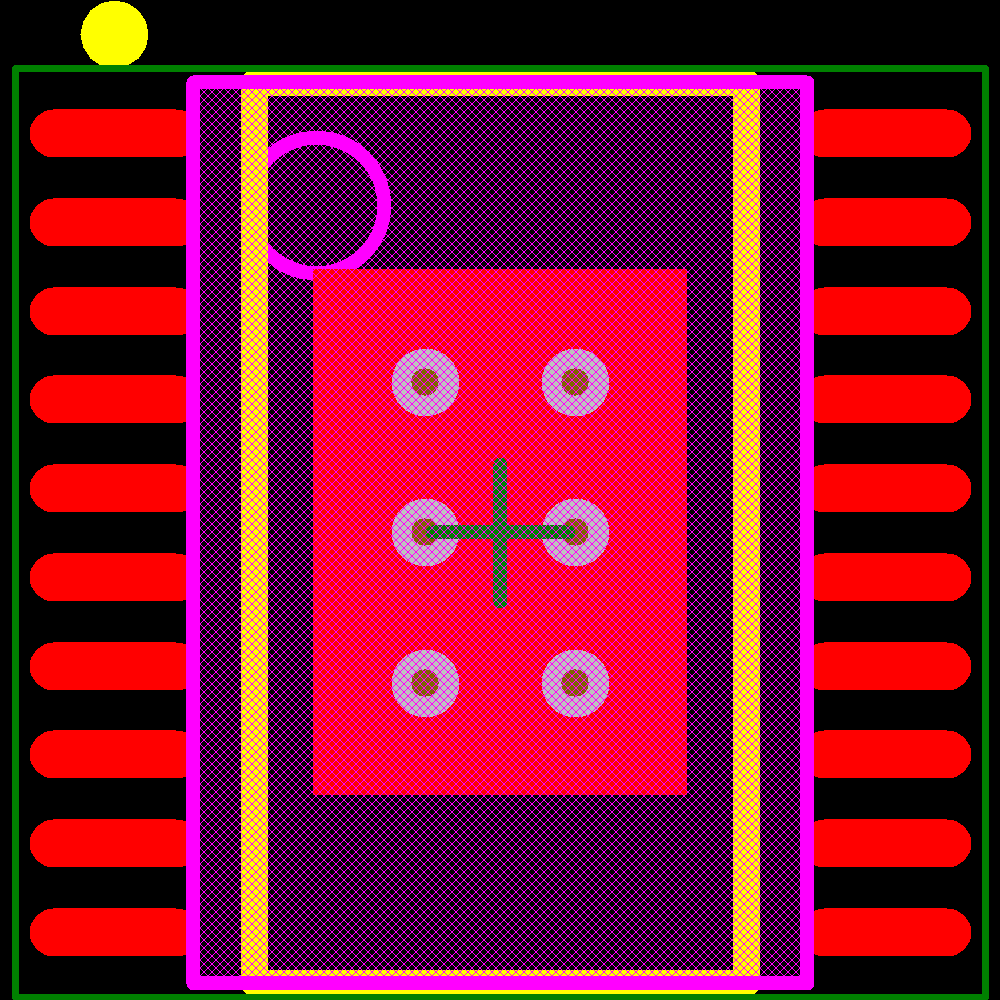

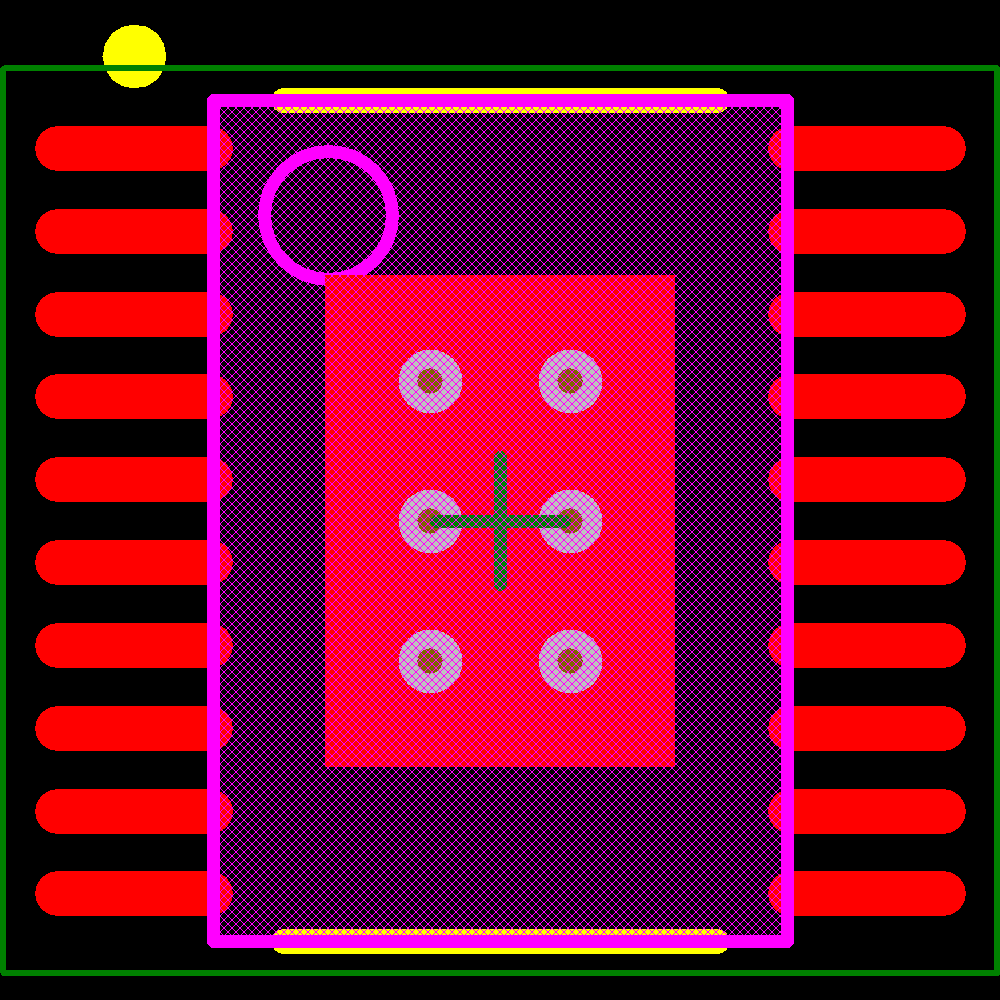

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Analog Devices
LT3475EFE-1#PBF
Production
Analog Devices
LT3475IFE-1#TRPBF
Production
Analog Devices
LT3475IFE-1#PBF
Production
Texas Instruments
UCC28221PWRG4
Unknown
Texas Instruments
UCC28221PWG4
Unknown
Texas Instruments
UCC28221PWR
Unknown
Semtech
SC2642TSTR
Obsolete
Semtech
SC2642TSTRT
Obsolete
Texas Instruments
UCC28220PWRG4
Unknown
Analog Devices / Linear Technology
LT3501EFE
Unknown

See more alternatives See less alternatives
