Analog Devices - LT3475EFE#PBF

LT3475EFE#PBF - Analog Devices

Led Drvr 2SEGMENT 5V/9V/12V/15V/18V/24V 20-PIN TSSOP Ep

 Datasheets

Technical Details

Case/Package TSSOP
Frequency 2MHz
Height 1.2mm
High Level Output Current 50µA
Lead Free Lead Free
Length 6.6mm
Lifecycle Status Production
Low Level Output Current 50µA
Manufacturer Lifecycle Status PRODUCTION
Max Input Voltage 36V
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 85°C
Max Supply Voltage 36V
Manufacturer Package Identifier FE-20-05-08-1663-CB
Min Input Voltage 4V
Min Operating Temperature -40°C
Min Supply Voltage 3.7V
Nominal Supply Current 6mA
Number of Outputs 2
Number of Pins 20
Number of Segments 2
Operating Supply Voltage 24V
Output Current 1.5A
Output Voltage 15V
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000
Switching Frequency 2MHz
Topology Buck
Width 4.5mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Analog Devices LT3475EFE#PBF | Newark

Newark

Datasheets

 Farnell
 Analog Devices
 Verical

Lifecycle Status Indicator

   Production

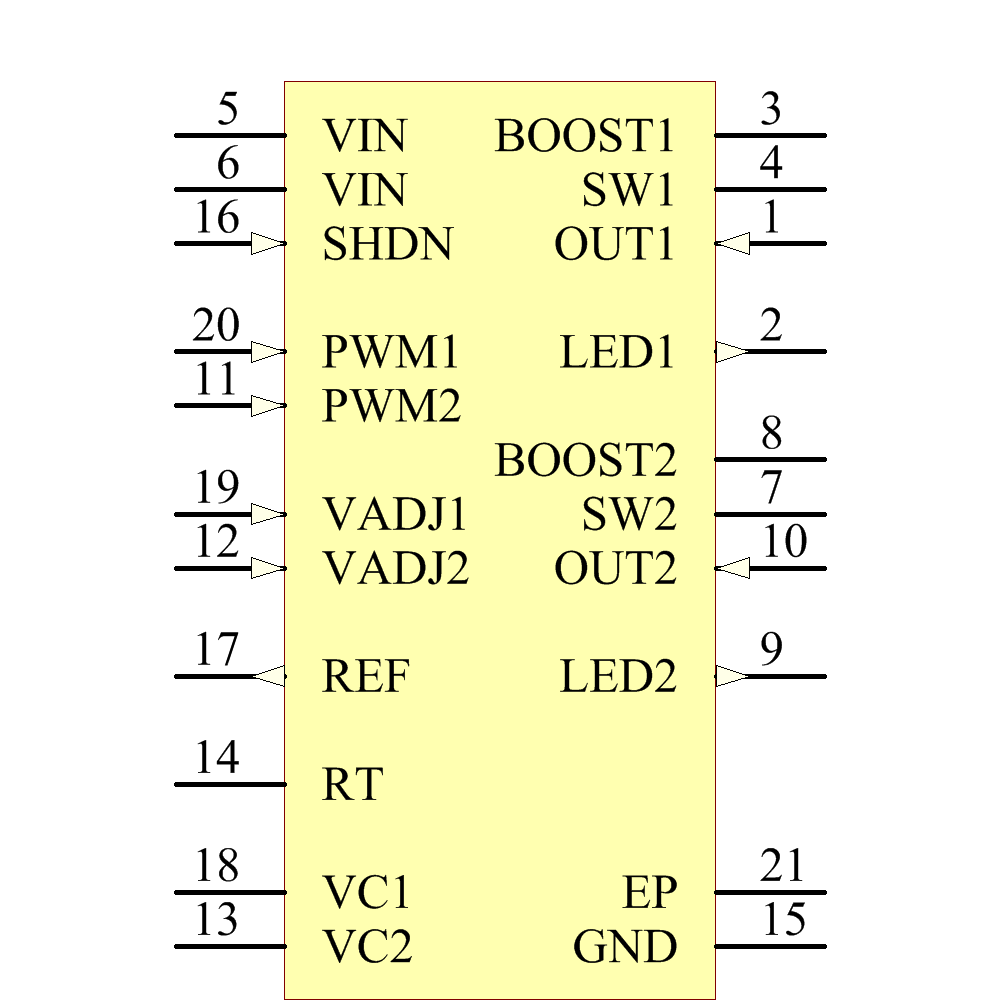

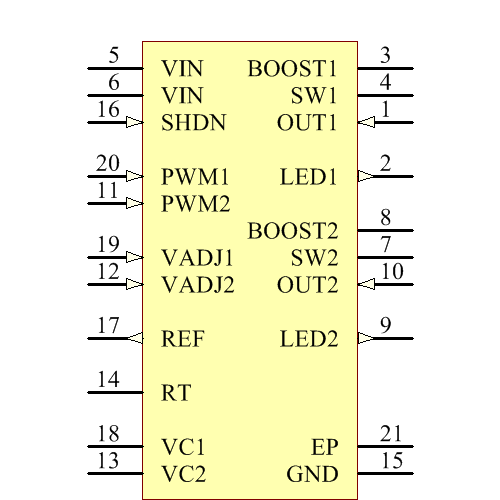

Symbol

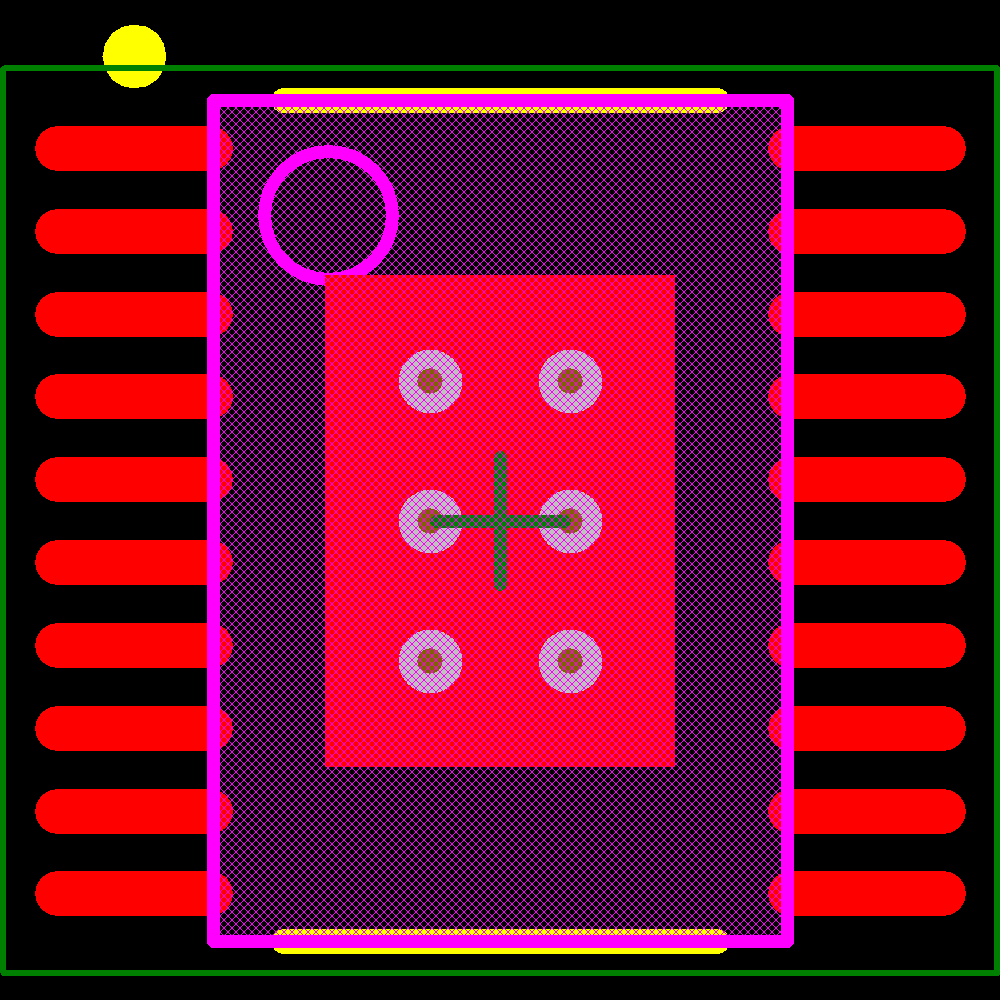

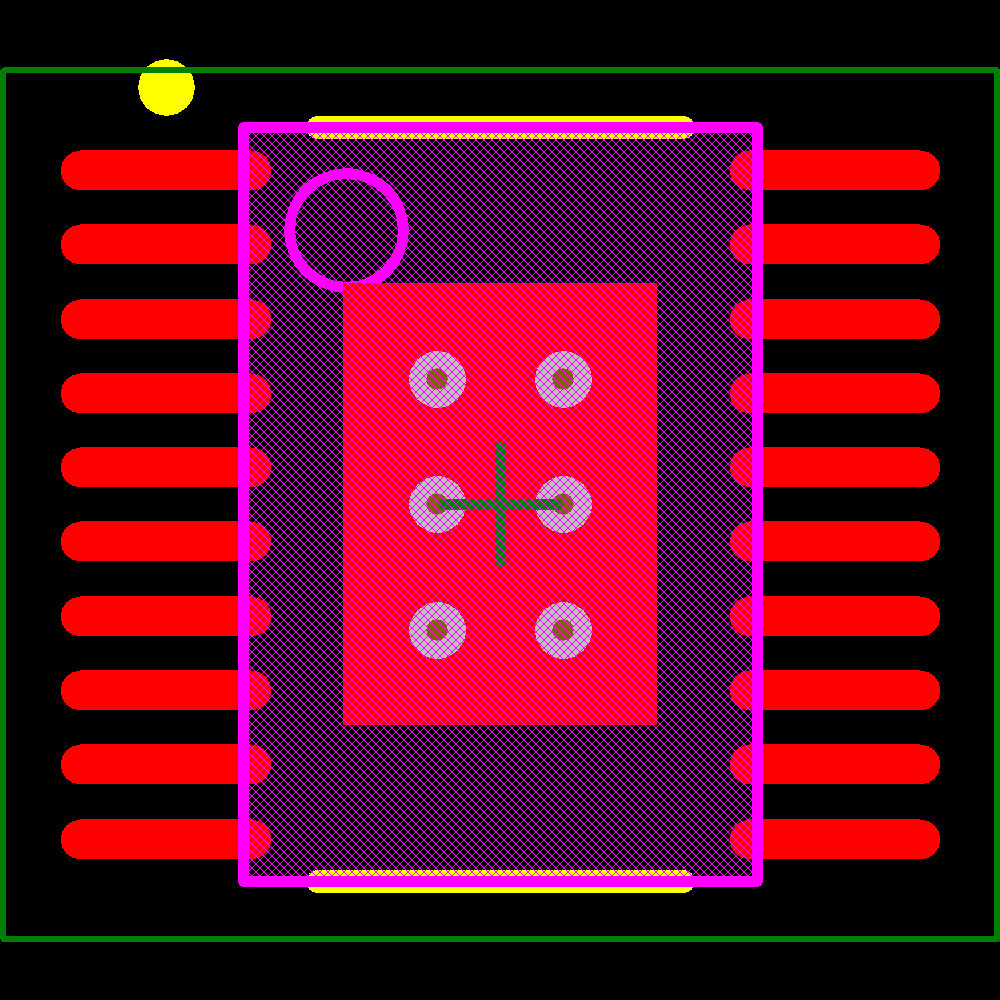

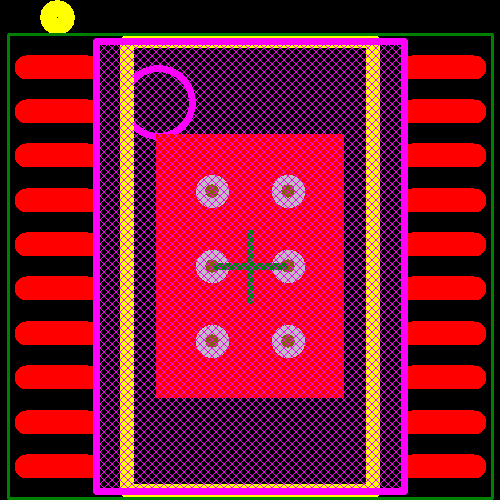

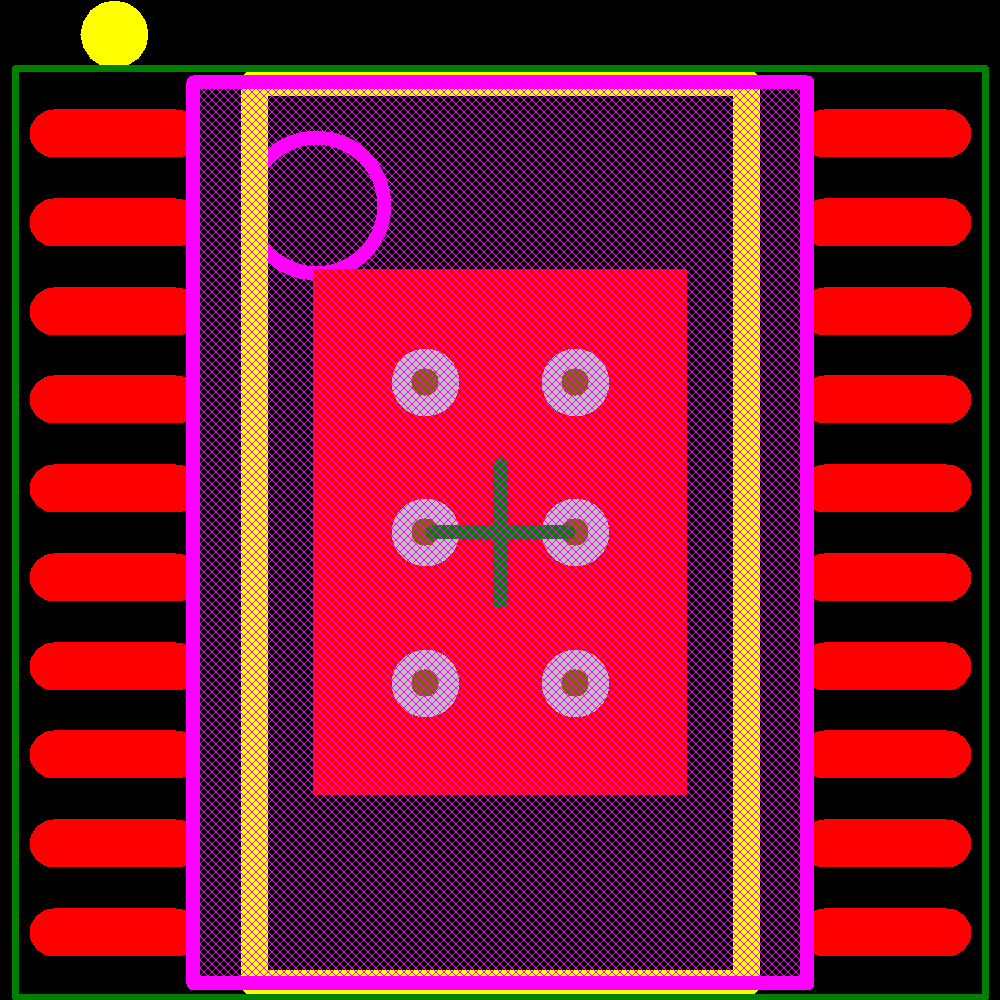

Footprint
