LT3518EUF#PBF - Analog Devices
LED DRVR 3Segment 3.3V/5V/9V/12V/15V/18V/24V Automotive 16-Pin QFN EP
Technical Details
| Case/Package | QFN |
| Frequency | 2.5MHz |
| Height | 700µm |
| Length | 4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Input Voltage | 30V |
| Max Operating Temperature | 125°C |
| Max Supply Current | 10mA |
| Max Supply Voltage | 30V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 10mA |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Number of Segments | 3 |
| Output Current | 1.5A |
| Output Voltage | 7V |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Switching Frequency | 2.5MHz |
| Topology | Boost, Buck, Buck-Boost |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

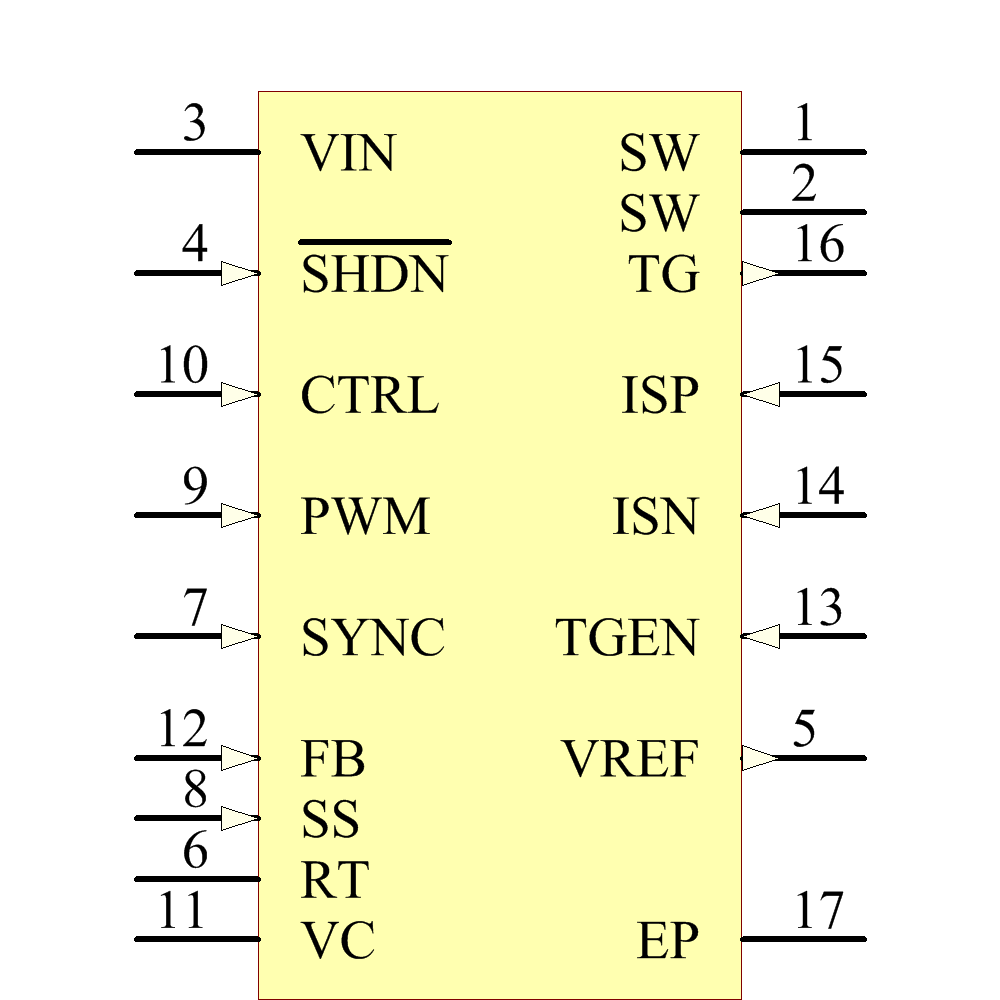

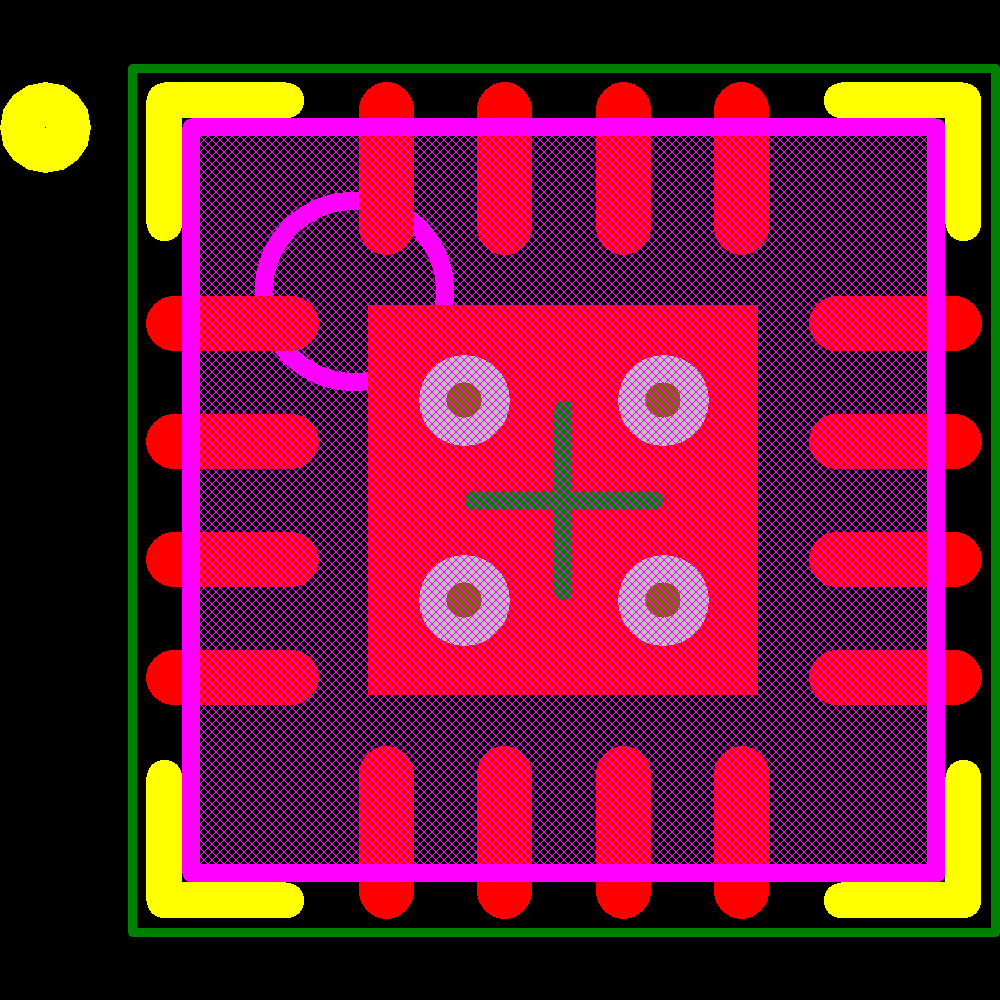

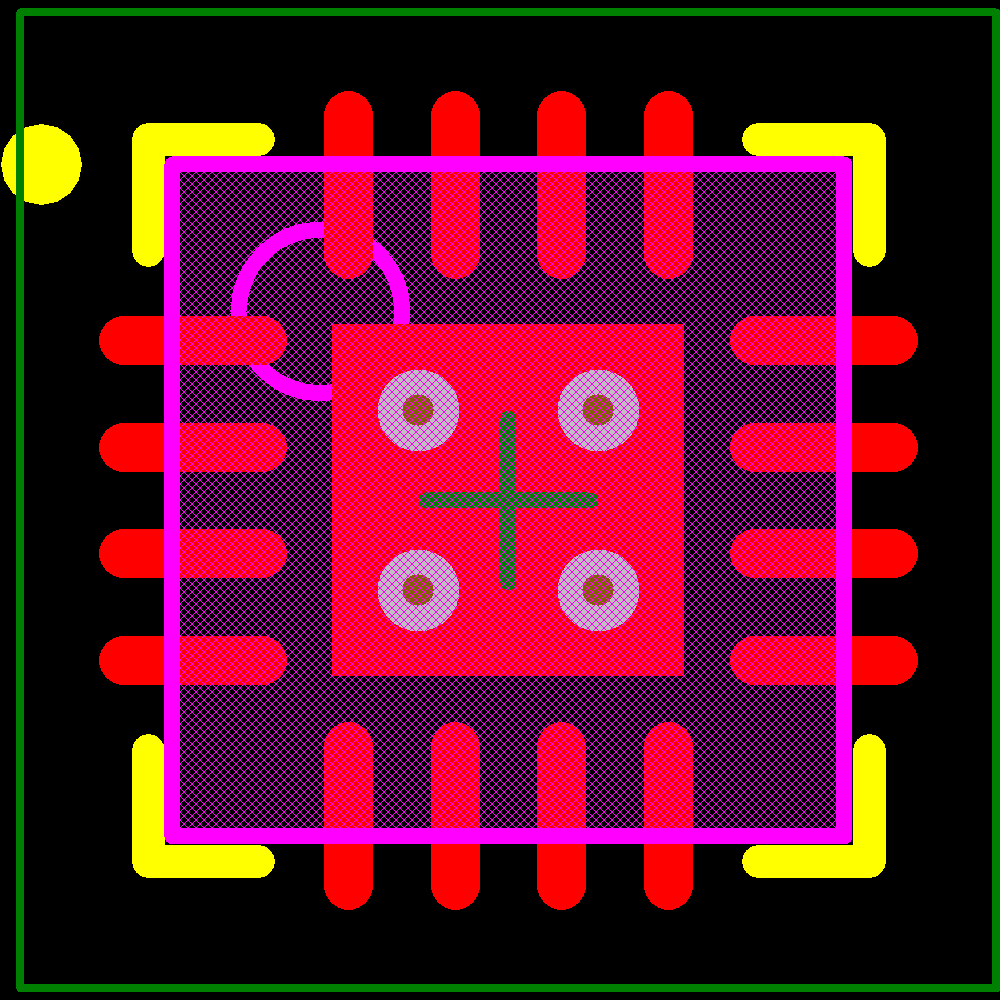

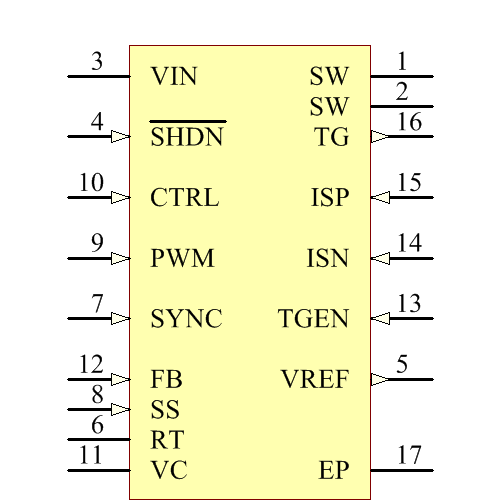

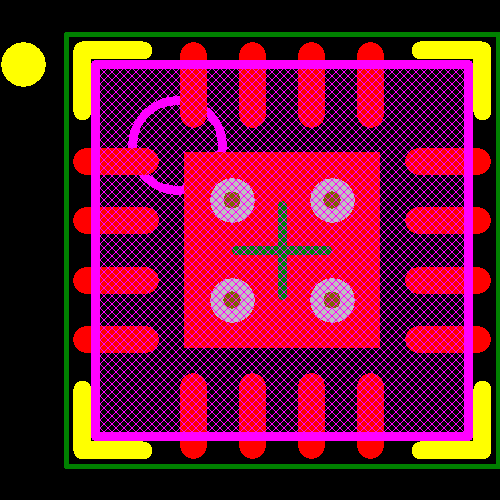

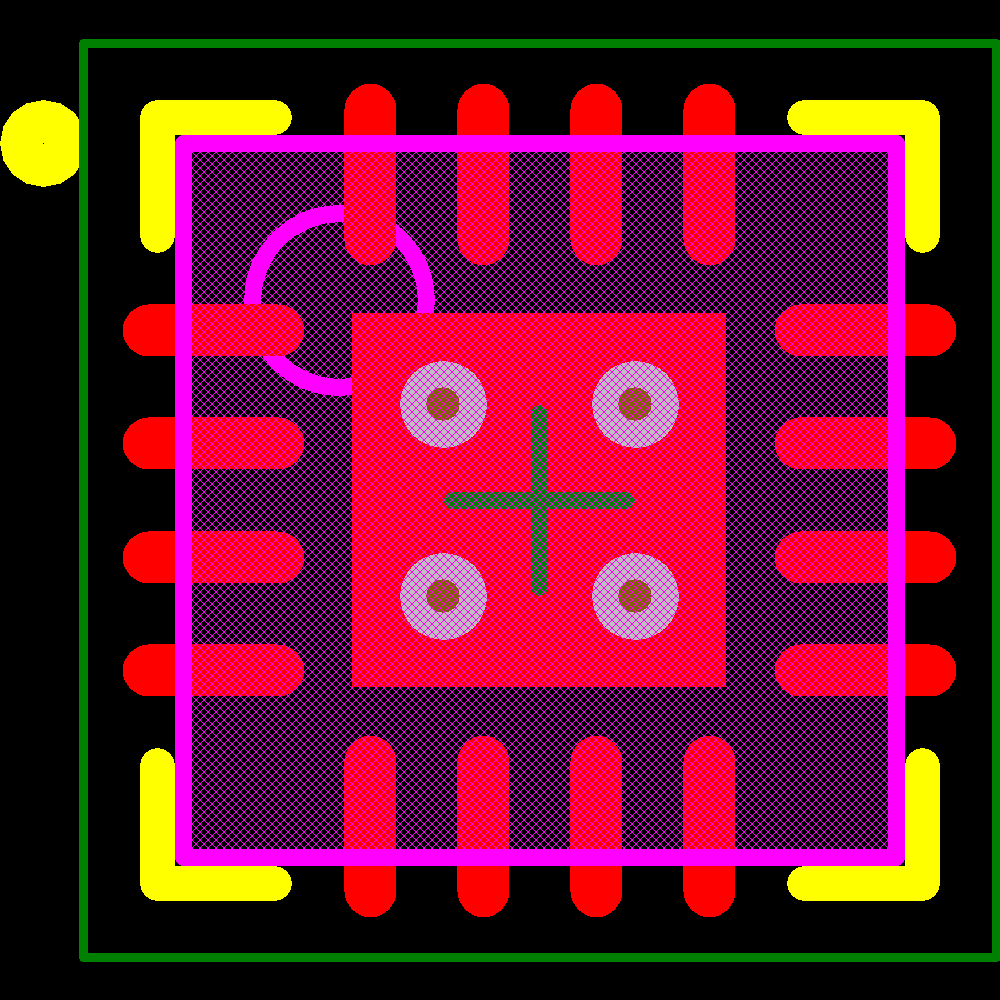

Images
Analog Devices
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices / Linear Technology | Unknown | ||
| Semtech | Obsolete | ||
| Semtech | Obsolete | ||
| Allegro MicroSystems | Obsolete |
