LT3518HUF#PBF - Analog Devices

2.3A/1.3A, 45V, 2.5MHz Full Featured LED Driver w/ True Color PWM Dimming

Technical Details

Case/Package	QFN
Frequency	2.5MHz
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Input Voltage	30V
Max Operating Temperature	150°C
Max Supply Voltage	30V
Min Input Voltage	3V
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Nominal Supply Current	10mA
Number of Outputs	1
Number of Pins	16
Number of Segments	3
Output Current	2.3A
Output Voltage	45V
RoHS	Compliant
Schedule B	8542390000
Switching Frequency	2.5MHz
Topology	Boost, Buck, Buck-Boost

Compliance

RoHS : Unconfirmed

Images

Analog Devices LT3518HUF#PBF | Analog Devices

Analog Devices

Datasheets

Lifecycle Status Indicator

Production

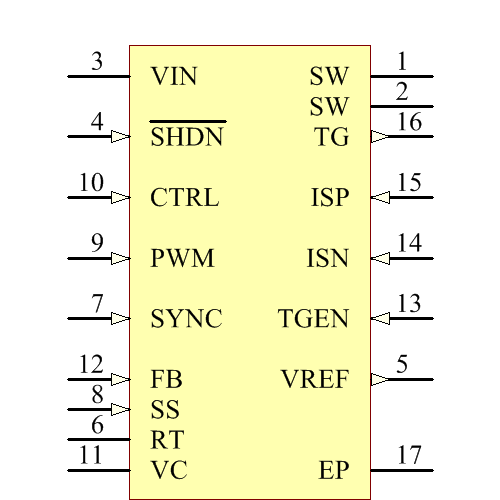

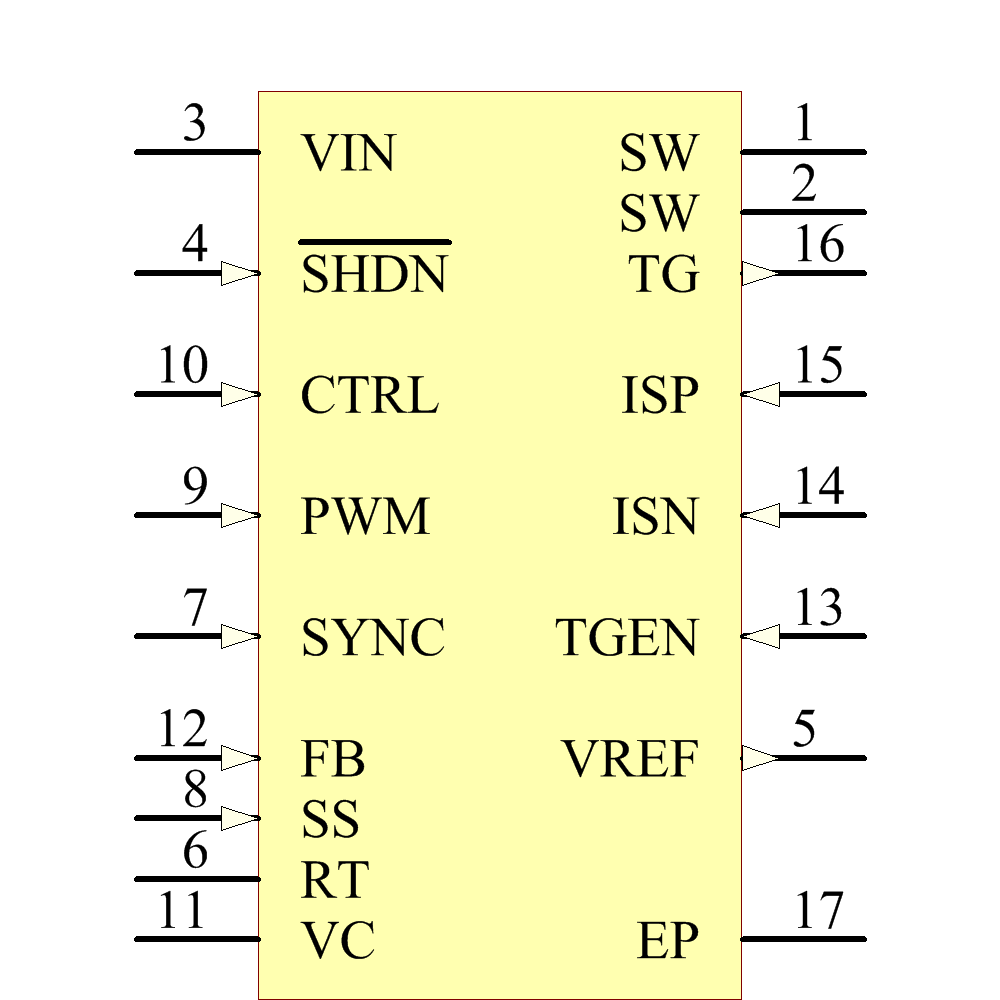

Symbol

LT3518HUF#PBF Symbol - Analog Devices

LT3518HUF#PBF Symbol - Analog Devices

LT3518HUF#PBF Symbol - Analog Devices

LT3518HUF#PBF Symbol - Analog Devices

‹ ›

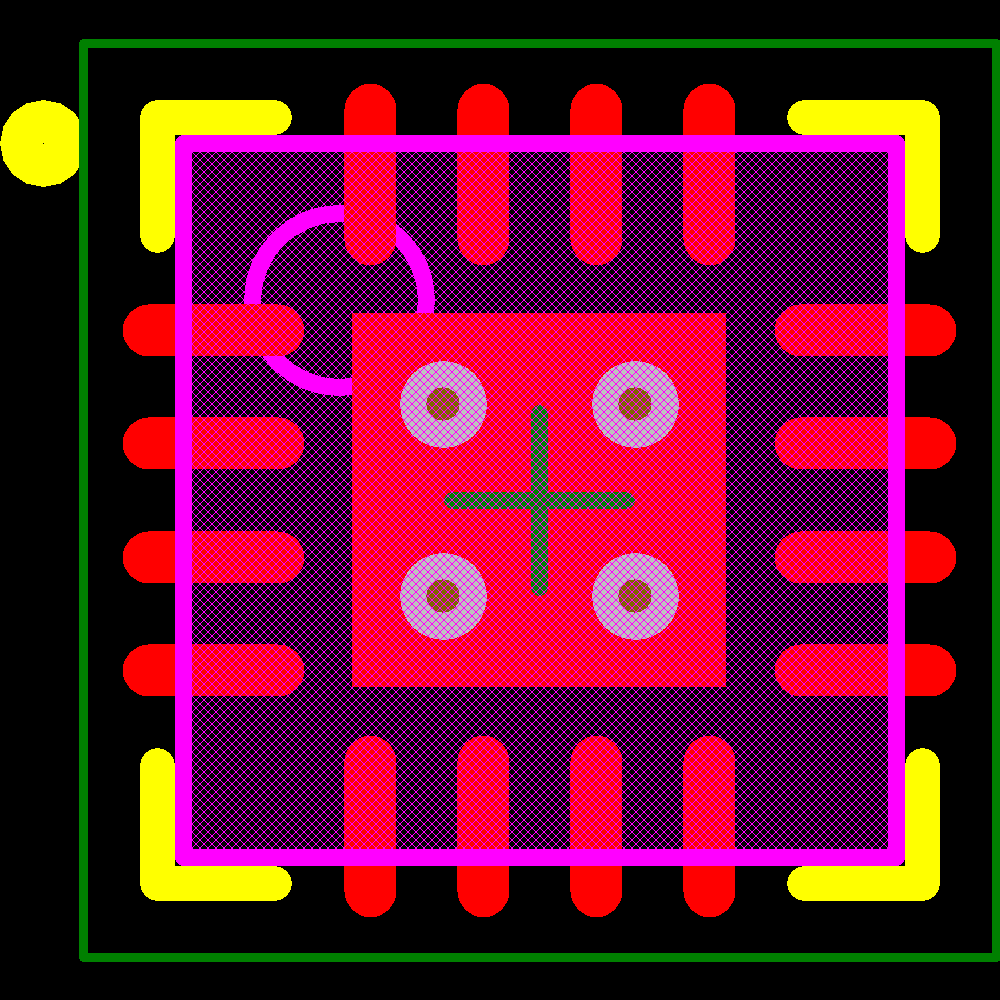

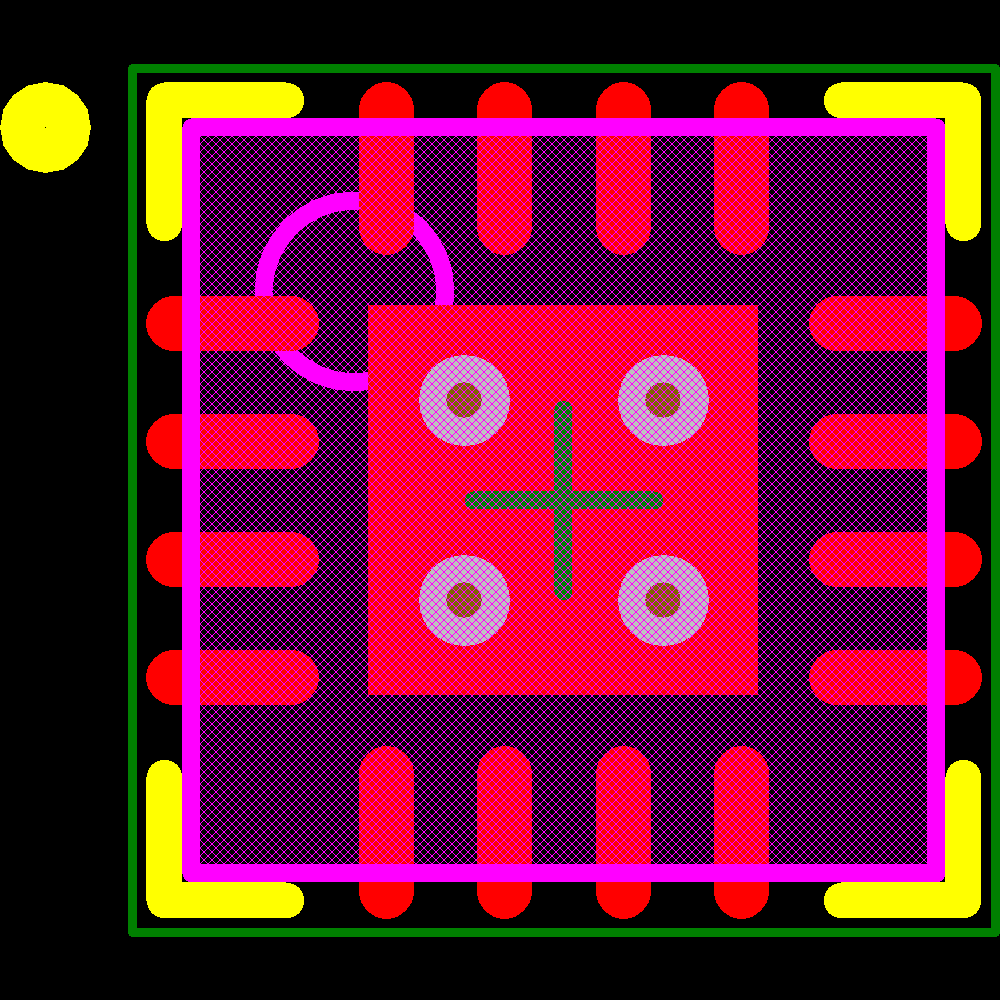

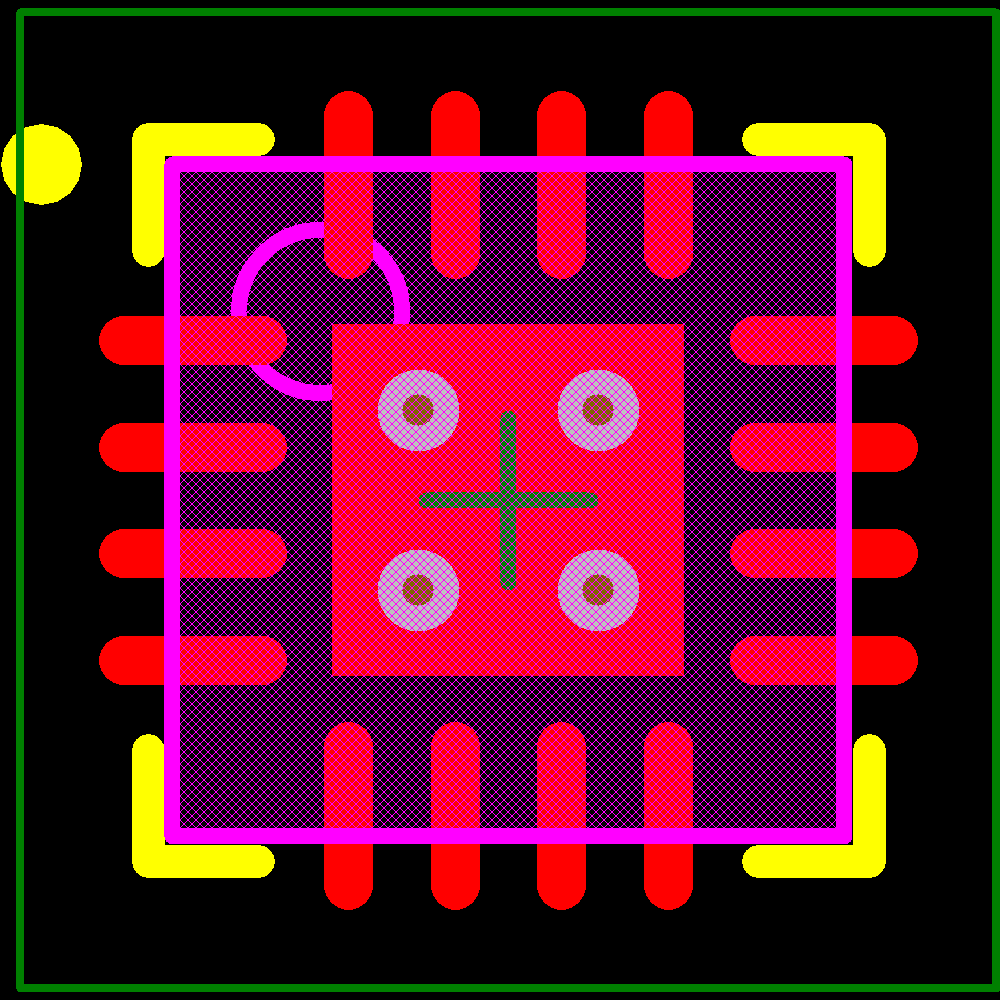

Footprint
