LT3519EMS-2#TRPBF - Analog Devices
LT3519/LT3519-1/LT3519-2 - LED Driver with Integrated Schottky Diode
Technical Details
| Case/Package | MSOP |
| Frequency | 2.4MHz |
| Height | 1.1mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 30V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 3.5mA |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Output Current | 750mA |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant |
| Switching Frequency | 2.2MHz |
| Topology | Boost, Buck, Buck-Boost |
Compliance
RoHS : Unconfirmed

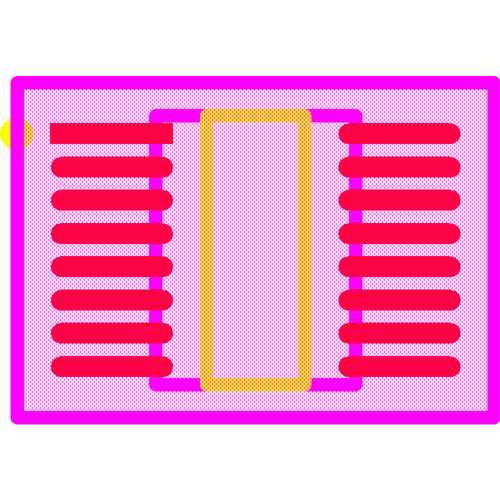

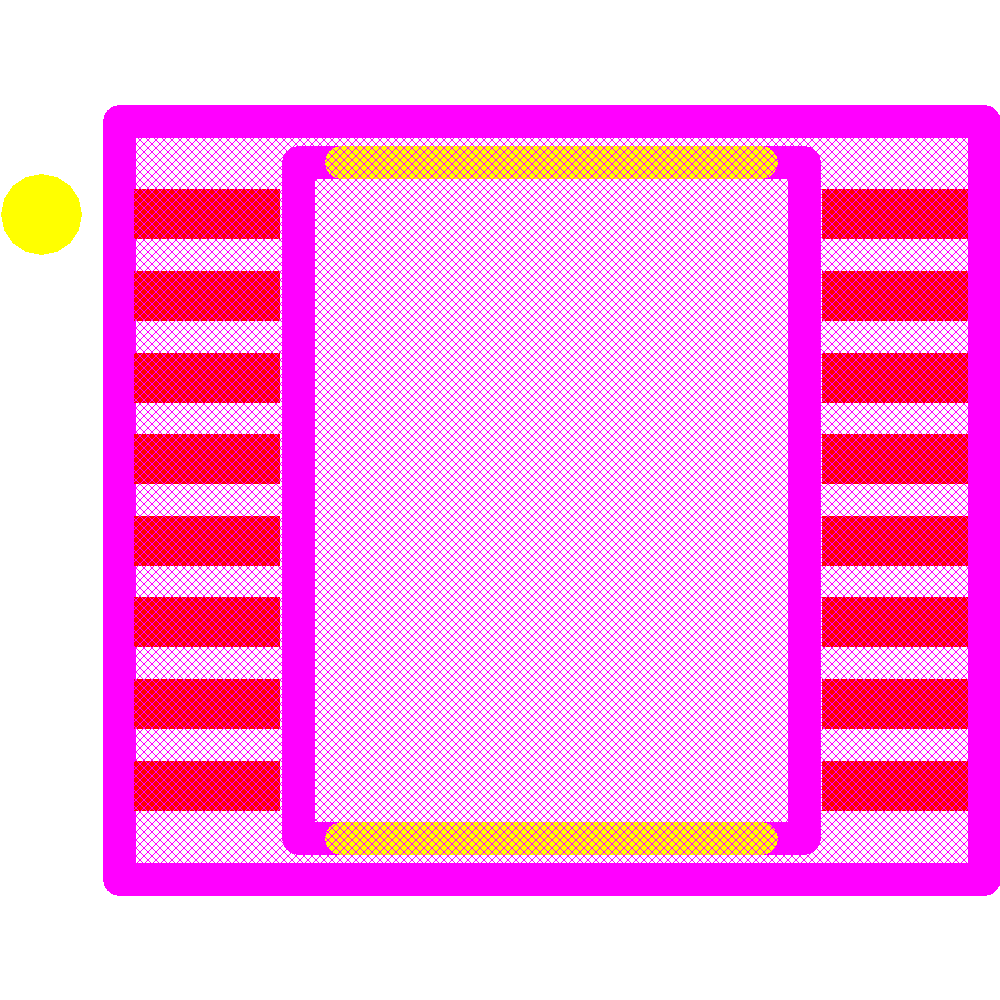

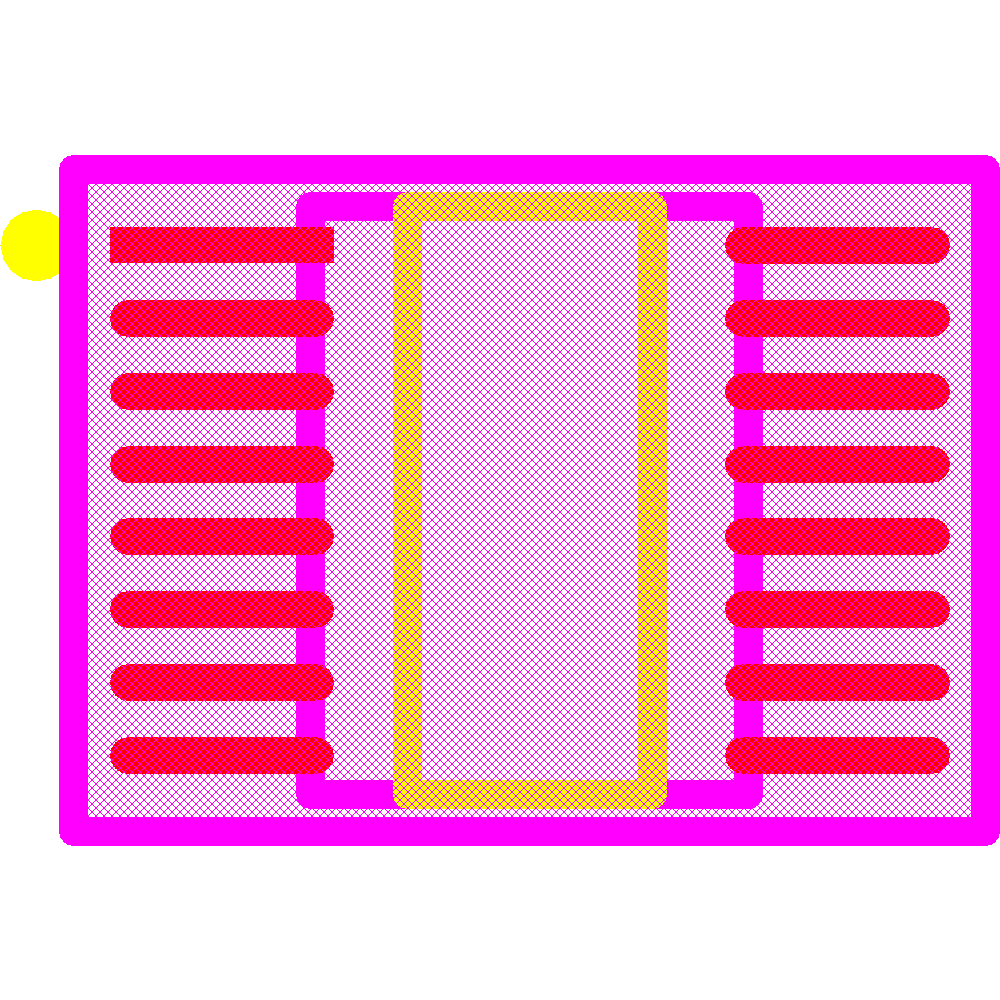

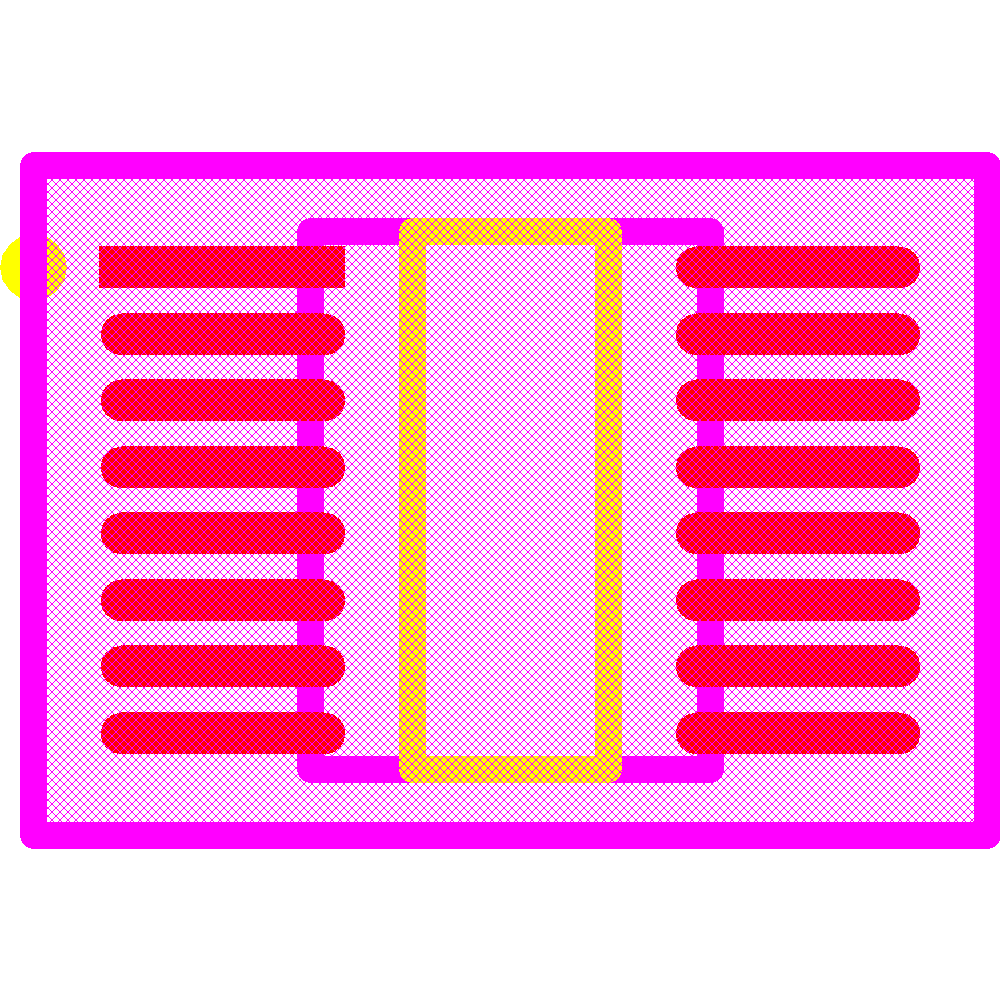

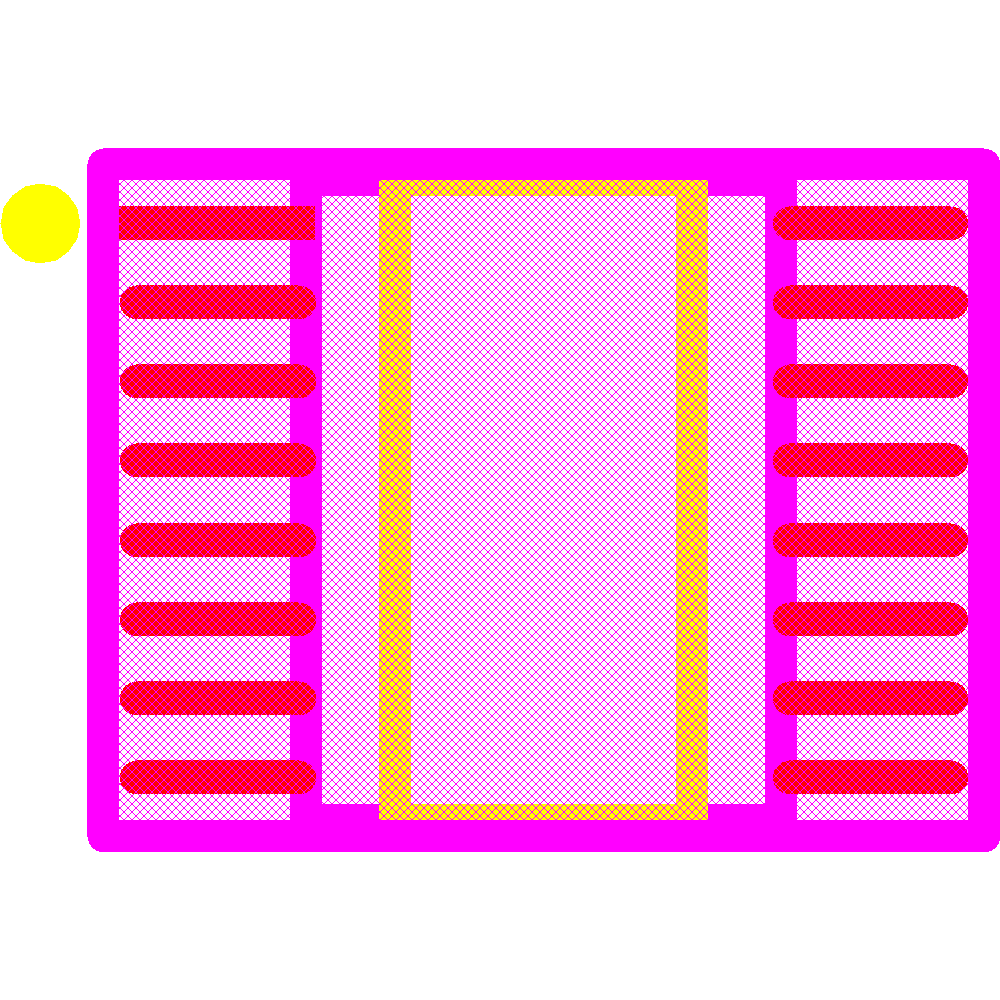

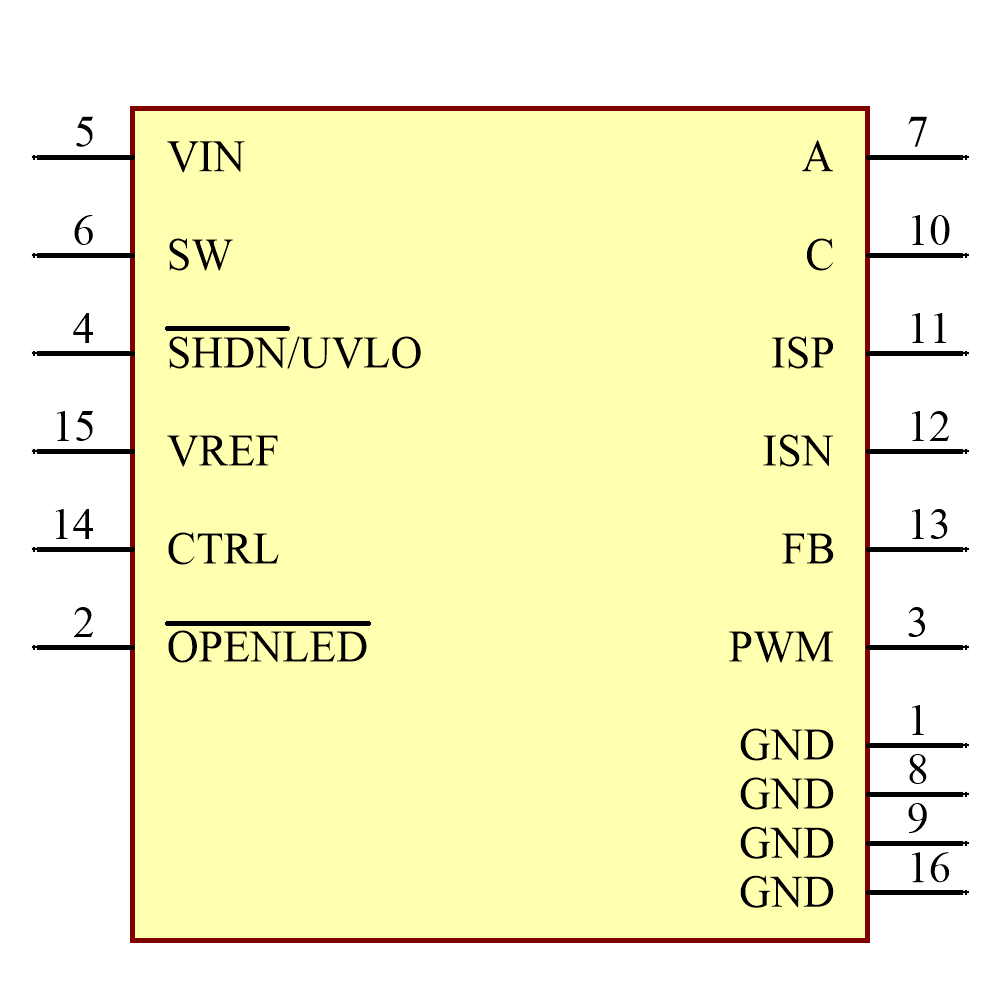

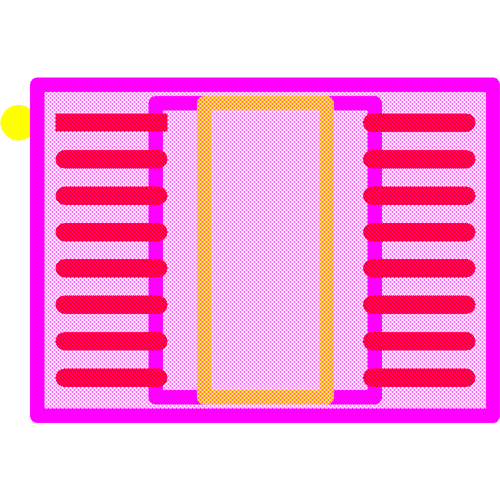

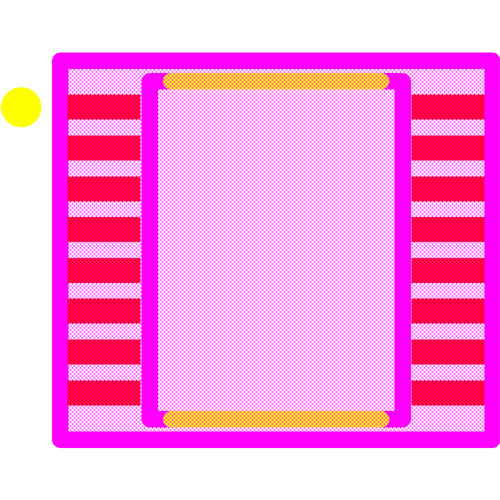

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Analog Devices |
US: 2500
|
$ | 3.47 | |||||||
| DigiKey |
DE: 0
|
$ | 4.9158 | |||||||
| Richardson RFPD |
US: -3
|
$ | 4.60 | |||||||
| Arrow Electronics |
US: 0
|
$ | 4.338 | |||||||
