LT3592EDDB#TRMPBF - Analog Devices
LT3592 - 500mA Wide Input Voltage Range Step-Down LED Driver with 10: 1 Dimming
Technical Details
| Case/Package | DFN |
| Frequency | 2.2MHz |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Input Voltage | 36V |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 36V |
| Min Input Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3.6V |
| Number of Outputs | 1 |
| Number of Pins | 10 |
| Number of Segments | 2 |
| Output Current | 500mA |
| Output Voltage | 30V |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 2.2MHz |
| Termination | SMD/SMT |
| Topology | Buck |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

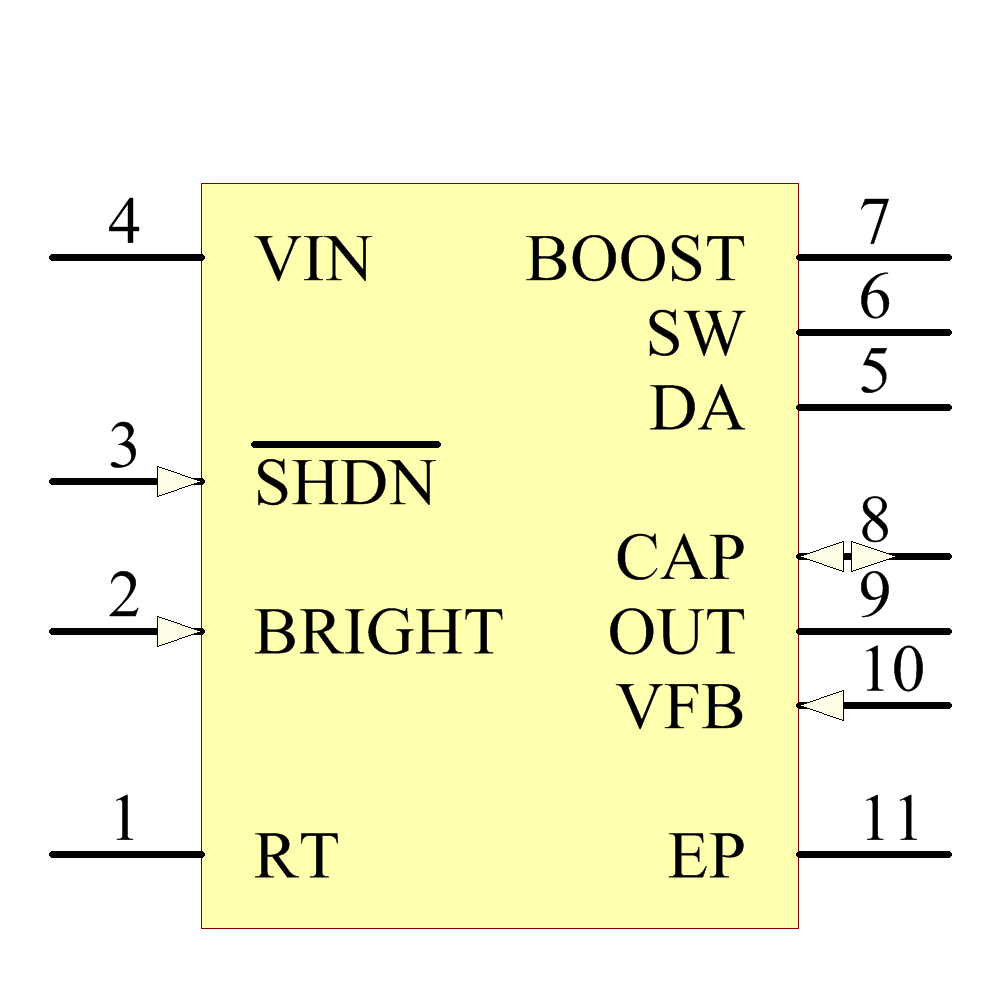

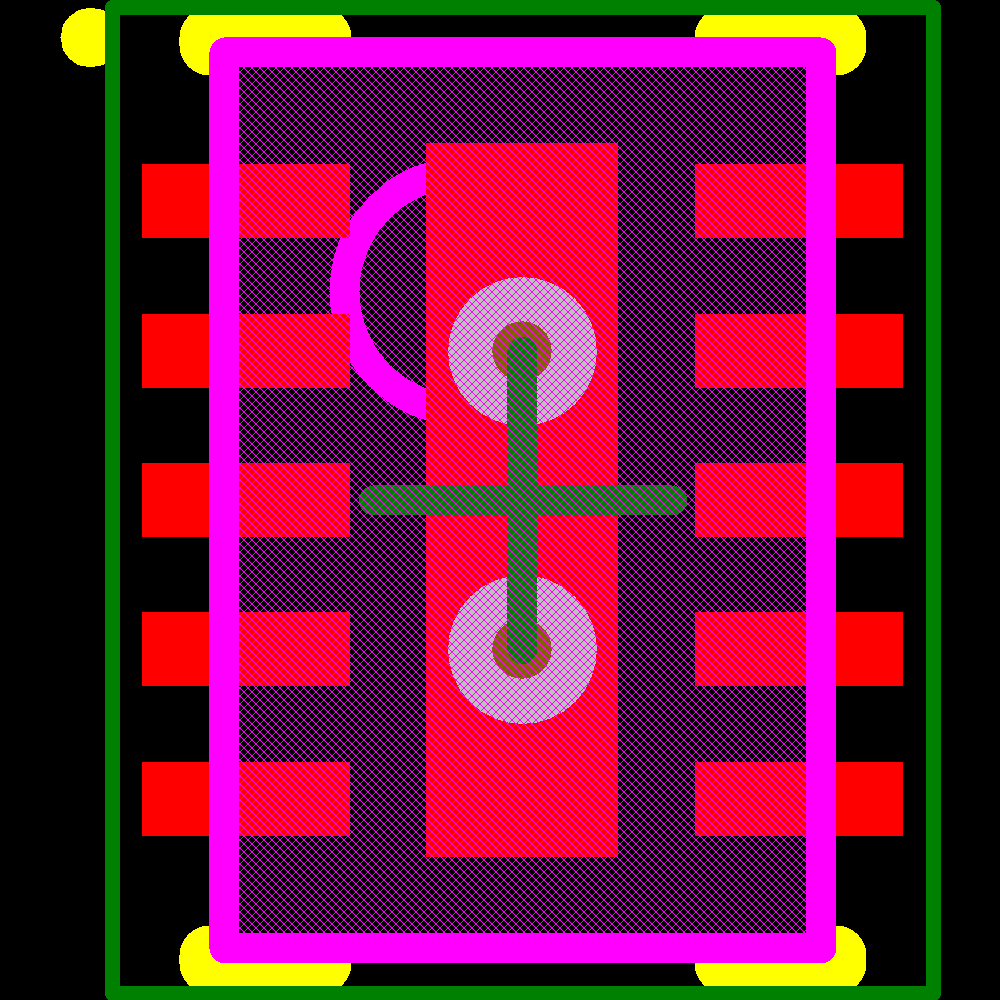

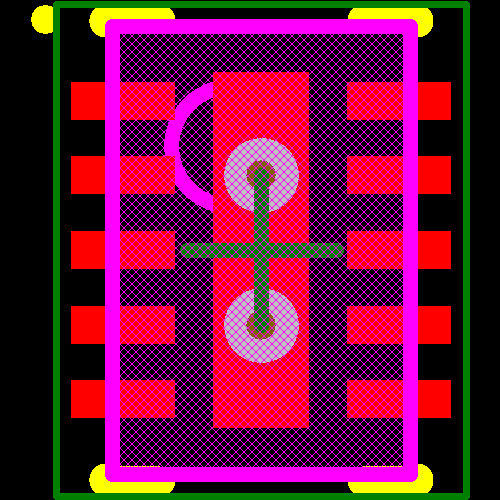

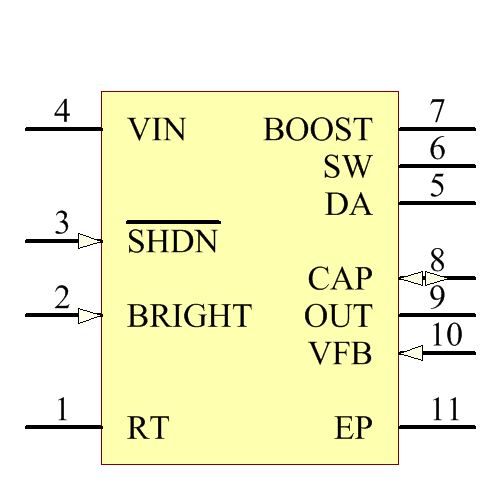

Images
