Integrated Circuits (ICs) > Power Management ICs > LED Drivers

LT3592IMSE#PBF - Analog Devices

30V 400kHz~2.2MHz Step-down 1 DC-DCVoltage Stabilizer 3.6V~36V MSOP-10-EP LED Drivers ROHS

Technical Details

Frequency	2.2MHz
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	PRODUCTION
Max Operating Temperature	125°C
Max Supply Voltage	36V
Min Input Voltage	3.6V
Min Operating Temperature	-40°C
Min Supply Voltage	3.6V
Number of Outputs	1
Number of Pins	10
Number of Segments	2
Output Voltage	20V
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Topology	Buck

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Analog Devices LT3592IMSE#PBF | Analog Devices

Analog Devices

Datasheets

Lifecycle Status Indicator

Production

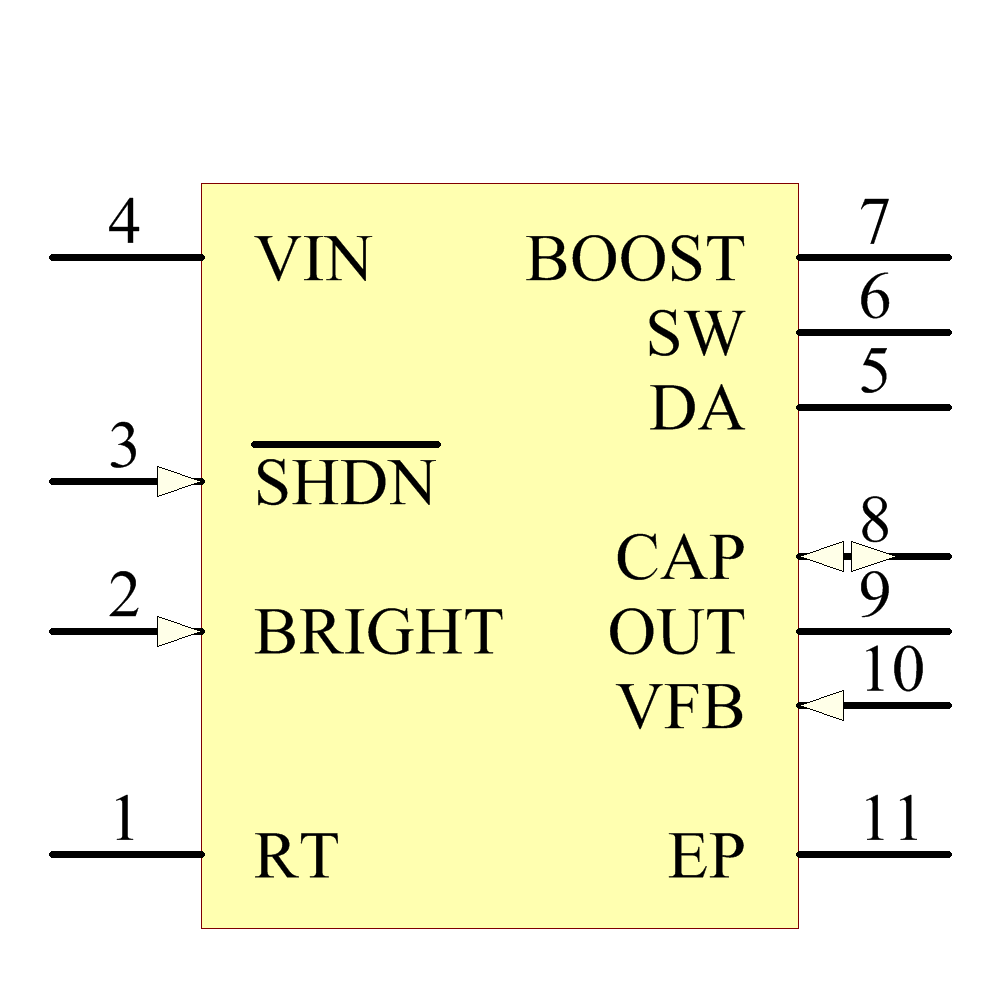

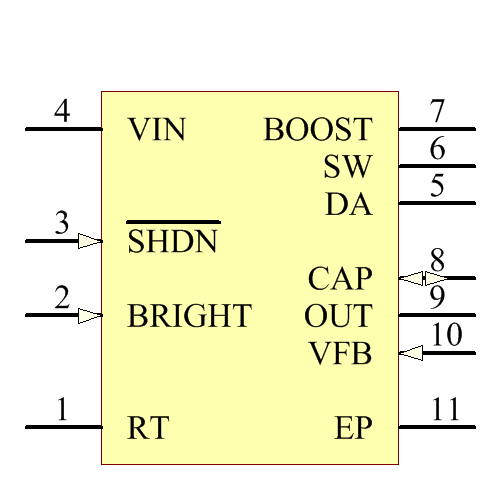

Symbol

LT3592IMSE#PBF Symbol - Analog Devices

LT3592IMSE#PBF Symbol - Analog Devices

LT3592IMSE#PBF Symbol - Analog Devices

LT3592IMSE#PBF Symbol - Analog Devices

‹ ›

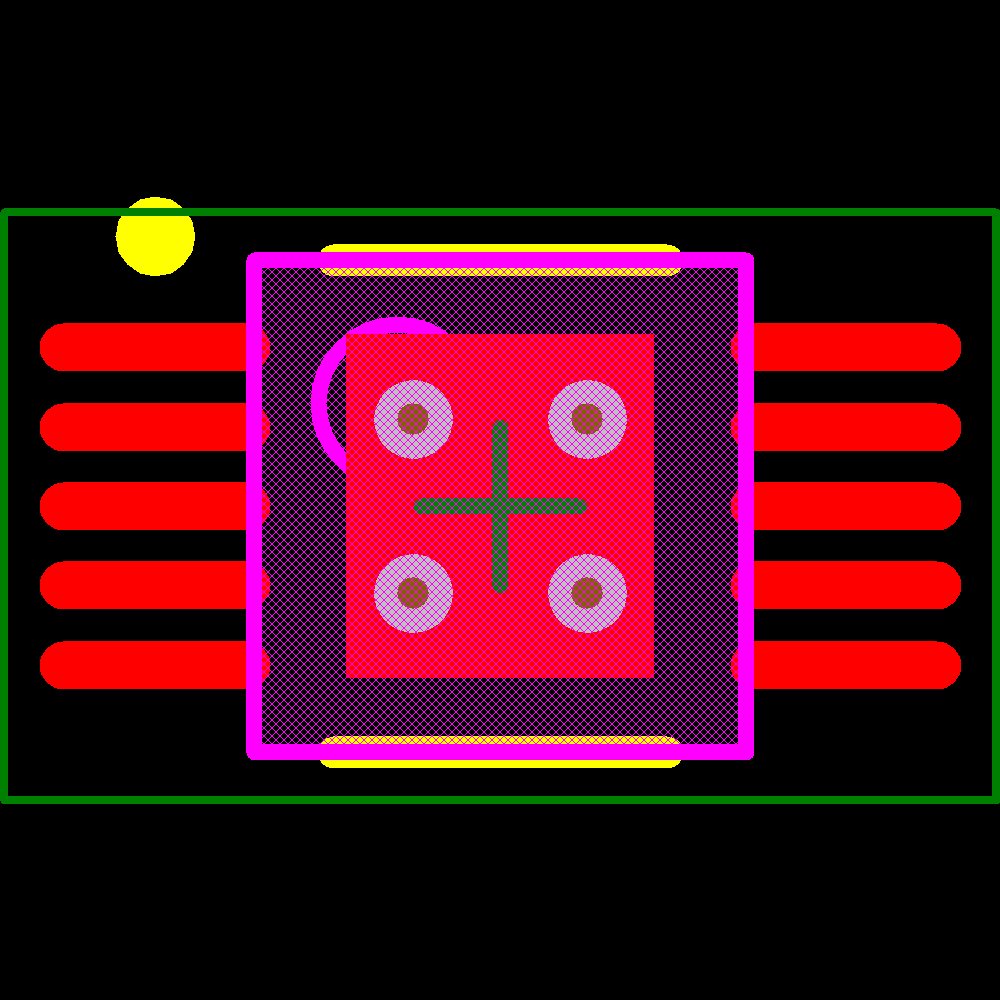

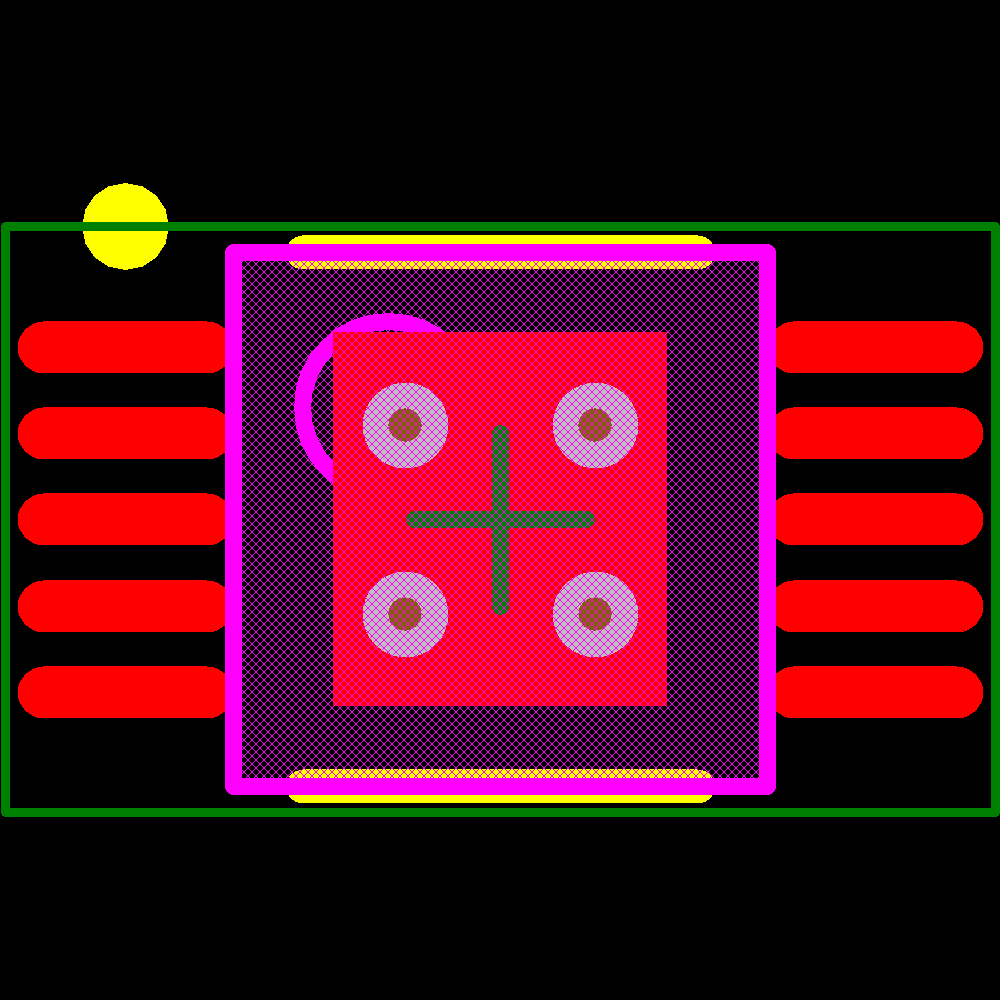

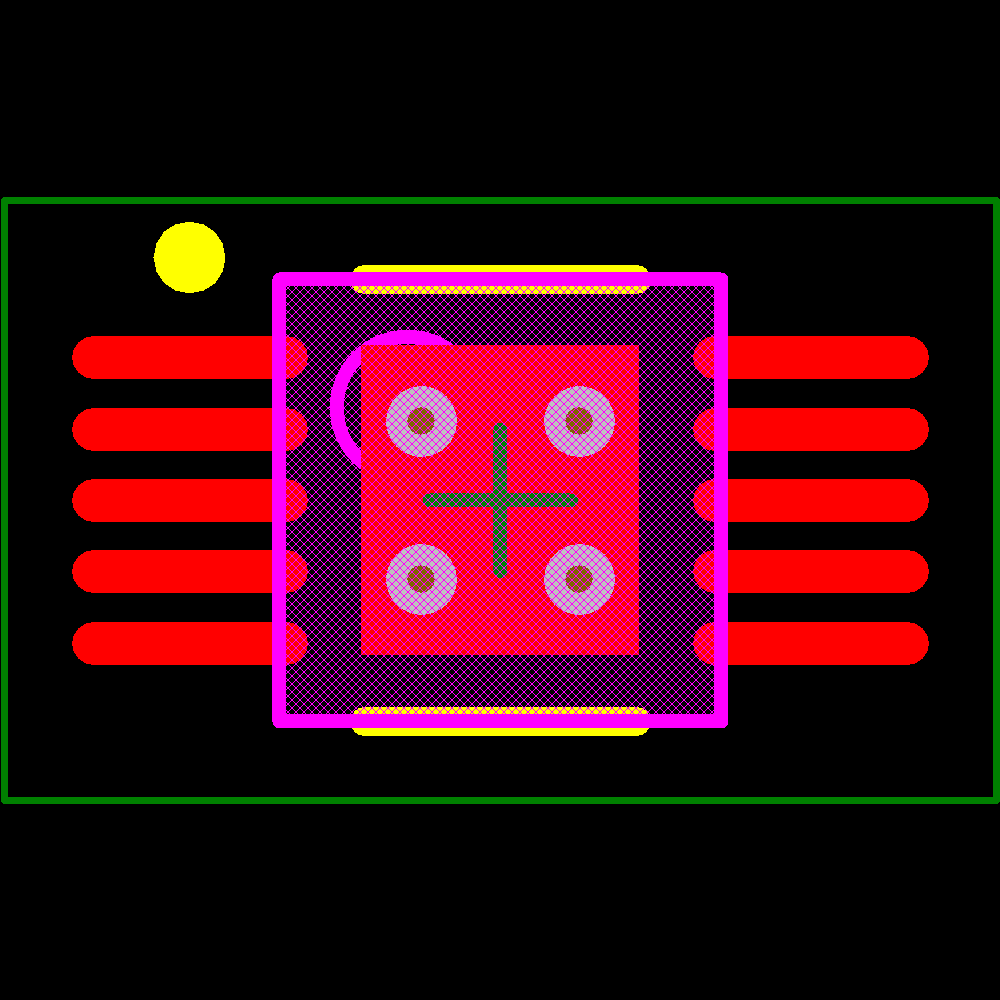

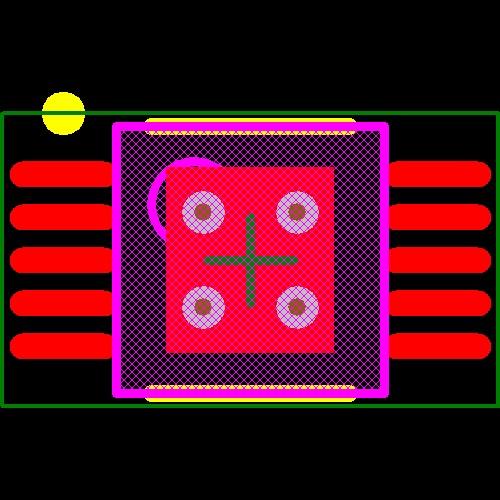

Footprint

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

LT3592IMSE#PBF Footprint - Analog Devices

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Analog Devices	LT3592IMSE#TRPBF	Production
Analog Devices	LT3003EMSE#PBF	Production
Analog Devices / Linear Technology	LT3003EMSE#TR	Unknown
Analog Devices / Linear Technology	LT3003EMSE	Unknown
Analog Devices	LT3003EMSE#TRPBF	Production
Microchip	MIC3232YMM	Production
Micrel	SY88905KC	Unknown
NXP Semiconductors	PCA9632DP2	EOL
Texas Instruments	TPS92560DGQ/NOPB	Production
Texas Instruments	LM3409MY/NOPB	Production
